Shape (JavaFX 8)

java.lang.Object
- javafx.scene.Node
- - javafx.scene.shape.Shape

All Implemented Interfaces:

Styleable, EventTarget

Direct Known Subclasses:

Arc, Circle, CubicCurve, Ellipse, Line, Path, Polygon, Polyline, QuadCurve, Rectangle, SVGPath, Text
```
public abstract class Shape
extends Node
```
The Shape class provides definitions of common properties for objects that represent some form of geometric shape. These properties include:
- The Paint to be applied to the fillable interior of the shape (see setFill).
- The Paint to be applied to stroke the outline of the shape (see setStroke).
- The decorative properties of the stroke, including:
  - The width of the border stroke.
  - Whether the border is drawn as an exterior padding to the edges of the shape, as an interior edging that follows the inside of the border, or as a wide path that follows along the border straddling it equally both inside and outside (see StrokeType).
  - Decoration styles for the joins between path segments and the unclosed ends of paths.
  - Dashing attributes.
Interaction with coordinate systems
Most nodes tend to have only integer translations applied to them and quite often they are defined using integer coordinates as well. For this common case, fills of shapes with straight line edges tend to be crisp since they line up with the cracks between pixels that fall on integer device coordinates and thus tend to naturally cover entire pixels.
On the other hand, stroking those same shapes can often lead to fuzzy outlines because the default stroking attributes specify both that the default stroke width is 1.0 coordinates which often maps to exactly 1 device pixel and also that the stroke should straddle the border of the shape, falling half on either side of the border. Since the borders in many common shapes tend to fall directly on integer coordinates and those integer coordinates often map precisely to integer device locations, the borders tend to result in 50% coverage over the pixel rows and columns on either side of the border of the shape rather than 100% coverage on one or the other. Thus, fills may typically be crisp, but strokes are often fuzzy.
Two common solutions to avoid these fuzzy outlines are to use wider strokes that cover more pixels completely - typically a stroke width of 2.0 will achieve this if there are no scale transforms in effect - or to specify either the StrokeType.INSIDE or StrokeType.OUTSIDE stroke styles - which will bias the default single unit stroke onto one of the full pixel rows or columns just inside or outside the border of the shape.
Since:

JavaFX 2.0

Property Summary

All Methods Instance Methods Concrete Methods
Type	Property and Description
`ObjectProperty<Paint>`	`fill` Defines parameters to fill the interior of an `Shape` using the settings of the `Paint` context.
`BooleanProperty`	`smooth` Defines whether antialiasing hints are used or not for this `Shape`.
`DoubleProperty`	`strokeDashOffset` Defines a distance specified in user coordinates that represents an offset into the dashing pattern.
`ObjectProperty<StrokeLineCap>`	`strokeLineCap` The end cap style of this `Shape` as one of the following values that define possible end cap styles: `StrokeLineCap.BUTT`, `StrokeLineCap.ROUND`, and `StrokeLineCap.SQUARE`.
`ObjectProperty<StrokeLineJoin>`	`strokeLineJoin` Defines the decoration applied where path segments meet.
`DoubleProperty`	`strokeMiterLimit` Defines the limit for the `StrokeLineJoin.MITER` line join style.
`ObjectProperty<Paint>`	`stroke` Defines parameters of a stroke that is drawn around the outline of a `Shape` using the settings of the specified `Paint`.
`ObjectProperty<StrokeType>`	`strokeType` Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.
`DoubleProperty`	`strokeWidth` Defines a square pen line width.

Properties inherited from class javafx.scene.Node
accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, visible

Field Summary
- Fields inherited from class javafx.scene.Node
  BASELINE_OFFSET_SAME_AS_HEIGHT

Constructor Summary

Constructors
Constructor and Description

Shape()

Constructors
Constructor and Description
`Shape()`

Method Summary

All Methods Static Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`ObjectProperty<Paint>`	`fillProperty()` Defines parameters to fill the interior of an `Shape` using the settings of the `Paint` context.
`static List<CssMetaData<? extends Styleable,?>>`	`getClassCssMetaData()`
`List<CssMetaData<? extends Styleable,?>>`	`getCssMetaData()` This method should delegate to `Node.getClassCssMetaData()` so that a Node's CssMetaData can be accessed without the need for reflection.
`Paint`	`getFill()` Gets the value of the property fill.
`Paint`	`getStroke()` Gets the value of the property stroke.
`ObservableList<Double>`	`getStrokeDashArray()` Defines the array representing the lengths of the dash segments.
`double`	`getStrokeDashOffset()` Gets the value of the property strokeDashOffset.
`StrokeLineCap`	`getStrokeLineCap()` Gets the value of the property strokeLineCap.
`StrokeLineJoin`	`getStrokeLineJoin()` Gets the value of the property strokeLineJoin.
`double`	`getStrokeMiterLimit()` Gets the value of the property strokeMiterLimit.
`StrokeType`	`getStrokeType()` Gets the value of the property strokeType.
`double`	`getStrokeWidth()` Gets the value of the property strokeWidth.
`static Shape`	`intersect(Shape shape1, Shape shape2)` Returns a new `Shape` which is created as an intersection of the specified input shapes.
`boolean`	`isSmooth()` Gets the value of the property smooth.
`void`	`setFill(Paint value)` Sets the value of the property fill.
`void`	`setSmooth(boolean value)` Sets the value of the property smooth.
`void`	`setStroke(Paint value)` Sets the value of the property stroke.
`void`	`setStrokeDashOffset(double value)` Sets the value of the property strokeDashOffset.
`void`	`setStrokeLineCap(StrokeLineCap value)` Sets the value of the property strokeLineCap.
`void`	`setStrokeLineJoin(StrokeLineJoin value)` Sets the value of the property strokeLineJoin.
`void`	`setStrokeMiterLimit(double value)` Sets the value of the property strokeMiterLimit.
`void`	`setStrokeType(StrokeType value)` Sets the value of the property strokeType.
`void`	`setStrokeWidth(double value)` Sets the value of the property strokeWidth.
`BooleanProperty`	`smoothProperty()` Defines whether antialiasing hints are used or not for this `Shape`.
`DoubleProperty`	`strokeDashOffsetProperty()` Defines a distance specified in user coordinates that represents an offset into the dashing pattern.
`ObjectProperty<StrokeLineCap>`	`strokeLineCapProperty()` The end cap style of this `Shape` as one of the following values that define possible end cap styles: `StrokeLineCap.BUTT`, `StrokeLineCap.ROUND`, and `StrokeLineCap.SQUARE`.
`ObjectProperty<StrokeLineJoin>`	`strokeLineJoinProperty()` Defines the decoration applied where path segments meet.
`DoubleProperty`	`strokeMiterLimitProperty()` Defines the limit for the `StrokeLineJoin.MITER` line join style.
`ObjectProperty<Paint>`	`strokeProperty()` Defines parameters of a stroke that is drawn around the outline of a `Shape` using the settings of the specified `Paint`.
`ObjectProperty<StrokeType>`	`strokeTypeProperty()` Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.
`DoubleProperty`	`strokeWidthProperty()` Defines a square pen line width.
`static Shape`	`subtract(Shape shape1, Shape shape2)` Returns a new `Shape` which is created by subtracting the specified second shape from the first shape.
`static Shape`	`union(Shape shape1, Shape shape2)` Returns a new `Shape` which is created as a union of the specified input shapes.

Methods inherited from class javafx.scene.Node
accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, executeAccessibleAction, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBaselineOffset, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, hasProperties, hoverProperty, idProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isResizable, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookup, lookupAll, managedProperty, maxHeight, maxWidth, minHeight, minWidth, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, prefHeight, prefWidth, pressedProperty, pseudoClassStateChanged, queryAccessibleAttribute, relocate, removeEventFilter, removeEventHandler, requestFocus, resize, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, visibleProperty

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Property Detail
  - strokeType
```
public final ObjectProperty<StrokeType> strokeTypeProperty
```
    Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.

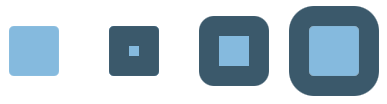

    The image shows a shape without stroke and with a thick stroke applied inside, centered and outside.

    Default value:

    CENTERED

    See Also:

    getStrokeType(), setStrokeType(StrokeType)
  - strokeWidth
```
public final DoubleProperty strokeWidthProperty
```
    Defines a square pen line width. A value of 0.0 specifies a hairline stroke. A value of less than 0.0 will be treated as 0.0.

    Default value:

    1.0

    See Also:

    getStrokeWidth(), setStrokeWidth(double)
  - strokeLineJoin
```
public final ObjectProperty<StrokeLineJoin> strokeLineJoinProperty
```
    Defines the decoration applied where path segments meet. The value must have one of the following values: StrokeLineJoin.MITER, StrokeLineJoin.BEVEL, and StrokeLineJoin.ROUND. The image shows a shape using the values in the mentioned order.

    Default value:

    MITER

    See Also:

    getStrokeLineJoin(), setStrokeLineJoin(StrokeLineJoin)
  - strokeLineCap
```
public final ObjectProperty<StrokeLineCap> strokeLineCapProperty
```
    The end cap style of this Shape as one of the following values that define possible end cap styles: StrokeLineCap.BUTT, StrokeLineCap.ROUND, and StrokeLineCap.SQUARE. The image shows a line using the values in the mentioned order.

    Default value:

    SQUARE

    See Also:

    getStrokeLineCap(), setStrokeLineCap(StrokeLineCap)
  - strokeMiterLimit
```
public final DoubleProperty strokeMiterLimitProperty
```
    Defines the limit for the StrokeLineJoin.MITER line join style. A value of less than 1.0 will be treated as 1.0.

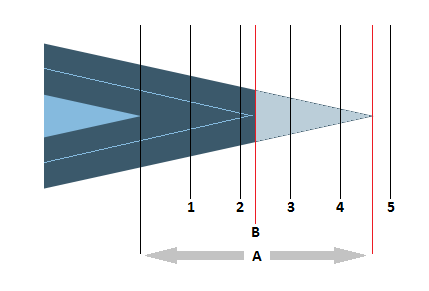

    The image demonstrates the behavior. Miter length (A) is computed as the distance of the most inside point to the most outside point of the joint, with the stroke width as a unit. If the miter length is bigger than the given miter limit, the miter is cut at the edge of the shape (B). For the situation in the image it means that the miter will be cut at B for limit values less than 4.65.

    Default value:

    10.0

    See Also:

    getStrokeMiterLimit(), setStrokeMiterLimit(double)
  - strokeDashOffset
```
public final DoubleProperty strokeDashOffsetProperty
```
    Defines a distance specified in user coordinates that represents an offset into the dashing pattern. In other words, the dash phase defines the point in the dashing pattern that will correspond to the beginning of the stroke.
    The image shows a stroke with dash array [25, 20, 5, 20] and a stroke with the same pattern and offset 45 which shifts the pattern about the length of the first dash segment and the following space.

    Default value:

    0

    See Also:

    getStrokeDashOffset(), setStrokeDashOffset(double)
  - fill
```
public final ObjectProperty<Paint> fillProperty
```
    Defines parameters to fill the interior of an Shape using the settings of the Paint context. The default value is Color.BLACK for all shapes except Line, Polyline, and Path. The default value is null for those shapes.

    See Also:

    getFill(), setFill(Paint)
  - stroke
```
public final ObjectProperty<Paint> strokeProperty
```
    Defines parameters of a stroke that is drawn around the outline of a Shape using the settings of the specified Paint. The default value is null for all shapes except Line, Polyline, and Path. The default value is Color.BLACK for those shapes.

    See Also:

    getStroke(), setStroke(Paint)
  - smooth
```
public final BooleanProperty smoothProperty
```
    Defines whether antialiasing hints are used or not for this Shape. If the value equals true the rendering hints are applied.

    Default value:

    true

    See Also:

    isSmooth(), setSmooth(boolean)
- Constructor Detail
  - Shape
```
public Shape()
```
- Method Detail
  - setStrokeType
```
public final void setStrokeType(StrokeType value)
```
    Sets the value of the property strokeType.

    Property description:

    Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.
    The image shows a shape without stroke and with a thick stroke applied inside, centered and outside.

    Default value:

    CENTERED
  - getStrokeType
```
public final StrokeType getStrokeType()
```
    Gets the value of the property strokeType.

    Property description:

    Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.
    The image shows a shape without stroke and with a thick stroke applied inside, centered and outside.

    Default value:

    CENTERED
  - strokeTypeProperty
```
public final ObjectProperty<StrokeType> strokeTypeProperty()
```
    Defines the direction (inside, centered, or outside) that the strokeWidth is applied to the boundary of the shape.
    The image shows a shape without stroke and with a thick stroke applied inside, centered and outside.

    Default value:

    CENTERED

    See Also:

    getStrokeType(), setStrokeType(StrokeType)
  - setStrokeWidth
```
public final void setStrokeWidth(double value)
```
    Sets the value of the property strokeWidth.

    Property description:

    Defines a square pen line width. A value of 0.0 specifies a hairline stroke. A value of less than 0.0 will be treated as 0.0.

    Default value:

    1.0
  - getStrokeWidth
```
public final double getStrokeWidth()
```
    Gets the value of the property strokeWidth.

    Property description:

    Defines a square pen line width. A value of 0.0 specifies a hairline stroke. A value of less than 0.0 will be treated as 0.0.

    Default value:

    1.0
  - strokeWidthProperty
```
public final DoubleProperty strokeWidthProperty()
```
    Defines a square pen line width. A value of 0.0 specifies a hairline stroke. A value of less than 0.0 will be treated as 0.0.

    Default value:

    1.0

    See Also:

    getStrokeWidth(), setStrokeWidth(double)
  - setStrokeLineJoin
```
public final void setStrokeLineJoin(StrokeLineJoin value)
```
    Sets the value of the property strokeLineJoin.

    Property description:

    Defines the decoration applied where path segments meet. The value must have one of the following values: StrokeLineJoin.MITER, StrokeLineJoin.BEVEL, and StrokeLineJoin.ROUND. The image shows a shape using the values in the mentioned order.

    Default value:

    MITER
  - getStrokeLineJoin
```
public final StrokeLineJoin getStrokeLineJoin()
```
    Gets the value of the property strokeLineJoin.

    Property description:

    Defines the decoration applied where path segments meet. The value must have one of the following values: StrokeLineJoin.MITER, StrokeLineJoin.BEVEL, and StrokeLineJoin.ROUND. The image shows a shape using the values in the mentioned order.

    Default value:

    MITER
  - strokeLineJoinProperty
```
public final ObjectProperty<StrokeLineJoin> strokeLineJoinProperty()
```
    Defines the decoration applied where path segments meet. The value must have one of the following values: StrokeLineJoin.MITER, StrokeLineJoin.BEVEL, and StrokeLineJoin.ROUND. The image shows a shape using the values in the mentioned order.

    Default value:

    MITER

    See Also:

    getStrokeLineJoin(), setStrokeLineJoin(StrokeLineJoin)
  - setStrokeLineCap
```
public final void setStrokeLineCap(StrokeLineCap value)
```
    Sets the value of the property strokeLineCap.

    Property description:

    The end cap style of this Shape as one of the following values that define possible end cap styles: StrokeLineCap.BUTT, StrokeLineCap.ROUND, and StrokeLineCap.SQUARE. The image shows a line using the values in the mentioned order.

    Default value:

    SQUARE
  - getStrokeLineCap
```
public final StrokeLineCap getStrokeLineCap()
```
    Gets the value of the property strokeLineCap.

    Property description:

    The end cap style of this Shape as one of the following values that define possible end cap styles: StrokeLineCap.BUTT, StrokeLineCap.ROUND, and StrokeLineCap.SQUARE. The image shows a line using the values in the mentioned order.

    Default value:

    SQUARE
  - strokeLineCapProperty
```
public final ObjectProperty<StrokeLineCap> strokeLineCapProperty()
```
    The end cap style of this Shape as one of the following values that define possible end cap styles: StrokeLineCap.BUTT, StrokeLineCap.ROUND, and StrokeLineCap.SQUARE. The image shows a line using the values in the mentioned order.

    Default value:

    SQUARE

    See Also:

    getStrokeLineCap(), setStrokeLineCap(StrokeLineCap)
  - setStrokeMiterLimit
```
public final void setStrokeMiterLimit(double value)
```
    Sets the value of the property strokeMiterLimit.

    Property description:

    Defines the limit for the StrokeLineJoin.MITER line join style. A value of less than 1.0 will be treated as 1.0.
    The image demonstrates the behavior. Miter length (A) is computed as the distance of the most inside point to the most outside point of the joint, with the stroke width as a unit. If the miter length is bigger than the given miter limit, the miter is cut at the edge of the shape (B). For the situation in the image it means that the miter will be cut at B for limit values less than 4.65.

    Default value:

    10.0
  - getStrokeMiterLimit
```
public final double getStrokeMiterLimit()
```
    Gets the value of the property strokeMiterLimit.

    Property description:

    Defines the limit for the StrokeLineJoin.MITER line join style. A value of less than 1.0 will be treated as 1.0.
    The image demonstrates the behavior. Miter length (A) is computed as the distance of the most inside point to the most outside point of the joint, with the stroke width as a unit. If the miter length is bigger than the given miter limit, the miter is cut at the edge of the shape (B). For the situation in the image it means that the miter will be cut at B for limit values less than 4.65.

    Default value:

    10.0
  - strokeMiterLimitProperty
```
public final DoubleProperty strokeMiterLimitProperty()
```
    Defines the limit for the StrokeLineJoin.MITER line join style. A value of less than 1.0 will be treated as 1.0.
    The image demonstrates the behavior. Miter length (A) is computed as the distance of the most inside point to the most outside point of the joint, with the stroke width as a unit. If the miter length is bigger than the given miter limit, the miter is cut at the edge of the shape (B). For the situation in the image it means that the miter will be cut at B for limit values less than 4.65.

    Default value:

    10.0

    See Also:

    getStrokeMiterLimit(), setStrokeMiterLimit(double)
  - setStrokeDashOffset
```
public final void setStrokeDashOffset(double value)
```
    Sets the value of the property strokeDashOffset.

    Property description:

    Defines a distance specified in user coordinates that represents an offset into the dashing pattern. In other words, the dash phase defines the point in the dashing pattern that will correspond to the beginning of the stroke.
    The image shows a stroke with dash array [25, 20, 5, 20] and a stroke with the same pattern and offset 45 which shifts the pattern about the length of the first dash segment and the following space.

    Default value:

    0
  - getStrokeDashOffset
```
public final double getStrokeDashOffset()
```
    Gets the value of the property strokeDashOffset.

    Property description:

    Defines a distance specified in user coordinates that represents an offset into the dashing pattern. In other words, the dash phase defines the point in the dashing pattern that will correspond to the beginning of the stroke.
    The image shows a stroke with dash array [25, 20, 5, 20] and a stroke with the same pattern and offset 45 which shifts the pattern about the length of the first dash segment and the following space.

    Default value:

    0
  - strokeDashOffsetProperty
```
public final DoubleProperty strokeDashOffsetProperty()
```
    Defines a distance specified in user coordinates that represents an offset into the dashing pattern. In other words, the dash phase defines the point in the dashing pattern that will correspond to the beginning of the stroke.
    The image shows a stroke with dash array [25, 20, 5, 20] and a stroke with the same pattern and offset 45 which shifts the pattern about the length of the first dash segment and the following space.

    Default value:

    0

    See Also:

    getStrokeDashOffset(), setStrokeDashOffset(double)
  - getStrokeDashArray
```
public final ObservableList<Double> getStrokeDashArray()
```
    Defines the array representing the lengths of the dash segments. Alternate entries in the array represent the user space lengths of the opaque and transparent segments of the dashes. As the pen moves along the outline of the Shape to be stroked, the user space distance that the pen travels is accumulated. The distance value is used to index into the dash array. The pen is opaque when its current cumulative distance maps to an even element of the dash array (counting from 0) and transparent otherwise.
    An empty strokeDashArray indicates a solid line with no spaces. An odd length strokeDashArray behaves the same as an even length array constructed by implicitly repeating the indicated odd length array twice in succession ([20, 5, 15] behaves as if it were [20, 5, 15, 20, 5, 15]).
    Note that each dash segment will be capped by the decoration specified by the current stroke line cap.

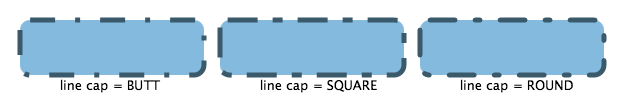

    The image shows a shape with stroke dash array [25, 20, 5, 20] and 3 different values for the stroke line cap: StrokeLineCap.BUTT, StrokeLineCap.SQUARE (the default), and StrokeLineCap.ROUND

    Default value:

    empty
  - setFill
```
public final void setFill(Paint value)
```
    Sets the value of the property fill.

    Property description:

    Defines parameters to fill the interior of an Shape using the settings of the Paint context. The default value is Color.BLACK for all shapes except Line, Polyline, and Path. The default value is null for those shapes.
  - getFill
```
public final Paint getFill()
```
    Gets the value of the property fill.

    Property description:

    Defines parameters to fill the interior of an Shape using the settings of the Paint context. The default value is Color.BLACK for all shapes except Line, Polyline, and Path. The default value is null for those shapes.
  - fillProperty
```
public final ObjectProperty<Paint> fillProperty()
```
    Defines parameters to fill the interior of an Shape using the settings of the Paint context. The default value is Color.BLACK for all shapes except Line, Polyline, and Path. The default value is null for those shapes.

    See Also:

    getFill(), setFill(Paint)
  - setStroke
```
public final void setStroke(Paint value)
```
    Sets the value of the property stroke.

    Property description:

    Defines parameters of a stroke that is drawn around the outline of a Shape using the settings of the specified Paint. The default value is null for all shapes except Line, Polyline, and Path. The default value is Color.BLACK for those shapes.
  - getStroke
```
public final Paint getStroke()
```
    Gets the value of the property stroke.

    Property description:

    Defines parameters of a stroke that is drawn around the outline of a Shape using the settings of the specified Paint. The default value is null for all shapes except Line, Polyline, and Path. The default value is Color.BLACK for those shapes.
  - strokeProperty
```
public final ObjectProperty<Paint> strokeProperty()
```
    Defines parameters of a stroke that is drawn around the outline of a Shape using the settings of the specified Paint. The default value is null for all shapes except Line, Polyline, and Path. The default value is Color.BLACK for those shapes.

    See Also:

    getStroke(), setStroke(Paint)
  - setSmooth
```
public final void setSmooth(boolean value)
```
    Sets the value of the property smooth.

    Property description:

    Defines whether antialiasing hints are used or not for this Shape. If the value equals true the rendering hints are applied.

    Default value:

    true
  - isSmooth
```
public final boolean isSmooth()
```
    Gets the value of the property smooth.

    Property description:

    Defines whether antialiasing hints are used or not for this Shape. If the value equals true the rendering hints are applied.

    Default value:

    true
  - smoothProperty
```
public final BooleanProperty smoothProperty()
```
    Defines whether antialiasing hints are used or not for this Shape. If the value equals true the rendering hints are applied.

    Default value:

    true

    See Also:

    isSmooth(), setSmooth(boolean)
  - getClassCssMetaData
```
public static List<CssMetaData<? extends Styleable,?>> getClassCssMetaData()
```
    Returns:

    The CssMetaData associated with this class, which may include the CssMetaData of its super classes.

    Since:

    JavaFX 8.0
  - getCssMetaData
```
public List<CssMetaData<? extends Styleable,?>> getCssMetaData()
```
    This method should delegate to Node.getClassCssMetaData() so that a Node's CssMetaData can be accessed without the need for reflection.

    Specified by:

    getCssMetaData in interface Styleable

    Overrides:

    getCssMetaData in class Node

    Returns:

    The CssMetaData associated with this node, which may include the CssMetaData of its super classes.

    Since:

    JavaFX 8.0
  - union
```
public static Shape union(Shape shape1,
                          Shape shape2)
```
    Returns a new Shape which is created as a union of the specified input shapes.
    The operation works with geometric areas occupied by the input shapes. For a single Shape such area includes the area occupied by the fill if the shape has a non-null fill and the area occupied by the stroke if the shape has a non-null stroke. So the area is empty for a shape with null stroke and null fill. The area of an input shape considered by the operation is independent on the type and configuration of the paint used for fill or stroke. Before the final operation the areas of the input shapes are transformed to the parent coordinate space of their respective topmost parent nodes.
    The resulting shape will include areas that were contained in any of the input shapes.
```
         shape1       +       shape2       =       result
   +----------------+   +----------------+   +----------------+
   |################|   |################|   |################|
   |##############  |   |  ##############|   |################|
   |############    |   |    ############|   |################|
   |##########      |   |      ##########|   |################|
   |########        |   |        ########|   |################|
   |######          |   |          ######|   |######    ######|
   |####            |   |            ####|   |####        ####|
   |##              |   |              ##|   |##            ##|
   +----------------+   +----------------+   +----------------+
```
    Parameters:

    shape1 - the first shape

    shape2 - the second shape

    Returns:

    the created Shape
  - subtract
```
public static Shape subtract(Shape shape1,
                             Shape shape2)
```
    Returns a new Shape which is created by subtracting the specified second shape from the first shape.
    The operation works with geometric areas occupied by the input shapes. For a single Shape such area includes the area occupied by the fill if the shape has a non-null fill and the area occupied by the stroke if the shape has a non-null stroke. So the area is empty for a shape with null stroke and null fill. The area of an input shape considered by the operation is independent on the type and configuration of the paint used for fill or stroke. Before the final operation the areas of the input shapes are transformed to the parent coordinate space of their respective topmost parent nodes.
    The resulting shape will include areas that were contained only in the first shape and not in the second shape.
```
         shape1       -       shape2       =       result
   +----------------+   +----------------+   +----------------+
   |################|   |################|   |                |
   |##############  |   |  ##############|   |##              |
   |############    |   |    ############|   |####            |
   |##########      |   |      ##########|   |######          |
   |########        |   |        ########|   |########        |
   |######          |   |          ######|   |######          |
   |####            |   |            ####|   |####            |
   |##              |   |              ##|   |##              |
   +----------------+   +----------------+   +----------------+
```
    Parameters:

    shape1 - the first shape

    shape2 - the second shape

    Returns:

    the created Shape
  - intersect
```
public static Shape intersect(Shape shape1,
                              Shape shape2)
```
    Returns a new Shape which is created as an intersection of the specified input shapes.
    The operation works with geometric areas occupied by the input shapes. For a single Shape such area includes the area occupied by the fill if the shape has a non-null fill and the area occupied by the stroke if the shape has a non-null stroke. So the area is empty for a shape with null stroke and null fill. The area of an input shape considered by the operation is independent on the type and configuration of the paint used for fill or stroke. Before the final operation the areas of the input shapes are transformed to the parent coordinate space of their respective topmost parent nodes.
    The resulting shape will include only areas that were contained in both of the input shapes.
```
         shape1       +       shape2       =       result
   +----------------+   +----------------+   +----------------+
   |################|   |################|   |################|
   |##############  |   |  ##############|   |  ############  |
   |############    |   |    ############|   |    ########    |
   |##########      |   |      ##########|   |      ####      |
   |########        |   |        ########|   |                |
   |######          |   |          ######|   |                |
   |####            |   |            ####|   |                |
   |##              |   |              ##|   |                |
   +----------------+   +----------------+   +----------------+
```
    Parameters:

    shape1 - the first shape

    shape2 - the second shape

    Returns:

    the created Shape

Submit a bug or feature
For further API reference and developer documentation, see Java SE Documentation. That documentation contains more detailed, developer-targeted descriptions, with conceptual overviews, definitions of terms, workarounds, and working code examples.
Copyright © 2008, 2017, Oracle and/or its affiliates. All rights reserved. Use is subject to license terms. Also see the documentation redistribution policy.

Class Shape

Interaction with coordinate systems

Property Summary

Properties inherited from class javafx.scene.Node

Field Summary

Fields inherited from class javafx.scene.Node

Constructor Summary

Method Summary

Methods inherited from class javafx.scene.Node

Methods inherited from class java.lang.Object

Property Detail

strokeType

strokeWidth

strokeLineJoin

strokeLineCap

strokeMiterLimit

strokeDashOffset

fill

stroke

smooth

Constructor Detail

Shape

Method Detail

setStrokeType

getStrokeType

strokeTypeProperty

setStrokeWidth

getStrokeWidth

strokeWidthProperty

setStrokeLineJoin

getStrokeLineJoin

strokeLineJoinProperty

setStrokeLineCap

getStrokeLineCap

strokeLineCapProperty

setStrokeMiterLimit

getStrokeMiterLimit

strokeMiterLimitProperty

setStrokeDashOffset

getStrokeDashOffset

strokeDashOffsetProperty

getStrokeDashArray

setFill

getFill

fillProperty

setStroke

getStroke

strokeProperty

setSmooth

isSmooth

smoothProperty

getClassCssMetaData

getCssMetaData

union

subtract

intersect
