Version: 3.0.3
wxPropertyGridPage Class Reference

#include <wx/propgrid/manager.h>

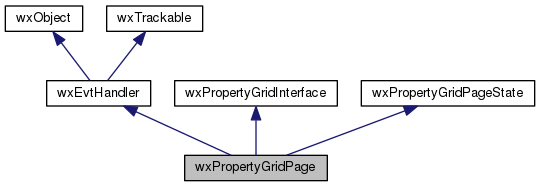

+ Inheritance diagram for wxPropertyGridPage:

Detailed Description

Holder of property grid page information.

You can subclass this and give instance in wxPropertyGridManager::AddPage. It inherits from wxEvtHandler and can be used to process events specific to this page (id of events will still be same as manager's). If you don't want to use it to process all events of the page, you need to return false in the derived wxPropertyGridPage::IsHandlingAllEvents.

Please note that wxPropertyGridPage lacks many non-const property manipulation functions found in wxPropertyGridManager. Please use parent manager (m_manager member variable) when needed.

Please note that most member functions are inherited and as such not documented on this page. This means you will probably also want to read wxPropertyGridInterface class reference.

Event Handling

wxPropertyGridPage receives events emitted by its wxPropertyGridManager, but only those events that are specific to that page. If wxPropertyGridPage:: IsHandlingAllEvents returns false, then unhandled events are sent to the manager's parent, as usual.

See wxPropertyGrid Event Handling for more information.

Library:  wxPropertyGrid
Category:  wxPropertyGrid

Public Member Functions

 wxPropertyGridPage ()

virtual ~wxPropertyGridPage ()

virtual void Clear ()
 Deletes all properties on page. More...

wxSize FitColumns ()
 Reduces column sizes to minimum possible that contents are still visibly (naturally some margin space will be applied as well). More...

int GetIndex () const
 Returns page index in manager;. More...

wxPGPropertyGetRoot () const
 Returns "root property". More...

int GetSplitterPosition (int col=0) const
 Returns x-coordinate position of splitter on a page. More...

int GetToolId () const
 Returns id of the tool bar item that represents this page on wxPropertyGridManager's wxToolBar. More...

virtual void Init ()
 Do any member initialization in this method. More...

virtual bool IsHandlingAllEvents () const
 Return false here to indicate unhandled events should be propagated to manager's parent, as normal. More...

virtual void OnShow ()
 Called every time page is about to be shown. More...

virtual void RefreshProperty (wxPGProperty *p)
 Refreshes given property on page. More...

void SetSplitterPosition (int splitterPos, int col=0)
 Sets splitter position on page. More...

- Public Member Functions inherited from wxEvtHandler
 wxEvtHandler ()
 Constructor. More...

virtual ~wxEvtHandler ()
 Destructor. More...

virtual void QueueEvent (wxEvent *event)
 Queue event for a later processing. More...

virtual void AddPendingEvent (const wxEvent &event)
 Post an event to be processed later. More...

template<typename T , typename T1 , ... >
void CallAfter (void(T::*method)(T1,...), T1 x1,...)
 Asynchronously call the given method. More...

template<typename T >
void CallAfter (const T &functor)
 Asynchronously call the given functor. More...

virtual bool ProcessEvent (wxEvent &event)
 Processes an event, searching event tables and calling zero or more suitable event handler function(s). More...

bool ProcessEventLocally (wxEvent &event)
 Try to process the event in this handler and all those chained to it. More...

bool SafelyProcessEvent (wxEvent &event)
 Processes an event by calling ProcessEvent() and handles any exceptions that occur in the process. More...

void ProcessPendingEvents ()
 Processes the pending events previously queued using QueueEvent() or AddPendingEvent(); you must call this function only if you are sure there are pending events for this handler, otherwise a wxCHECK will fail. More...

void DeletePendingEvents ()
 Deletes all events queued on this event handler using QueueEvent() or AddPendingEvent(). More...

virtual bool SearchEventTable (wxEventTable &table, wxEvent &event)
 Searches the event table, executing an event handler function if an appropriate one is found. More...

void Connect (int id, int lastId, wxEventType eventType, wxObjectEventFunction function, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 Connects the given function dynamically with the event handler, id and event type. More...

void Connect (int id, wxEventType eventType, wxObjectEventFunction function, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 See the Connect(int, int, wxEventType, wxObjectEventFunction, wxObject*, wxEvtHandler*) overload for more info. More...

void Connect (wxEventType eventType, wxObjectEventFunction function, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 See the Connect(int, int, wxEventType, wxObjectEventFunction, wxObject*, wxEvtHandler*) overload for more info. More...

bool Disconnect (wxEventType eventType, wxObjectEventFunction function, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 Disconnects the given function dynamically from the event handler, using the specified parameters as search criteria and returning true if a matching function has been found and removed. More...

bool Disconnect (int id=wxID_ANY, wxEventType eventType=wxEVT_NULL, wxObjectEventFunction function=NULL, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 See the Disconnect(wxEventType, wxObjectEventFunction, wxObject*, wxEvtHandler*) overload for more info. More...

bool Disconnect (int id, int lastId, wxEventType eventType, wxObjectEventFunction function=NULL, wxObject *userData=NULL, wxEvtHandler *eventSink=NULL)
 See the Disconnect(wxEventType, wxObjectEventFunction, wxObject*, wxEvtHandler*) overload for more info. More...

template<typename EventTag , typename Functor >
void Bind (const EventTag &eventType, Functor functor, int id=wxID_ANY, int lastId=wxID_ANY, wxObject *userData=NULL)
 Binds the given function, functor or method dynamically with the event. More...

template<typename EventTag , typename Class , typename EventArg , typename EventHandler >
void Bind (const EventTag &eventType, void(Class::*method)(EventArg &), EventHandler *handler, int id=wxID_ANY, int lastId=wxID_ANY, wxObject *userData=NULL)
 See the Bind<>(const EventTag&, Functor, int, int, wxObject*) overload for more info. More...

template<typename EventTag , typename Functor >
bool Unbind (const EventTag &eventType, Functor functor, int id=wxID_ANY, int lastId=wxID_ANY, wxObject *userData=NULL)
 Unbinds the given function, functor or method dynamically from the event handler, using the specified parameters as search criteria and returning true if a matching function has been found and removed. More...

template<typename EventTag , typename Class , typename EventArg , typename EventHandler >
bool Unbind (const EventTag &eventType, void(Class::*method)(EventArg &), EventHandler *handler, int id=wxID_ANY, int lastId=wxID_ANY, wxObject *userData=NULL)
 See the Unbind<>(const EventTag&, Functor, int, int, wxObject*) overload for more info. More...

void * GetClientData () const
 Returns user-supplied client data. More...

wxClientDataGetClientObject () const
 Returns a pointer to the user-supplied client data object. More...

void SetClientData (void *data)
 Sets user-supplied client data. More...

void SetClientObject (wxClientData *data)
 Set the client data object. More...

bool GetEvtHandlerEnabled () const
 Returns true if the event handler is enabled, false otherwise. More...

wxEvtHandlerGetNextHandler () const
 Returns the pointer to the next handler in the chain. More...

wxEvtHandlerGetPreviousHandler () const
 Returns the pointer to the previous handler in the chain. More...

void SetEvtHandlerEnabled (bool enabled)
 Enables or disables the event handler. More...

virtual void SetNextHandler (wxEvtHandler *handler)
 Sets the pointer to the next handler. More...

virtual void SetPreviousHandler (wxEvtHandler *handler)
 Sets the pointer to the previous handler. More...

void Unlink ()
 Unlinks this event handler from the chain it's part of (if any); then links the "previous" event handler to the "next" one (so that the chain won't be interrupted). More...

bool IsUnlinked () const
 Returns true if the next and the previous handler pointers of this event handler instance are NULL. More...

- Public Member Functions inherited from wxObject
 wxObject ()
 Default ctor; initializes to NULL the internal reference data. More...

 wxObject (const wxObject &other)
 Copy ctor. More...

virtual ~wxObject ()
 Destructor. More...

virtual wxClassInfoGetClassInfo () const
 This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefDataGetRefData () const
 Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool IsKindOf (const wxClassInfo *info) const
 Determines whether this class is a subclass of (or the same class as) the given class. More...

bool IsSameAs (const wxObject &obj) const
 Returns true if this object has the same data pointer as obj. More...

void Ref (const wxObject &clone)
 Makes this object refer to the data in clone. More...

void SetRefData (wxObjectRefData *data)
 Sets the wxObject::m_refData pointer. More...

void UnRef ()
 Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void UnShare ()
 This is the same of AllocExclusive() but this method is public. More...

void operator delete (void *buf)
 The delete operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...

void * operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
 The new operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...

- Public Member Functions inherited from wxPropertyGridInterface
virtual ~wxPropertyGridInterface ()
 Destructor. More...

wxPGPropertyAppend (wxPGProperty *property)
 Appends property to the list. More...

wxPGPropertyAppendIn (wxPGPropArg id, wxPGProperty *newProperty)
 Same as Append(), but appends under given parent property. More...

void BeginAddChildren (wxPGPropArg id)
 In order to add new items into a property with private children (for instance, wxFlagsProperty), you need to call this method. More...

bool ClearSelection (bool validation=false)
 Clears current selection, if any. More...

void ClearModifiedStatus ()
 Resets modified status of all properties. More...

bool Collapse (wxPGPropArg id)
 Collapses given category or property with children. More...

bool CollapseAll ()
 Collapses all items that can be collapsed. More...

bool ChangePropertyValue (wxPGPropArg id, wxVariant newValue)
 Changes value of a property, as if by user. More...

void DeleteProperty (wxPGPropArg id)
 Removes and deletes a property and any children. More...

bool DisableProperty (wxPGPropArg id)
 Disables a property. More...

bool EditorValidate ()
 Returns true if all property grid data changes have been committed. More...

bool EnableProperty (wxPGPropArg id, bool enable=true)
 Enables or disables property. More...

void EndAddChildren (wxPGPropArg id)
 Called after population of property with fixed children has finished. More...

bool Expand (wxPGPropArg id)
 Expands given category or property with children. More...

bool ExpandAll (bool expand=true)
 Expands all items that can be expanded. More...

int GetColumnProportion (unsigned int column) const
 Returns auto-resize proportion of the given column. More...

wxPGPropertyGetFirstChild (wxPGPropArg id)
 Returns id of first child of given property. More...

wxPGPropertyGetFirst (int flags=wxPG_ITERATE_ALL)
 Returns id of first item that matches given criteria. More...

wxPGPropertyGetProperty (const wxString &name) const
 Returns pointer to a property with given name (case-sensitive). More...

void GetPropertiesWithFlag (wxArrayPGProperty *targetArr, wxPGProperty::FlagType flags, bool inverse=false, int iterFlags=wxPG_ITERATE_PROPERTIES|wxPG_ITERATE_HIDDEN|wxPG_ITERATE_CATEGORIES) const
 Adds to 'targetArr' pointers to properties that have given flags 'flags' set. More...

wxVariant GetPropertyAttribute (wxPGPropArg id, const wxString &attrName) const
 Returns value of given attribute. More...

wxColour GetPropertyBackgroundColour (wxPGPropArg id) const
 Returns background colour of first cell of a property. More...

wxPropertyCategoryGetPropertyCategory (wxPGPropArg id) const
 Returns pointer of property's nearest parent category. More...

void * GetPropertyClientData (wxPGPropArg id) const
 Returns client data (void*) of a property. More...

wxPGPropertyGetPropertyByLabel (const wxString &label) const
 Returns first property which label matches given string. More...

wxPGPropertyGetPropertyByName (const wxString &name) const
 Returns pointer to a property with given name (case-sensitive). More...

wxPGPropertyGetPropertyByName (const wxString &name, const wxString &subname) const
 Returns child property 'subname' of property 'name'. More...

const wxPGEditorGetPropertyEditor (wxPGPropArg id) const
 Returns property's editor. More...

wxString GetPropertyHelpString (wxPGPropArg id) const
 Returns help string associated with a property. More...

wxBitmapGetPropertyImage (wxPGPropArg id) const
 Returns property's custom value image (NULL of none). More...

const wxStringGetPropertyLabel (wxPGPropArg id)
 Returns label of a property. More...

wxString GetPropertyName (wxPGProperty *property)
 Returns property's name, by which it is globally accessible. More...

wxColour GetPropertyTextColour (wxPGPropArg id) const
 Returns text colour of first cell of a property. More...

wxValidatorGetPropertyValidator (wxPGPropArg id)
 Returns validator of a property as a reference, which you can pass to any number of SetPropertyValidator. More...

wxVariant GetPropertyValue (wxPGPropArg id)
 Returns property's value as wxVariant. More...

wxArrayInt GetPropertyValueAsArrayInt (wxPGPropArg id) const
 Return's property's value as wxArrayInt. More...

wxArrayString GetPropertyValueAsArrayString (wxPGPropArg id) const
 Returns property's value as wxArrayString. More...

bool GetPropertyValueAsBool (wxPGPropArg id) const
 Returns property's value as bool. More...

wxDateTime GetPropertyValueAsDateTime (wxPGPropArg id) const
 Return's property's value as wxDateTime. More...

double GetPropertyValueAsDouble (wxPGPropArg id) const
 Returns property's value as double-precision floating point number. More...

int GetPropertyValueAsInt (wxPGPropArg id) const
 Returns property's value as integer. More...

long GetPropertyValueAsLong (wxPGPropArg id) const
 Returns property's value as integer. More...

wxLongLong_t GetPropertyValueAsLongLong (wxPGPropArg id) const
 Returns property's value as native signed 64-bit integer. More...

wxString GetPropertyValueAsString (wxPGPropArg id) const
 Returns property's value as wxString. More...

unsigned long GetPropertyValueAsULong (wxPGPropArg id) const
 Returns property's value as unsigned integer. More...

wxULongLong_t GetPropertyValueAsULongLong (wxPGPropArg id) const
 Returns property's value as native unsigned 64-bit integer. More...

wxVariant GetPropertyValues (const wxString &listname=wxEmptyString, wxPGProperty *baseparent=NULL, long flags=0) const
 Returns a wxVariant list containing wxVariant versions of all property values. More...

const wxArrayPGProperty & GetSelectedProperties () const
 Returns list of currently selected properties. More...

wxPGPropertyGetSelection () const
 Returns currently selected property. More...

virtual wxPGVIterator GetVIterator (int flags) const
 Similar to GetIterator(), but instead returns wxPGVIterator instance, which can be useful for forward-iterating through arbitrary property containers. More...

bool HideProperty (wxPGPropArg id, bool hide=true, int flags=wxPG_RECURSE)
 Hides or reveals a property. More...

wxPGPropertyInsert (wxPGPropArg priorThis, wxPGProperty *newProperty)
 Inserts property to the property container. More...

wxPGPropertyInsert (wxPGPropArg parent, int index, wxPGProperty *newProperty)
 Inserts property to the property container. More...

bool IsPropertyCategory (wxPGPropArg id) const
 Returns true if property is a category. More...

bool IsPropertyEnabled (wxPGPropArg id) const
 Returns true if property is enabled. More...

bool IsPropertyExpanded (wxPGPropArg id) const
 Returns true if given property is expanded. More...

bool IsPropertyModified (wxPGPropArg id) const
 Returns true if property has been modified after value set or modify flag clear by software. More...

virtual bool IsPropertySelected (wxPGPropArg id) const
 Returns true if property is selected. More...

bool IsPropertyShown (wxPGPropArg id) const
 Returns true if property is shown (ie. More...

bool IsPropertyValueUnspecified (wxPGPropArg id) const
 Returns true if property value is set to unspecified. More...

void LimitPropertyEditing (wxPGPropArg id, bool limit=true)
 Disables (limit = true) or enables (limit = false) wxTextCtrl editor of a property, if it is not the sole mean to edit the value. More...

wxPGPropertyRemoveProperty (wxPGPropArg id)
 Removes a property. More...

wxPGPropertyReplaceProperty (wxPGPropArg id, wxPGProperty *property)
 Replaces property with id with newly created one. More...

bool RestoreEditableState (const wxString &src, int restoreStates=AllStates)
 Restores user-editable state. More...

wxString SaveEditableState (int includedStates=AllStates) const
 Used to acquire user-editable state (selected property, expanded properties, scrolled position, splitter positions). More...

bool SetColumnProportion (unsigned int column, int proportion)
 Set proportion of a auto-stretchable column. More...

void SetPropertyAttribute (wxPGPropArg id, const wxString &attrName, wxVariant value, long argFlags=0)
 Sets an attribute for this property. More...

void SetPropertyAttributeAll (const wxString &attrName, wxVariant value)
 Sets property attribute for all applicapple properties. More...

void SetPropertyBackgroundColour (wxPGPropArg id, const wxColour &colour, int flags=wxPG_RECURSE)
 Sets background colour of a property. More...

void SetPropertyCell (wxPGPropArg id, int column, const wxString &text=wxEmptyString, const wxBitmap &bitmap=wxNullBitmap, const wxColour &fgCol=wxNullColour, const wxColour &bgCol=wxNullColour)
 Sets text, bitmap, and colours for given column's cell. More...

void SetPropertyClientData (wxPGPropArg id, void *clientData)
 Sets client data (void*) of a property. More...

void SetPropertyColoursToDefault (wxPGPropArg id)
 Resets text and background colours of given property. More...

void SetPropertyEditor (wxPGPropArg id, const wxPGEditor *editor)
 Sets editor for a property. More...

void SetPropertyEditor (wxPGPropArg id, const wxString &editorName)
 Sets editor control of a property. More...

void SetPropertyLabel (wxPGPropArg id, const wxString &newproplabel)
 Sets label of a property. More...

void SetPropertyName (wxPGPropArg id, const wxString &newName)
 Sets name of a property. More...

void SetPropertyReadOnly (wxPGPropArg id, bool set=true, int flags=wxPG_RECURSE)
 Sets property (and, recursively, its children) to have read-only value. More...

void SetPropertyValueUnspecified (wxPGPropArg id)
 Sets property's value to unspecified. More...

void SetPropertyValues (const wxVariantList &list, wxPGPropArg defaultCategory=wxNullProperty)
 Sets property values from a list of wxVariants. More...

void SetPropertyValues (const wxVariant &list, wxPGPropArg defaultCategory=wxNullProperty)
 Sets property values from a list of wxVariants. More...

void SetPropertyHelpString (wxPGPropArg id, const wxString &helpString)
 Associates the help string with property. More...

void SetPropertyImage (wxPGPropArg id, wxBitmap &bmp)
 Set wxBitmap in front of the value. More...

bool SetPropertyMaxLength (wxPGPropArg id, int maxLen)
 Sets max length of property's text. More...

void SetPropertyTextColour (wxPGPropArg id, const wxColour &colour, int flags=wxPG_RECURSE)
 Sets text colour of a property. More...

void SetPropertyValidator (wxPGPropArg id, const wxValidator &validator)
 Sets validator of a property. More...

void SetPropertyValue (wxPGPropArg id, long value)
 Sets value (integer) of a property. More...

void SetPropertyValue (wxPGPropArg id, int value)
 Sets value (integer) of a property. More...

void SetPropertyValue (wxPGPropArg id, double value)
 Sets value (floating point) of a property. More...

void SetPropertyValue (wxPGPropArg id, bool value)
 Sets value (bool) of a property. More...

void SetPropertyValue (wxPGPropArg id, const wxString &value)
 Sets value (string) of a property. More...

void SetPropertyValue (wxPGPropArg id, const wxArrayString &value)
 Sets value (wxArrayString) of a property. More...

void SetPropertyValue (wxPGPropArg id, const wxDateTime &value)
 Sets value (wxDateTime) of a property. More...

void SetPropertyValue (wxPGPropArg id, wxObject *value)
 Sets value (wxObject*) of a property. More...

void SetPropertyValue (wxPGPropArg id, wxObject &value)
 Sets value (wxObject&) of a property. More...

void SetPropertyValue (wxPGPropArg id, wxLongLong_t value)
 Sets value (native 64-bit int) of a property. More...

void SetPropertyValue (wxPGPropArg id, wxULongLong_t value)
 Sets value (native 64-bit unsigned int) of a property. More...

void SetPropertyValue (wxPGPropArg id, const wxArrayInt &value)
 Sets value (wxArrayInt&) of a property. More...

void SetPropertyValueString (wxPGPropArg id, const wxString &value)
 Sets value (wxString) of a property. More...

void SetPropertyValue (wxPGPropArg id, wxVariant value)
 Sets value (wxVariant&) of a property. More...

void SetValidationFailureBehavior (int vfbFlags)
 Adjusts how wxPropertyGrid behaves when invalid value is entered in a property. More...

void Sort (int flags=0)
 Sorts all properties recursively. More...

void SortChildren (wxPGPropArg id, int flags=0)
 Sorts children of a property. More...

wxPropertyGridIterator GetIterator (int flags=wxPG_ITERATE_DEFAULT, wxPGProperty *firstProp=NULL)
 Returns iterator class instance. More...

wxPropertyGridConstIterator GetIterator (int flags=wxPG_ITERATE_DEFAULT, wxPGProperty *firstProp=NULL) const
 Returns iterator class instance. More...

wxPropertyGridIterator GetIterator (int flags, int startPos)
 Returns iterator class instance. More...

wxPropertyGridConstIterator GetIterator (int flags, int startPos) const
 Returns iterator class instance. More...

- Public Member Functions inherited from wxPropertyGridPageState
 wxPropertyGridPageState ()
 Default constructor. More...

virtual ~wxPropertyGridPageState ()
 Destructor. More...

void CheckColumnWidths (int widthChange=0)
 Makes sure all columns have minimum width. More...

virtual void DoDelete (wxPGProperty *item, bool doDelete=true)
 Override this member function to add custom behaviour on property deletion. More...

wxSize DoFitColumns (bool allowGridResize=false)

wxPGPropertyDoGetItemAtY (int y) const

virtual wxPGPropertyDoInsert (wxPGProperty *parent, int index, wxPGProperty *property)
 Override this member function to add custom behaviour on property insertion. More...

virtual void DoSetSplitterPosition (int pos, int splitterColumn=0, int flags=0)
 This needs to be overridden in grid used the manager so that splitter changes can be propagated to other pages. More...

bool EnableCategories (bool enable)

void EnsureVirtualHeight ()
 Make sure virtual height is up-to-date. More...

unsigned int GetVirtualHeight () const
 Returns (precalculated) height of contained visible properties. More...

unsigned int GetVirtualHeight ()
 Returns (precalculated) height of contained visible properties. More...

unsigned int GetActualVirtualHeight () const
 Returns actual height of contained visible properties. More...

unsigned int GetColumnCount () const

int GetColumnMinWidth (int column) const

int GetColumnWidth (unsigned int column) const

wxPropertyGridGetGrid () const

wxPGPropertyGetLastItem (int flags=wxPG_ITERATE_DEFAULT)
 Returns last item which could be iterated using given flags. More...

const wxPGPropertyGetLastItem (int flags=wxPG_ITERATE_DEFAULT) const

wxPGPropertyGetSelection () const
 Returns currently selected property. More...

void DoSetSelection (wxPGProperty *prop)

bool DoClearSelection ()

void DoRemoveFromSelection (wxPGProperty *prop)

void DoSetColumnProportion (unsigned int column, int proportion)

int DoGetColumnProportion (unsigned int column) const

void ResetColumnSizes (int setSplitterFlags)

wxPropertyCategoryGetPropertyCategory (const wxPGProperty *p) const

wxPGPropertyGetPropertyByLabel (const wxString &name, wxPGProperty *parent=NULL) const

wxVariant DoGetPropertyValues (const wxString &listname, wxPGProperty *baseparent, long flags) const

wxPGPropertyDoGetRoot () const

void DoSetPropertyName (wxPGProperty *p, const wxString &newName)

int GetVirtualWidth () const

int GetColumnFitWidth (wxClientDC &dc, wxPGProperty *pwc, unsigned int col, bool subProps) const
 Returns minimal width for given column so that all images and texts will fit entirely. More...

int GetColumnFullWidth (wxClientDC &dc, wxPGProperty *p, unsigned int col)

wxPropertyGridHitTestResult HitTest (const wxPoint &pt) const
 Returns information about arbitrary position in the grid. More...

bool IsDisplayed () const
 Returns true if page is visibly displayed. More...

bool IsInNonCatMode () const

void DoLimitPropertyEditing (wxPGProperty *p, bool limit=true)

bool DoSelectProperty (wxPGProperty *p, unsigned int flags=0)

void OnClientWidthChange (int newWidth, int widthChange, bool fromOnResize=false)
 widthChange is non-client. More...

void RecalculateVirtualHeight ()
 Recalculates m_virtualHeight. More...

void SetColumnCount (int colCount)

void PropagateColSizeDec (int column, int decrease, int dir)

bool DoHideProperty (wxPGProperty *p, bool hide, int flags=wxPG_RECURSE)

bool DoSetPropertyValueString (wxPGProperty *p, const wxString &value)

bool DoSetPropertyValue (wxPGProperty *p, wxVariant &value)

bool DoSetPropertyValueWxObjectPtr (wxPGProperty *p, wxObject *value)

void DoSetPropertyValues (const wxVariantList &list, wxPGProperty *default_category)

void SetSplitterLeft (bool subProps=false)

void SetVirtualWidth (int width)
 Set virtual width for this particular page. More...

void DoSortChildren (wxPGProperty *p, int flags=0)

void DoSort (int flags=0)

bool PrepareAfterItemsAdded ()

void VirtualHeightChanged ()
 Called after virtual height needs to be recalculated. More...

wxPGPropertyDoAppend (wxPGProperty *property)
 Base append. More...

wxPGPropertyBaseGetPropertyByName (const wxString &name) const
 Returns property by its name. More...

void DoClear ()
 Called in, for example, wxPropertyGrid::Clear. More...

bool DoIsPropertySelected (wxPGProperty *prop) const

bool DoCollapse (wxPGProperty *p)

bool DoExpand (wxPGProperty *p)

void CalculateFontAndBitmapStuff (int vspacing)


Friends

class wxPropertyGridManager


Additional Inherited Members

- Public Types inherited from wxPropertyGridInterface
enum  EditableStateFlags {
  SelectionState = 0x01,
  ExpandedState = 0x02,
  ScrollPosState = 0x04,
  PageState = 0x08,
  SplitterPosState = 0x10,
  DescBoxState = 0x20,
  AllStates
}

- Static Public Member Functions inherited from wxEvtHandler
static void AddFilter (wxEventFilter *filter)
 Add an event filter whose FilterEvent() method will be called for each and every event processed by wxWidgets. More...

static void RemoveFilter (wxEventFilter *filter)
 Remove a filter previously installed with AddFilter(). More...

- Static Public Member Functions inherited from wxPropertyGridInterface
static void InitAllTypeHandlers ()
 Initializes all property types. More...

static void RegisterAdditionalEditors ()
 Initializes additional property editors (SpinCtrl etc.). More...

static void SetBoolChoices (const wxString &trueChoice, const wxString &falseChoice)
 Sets strings listed in the choice dropdown of a wxBoolProperty. More...

static wxPGEditorGetEditorByName (const wxString &editorName)
 Returns editor pointer of editor with given name;. More...

- Protected Member Functions inherited from wxEvtHandler
virtual bool TryBefore (wxEvent &event)
 Method called by ProcessEvent() before examining this object event tables. More...

virtual bool TryAfter (wxEvent &event)
 Method called by ProcessEvent() as last resort. More...

- Protected Member Functions inherited from wxObject
void AllocExclusive ()
 Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefDataCreateRefData () const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefDataCloneRefData (const wxObjectRefData *data) const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...

- Protected Attributes inherited from wxObject
wxObjectRefDatam_refData
 Pointer to an object which is the object's reference-counted data. More...


Constructor & Destructor Documentation

wxPropertyGridPage::wxPropertyGridPage ( )
virtual wxPropertyGridPage::~wxPropertyGridPage ( )
virtual

Member Function Documentation

virtual void wxPropertyGridPage::Clear ( )
virtual

Deletes all properties on page.

Implements wxPropertyGridInterface.

wxSize wxPropertyGridPage::FitColumns ( )

Reduces column sizes to minimum possible that contents are still visibly (naturally some margin space will be applied as well).

Returns
Returns minimum size for the page to still display everything.
Remarks
This function only works properly if size of containing grid was already fairly large.

Note that you can also get calculated column widths by calling GetColumnWidth() immediately after this function returns.

int wxPropertyGridPage::GetIndex ( ) const
inline

Returns page index in manager;.

wxPGProperty* wxPropertyGridPage::GetRoot ( ) const

Returns "root property".

It does not have name, etc. and it is not visible. It is only useful for accessing its children.

int wxPropertyGridPage::GetSplitterPosition ( int  col = 0) const

Returns x-coordinate position of splitter on a page.

int wxPropertyGridPage::GetToolId ( ) const

Returns id of the tool bar item that represents this page on wxPropertyGridManager's wxToolBar.

virtual void wxPropertyGridPage::Init ( )
virtual

Do any member initialization in this method.

Remarks
- Called every time the page is added into a manager.
  • You can add properties to the page here.
virtual bool wxPropertyGridPage::IsHandlingAllEvents ( ) const
virtual

Return false here to indicate unhandled events should be propagated to manager's parent, as normal.

virtual void wxPropertyGridPage::OnShow ( )
virtual

Called every time page is about to be shown.

Useful, for instance, creating properties just-in-time.

virtual void wxPropertyGridPage::RefreshProperty ( wxPGProperty p)
virtual

Refreshes given property on page.

void wxPropertyGridPage::SetSplitterPosition ( int  splitterPos,
int  col = 0
)

Sets splitter position on page.

Remarks
Splitter position cannot exceed grid size, and therefore setting it during form creation may fail as initial grid size is often smaller than desired splitter position, especially when sizers are being used.

Friends And Related Function Documentation

friend class wxPropertyGridManager
friend
