Version: 3.0.3
wxDataViewRenderer Class Referenceabstract

#include <wx/dataview.h>

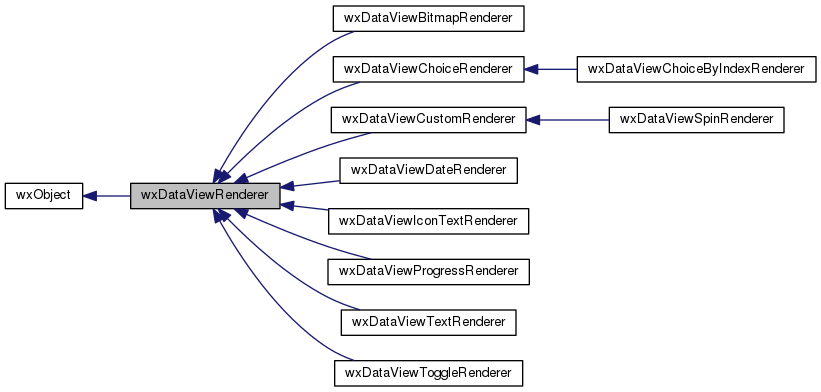

+ Inheritance diagram for wxDataViewRenderer:

Detailed Description

This class is used by wxDataViewCtrl to render the individual cells.

One instance of a renderer class is owned by a wxDataViewColumn. There is a number of ready-to-use renderers provided:

Additionally, the user can write their own renderers by deriving from wxDataViewCustomRenderer.

The wxDataViewCellMode and wxDataViewCellRenderState flags accepted by the constructors respectively controls what actions the cell data allows and how the renderer should display its contents in a cell.

Library:  wxAdvanced
Category:  wxDataViewCtrl Related Classes

Public Member Functions

 wxDataViewRenderer (const wxString &varianttype, wxDataViewCellMode mode=wxDATAVIEW_CELL_INERT, int align=wxDVR_DEFAULT_ALIGNMENT)
 Constructor. More...

void EnableEllipsize (wxEllipsizeMode mode=wxELLIPSIZE_MIDDLE)
 Enable or disable replacing parts of the item text with ellipsis to make it fit the column width. More...

void DisableEllipsize ()
 Disable replacing parts of the item text with ellipsis. More...

virtual int GetAlignment () const
 Returns the alignment. More...

wxEllipsizeMode GetEllipsizeMode () const
 Returns the ellipsize mode used by the renderer. More...

virtual wxDataViewCellMode GetMode () const
 Returns the cell mode. More...

wxDataViewColumnGetOwner () const
 Returns pointer to the owning wxDataViewColumn. More...

virtual bool GetValue (wxVariant &value) const =0
 This methods retrieves the value from the renderer in order to transfer the value back to the data model. More...

wxString GetVariantType () const
 Returns a string with the type of the wxVariant supported by this renderer. More...

virtual void SetAlignment (int align)
 Sets the alignment of the renderer's content. More...

void SetOwner (wxDataViewColumn *owner)
 Sets the owning wxDataViewColumn. More...

virtual bool SetValue (const wxVariant &value)=0
 Set the value of the renderer (and thus its cell) to value. More...

virtual bool Validate (wxVariant &value)
 Before data is committed to the data model, it is passed to this method where it can be checked for validity. More...

virtual bool HasEditorCtrl () const

virtual wxWindowCreateEditorCtrl (wxWindow *parent, wxRect labelRect, const wxVariant &value)

virtual bool GetValueFromEditorCtrl (wxWindow *editor, wxVariant &value)

virtual bool StartEditing (const wxDataViewItem &item, wxRect labelRect)

virtual void CancelEditing ()

virtual bool FinishEditing ()

wxWindowGetEditorCtrl ()

- Public Member Functions inherited from wxObject
 wxObject ()
 Default ctor; initializes to NULL the internal reference data. More...

 wxObject (const wxObject &other)
 Copy ctor. More...

virtual ~wxObject ()
 Destructor. More...

virtual wxClassInfoGetClassInfo () const
 This virtual function is redefined for every class that requires run-time type information, when using the wxDECLARE_CLASS macro (or similar). More...

wxObjectRefDataGetRefData () const
 Returns the wxObject::m_refData pointer, i.e. the data referenced by this object. More...

bool IsKindOf (const wxClassInfo *info) const
 Determines whether this class is a subclass of (or the same class as) the given class. More...

bool IsSameAs (const wxObject &obj) const
 Returns true if this object has the same data pointer as obj. More...

void Ref (const wxObject &clone)
 Makes this object refer to the data in clone. More...

void SetRefData (wxObjectRefData *data)
 Sets the wxObject::m_refData pointer. More...

void UnRef ()
 Decrements the reference count in the associated data, and if it is zero, deletes the data. More...

void UnShare ()
 This is the same of AllocExclusive() but this method is public. More...

void operator delete (void *buf)
 The delete operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...

void * operator new (size_t size, const wxString &filename=NULL, int lineNum=0)
 The new operator is defined for debugging versions of the library only, when the identifier WXDEBUG is defined. More...


Protected Member Functions

wxDataViewCtrlGetView () const

- Protected Member Functions inherited from wxObject
void AllocExclusive ()
 Ensure that this object's data is not shared with any other object. More...

virtual wxObjectRefDataCreateRefData () const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and returns it. More...

virtual wxObjectRefDataCloneRefData (const wxObjectRefData *data) const
 Creates a new instance of the wxObjectRefData-derived class specific to this object and initializes it copying data. More...


Additional Inherited Members

- Protected Attributes inherited from wxObject
wxObjectRefDatam_refData
 Pointer to an object which is the object's reference-counted data. More...


Constructor & Destructor Documentation

wxDataViewRenderer::wxDataViewRenderer ( const wxString varianttype,
wxDataViewCellMode  mode = wxDATAVIEW_CELL_INERT,
int  align = wxDVR_DEFAULT_ALIGNMENT
)

Constructor.

Member Function Documentation

virtual void wxDataViewRenderer::CancelEditing ( )
virtual
virtual wxWindow* wxDataViewRenderer::CreateEditorCtrl ( wxWindow parent,
wxRect  labelRect,
const wxVariant value
)
virtual

Reimplemented in wxDataViewCustomRenderer.

void wxDataViewRenderer::DisableEllipsize ( )

Disable replacing parts of the item text with ellipsis.

If ellipsizing is disabled, the string will be truncated if it doesn't fit.

This is the same as

.

Since
2.9.1
void wxDataViewRenderer::EnableEllipsize ( wxEllipsizeMode  mode = wxELLIPSIZE_MIDDLE)

Enable or disable replacing parts of the item text with ellipsis to make it fit the column width.

This method only makes sense for the renderers working with text, such as wxDataViewTextRenderer or wxDataViewIconTextRenderer.

By default wxELLIPSIZE_MIDDLE is used.

Parameters
modeEllipsization mode, use wxELLIPSIZE_NONE to disable.
Since
2.9.1
virtual bool wxDataViewRenderer::FinishEditing ( )
virtual
virtual int wxDataViewRenderer::GetAlignment ( ) const
virtual

Returns the alignment.

See SetAlignment()

wxWindow* wxDataViewRenderer::GetEditorCtrl ( )
wxEllipsizeMode wxDataViewRenderer::GetEllipsizeMode ( ) const

Returns the ellipsize mode used by the renderer.

If the return value is wxELLIPSIZE_NONE, the text is simply truncated if it doesn't fit.

See also
EnableEllipsize()
virtual wxDataViewCellMode wxDataViewRenderer::GetMode ( ) const
virtual

Returns the cell mode.

wxDataViewColumn* wxDataViewRenderer::GetOwner ( ) const

Returns pointer to the owning wxDataViewColumn.

virtual bool wxDataViewRenderer::GetValue ( wxVariant value) const
pure virtual

This methods retrieves the value from the renderer in order to transfer the value back to the data model.

Returns false on failure.

virtual bool wxDataViewRenderer::GetValueFromEditorCtrl ( wxWindow editor,
wxVariant value
)
virtual

Reimplemented in wxDataViewCustomRenderer.

wxString wxDataViewRenderer::GetVariantType ( ) const

Returns a string with the type of the wxVariant supported by this renderer.

wxDataViewCtrl* wxDataViewRenderer::GetView ( ) const
protected
virtual bool wxDataViewRenderer::HasEditorCtrl ( ) const
virtual

Reimplemented in wxDataViewCustomRenderer.

virtual void wxDataViewRenderer::SetAlignment ( int  align)
virtual

Sets the alignment of the renderer's content.

The default value of wxDVR_DEFAULT_ALIGMENT indicates that the content should have the same alignment as the column header.

The method is not implemented under OS X and the renderer always aligns its contents as the column header on that platform. The other platforms support both vertical and horizontal alignment.

void wxDataViewRenderer::SetOwner ( wxDataViewColumn owner)

Sets the owning wxDataViewColumn.

This is usually called from within wxDataViewColumn.

virtual bool wxDataViewRenderer::SetValue ( const wxVariant value)
pure virtual

Set the value of the renderer (and thus its cell) to value.

The internal code will then render this cell with this data.

virtual bool wxDataViewRenderer::StartEditing ( const wxDataViewItem item,
wxRect  labelRect
)
virtual
virtual bool wxDataViewRenderer::Validate ( wxVariant value)
virtual

Before data is committed to the data model, it is passed to this method where it can be checked for validity.

This can also be used for checking a valid range or limiting the user input in a certain aspect (e.g. max number of characters or only alphanumeric input, ASCII only etc.). Return false if the value is not valid.

Please note that due to implementation limitations, this validation is done after the editing control already is destroyed and the editing process finished.
