Vector Autoregressions tsa.vector_ar

VAR(p) processes

We are interested in modeling a T \times K multivariate time series Y, where T denotes the number of observations and K the number of variables. One way of estimating relationships between the time series and their lagged values is the vector autoregression process:

Y_t = A_1 Y_{t-1} + \ldots + A_p Y_{t-p} + u_t

u_t \sim {\sf Normal}(0, \Sigma_u)

where A_i is a K \times K coefficient matrix.

We follow in large part the methods and notation of Lutkepohl (2005), which we will not develop here.

Model fitting

Note

The classes referenced below are accessible via the statsmodels.tsa.api module.

To estimate a VAR model, one must first create the model using an ndarray of homogeneous or structured dtype. When using a structured or record array, the class will use the passed variable names. Otherwise they can be passed explicitly:

# some example data
In [1]: import numpy as np

In [2]: import pandas

In [3]: import statsmodels.api as sm

In [4]: from statsmodels.tsa.api import VAR, DynamicVAR

In [5]: mdata = sm.datasets.macrodata.load_pandas().data

# prepare the dates index
In [6]: dates = mdata[['year', 'quarter']].astype(int).astype(str)

In [7]: quarterly = dates["year"] + "Q" + dates["quarter"]

In [8]: from statsmodels.tsa.base.datetools import dates_from_str

In [9]: quarterly = dates_from_str(quarterly)

In [10]: mdata = mdata[['realgdp','realcons','realinv']]

In [11]: mdata.index = pandas.DatetimeIndex(quarterly)

In [12]: data = np.log(mdata).diff().dropna()

# make a VAR model
In [13]: model = VAR(data)

Note

The VAR class assumes that the passed time series are stationary. Non-stationary or trending data can often be transformed to be stationary by first-differencing or some other method. For direct analysis of non-stationary time series, a standard stable VAR(p) model is not appropriate.

To actually do the estimation, call the fit method with the desired lag order. Or you can have the model select a lag order based on a standard information criterion (see below):

In [14]: results = model.fit(2)

In [15]: results.summary()
Out[15]:
  Summary of Regression Results
==================================
Model:                         VAR
Method:                        OLS
Date:           Tue, 28, Feb, 2017
Time:                     21:38:11
--------------------------------------------------------------------
No. of Equations:         3.00000    BIC:                   -27.5830
Nobs:                     200.000    HQIC:                  -27.7892
Log likelihood:           1962.57    FPE:                7.42129e-13
AIC:                     -27.9293    Det(Omega_mle):     6.69358e-13
--------------------------------------------------------------------
Results for equation realgdp
==============================================================================
                 coefficient       std. error           t-stat            prob
------------------------------------------------------------------------------
const               0.001527         0.001119            1.365           0.174
L1.realgdp         -0.279435         0.169663           -1.647           0.101
L1.realcons         0.675016         0.131285            5.142           0.000
L1.realinv          0.033219         0.026194            1.268           0.206
L2.realgdp          0.008221         0.173522            0.047           0.962
L2.realcons         0.290458         0.145904            1.991           0.048
L2.realinv         -0.007321         0.025786           -0.284           0.777
==============================================================================

Results for equation realcons
==============================================================================
                 coefficient       std. error           t-stat            prob
------------------------------------------------------------------------------
const               0.005460         0.000969            5.634           0.000
L1.realgdp         -0.100468         0.146924           -0.684           0.495
L1.realcons         0.268640         0.113690            2.363           0.019
L1.realinv          0.025739         0.022683            1.135           0.258
L2.realgdp         -0.123174         0.150267           -0.820           0.413
L2.realcons         0.232499         0.126350            1.840           0.067
L2.realinv          0.023504         0.022330            1.053           0.294
==============================================================================

Results for equation realinv
==============================================================================
                 coefficient       std. error           t-stat            prob
------------------------------------------------------------------------------
const              -0.023903         0.005863           -4.077           0.000
L1.realgdp         -1.970974         0.888892           -2.217           0.028
L1.realcons         4.414162         0.687825            6.418           0.000
L1.realinv          0.225479         0.137234            1.643           0.102
L2.realgdp          0.380786         0.909114            0.419           0.676
L2.realcons         0.800281         0.764416            1.047           0.296
L2.realinv         -0.124079         0.135098           -0.918           0.360
==============================================================================

Correlation matrix of residuals
             realgdp  realcons   realinv
realgdp     1.000000  0.603316  0.750722
realcons    0.603316  1.000000  0.131951
realinv     0.750722  0.131951  1.000000

Several ways to visualize the data using matplotlib are available.

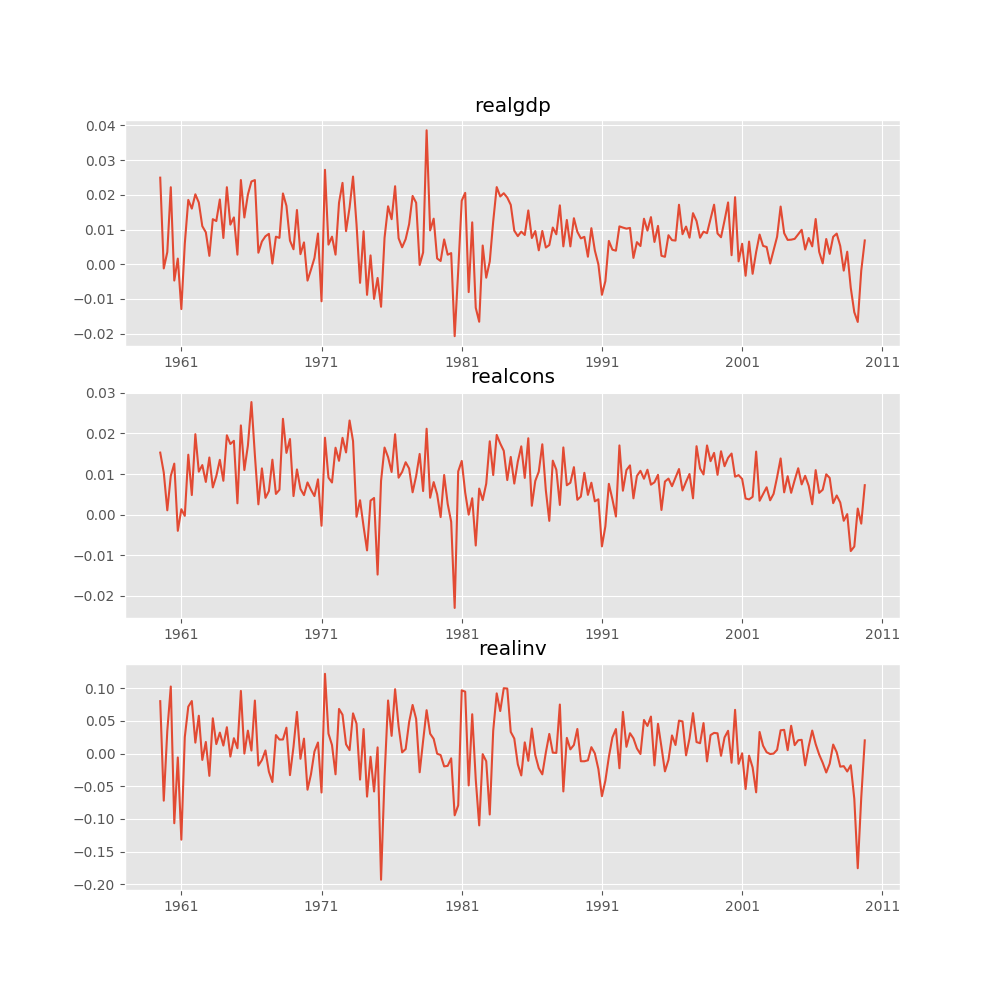

Plotting input time series:

In [16]: results.plot()
_images/var_plot_input.png

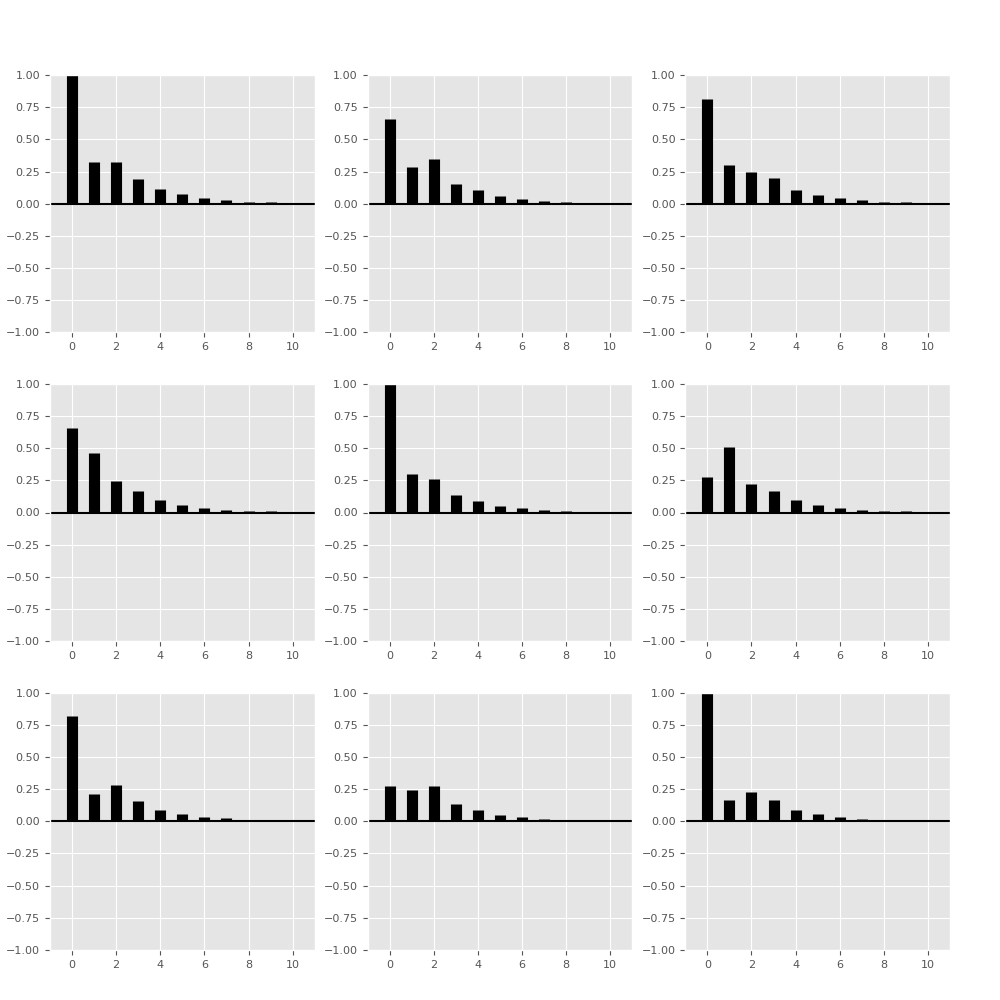

Plotting time series autocorrelation function:

In [17]: results.plot_acorr()
_images/var_plot_acorr.png

Lag order selection

Choice of lag order can be a difficult problem. Standard analysis employs likelihood test or information criteria-based order selection. We have implemented the latter, accessible through the VAR class:

In [18]: model.select_order(15)
                 VAR Order Selection
======================================================
            aic          bic          fpe         hqic
------------------------------------------------------
0        -27.70       -27.65    9.358e-13       -27.68
1        -28.02      -27.82*    6.745e-13      -27.94*
2        -28.03       -27.66    6.732e-13       -27.88
3       -28.04*       -27.52   6.651e-13*       -27.83
4        -28.03       -27.36    6.681e-13       -27.76
5        -28.02       -27.19    6.773e-13       -27.69
6        -27.97       -26.98    7.147e-13       -27.57
7        -27.93       -26.79    7.446e-13       -27.47
8        -27.94       -26.64    7.407e-13       -27.41
9        -27.96       -26.50    7.280e-13       -27.37
10       -27.91       -26.30    7.629e-13       -27.26
11       -27.86       -26.09    8.076e-13       -27.14
12       -27.83       -25.91    8.316e-13       -27.05
13       -27.80       -25.73    8.594e-13       -26.96
14       -27.80       -25.57    8.627e-13       -26.90
15       -27.81       -25.43    8.599e-13       -26.85
======================================================
* Minimum

Out[18]: {'aic': 3, 'bic': 1, 'fpe': 3, 'hqic': 1}

When calling the fit function, one can pass a maximum number of lags and the order criterion to use for order selection:

In [19]: results = model.fit(maxlags=15, ic='aic')

Forecasting

The linear predictor is the optimal h-step ahead forecast in terms of mean-squared error:

y_t(h) = \nu + A_1 y_t(h − 1) + \cdots + A_p y_t(h − p)

We can use the forecast function to produce this forecast. Note that we have to specify the “initial value” for the forecast:

In [20]: lag_order = results.k_ar

In [21]: results.forecast(data.values[-lag_order:], 5)
Out[21]:
array([[ 0.0062,  0.005 ,  0.0092],
       [ 0.0043,  0.0034, -0.0024],
       [ 0.0042,  0.0071, -0.0119],
       [ 0.0056,  0.0064,  0.0015],
       [ 0.0063,  0.0067,  0.0038]])

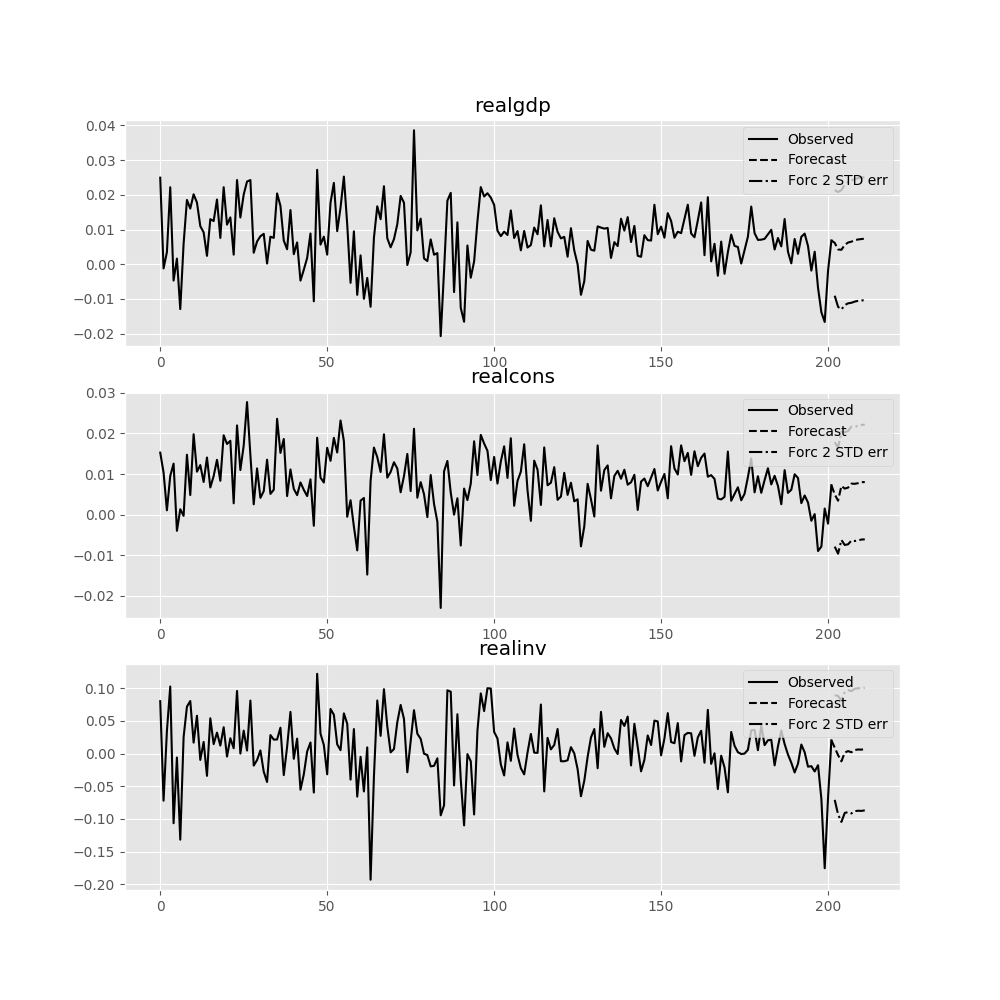

The forecast_interval function will produce the above forecast along with asymptotic standard errors. These can be visualized using the plot_forecast function:

In [22]: results.plot_forecast(10)
_images/var_forecast.png

Impulse Response Analysis

Impulse responses are of interest in econometric studies: they are the estimated responses to a unit impulse in one of the variables. They are computed in practice using the MA(\infty) representation of the VAR(p) process:

Y_t = \mu + \sum_{i=0}^\infty \Phi_i u_{t-i}

We can perform an impulse response analysis by calling the irf function on a VARResults object:

In [23]: irf = results.irf(10)

These can be visualized using the plot function, in either orthogonalized or non-orthogonalized form. Asymptotic standard errors are plotted by default at the 95% significance level, which can be modified by the user.

Note

Orthogonalization is done using the Cholesky decomposition of the estimated error covariance matrix \hat \Sigma_u and hence interpretations may change depending on variable ordering.

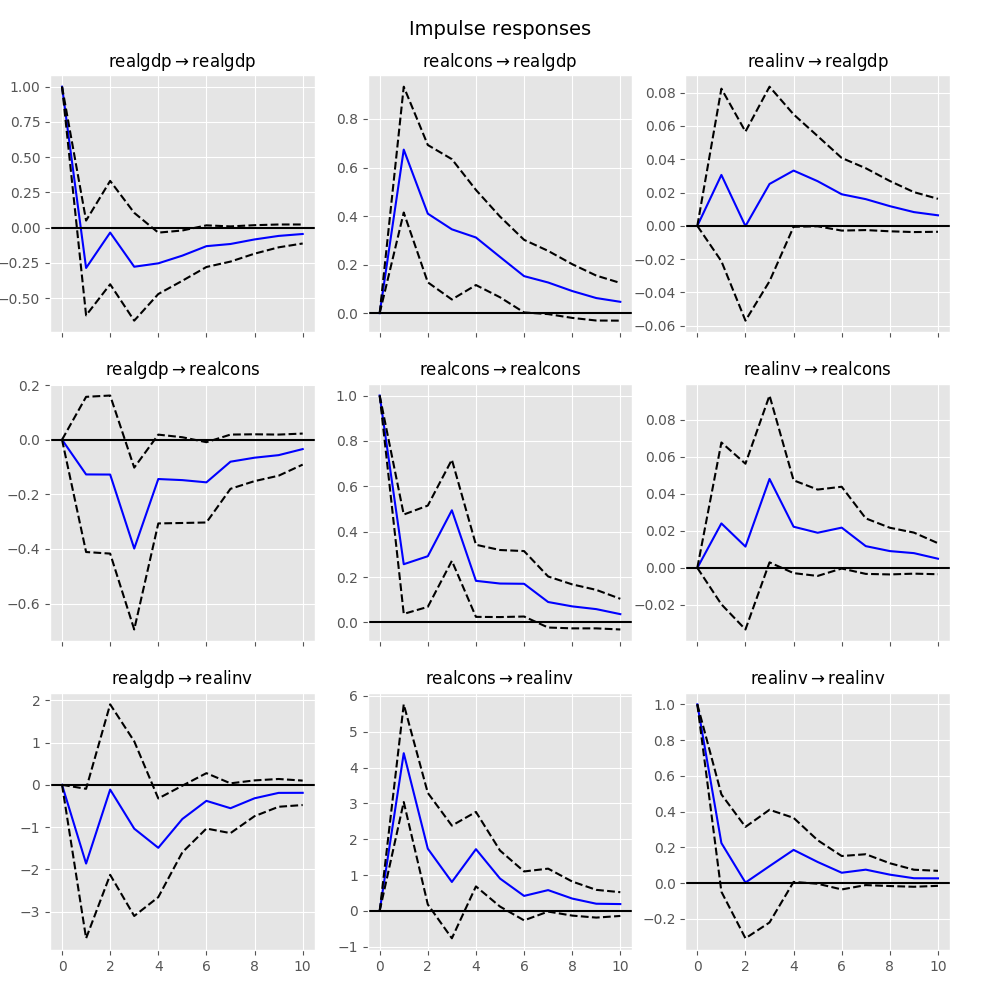

In [24]: irf.plot(orth=False)
_images/var_irf.png

Note the plot function is flexible and can plot only variables of interest if so desired:

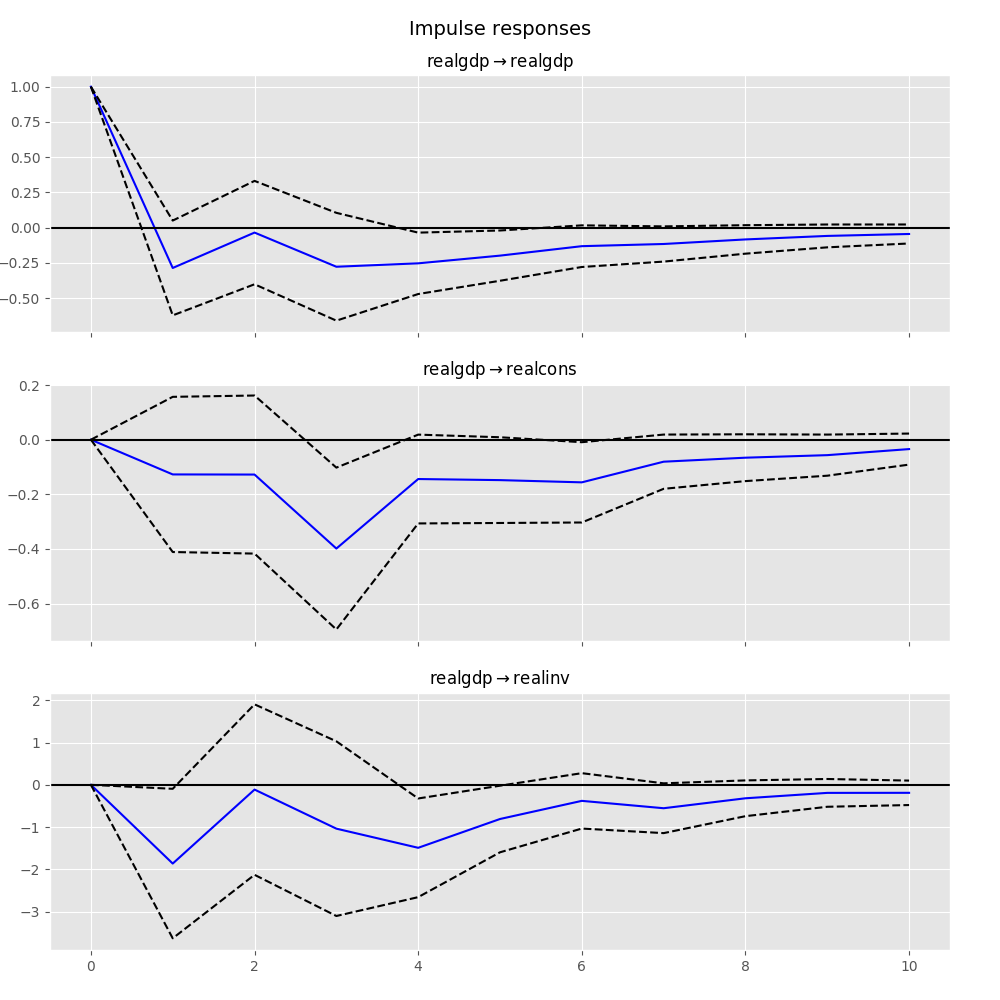

In [25]: irf.plot(impulse='realgdp')
_images/var_realgdp.png

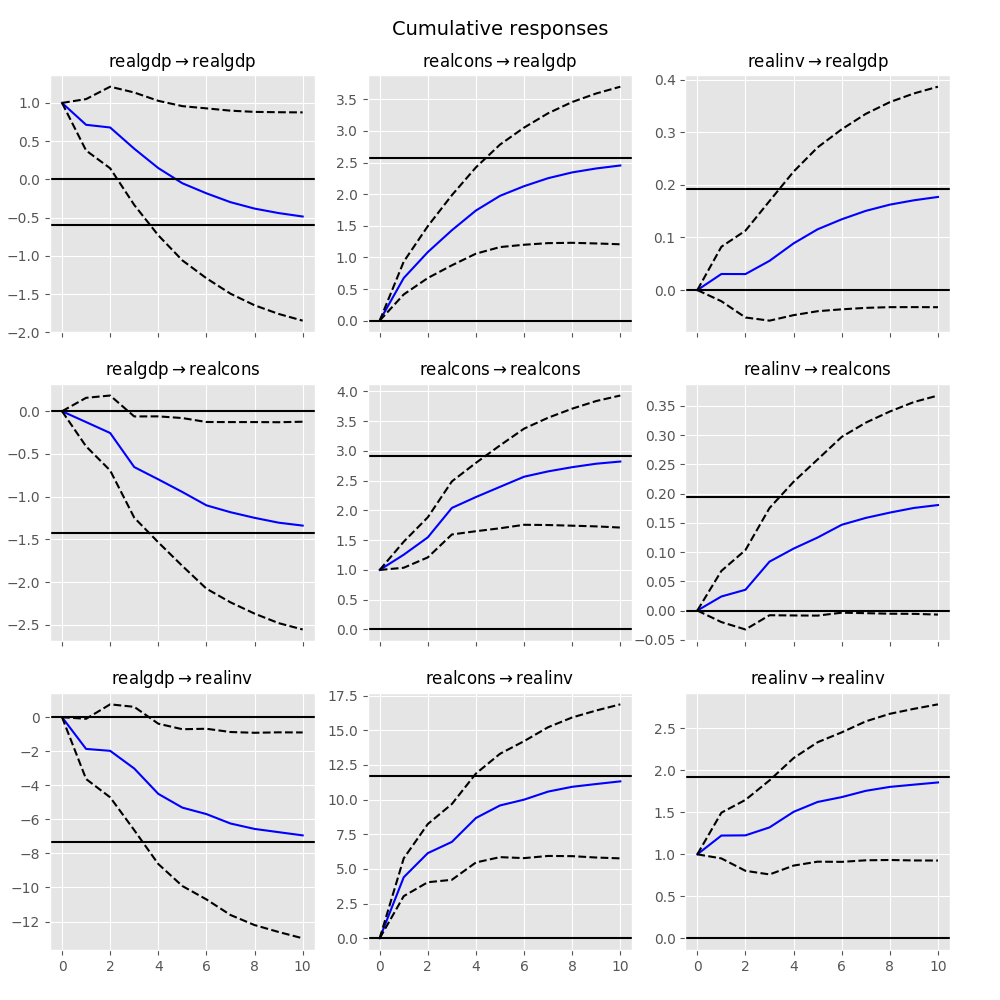

The cumulative effects \Psi_n = \sum_{i=0}^n \Phi_i can be plotted with the long run effects as follows:

In [26]: irf.plot_cum_effects(orth=False)
_images/var_irf_cum.png

Forecast Error Variance Decomposition (FEVD)

Forecast errors of component j on k in an i-step ahead forecast can be decomposed using the orthogonalized impulse responses \Theta_i:

\omega_{jk, i} = \sum_{i=0}^{h-1} (e_j^\prime \Theta_i e_k)^2 / \mathrm{MSE}_j(h)

\mathrm{MSE}_j(h) = \sum_{i=0}^{h-1} e_j^\prime \Phi_i \Sigma_u \Phi_i^\prime e_j

These are computed via the fevd function up through a total number of steps ahead:

In [27]: fevd = results.fevd(5)

In [28]: fevd.summary()
FEVD for realgdp
      realgdp  realcons   realinv
0    1.000000  0.000000  0.000000
1    0.864889  0.129253  0.005858
2    0.816725  0.177898  0.005378
3    0.793647  0.197590  0.008763
4    0.777279  0.208127  0.014594

FEVD for realcons
      realgdp  realcons   realinv
0    0.359877  0.640123  0.000000
1    0.358767  0.635420  0.005813
2    0.348044  0.645138  0.006817
3    0.319913  0.653609  0.026478
4    0.317407  0.652180  0.030414

FEVD for realinv
      realgdp  realcons   realinv
0    0.577021  0.152783  0.270196
1    0.488158  0.293622  0.218220
2    0.478727  0.314398  0.206874
3    0.477182  0.315564  0.207254
4    0.466741  0.324135  0.209124

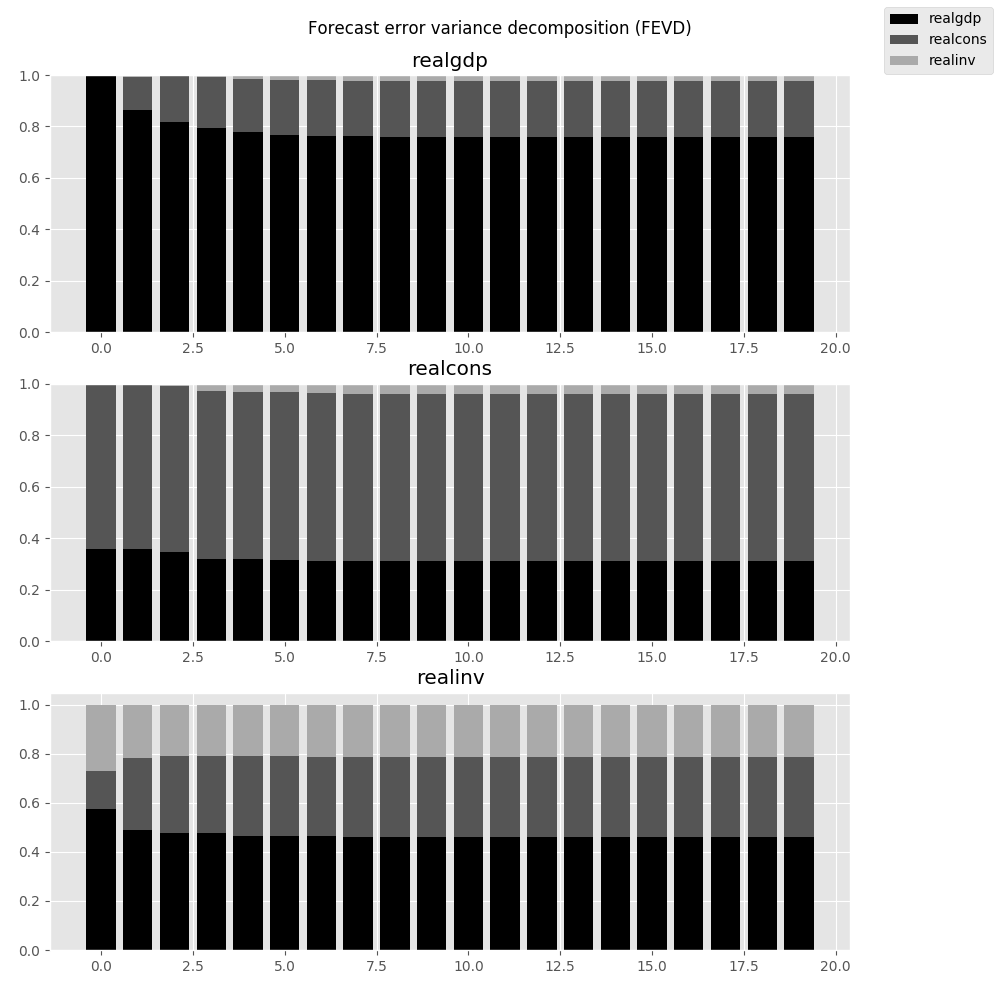

They can also be visualized through the returned FEVD object:

In [29]: results.fevd(20).plot()
_images/var_fevd.png

Statistical tests

A number of different methods are provided to carry out hypothesis tests about the model results and also the validity of the model assumptions (normality, whiteness / “iid-ness” of errors, etc.).

Granger causality

One is often interested in whether a variable or group of variables is “causal” for another variable, for some definition of “causal”. In the context of VAR models, one can say that a set of variables are Granger-causal within one of the VAR equations. We will not detail the mathematics or definition of Granger causality, but leave it to the reader. The VARResults object has the test_causality method for performing either a Wald (\chi^2) test or an F-test.

In [30]: results.test_causality('realgdp', ['realinv', 'realcons'], kind='f')
Granger causality f-test
=============================================================
   Test statistic   Critical Value          p-value        df
-------------------------------------------------------------
         6.999888         2.114554            0.000  (6, 567)
=============================================================
H_0: ['realinv', 'realcons'] do not Granger-cause realgdp
Conclusion: reject H_0 at 5.00% significance level
Out[30]:
{'conclusion': 'reject',
 'crit_value': 2.1145543864563141,
 'df': (6, 567),
 'pvalue': 3.3805963773884313e-07,
 'signif': 0.05,
 'statistic': 6.9998875522543882}

Normality

Whiteness of residuals

Dynamic Vector Autoregressions

Note

To use this functionality, pandas must be installed. See the pandas documentation for more information on the below data structures.

One is often interested in estimating a moving-window regression on time series data for the purposes of making forecasts throughout the data sample. For example, we may wish to produce the series of 2-step-ahead forecasts produced by a VAR(p) model estimated at each point in time.

In [31]: np.random.seed(1)

In [32]: import pandas.util.testing as ptest

In [33]: ptest.N = 500

In [34]: data = ptest.makeTimeDataFrame().cumsum(0)

In [35]: data
Out[35]:
                    A          B          C          D
2000-01-03   1.624345  -1.719394  -0.153236   1.301225
2000-01-04   1.012589  -1.662273  -2.585745   0.988833
2000-01-05   0.484417  -2.461821  -2.077760   0.717604
2000-01-06  -0.588551  -2.753416  -2.401793   2.580517
2000-01-07   0.276856  -3.012398  -3.912869   1.937644
...               ...        ...        ...        ...
2001-11-26  29.552085  14.274036  39.222558 -13.243907
2001-11-27  30.080964  11.996738  38.589968 -12.682989
2001-11-28  27.843878  11.927114  38.380121 -13.604648
2001-11-29  26.736165  12.280984  40.277282 -12.957273
2001-11-30  26.718447  12.094029  38.895890 -11.570447

[500 rows x 4 columns]

In [36]: var = DynamicVAR(data, lag_order=2, window_type='expanding')

The estimated coefficients for the dynamic model are returned as a pandas.Panel object, which can allow you to easily examine, for example, all of the model coefficients by equation or by date:

In [37]: import datetime as dt

In [38]: var.coefs
Out[38]:
<class 'pandas.core.panel.Panel'>
Dimensions: 9 (items) x 489 (major_axis) x 4 (minor_axis)
Items axis: L1.A to intercept
Major_axis axis: 2000-01-18 00:00:00 to 2001-11-30 00:00:00
Minor_axis axis: A to D

 # all estimated coefficients for equation A
In [39]: var.coefs.minor_xs('A').info()
<class 'pandas.core.frame.DataFrame'>
DatetimeIndex: 489 entries, 2000-01-18 to 2001-11-30
Freq: B
Data columns (total 9 columns):
L1.A         489 non-null float64
L1.B         489 non-null float64
L1.C         489 non-null float64
L1.D         489 non-null float64
L2.A         489 non-null float64
L2.B         489 non-null float64
L2.C         489 non-null float64
L2.D         489 non-null float64
intercept    489 non-null float64
dtypes: float64(9)
memory usage: 38.2 KB

 # coefficients on 11/30/2001
In [40]: var.coefs.major_xs(dt.datetime(2001, 11, 30)).T
Out[40]:
                  A         B         C         D
L1.A       0.971964  0.045960  0.003883  0.003822
L1.B       0.043951  0.937964  0.000735  0.020823
L1.C       0.038144  0.018260  0.977037  0.129287
L1.D       0.038618  0.036180  0.052855  1.002657
L2.A       0.013588 -0.046791  0.011558 -0.005300
L2.B      -0.048885  0.041853  0.012185 -0.048732
L2.C      -0.029426 -0.015238  0.011520 -0.119014
L2.D      -0.049945 -0.025419 -0.045621 -0.019496
intercept  0.113331  0.248795 -0.058837 -0.089302

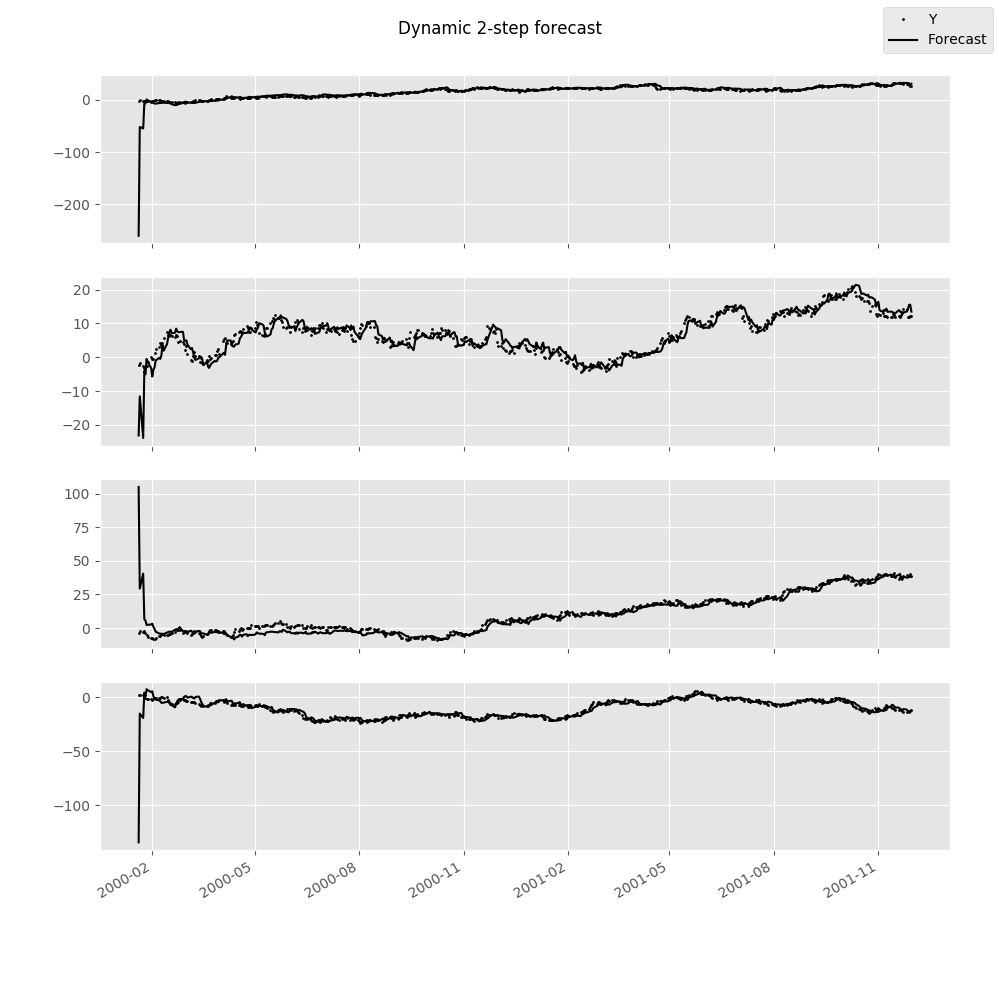

Dynamic forecasts for a given number of steps ahead can be produced using the forecast function and return a pandas.DataMatrix object:

In [41]: var.forecast(2)
Out[41]:
                     A          B           C           D
2000-01-20 -260.325888 -23.141610  104.930427 -134.489882
2000-01-21  -52.121483 -11.566786   29.383608  -15.099109
2000-01-24  -54.900049 -23.894858   40.470913  -19.199059
2000-01-25   -7.493484  -4.057529    6.682707    4.301623
2000-01-26   -6.866108  -5.065873    5.623590    0.796081
...                ...        ...         ...         ...
2001-11-26   31.886126  13.515527   37.618145  -11.464682
2001-11-27   32.314633  14.237672   37.397691  -12.809727
2001-11-28   30.896528  15.488388   38.541596  -13.129524
2001-11-29   30.077228  15.533337   38.734096  -12.900891
2001-11-30   30.510380  13.491615   38.088228  -12.384976

[487 rows x 4 columns]

The forecasts can be visualized using plot_forecast:

In [42]: var.plot_forecast(2)
_images/dvar_forecast.png

Class Reference

var_model.VAR(endog[, dates, freq, missing]) Fit VAR(p) process and do lag order selection
var_model.VARProcess(coefs, intercept, sigma_u) Class represents a known VAR(p) process
var_model.VARResults(endog, endog_lagged, ...) Estimate VAR(p) process with fixed number of lags
irf.IRAnalysis(model[, P, periods, order, svar]) Impulse response analysis class.
var_model.FEVD(model[, P, periods]) Compute and plot Forecast error variance decomposition and asymptotic
dynamic.DynamicVAR(data[, lag_order, ...]) Estimates time-varying vector autoregression (VAR(p)) using
