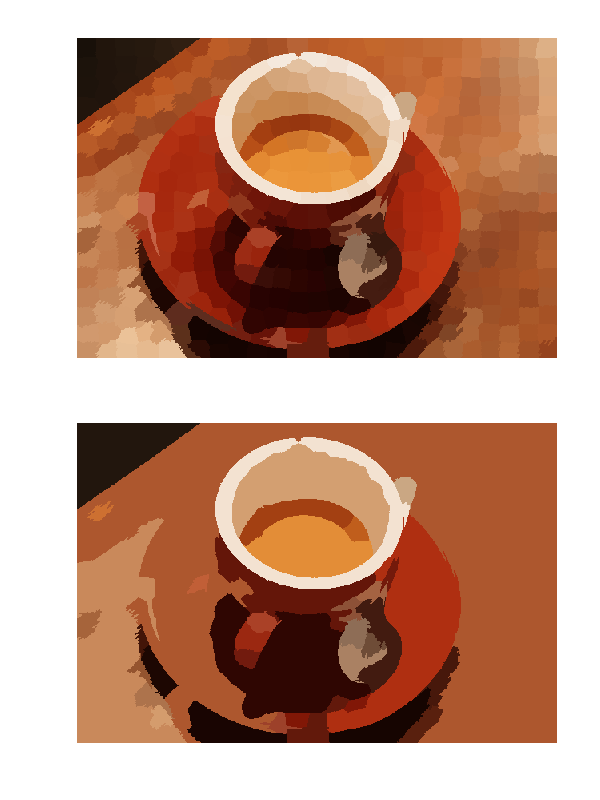

This example constructs a Region Adjacency Graph (RAG) and merges regions which are similar in color. We construct a RAG and define edges as the difference in mean color. We then join regions with similar mean color.
Sourcefrom skimage import data, io, segmentation, color
from skimage.future import graph
from matplotlib import pyplot as plt
img = data.coffee()
labels1 = segmentation.slic(img, compactness=30, n_segments=400)
out1 = color.label2rgb(labels1, img, kind='avg')
g = graph.rag_mean_color(img, labels1)
labels2 = graph.cut_threshold(labels1, g, 29)
out2 = color.label2rgb(labels2, img, kind='avg')
fig, ax = plt.subplots(nrows=2, sharex=True, sharey=True,
figsize=(6, 8))
ax[0].imshow(out1)
ax[1].imshow(out2)
for a in ax:
a.axis('off')
plt.tight_layout()
Total running time of the script: ( 0 minutes 4.032 seconds)
