Frangi filter¶

from skimage.data import camera
from skimage.filters import frangi, hessian

import matplotlib.pyplot as plt

image = camera()

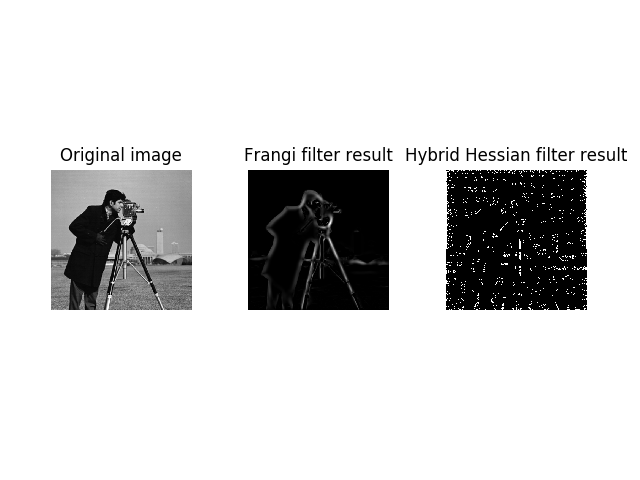

fig, ax = plt.subplots(ncols=3, subplot_kw={'adjustable': 'box-forced'})

ax[0].imshow(image, cmap=plt.cm.gray)
ax[0].set_title('Original image')

ax[1].imshow(frangi(image), cmap=plt.cm.gray)
ax[1].set_title('Frangi filter result')

ax[2].imshow(hessian(image), cmap=plt.cm.gray)
ax[2].set_title('Hybrid Hessian filter result')

for a in ax:
    a.axis('off')

plt.tight_layout()
