pylab_examples example code: multiple_figs_demo.pyΒΆ

(Source code)

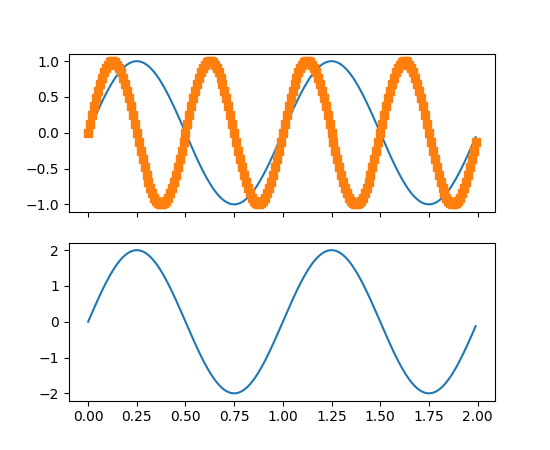

../../_images/multiple_figs_demo_00.png

(png, pdf)

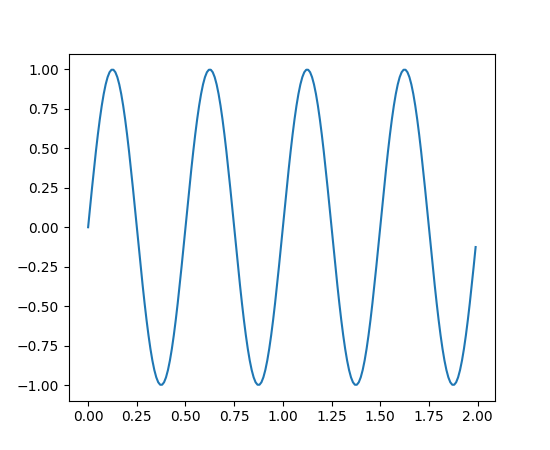

../../_images/multiple_figs_demo_01.png

(png, pdf)

# Working with multiple figure windows and subplots
import matplotlib.pyplot as plt
import numpy as np

t = np.arange(0.0, 2.0, 0.01)
s1 = np.sin(2*np.pi*t)
s2 = np.sin(4*np.pi*t)

plt.figure(1)
plt.subplot(211)
plt.plot(t, s1)
plt.subplot(212)
plt.plot(t, 2*s1)

plt.figure(2)
plt.plot(t, s2)

# now switch back to figure 1 and make some changes
plt.figure(1)
plt.subplot(211)
plt.plot(t, s2, 's')
ax = plt.gca()
ax.set_xticklabels([])

plt.show()
