pylab_examples example code: color_by_yvalue.pyΒΆ

(Source code, png, pdf)

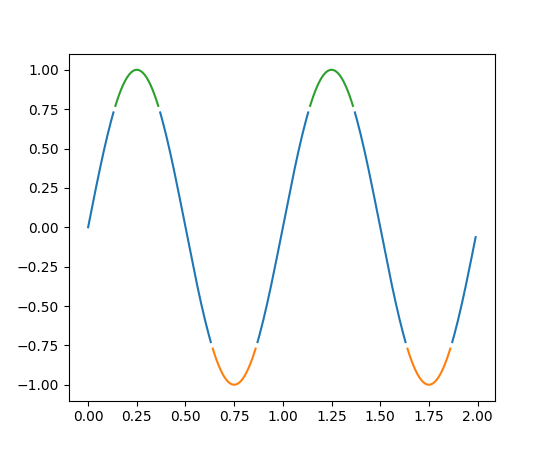

../../_images/color_by_yvalue.png
# use masked arrays to plot a line with different colors by y-value
import numpy as np
import matplotlib.pyplot as plt

t = np.arange(0.0, 2.0, 0.01)
s = np.sin(2*np.pi*t)

upper = 0.77
lower = -0.77


supper = np.ma.masked_where(s < upper, s)
slower = np.ma.masked_where(s > lower, s)
smiddle = np.ma.masked_where(np.logical_or(s < lower, s > upper), s)

plt.plot(t, smiddle, t, slower, t, supper)
plt.show()
