lines_bars_and_markers example code: marker_fillstyle_reference.pyΒΆ

(Source code, png, pdf)

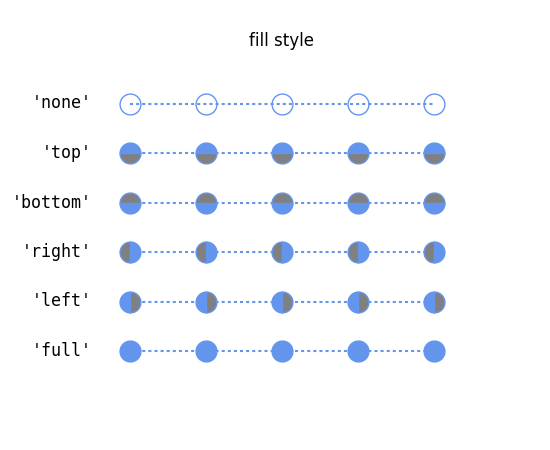

../../_images/marker_fillstyle_reference.png
"""
Reference for marker fill-styles included with Matplotlib.
"""
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D


points = np.ones(5)  # Draw 3 points for each line
text_style = dict(horizontalalignment='right', verticalalignment='center',
                  fontsize=12, fontdict={'family': 'monospace'})
marker_style = dict(color='cornflowerblue', linestyle=':', marker='o',
                    markersize=15, markerfacecoloralt='gray')


def format_axes(ax):
    ax.margins(0.2)
    ax.set_axis_off()


def nice_repr(text):
    return repr(text).lstrip('u')


fig, ax = plt.subplots()

# Plot all fill styles.
for y, fill_style in enumerate(Line2D.fillStyles):
    ax.text(-0.5, y, nice_repr(fill_style), **text_style)
    ax.plot(y * points, fillstyle=fill_style, **marker_style)
    format_axes(ax)
    ax.set_title('fill style')

plt.show()
