lines_bars_and_markers example code: fill_demo_features.pyΒΆ

(Source code, png, pdf)

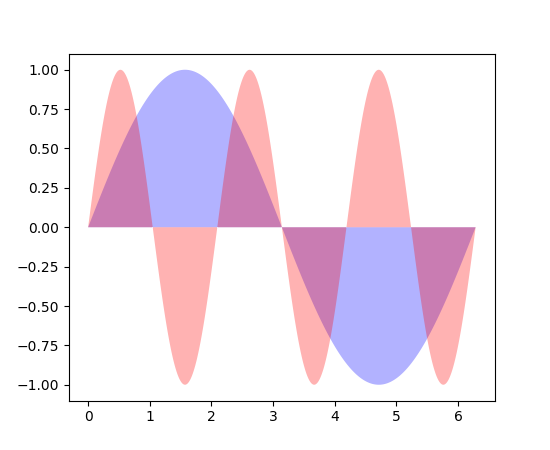

../../_images/fill_demo_features.png
"""
Demo of the fill function with a few features.

In addition to the basic fill plot, this demo shows a few optional features:

    * Multiple curves with a single command.
    * Setting the fill color.
    * Setting the opacity (alpha value).
"""
import numpy as np
import matplotlib.pyplot as plt

x = np.linspace(0, 2 * np.pi, 500)
y1 = np.sin(x)
y2 = np.sin(3 * x)

fig, ax = plt.subplots()
ax.fill(x, y1, 'b', x, y2, 'r', alpha=0.3)
plt.show()
