Displays the difference between interpolation = 'none' and
interpolation = 'nearest'.
Interpolation = 'none' and interpolation = 'nearest' are equivalent when
converting a figure to an image file, such as a PNG.
Interpolation = 'none' and interpolation = 'nearest' behave quite
differently, however, when converting a figure to a vector graphics file,
such as a PDF. As shown, Interpolation = 'none' works well when a big
image is scaled down, while interpolation = 'nearest' works well when a
small image is blown up.
"""
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.cbook as cbook
# Load big image
big_im_path = cbook.get_sample_data('necked_tensile_specimen.png')
big_im = plt.imread(big_im_path)
# Define small image
small_im = np.array([[0.25, 0.75, 1.0, 0.75], [0.1, 0.65, 0.5, 0.4],
[0.6, 0.3, 0.0, 0.2], [0.7, 0.9, 0.4, 0.6]])
# Create a 2x2 table of plots
fig, axes = plt.subplots(figsize=[8.0, 7.5], ncols=2, nrows=2)
axes[0, 0].imshow(big_im, interpolation='none')
axes[0, 1].imshow(big_im, interpolation='nearest')
axes[1, 0].imshow(small_im, interpolation='none')
axes[1, 1].imshow(small_im, interpolation='nearest')
fig.subplots_adjust(left=0.24, wspace=0.2, hspace=0.1,
bottom=0.05, top=0.86)
# Label the rows and columns of the table
fig.text(0.03, 0.645, 'Big Image\nScaled Down', ha='left')
fig.text(0.03, 0.225, 'Small Image\nBlown Up', ha='left')
fig.text(0.383, 0.90, "Interpolation = 'none'", ha='center')
fig.text(0.75, 0.90, "Interpolation = 'nearest'", ha='center')
# If you were going to run this example on your local machine, you
# would save the figure as a PNG, save the same figure as a PDF, and
# then compare them. The following code would suffice.

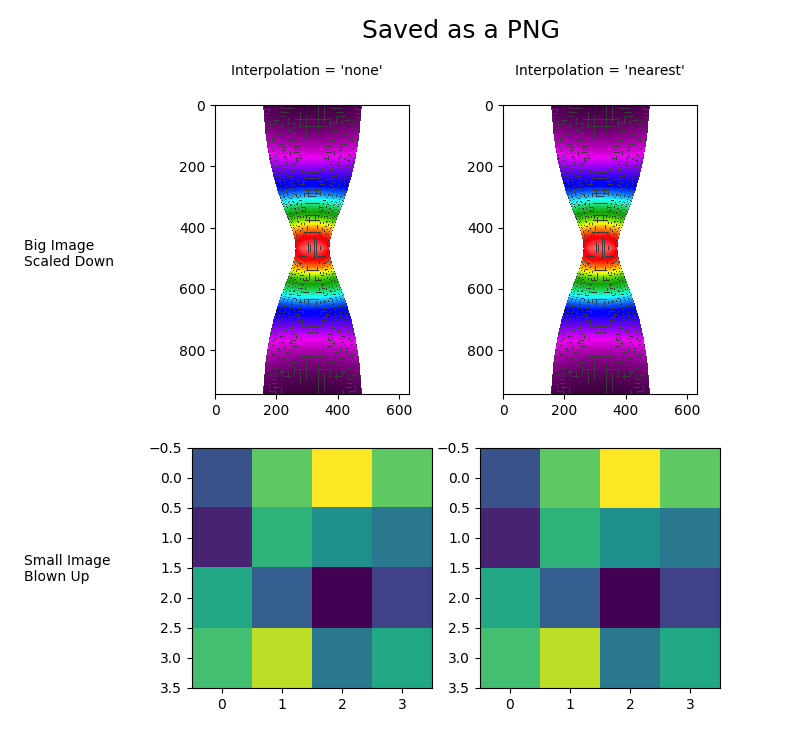

txt = fig.text(0.452, 0.95, 'Saved as a PNG', fontsize=18)
# plt.savefig('None_vs_nearest-png.png')
# txt.set_text('Saved as a PDF')
# plt.savefig('None_vs_nearest-pdf.pdf')

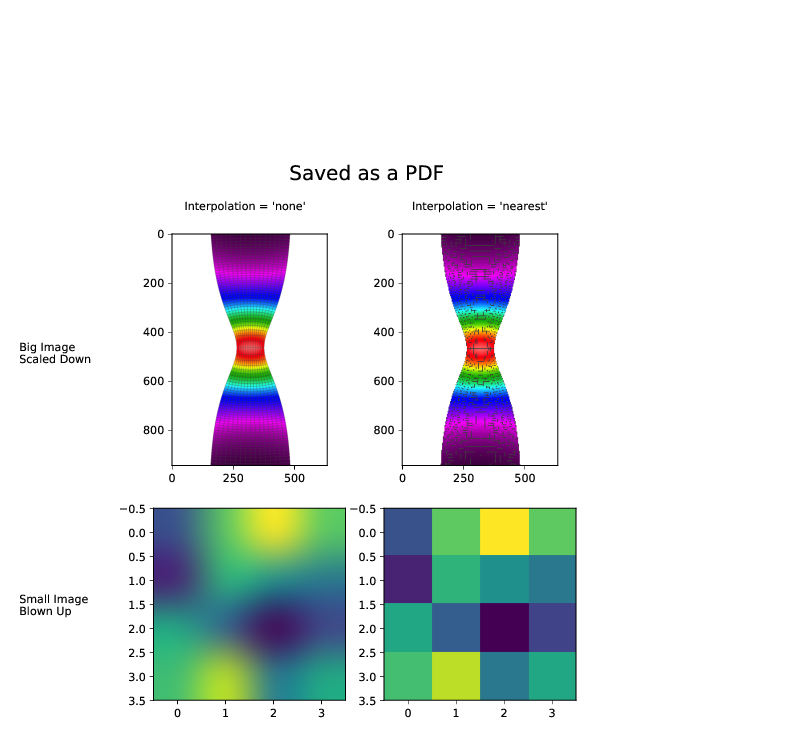

# Here, however, we need to display the PDF on a webpage, which means
# the PDF must be converted into an image. For the purposes of this
# example, the 'Nearest_vs_none-pdf.pdf' has been pre-converted into
#'Nearest_vs_none-pdf.png' at 80 dpi. We simply need to load and
# display it.
# The conversion is done with:
# gs -dNOPAUSE -dBATCH -dDOINTERPOLATE -sDEVICE=pngalpha \
# -sOutputFile=None_vs_nearest-pdf.png -r80 None_vs_nearest-pdf.pdf
pdf_im_path = cbook.get_sample_data('None_vs_nearest-pdf.png')
pdf_im = plt.imread(pdf_im_path)
fig2 = plt.figure(figsize=[8.0, 7.5])
fig2.figimage(pdf_im)
plt.show()
