You already know how to create different geometric primitives and more complicated shapes. This lesson teaches how to add some color and fancy outlines to your graphics and represents filling and stroking:
To apply fancy line styles and fill patterns to geometric primitives change the stroke and paint attributes in the
Graphics2D
context before rendering. For example, draw a dashed line by creating an appropriate
Stroke
object. To add this stroke to the Graphics2D
context before you render the line call the setStroke
method. Similarly, you apply a gradient fill to a Shape
object by creating a GradientPaint
object and adding it to the Graphics2D
context.
The following code lines enrich geometric primitives with filling and stroking context:
// draw RoundRectangle2D.Double final static float dash1[] = {10.0f}; final static BasicStroke dashed = new BasicStroke(1.0f, BasicStroke.CAP_BUTT, BasicStroke.JOIN_MITER, 10.0f, dash1, 0.0f); g2.setStroke(dashed); g2.draw(new RoundRectangle2D.Double(x, y, rectWidth, rectHeight, 10, 10));
// fill Ellipse2D.Double redtowhite = new GradientPaint(0,0,color.RED,100, 0,color.WHITE); g2.setPaint(redtowhite); g2.fill (new Ellipse2D.Double(0, 0, 100, 50));
The
ShapesDemo2D.java
code example represents additional implementations of stoking and filling.
Using the Java 2D Stroke
and Paint
classes, you can define fancy line styles and fill patterns.
Line styles are defined by the stroke attribute in the Graphics2D
rendering context. To set the stroke attribute, you create a BasicStroke
object and pass it into the Graphics2D
setStroke
method.
A BasicStroke
object holds information about the line width, join style, end-cap style, and dash style. This information is used when a Shape
is rendered with the draw
method.
The line width is the thickness of the line measured perpendicular to its trajectory. The line width is specified as a float
value in user coordinate units, which are roughly equivalent to 1/72 of an inch when the default transform is used.
The join style is the decoration that is applied where two line segments meet. BasicStroke
supports the following three join styles:
JOIN_BEVEL
JOIN_MITER
JOIN_ROUND
The end-cap style is the decoration that is applied where a line segment ends. BasicStroke
supports the following three end-cap styles:
CAP_BUTT
CAP_ROUND
CAP_SQUARE
The dash style defines the pattern of opaque and transparent sections applied along the length of the line. The dash style is defined by a dash array and a dash phase. The dash array defines the dash pattern. Alternating elements in the array represent the dash length and the length of the space between dashes in user coordinate units. Element 0 represents the first dash, element 1 the first space, and so on. The dash phase is an offset into the dash pattern, also specified in user coordinate units. The dash phase indicates what part of the dash pattern is applied to the beginning of the line.
Fill patterns are defined by the paint attribute in the Graphics2D
rendering context. To set the paint attribute, you create an instance of an object that implements the Paint
interface and pass it into the Graphics2D
setPaint
method.
The following three classes implement the Paint
interface: Color
, GradientPaint
, and TexturePaint
.
To create a GradientPaint
, you specify a beginning position and color and an ending position and color. The gradient changes proportionally from one color to the other color along the line connecting the two positions. For example:
The pattern for a TexturePaint
class is defined by a BufferedImage

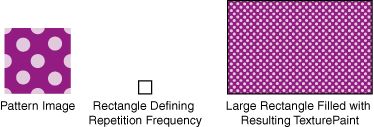

class. To create a TexturePaint
