CREATE HIERARCHY
Purpose
Use the CREATE
HIERARCHY
statement to create a hierarchy. A hierarchy specifies the hierarchical relationships among the levels of an attribute dimension.
Tip:
You can view and run SQL scripts that create hierarchies at the Oracle Live SQL website at https://livesql.oracle.com/apex/livesql/file/index.html. The website has scripts and tutorials that demonstrate the creation and use of analytic views.Prerequisites
To create a hierarchy in your own schema, you must have the CREATE
HIERARCHY
system privilege. To create a hierarchy in another user's schema, you must have the CREATE
ANY
HIERARCHY
system privilege.
Syntax

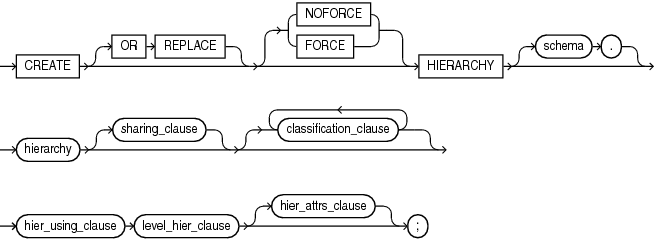

create_hierarchy::=
sharing_clause::=
classification_clause::=
hier_using_clause::=
level_hier_clause::=
hier_attrs_clause::=
hier_attr_clause::=
hier_attr_name::=
Semantics
OR REPLACE
Specify OR
REPLACE
to replace an existing definition of a hierarchy with a different definition.
FORCE and NOFORCE
Specify FORCE
to force the creation of the hierarchy even if it does not successfully compile. If you specify NOFORCE
, then the hierarchy must compile successfully, otherwise an error occurs. The default is NOFORCE
.
schema
Specify the schema in which to create the hierarchy. If you do not specify a schema, then Oracle Database creates the hierarchy in your own schema.
hierarchy
Specify a name for the hierarchy.
sharing_clause
Specify whether to create the hierarchy as an application common object. Specifying METADATA
shares the hierarchy's metadata, but its data is unique to each container. Specifying DATA
shares the hierarchy object; its data is the same for all containers in the application container and the data is stored only in the application root. Specifying NONE
excludes the hierarchy from being shared.
classification_clause
Use the classification clause to specify values for the CAPTION
or DESCRIPTION
classifications and to specify user-defined classifications. Classifications provide descriptive metadata that applications may use to provide information about analytic views and their components.
You may specify any number of classifications for the same object. A classification can have a maximum length of 4000 bytes.
For the CAPTION
and DESCRIPTION
classifications, you may use the DDL shortcuts CAPTION
'
caption
'
and DESCRIPTION
'
description
'
or the full classification syntax.
You may vary the classification values by language. To specify a language for the CAPTION
or DESCRIPTION
classification, you must use the full syntax. If you do not specify a language, then the language value for the classification is NULL
. The language value must either be NULL
or a valid NLS_LANGUAGE
value.
hier_using_clause
Specify the attribute dimension that has the members of the hierarchy.
level_hier_clause
Specify the organization of the hierarchy levels.
hier_attrs_clause
Specify classifications that contain descriptive metadata for the hierarchical attributes. A hier_attr_clause
for a given hier_attr_name
may appear only once in the list.
All hierarchies always contain all of the hierarchical attributes, but a hierarchical attribute does not have descriptive metadata associated with it unless you specify it with this clause.
hier_attr_clause
Specify a hierarchical attribute and provide one or more classifications for it.
hier_attr_name
Specify a hierarchical attribute.
Examples
The following example creates the TIME_HIER
hierarchy:
CREATE OR REPLACE HIERARCHY time_hier -- Hierarchy name
USING time_attr_dim -- Refers to TIME_ATTR_DIM attribute dimension
(month CHILD OF -- Months in the attribute dimension
quarter CHILD OF
year);
The following example creates the PRODUCT_HIER
hierarchy:
CREATE OR REPLACE HIERARCHY product_hier
USING product_attr_dim
(category
CHILD OF department);
The following example creates the GEOGRAPHY_HIER
hierarchy:
CREATE OR REPLACE HIERARCHY geography_hier
USING geography_attr_dim
(state_province
CHILD OF country
CHILD OF region);
