XMLFOREST

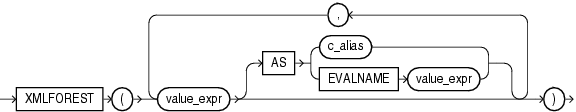

SQLRF52022Syntax

SQLRF52023Purpose

XMLForest converts each of its argument parameters to XML, and then returns an XML fragment that is the concatenation of these converted arguments.

• If value_expr is a scalar expression, then you can omit the AS clause, and Oracle Database uses the column name as the element name.

• If value_expr is an object type or collection, then the AS clause is mandatory, and Oracle uses the specified expression as the enclosing tag.

  You can do this by specifying c_alias, which is a string literal, or by specifying EVALNAME value_expr. In the latter case, the value expression is evaluated and the result, which must be a string literal, is used as the identifier. The identifier can be up to 4000 characters and does not have to be a column name or column reference. It cannot be an expression or null.

• If value_expr is null, then no element is created for that value_expr.

SQLRF52024Examples

The following example creates an Emp element for a subset of employees, with nested employee_id, last_name, and salary elements as the contents of Emp:

SELECT XMLELEMENT("Emp",
   XMLFOREST(e.employee_id, e.last_name, e.salary))
   "Emp Element"
   FROM employees e WHERE employee_id = 204;

Emp Element
----------------------------------------------------------------
<Emp>
  <EMPLOYEE_ID>204</EMPLOYEE_ID>
  <LAST_NAME>Baer</LAST_NAME>
  <SALARY>10000</SALARY>
</Emp>

Refer to the example for XMLCOLATTVAL to compare the output of these two functions.
