Support Vector Regression (SVR) using linear and non-linear kernelsΒΆ

Toy example of 1D regression using linear, polynomial and RBF kernels.

print(__doc__)

import numpy as np
from sklearn.svm import SVR
import matplotlib.pyplot as plt

Generate sample data

X = np.sort(5 * np.random.rand(40, 1), axis=0)
y = np.sin(X).ravel()

Add noise to targets

y[::5] += 3 * (0.5 - np.random.rand(8))

Fit regression model

svr_rbf = SVR(kernel='rbf', C=1e3, gamma=0.1)
svr_lin = SVR(kernel='linear', C=1e3)
svr_poly = SVR(kernel='poly', C=1e3, degree=2)
y_rbf = svr_rbf.fit(X, y).predict(X)
y_lin = svr_lin.fit(X, y).predict(X)
y_poly = svr_poly.fit(X, y).predict(X)

look at the results

lw = 2
plt.scatter(X, y, color='darkorange', label='data')
plt.hold('on')
plt.plot(X, y_rbf, color='navy', lw=lw, label='RBF model')
plt.plot(X, y_lin, color='c', lw=lw, label='Linear model')
plt.plot(X, y_poly, color='cornflowerblue', lw=lw, label='Polynomial model')
plt.xlabel('data')
plt.ylabel('target')
plt.title('Support Vector Regression')
plt.legend()
plt.show()

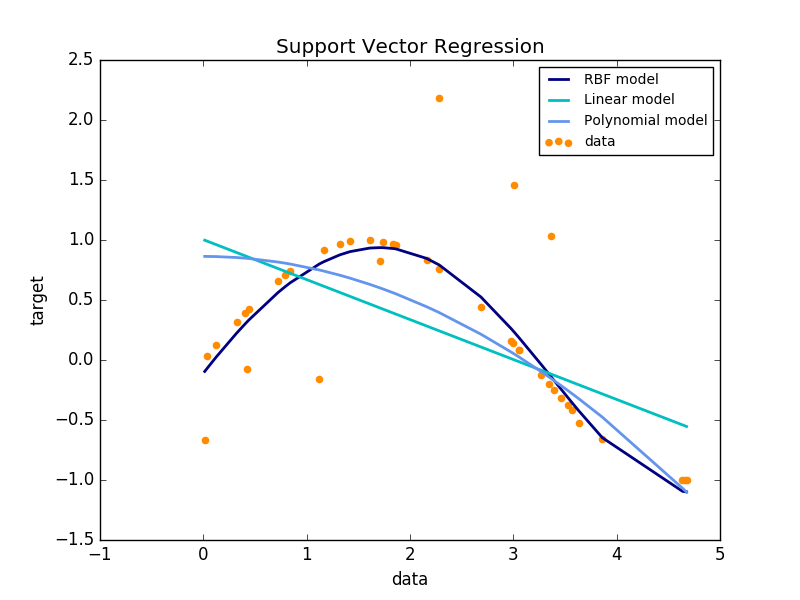

../../_images/sphx_glr_plot_svm_regression_001.png

Total running time of the script: (0 minutes 0.769 seconds)
