CENSURE feature detector¶

from skimage import data
from skimage import transform as tf
from skimage.feature import CENSURE
from skimage.color import rgb2gray

import matplotlib.pyplot as plt


img_orig = rgb2gray(data.astronaut())
tform = tf.AffineTransform(scale=(1.5, 1.5), rotation=0.5,
                           translation=(150, -200))
img_warp = tf.warp(img_orig, tform)

detector = CENSURE()

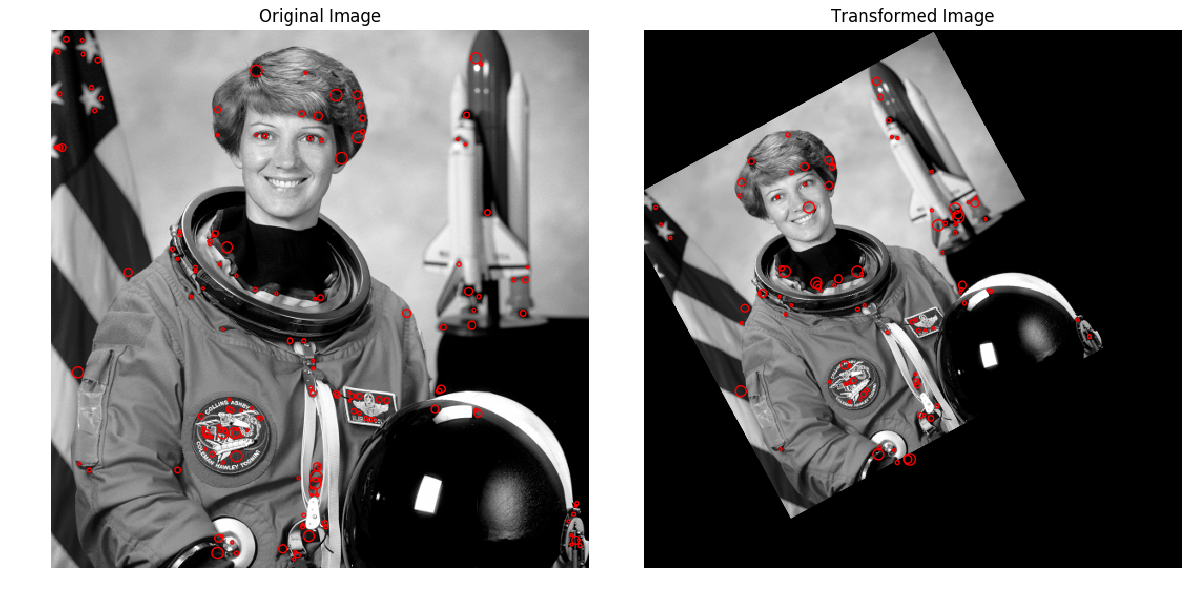

fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(12, 6))

detector.detect(img_orig)

ax[0].imshow(img_orig, cmap=plt.cm.gray)
ax[0].scatter(detector.keypoints[:, 1], detector.keypoints[:, 0],
              2 ** detector.scales, facecolors='none', edgecolors='r')
ax[0].set_title("Original Image")

detector.detect(img_warp)

ax[1].imshow(img_warp, cmap=plt.cm.gray)
ax[1].scatter(detector.keypoints[:, 1], detector.keypoints[:, 0],
              2 ** detector.scales, facecolors='none', edgecolors='r')
ax[1].set_title('Transformed Image')

for a in ax:
    a.axis('off')

plt.tight_layout()
plt.show()
