Choosing Colormaps

Overview

The idea behind choosing a good colormap is to find a good representation in 3D colorspace for your data set. The best colormap for any given data set depends on many things including:

  • Whether representing form or metric data ([Ware])
  • Your knowledge of the data set (e.g., is there a critical value from which the other values deviate?)
  • If there is an intuitive color scheme for the parameter you are plotting
  • If there is a standard in the field the audience may be expecting

For many applications, a perceptually uniform colormap is the best choice — one in which equal steps in data are perceived as equal steps in the color space. Researchers have found that the human brain perceives changes in the lightness parameter as changes in the data much better than, for example, changes in hue. Therefore, colormaps which have monotonically increasing lightness through the colormap will be better interpreted by the viewer. A wonderful example of perceptually uniform colormaps is [colorcet].

Color can be represented in 3D space in various ways. One way to represent color is using CIELAB. In CIELAB, color space is represented by lightness, ; red-green, ; and yellow-blue, . The lightness parameter can then be used to learn more about how the matplotlib colormaps will be perceived by viewers.

An excellent starting resource for learning about human perception of colormaps is from [IBM].

Classes of colormaps

Colormaps are often split into several categories based on their function (see, e.g., [Moreland]):

  1. Sequential: change in lightness and often saturation of color incrementally, often using a single hue; should be used for representing information that has ordering.
  2. Diverging: change in lightness and possibly saturation of two different colors that meet in the middle at an unsaturated color; should be used when the information being plotted has a critical middle value, such as topography or when the data deviates around zero.
  3. Qualitative: often are miscellaneous colors; should be used to represent information which does not have ordering or relationships.

Lightness of matplotlib colormaps

Here we examine the lightness values of the matplotlib colormaps. Note that some documentation on the colormaps is available ([list-colormaps]).

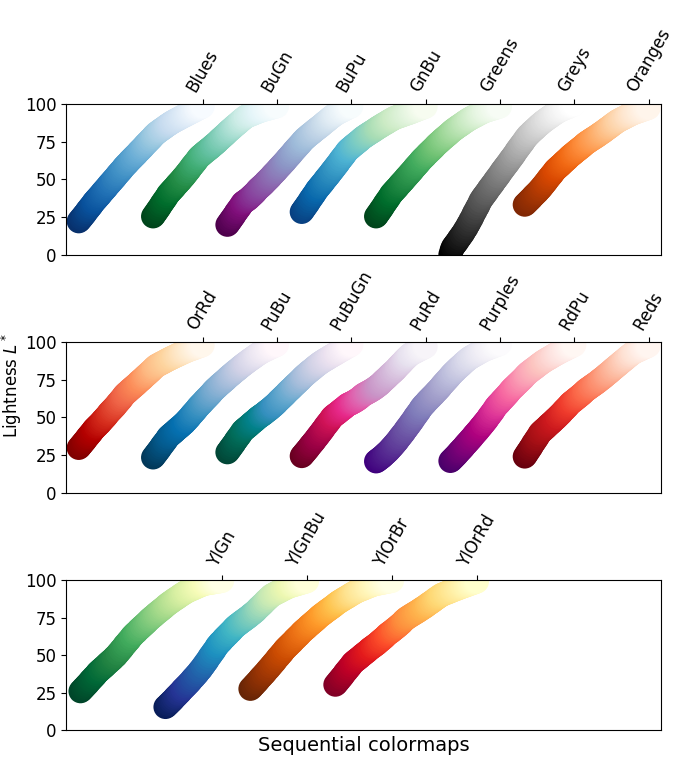

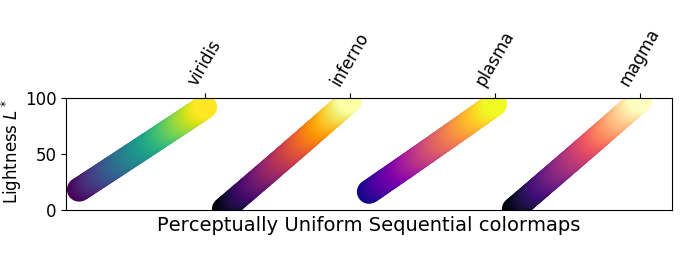

Sequential

For the Sequential plots, the lightness value increases monotonically through the colormaps. This is good. Some of the values in the colormaps span from 0 to 100 (binary and the other grayscale), and others start around . Those that have a smaller range of will accordingly have a smaller perceptual range. Note also that the function varies amongst the colormaps: some are approximately linear in and others are more curved.

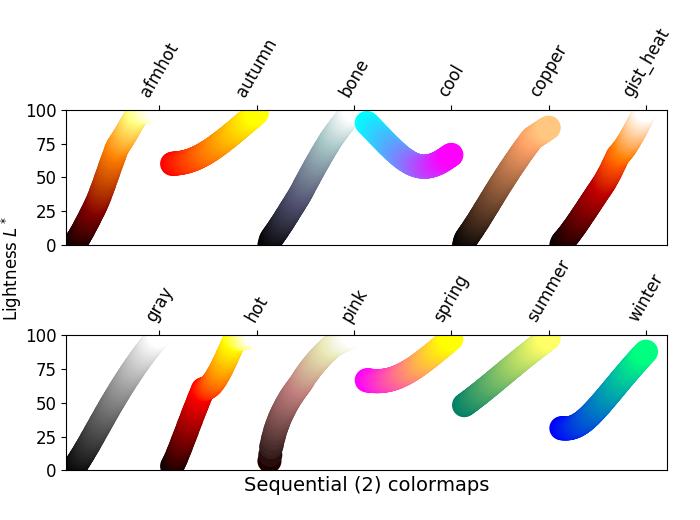

Sequential2

Many of the values from the Sequential2 plots are monotonically increasing, but some (autumn, cool, spring, and winter) plateau or even go both up and down in space. Others (afmhot, copper, gist_heat, and hot) have kinks in the functions. Data that is being represented in a region of the colormap that is at a plateau or kink will lead to a perception of banding of the data in those values in the colormap (see [mycarta-banding] for an excellent example of this).

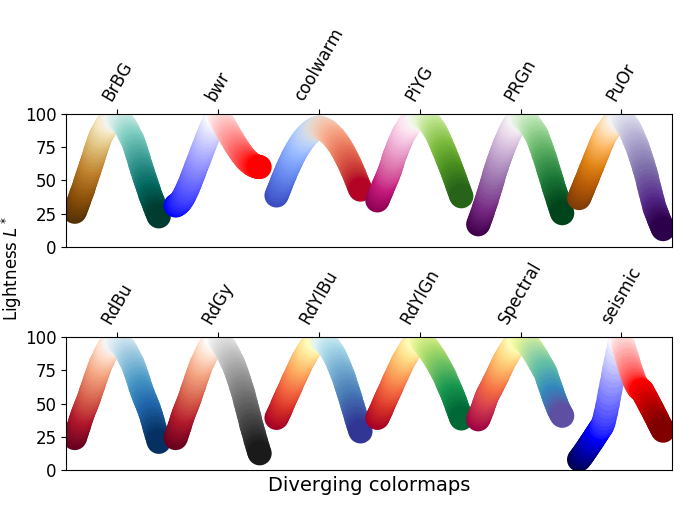

Diverging

For the Diverging maps, we want to have monotonically increasing values up to a maximum, which should be close to , followed by monotonically decreasing values. We are looking for approximately equal minimum values at opposite ends of the colormap. By these measures, BrBG and RdBu are good options. coolwarm is a good option, but it doesn’t span a wide range of values (see grayscale section below).

Qualitative

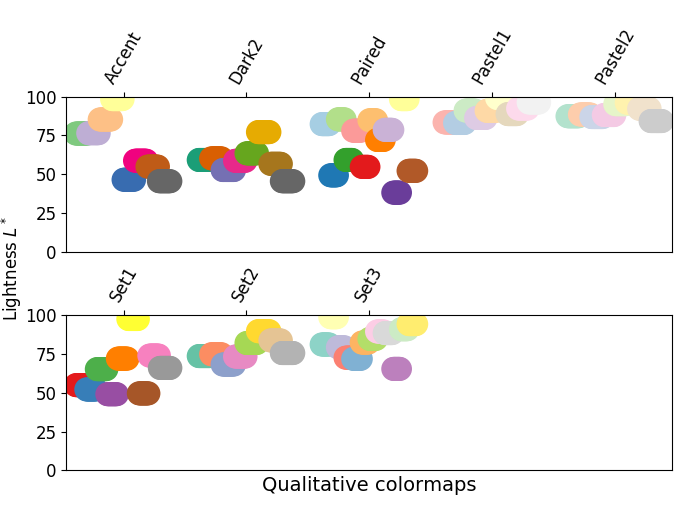

Qualitative colormaps are not aimed at being perceptual maps, but looking at the lightness parameter can verify that for us. The values move all over the place throughout the colormap, and are clearly not monotonically increasing. These would not be good options for use as perceptual colormaps.

Miscellaneous

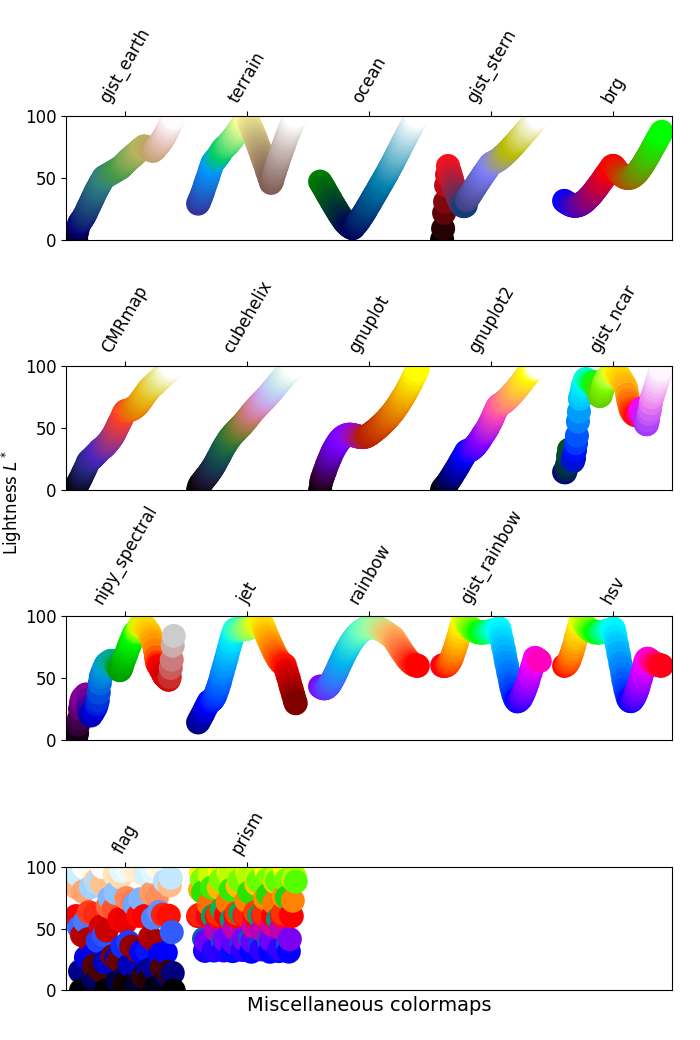

Some of the miscellaneous colormaps have particular uses for which they have been created. For example, gist_earth, ocean, and terrain all seem to be created for plotting topography (green/brown) and water depths (blue) together. We would expect to see a divergence in these colormaps, then, but multiple kinks may not be ideal, such as in gist_earth and terrain. CMRmap was created to convert well to grayscale, though it does appear to have some small kinks in . cubehelix was created to vary smoothly in both lightness and hue, but appears to have a small hump in the green hue area.

The often-used jet colormap is included in this set of colormaps. We can see that the values vary widely throughout the colormap, making it a poor choice for representing data for viewers to see perceptually. See an extension on this idea at [mycarta-jet].

(Source code)

../_images/lightness_00.png

(png, pdf)

../_images/lightness_01.png

(png, pdf)

../_images/lightness_02.png

(png, pdf)

../_images/lightness_03.png

(png, pdf)

../_images/lightness_04.png

(png, pdf)

../_images/lightness_05.png

(png, pdf)

Grayscale conversion

It is important to pay attention to conversion to grayscale for color plots, since they may be printed on black and white printers. If not carefully considered, your readers may end up with indecipherable plots because the grayscale changes unpredictably through the colormap.

Conversion to grayscale is done in many different ways [bw]. Some of the better ones use a linear combination of the rgb values of a pixel, but weighted according to how we perceive color intensity. A nonlinear method of conversion to grayscale is to use the values of the pixels. In general, similar principles apply for this question as they do for presenting one’s information perceptually; that is, if a colormap is chosen that is monotonically increasing in values, it will print in a reasonable manner to grayscale.

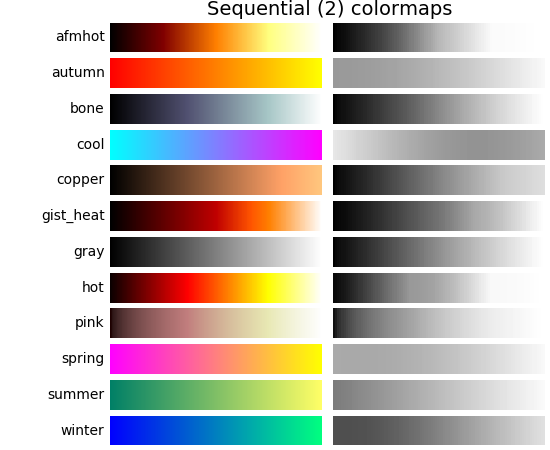

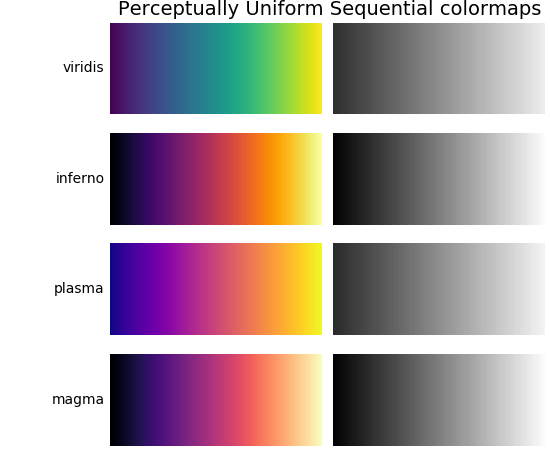

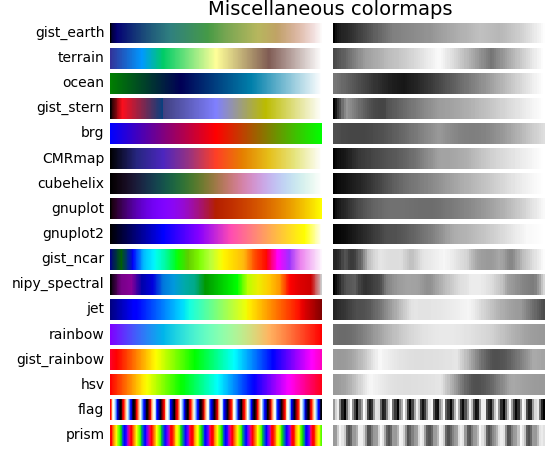

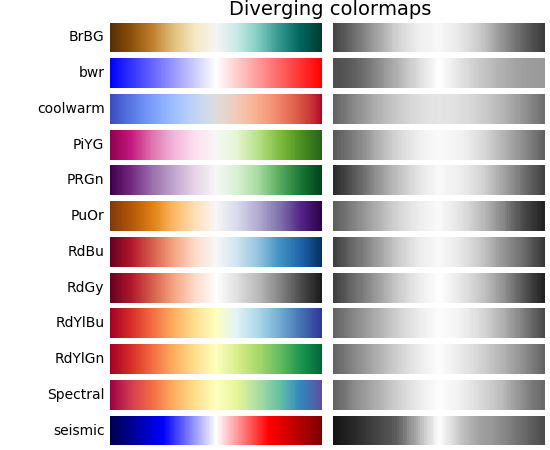

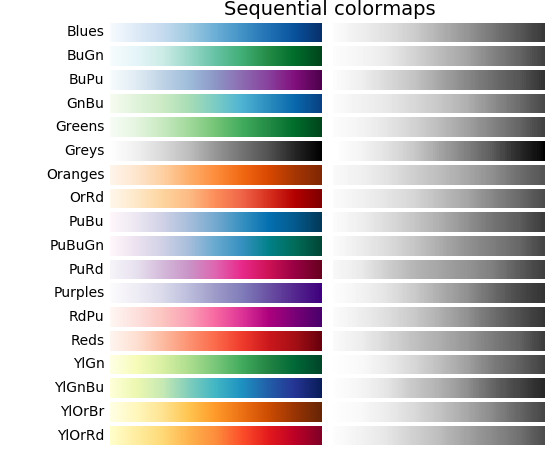

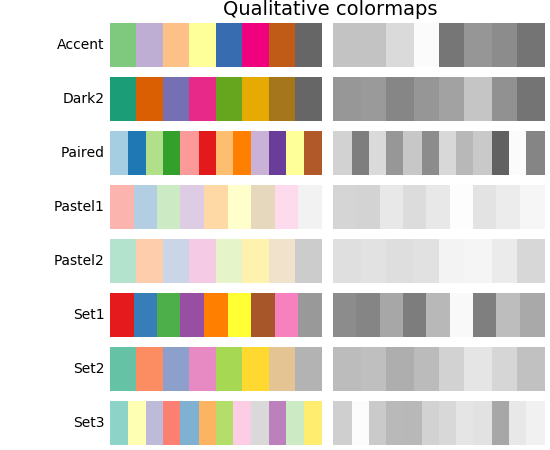

With this in mind, we see that the Sequential colormaps have reasonable representations in grayscale. Some of the Sequential2 colormaps have decent enough grayscale representations, though some (autumn, spring, summer, winter) have very little grayscale change. If a colormap like this was used in a plot and then the plot was printed to grayscale, a lot of the information may map to the same gray values. The Diverging colormaps mostly vary from darker gray on the outer edges to white in the middle. Some (PuOr and seismic) have noticably darker gray on one side than the other and therefore are not very symmetric. coolwarm has little range of gray scale and would print to a more uniform plot, losing a lot of detail. Note that overlaid, labeled contours could help differentiate between one side of the colormap vs. the other since color cannot be used once a plot is printed to grayscale. Many of the Qualitative and Miscellaneous colormaps, such as Accent, hsv, and jet, change from darker to lighter and back to darker gray throughout the colormap. This would make it impossible for a viewer to interpret the information in a plot once it is printed in grayscale.

(Source code)

../_images/grayscale_01_00.png

(png, pdf)

../_images/grayscale_01_01.png

(png, pdf)

../_images/grayscale_01_02.png

(png, pdf)

../_images/grayscale_01_03.png

(png, pdf)

../_images/grayscale_01_04.png

(png, pdf)

../_images/grayscale_01_05.png

(png, pdf)

Color vision deficiencies

There is a lot of information available about color blindness (e.g., [colorblindness]). Additionally, there are tools available to convert images to how they look for different types of color vision deficiencies (e.g., [vischeck]).

The most common form of color vision deficiency involves differentiating between red and green. Thus, avoiding colormaps with both red and green will avoid many problems in general.
