5 Administering a Database on Windows

This chapter describes how to administer Oracle Database for Windows.

This chapter contains these topics:

Managing Oracle Database Services

This section tells you how to manage the services that Oracle Database installs on your computer.

This section provides information on the following:

Oracle Database Service Naming Conventions for Multiple Oracle Homes

Oracle Database for Windows lets you have multiple Oracle homes on a single computer. This feature, described in Appendix B, "Optimal Flexible Architecture", in Oracle Database Installation Guide for Microsoft Windows, affects Oracle services naming conventions. As you perform installations into Oracle home directories:

  • You must accept default Oracle home name provided or specify a different name for each Oracle home directory.

  • You are prompted to give a system identifier and global database name for each database installation.

Starting Oracle Database Services

Oracle Database services must be started for you to use Oracle Database and its products. You can start Oracle Database services from three different locations:

Control Panel

To start Oracle Database services from the Control Panel:

  1. Access your Windows Services dialog.

    See Also:

    Your operating system documentation for instructions
  2. Find the service to start in the list, select it, and click Start.

    If you cannot find OracleServiceSID in the list, then use ORADIM to create it.

  3. Click Close to exit the Services dialog.

Command Prompt

To start Oracle Database services from the command prompt, enter:

C:\> NET START service

where service is a specific service name, such as OracleServiceORCL.

Oracle Administration Assistant for Windows

To start Oracle Database services from Oracle Administration Assistant for Windows:

  1. From the Start menu, select Programs, then select Oracle - HOME_NAME, then select Configuration and Migration Tools and then select Administration Assistant for Windows.

  2. Right-click the SID.

    where SID is a specific instance name, such as orcl.

  3. Click Start Service.

    This starts service OracleServiceORCL.

Stopping Oracle Database Services

On occasion (for example, when re-installing Oracle Database), you must stop Oracle Database services. You can stop Oracle Database services from three different locations:

Control Panel

To stop Oracle Database services from the Control Panel:

  1. Access your Windows Services dialog.

    See Also:

    Your operating system documentation for instructions
  2. Select OracleHOME_NAMETNSListener and click Stop.

    OracleHOME_NAMETNSListener is stopped.

  3. Select OracleServiceSID and click Stop.

  4. Click OK.

    OracleServiceSID is stopped.

Command Prompt

To stop Oracle Database services from the command prompt, enter:

C:\> net STOP service

where service is a specific service name, such as OracleServiceORCL.

Oracle Administration Assistant for Windows

To stop Oracle Database services from Oracle Administration Assistant for Windows:

  1. From the Start menu, select Programs, then select Oracle - HOME_NAME, then select Configuration and Migration Tools and then select Administration Assistant for Windows.

  2. Right-click the SID.

    where SID is a specific instance name, such as orcl.

  3. Click Stop Service.

    This stops service OracleServiceORCL.

Auto-starting Oracle Database Services

Oracle Database services can be set to start automatically whenever the Windows computer is restarted. You can turn auto-start on or off from two different locations:

Control Panel

To use the Control Panel to configure when and how Oracle Database is started:

  1. Access your Windows Services dialog.

    See Also:

    Your operating system documentation for instructions
  2. Select service OracleServiceSID and click Startup.

  3. Choose Automatic from the Startup Type field.

  4. Click OK.

  5. Click Close to exit the Services dialog.

Oracle Administration Assistant for Windows

To automatically start Oracle Database services from Oracle Administration Assistant for Windows:

  1. From the Start menu, select Programs, then select Oracle - HOME_NAME, then select Configuration and Migration Tools and then select Administration Assistant for Windows.

  2. Right-click the SID.

    where SID is a specific instance name, such as orcl.

  3. Choose Startup/Shutdown Options.

  4. Choose the Oracle Service tab.

  5. Choose Automatic in Oracle Service Startup Type.

  6. Click Apply.

  7. Click OK.

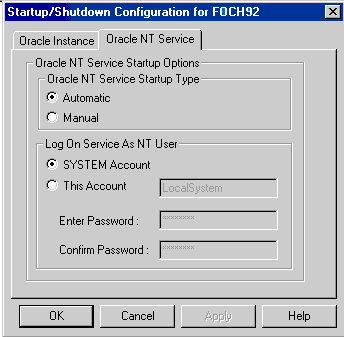

Description of ss_cnfg1.gif follows
Description of the illustration ss_cnfg1.gif

Starting and Shutting Down a Database with SQL*Plus

These instructions assume that a database instance has been created.

Note:

Directory path examples in this chapter follow Optimal Flexible Architecture (OFA) guidelines. If you specified non-OFA compliant directories during installation, then your directory paths will differ. See Appendix B, "Optimal Flexible Architecture", in Oracle Database Installation Guide for Microsoft Windows for more information.

To start or shut down Oracle Database:

  1. Go to your Oracle Database server.

  2. Start SQL*Plus at the command prompt:

    C:\> sqlplus /NOLOG

  3. Connect to Oracle Database with username SYSDBA:

    SQL> CONNECT / AS SYSDBA

  4. To start a database, enter:

    SQL> STARTUP [PFILE=path\filename]


    This command uses the initialization parameter file specified in path\filename. To start a database using a file named init2.ora located in

    C:\app\oracle\product\11.2.0\admin\orcl\pfile


    you would enter:

    SQL> STARTUP PFILE=C:\app\oracle\product\11.2.0\admin\orcl\pfile\init2.ora


    If no PFILE is specified, then the command looks for an SPFILE in ORACLE_HOME\database. If the command finds one, then the command uses it to start the database. If it does not find an SPFILE, then it uses the default initialization parameter file located in ORACLE_BASE\ADMIN\db_name\pfile.

  5. To stop a database, enter:

    SQL> SHUTDOWN [mode]


    where mode is normal, immediate, or abort.

    In a normal shutdown, Oracle Database waits for all currently-connected users to disconnect and disallows any new connections before shutting down. This is the default mode.

    In an immediate shutdown, Oracle Database terminates and rolls back active transactions, disconnects clients, and shuts down.

    In an abort shutdown, Oracle Database terminates active transactions and disconnects users; it does not roll back transactions. The database performs automatic recovery and rollback the next time it is started. Use this mode only in emergencies.

    See Also:

    Chapter 2, "Database Tools on Windows" for a list of other tools that can start Oracle Database and this guide for information on options you can specify when starting your database.

Starting and Shutting Down a Database Using Services

You can start or shut down Oracle Database by starting or stopping service OracleServiceSID in the Control Panel. Starting OracleServiceSID is equivalent to using the STARTUP command or manually entering:

C:\> oradim -STARTUP -SID SID [-STARTTYPE srvc | inst | srvc,inst] [-PFILE
filename | -SPFILE]

Stopping OracleServiceSID is equivalent to using the SHUTDOWN command or manually entering:

C:\> oradim -SHUTDOWN -SID SID [-SHUTTYPE srvc | inst | srvc,inst] [-SHUTMODE
normal | immediate | abort]

You can enable starting and stopping Oracle Database through OracleServiceSID two different ways:

Oracle Administration Assistant for Windows

To start or stop a database using Oracle Database services from Oracle Administration Assistant for Windows:

  1. From the Start menu, select Programs, then select Oracle - HOME_NAME, then select Configuration and Migration Tools and then select Administration Assistant for Windows.

  2. Right-click the SID.

    where SID is a specific instance name, such as ORCL.

  3. Choose Startup/Shutdown Options.

  4. Choose the Oracle Instance tab.

  5. Select Start up instance when service is started, Shut down instance when service is stopped, or both.

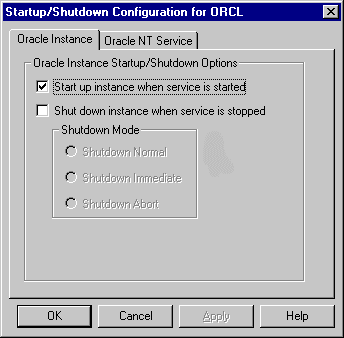

Description of ss_cnfg2.gif follows
Description of the illustration ss_cnfg2.gif

Setting Registry Parameters

To start or stop Oracle Database through Oracle Database Services, set the following registry parameters to the indicated values:

The following two registry parameters are optional:

The registry location of these required and optional parameters is determined by the number of Oracle home directories on your computer. If you have only one Oracle home directory, then these parameters belong in:

HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\HOME0

If you have multiple Oracle home directories, then these parameters belong in:

HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\HOMEID

where ID is incremented for each additional Oracle home directory on your computer.

Note:

If you use ORADIM to create or edit instances, then it automatically sets the relevant registry parameters to their appropriate values.

See Also:

Chapter 15, "Configuration Parameters and the Registry" for instructions on adding and editing registry parameters

Starting or Stopping OracleServiceSID from the Control Panel

  1. To start the database, start OracleServiceSID.

    This automatically starts ORADIM and issues the -STARTUP command using the initialization parameter file identified by ORA_SID_PFILE.

  2. To stop the database, stop OracleServiceSID.

    This automatically starts ORADIM, which issues the -SHUTDOWN command in the mode indicated by ORA_SID_SHUTDOWNTYPE, and shuts down Oracle Database.

    See Also:

    Your operating system documentation for instructions on starting and stopping services.

Starting Multiple Instances

  1. Start the service for each instance using ORADIM or the Services dialog of the Control Panel.

  2. At the command prompt set the ORACLE_SID configuration parameter to the SID for the first instance to run:

    C:\> SET ORACLE_SID=SID


    where SID is the name of the Oracle Database instance.

  3. Start SQL*Plus:

    C:\> sqlplus /NOLOG

  4. Connect AS SYSDBA:

    SQL> CONNECT / AS SYSDBA

  5. Start up the first instance:

    SQL> STARTUP PFILE=ORACLE_BASE\admin\db_name\pfile\init.ora


    where ORACLE_BASE is c:\app\oracle\product\11.2.0 (unless you changed it during installation) and db_name is the name of the instance.

  6. Repeat Steps 2-5 for the other instances to run.

Creating and Populating Password Files

Use Password Utility to create password files. Password Utility is automatically installed with Oracle Database utilities. Password files are located in directory ORACLE_HOME\database and are named PWDsid.ora, where SID identifies the Oracle Database instance. Password files can be used for local or remote connections to Oracle Database.

To create and populate a password file:

  1. Create a password file with the Password Utility:

    C:\> orapwd FILE=PWDsid.ora ENTRIES=max_users


    where

    • FILE specifies the password file name.

    • SID identifies the database instance.

    • ENTRIES sets maximum number of entries in password file. This corresponds to maximum number of distinct users allowed to connect to the database simultaneously with either the SYSDBA or the SYSOPER DBA privilege.

  2. Set initialization parameter file parameter REMOTE_LOGIN_PASSWORDFILE to exclusive, shared, or none.

    The value exclusive specifies that only one instance can use the password file and that the password file contains names other than SYS. In search of the password file, Oracle Database looks in the registry for the value of parameter ORA_SID_PWFILE. If no value is specified, then it looks in the registry for the value of parameter ORA_PWFILE, which points to a file containing usernames, passwords, and privileges. If that is not set, then it uses the default:

    ORACLE_HOME\DATABASE\PWDsid.ORA.


    The default value is shared. It specifies that multiple instances (for example, an Oracle RAC environment) can use the password file. However, the only user recognized by the password file is SYS. Other users cannot log in with SYSOPER or SYSDBA privileges even if those privileges are granted in the password file. The shared value of this parameter affords backward compatibility with earlier Oracle releases. Oracle Database looks for the same files as it does when the value is exclusive.

    The value none specifies that Oracle Database ignores the password file and that authentication of privileged users is handled by the Windows operating system.

  3. Start SQL*Plus:

    C:\> sqlplus /NOLOG

  4. Connect AS SYSDBA:

    SQL> CONNECT / AS SYSDBA


    For an ASM instance, connect AS SYSASM:

    SQL> CONNECT / AS SYSASM

  5. Start Oracle Database:

    SQL> STARTUP

  6. Grant appropriate privileges to each user. Users who must perform database administration, for example, would be granted privilege SYSDBA:

    SQL> GRANT SYSDBA TO db_administrator;


    For an ASM instance:

    SQL> GRANT SYSASM TO SYS;


    If the grant is successful, then the following message displays:

    Statement Processed.


    This adds scott to the password file and enables scott to connect to the database with SYSDBA privileges. Use SQL*Plus to add or delete usernames, user passwords, and user privileges in password files.

    Caution:

    Copying or manually moving password files may result in ORADIM being unable to find a password to start an instance.

Viewing and Hiding the Password File

The password file is not automatically hidden. It can be made invisible and visible again from two different locations:

Command Prompt

  1. To see the password file, enter:

    ORACLE_BASE\ORACLE_HOME\database> attrib


    The password file is displayed as PWDsid.ora:

    A       ORACLE_HOME\database\oradba.exe
    A       ORACLE_HOME\database\oradim.log
    A       ORACLE_HOME\database\PWDsid.ora
    A       ORACLE_HOME\database\SPFILEsid.ora

  2. To make the password file invisible, enter:

    ORACLE_HOME\database> attrib +H PWDsid.ora

  3. To see the effect of the change, enter:

    ORACLE_HOME\database> attrib


    The password file is now hidden:

    A       ORACLE_HOME\database\oradba.exe
    A       ORACLE_HOME\database\oradim.log
    A   H   ORACLE_HOME\database\PWDsid.ora
    A       ORACLE_HOME\database\SPFILEsid.ora

  4. To make the password file visible again, enter:

    ORACLE_HOME\database> attrib -H PWDsid.ora


Windows Explorer

To make the password file invisible or visible again:

  1. Navigate to directory ORACLE_HOME\database.

  2. Right-click PWDsid.ora.

  3. Choose Properties.

    The PWDsid.ora Properties dialog opens.

  4. In Attributes, check or clear the checkbox next to Hidden.

  5. Click OK.

To view or hide an invisible password file:

  1. Navigate to directory ORACLE_BASE\ORACLE_HOME\database.

  2. Choose Folder Options from the View main menu.

  3. Choose the View tab.

  4. To view an invisible password file, choose Show hidden files and folders.

  5. To hide a visible password file, choose Do not show hidden files and folders.

  6. Click OK.

Connecting Remotely to the Database as SYS

When connecting to the starter database from a remote computer as SYS, you must use a different password from the one described in Oracle Database Installation Guide for Microsoft Windows when logging on with SYSDBA privileges. This is because the password file enables database access in this situation and it requires the password oracle for this purpose.

Automatically Encrypted Database Passwords

With Oracle Database, the password used to verify a remote database connection is automatically encrypted. Whenever a user attempts a remote login, Oracle Database encrypts the password before sending it to the remote database. If the connection fails, then the failure is noted in the operating system audit log.

Note:

Configuration parameter ORA_ENCRYPT_LOGIN is retained for backward compatibility and is set to true by default. See Chapter 15, "Configuration Parameters and the Registry" for instructions on adding and setting configuration parameters in the registry.

Accessing Database Files on Remote Computers

Oracle Database can access database files on a remote computer using Universal Naming Convention (UNC), but it may degrade database performance and network reliability. UNC is a PC format for specifying locations of resources on a local area network. UNC uses the following format:

\\server-name\shared-resource-path-name

For example, UNC specification for file system01.dbf in directory C:\app\oracle\product\11.2.0\oradata\orcl on shared server argon would be:

\\argon\app\oracle\product\11.2.0\oradata\orcl\system01.dbf

Locations of archive log files cannot be specified using Universal Naming Convention (UNC). Always set initialization parameter LOG_ARCHIVE_DEST_n to a local drive. If you set it to a UNC specification, then Oracle Database does not start and you receive the following errors:

ORA-00256: error occurred in translating archive text string '\meldell\rmdrive'
ORA-09291: sksachk: invalid device specified for archive destination
OSD-04018: Unable to access the specified directory or device
O/S-Error: (OS 2) The system cannot find the file specified

An ORA-00256 error also occurs if you enter \\\meldell\rmdrive or \\\meldell\\rmdrive. Control files required the additional backslashes for Oracle8 release 8.0.4, but redo log files and datafiles did not.

Note:

When you use Universal Naming Convention path with external tables, you must ensure that Universal Naming Convention share names do not match with the local share names on which the database server runs. If the Universal Naming Convention share names and the local share names match, then it will result in an error.

Archiving Redo Log Files

If you installed Oracle Database through the Typical installation, then it is created in NOARCHIVELOG mode. If you created your database through the Custom option of Database Configuration Assistant, then you had the choice of either ARCHIVELOG or NOARCHIVELOG.

In NOARCHIVELOG mode, redo logs are not archived. Setting your archive mode to ARCHIVELOG and enabling automatic archiving causes redo log files to be archived. This protects Oracle Database from both instance and disk failure.

See Also:

"Managing Archived Redo Logs" in Oracle Database Administrator's Guide for more information about the archiving modes and the archiving process.
