20 Using Oracle Streams to Record Table Changes

This chapter describes using Oracle Streams to record data manipulation language (DML) changes made to tables.

This chapter contains these topics:

About Using Oracle Streams to Record Changes to Tables

Oracle Streams can record information about the changes made to database tables, including information about inserts, updates, and deletes. The table for which changes are recorded is called the source table, and the information about the recorded changes is stored in another table called the change table. Also, the database that contains the source table is called the source database, while the database that contains the change table is called the destination database. The destination database can be the same database as the source database, or it can be a different database.

The recorded information describes the data that was changed in each row because of a DML operation, and metadata about each change. Typically, data warehouse environments record information about table changes, but other types of environments might track table changes as well.

To record table changes in a change table, an Oracle Stream apply process uses a change handler. A change handler is a special type of statement DML handler that tracks table changes and was created by either the DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE procedure or the DBMS_APPLY_ADM.SET_CHANGE_HANDLER procedure. This chapter describes using these procedures to create and manage change handlers. Information about change handlers is stored in the ALL_APPLY_CHANGE_HANDLERS and DBA_APPLY_CHANGE_HANDLERS views.

Note:

It is possible to create a statement DML handler that tracks table changes without using the change handler procedures. Such statement DML handlers are not technically considered change handlers, and information about them is not stored in the ALL_APPLY_CHANGE_HANDLERS and DBA_APPLY_CHANGE_HANDLERS views.

Preparing for an Oracle Streams Environment That Records Table Changes

The MAINTAIN_CHANGE_TABLE procedure in the DBMS_STREAMS_ADM package can configure an Oracle Streams environment that records changes to a source table. This procedure configures all of the required Oracle Streams components. This procedure also enables you to identify the metadata to record for each change. For example, you can choose to record the username of the user who made the change and the time when the change was made, as well as many other types of metadata.

Before you use the MAINTAIN_CHANGE_TABLE procedure to configure an Oracle Stream environment that records the changes to a table, you have decisions to make and prerequisites to complete.

The following sections describe the decisions and prerequisites for the MAINTAIN_CHANGE_TABLE procedure:

Decisions to Make Before Running the MAINTAIN_CHANGE_TABLE Procedure

The following sections describe the decisions to make before running the MAINTAIN_CHANGE_TABLE procedure:

Decide Which Type of Environment to Configure

An Oracle Streams environment that records table changes has the following components:

  1. A capture process captures information about changes to the source table from the redo log. The capture process encapsulates the information for each row change in a row logical change record (row LCR). The database where the changes originated is called the source database. The database that contains the capture process is called the capture database.

  2. If the source table and change table are on different databases, then a propagation sends the captured row LCRs to the database that contains the change table. The propagation is not needed if the source table and change table are in the same database.

  3. An apply process records the information in the change table. The apply process uses statement DML handlers to insert the information in the row LCRs into the change table.

You can configure these components in the following ways:

  • Local capture and apply on one database: The source table, capture process, apply process, and change table are all in the same database. This option is the easiest to configure and maintain because all of the components are contained in one database.

  • Local capture and remote apply: The source table and capture process are in one database, and the apply process and change table are in another database. A propagation sends row LCRs from the source database to the destination database. This option is best when you want easy configuration and maintenance and when the source table and change table must reside in different databases.

  • Downstream capture and local apply: The source table is in one database, and the capture process, apply process, and change table are in another database. This option is best when you want to optimize the performance of the database with the source table and want to offload change capture to another database. With this option, most of the components run on the database with the change table.

  • Downstream capture and remote apply: The source table is in one database, the apply process and change table are in another database, and the capture process is in a third database. This option is best when you want to optimize the performance of both the database with the source table and the database with the change table. With this option, the capture process runs on a third database, and a propagation sends row LCRs from the capture database to the destination database.

The capture database is always the database on which the MAINTAIN_CHANGE_TABLE procedure is run. Table 20-1 describes where to run the procedure to configure each type of environment.

Table 20-1 Configuration Options for MAINTAIN_CHANGE_TABLE

Type of Environment Where to Run MAINTAIN_CHANGE_TABLE

Local capture and apply on one database

On the source database that contains the source table

Local capture and remote apply

On the source database that contains the source table

Downstream capture and local apply

On the destination database that does not contain the source table but will contain the change table

Downstream capture and remote apply

On a third database that does not contain the source table and will not contain the change table


Additional requirements must be met to configure downstream capture. See "Operational Requirements for Downstream Capture" for information.

If you decide to configure a downstream capture process, then you must decide which type of downstream capture process you want to configure. The following types are available:

  • A real-time downstream capture process configuration means that redo transport services use the log writer process (LGWR) at the source database to send redo data to the downstream database, and a remote file server process (RFS) at the downstream database receives the redo data over the network and stores the redo data in the standby redo log.

  • An archived-log downstream capture process configuration means that archived redo log files from the source database are copied to the downstream database, and the capture process captures changes in these archived redo log files. These log files can be transferred automatically using redo transport services, or they can be transferred manually using a method such as FTP.

The advantage of real-time downstream capture over archived-log downstream capture is that real-time downstream capture reduces the amount of time required to capture changes made at the source database. The time is reduced because the real-time downstream capture process does not need to wait for the redo log file to be archived before it can capture changes from it. You can configure more than one real-time downstream capture process that captures changes from the same source database, but you cannot configure real-time downstream capture for multiple source databases at one downstream database.

The advantage of archived-log downstream capture over real-time downstream capture is that archived-log downstream capture allows downstream capture processes for multiple source databases at a downstream database. You can copy redo log files from multiple source databases to a single downstream database and configure multiple archived-log downstream capture processes to capture changes in these redo log files.

Decide Which Columns to Track

The column_type_list parameter in the MAINTAIN_CHANGE_TABLE procedure enables you to specify which columns to track in the change table. The Oracle Streams environment records changes for the listed columns only. To track all of the columns in the table, list all of the columns in this parameter. To track a subset of columns, list the columns to track. In the column_type_list parameter, you can specify the data type of the column and any valid column properties, such as inline constraint specifications.

You might choose to omit columns from the list for various reasons. For example, some columns might contain sensitive information, such as salary data, that you do not want to populate in the change table. Or, the table might contain hundreds of columns, and you might be interested in tracking only a small number of them.

Decide Which Metadata to Record

The extra_column_list parameter in the MAINTAIN_CHANGE_TABLE procedure enables you to specify which metadata to record in the change table. The following types of metadata can be listed in this parameter:

  • value_type

  • source_database_name

  • command_type

  • object_owner

  • object_name

  • tag

  • transaction_id

  • scn

  • commit_scn

  • commit_time

  • position

  • compatible

  • instance_number

  • message_number

  • row_text

  • row_id

  • serial#

  • session#

  • source_time

  • thread#

  • tx_name

  • username

In the change table, a dollar sign ($) is appended to the column name for each metadata attribute. For example, the metadata for the command_type attribute is stored in the command_type$ column in the change table.

All of these metadata attributes, except for value_type and message_number, are row LCR attributes that can be stored in row LCRs.

The value_type$ column in the change table contains either OLD or NEW, depending on whether the column value is the original column value or the new column value, respectively.

The message_number$ column in the change table contains the identification number of each row LCR within a transaction. The message number increases incrementally for each row LCR within a transaction and shows the order of the row LCRs within a transaction.

Note:

LCR position is commonly used in XStream configurations.

Decide Which Values to Track for Update Operations

The capture_values parameter in the MAINTAIN_CHANGE_TABLE procedure enables you to specify the values to record in the change table for update operations on the source table. When an update operation is performed on a row, the old value for each column is the value before the update operation and the new value is the value after the update operation. You can choose to record old values, new values, or both old and new values.

Decide Whether to Configure a KEEP_COLUMNS Transformation

The keep_change_columns_only parameter in the MAINTAIN_CHANGE_TABLE procedure enables you to specify whether to configure a KEEP_COLUMNS declarative rule-based transformation. The KEEP_COLUMNS declarative rule-based transformation keeps the list of columns specified in the column_type_list parameter in a row LCR. The transformation removes columns that are not in the list from the row LCR.

For example, suppose a table has ten columns, but only three of these columns need to be tracked in a change table. In this case, it is usually more efficient to configure one KEEP_COLUMNS declarative rule-based transformation that keeps the three columns that must be tracked than to configure seven DELETE_COLUMN declarative rule-based transformations that remove the seven columns that should not be tracked.

The keep_change_columns_only parameter is relevant only if you specify a subset of the table columns in the column_type_list parameter. In this case, you might choose to configure the transformation to reduce the amount of information sent over the network or to eliminate sensitive information from row LCRs.

Set the keep_change_columns_only parameter to FALSE when information about columns that are not included in the column_type_list parameter is needed at the destination database. For example, if the execute_lcr parameter is set to TRUE and the configuration will replicate all of the columns in a source table, but the column_type_list parameter includes a subset of these columns, then set the keep_change_columns_only parameter to FALSE.

Decide Whether to Specify CREATE TABLE Options for the Change Table

The options_string parameter in the MAINTAIN_CHANGE_TABLE procedure enables you to append a string of options to the CREATE TABLE statement that creates the change table. The string is appended to the generated CREATE TABLE statement after the closing parenthesis that defines the columns of the table. The string must be syntactically correct. For example, you can specify a TABLESPACE clause to store the table in a specific tablespace. You can also partition the change table. The advantage of partitioning a change table is that you can truncate a partition using the TRUNCATE PARTITION clause of an ALTER TABLE statement instead of deleting rows with a DELETE statement.

See Also:

Oracle Database SQL Language Reference for information about CREATE TABLE options

Decide Whether to Perform the Configuration Actions Directly or with a Script

The MAINTAIN_CHANGE_TABLE procedure can configure the Oracle Streams environment directly, or it can generate a script that configures the environment. Using the procedure to configure directly is simpler than running a script, and the environment is configured immediately. However, you might choose to generate a script for the following reasons:

  • You want to review the actions performed by the procedure before configuring the environment.

  • You want to modify the script to customize the configuration.

For example, you might want an apply process to use apply handlers for customized processing of the changes before applying these changes. In this case, you can use the procedure to generate a script and modify the script to add the apply handlers.

The perform_actions parameter controls whether the procedure configures the environment directly:

  • To configure the environment directly when you run the MAINTAIN_CHANGE_TABLE procedure, set the perform_actions parameter to TRUE. The default value for this parameter is TRUE.

  • To generate a configuration script when you run the MAINTAIN_CHANGE_TABLE procedure, set the perform_actions parameter to FALSE, and use the script_name and script_directory_object parameters to specify the name and location of the configuration script.

Decide Whether to Replicate the Source Table

In addition to a change table, some environments require that the source table is replicated at the destination database. In this case, the source table is on a different database than the change table, and an additional replica of the source table is in the same database as the change table.

For example, consider an Oracle Streams environment that records the changes made the hr.employees table. Assume that the change table is named hr.emp_change_table and that the source table and the change table are on different databases. In this case, the following tables are involved in an Oracle Streams environment that records changes to the hr.employees table.

  • hr.employees table in database 1

  • hr.emp_change_table in database 2

The apply process at the destination database has a separate change handler that records changes for each type of operation (insert, update, and delete).

If the Oracle Streams environment also replicates the hr.employees table at database 2, then the following tables are involved:

  • hr.employees table in database 1

  • hr.employees table (replica) in database 2

  • hr.emp_change_table in database 2

In an environment that replicates the table in addition to recording its changes, an additional change handler is added to the apply process at the destination database for each type of operation (insert, update, and delete). These change handlers execute the row LCRs to apply their changes to the replicated table.

The execute_lcr parameter controls whether the procedure configures replication of the source table:

  • To configure an Oracle Streams environment that replicates the source table, set the execute_lcr parameter to TRUE.

  • To configure an Oracle Streams environment that does not replicate the source table, set the execute_lcr parameter to FALSE. The default value for this parameter is FALSE.

Note:

When the keep_change_columns_only parameter is set to TRUE and the column_list parameter includes a subset of the columns in the source table, the execute_lcr parameter must be set to FALSE. Apply errors will result if the row LCRs do not contain the column values required to replicate changes.

Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure

The DBMS_STREAMS_ADM package includes procedures that configure replication environments, such as MAINTAIN_GLOBAL, MAINTAIN_SCHEMAS, and MAINTAIN_TABLES. Using the MAINTAIN_CHANGE_TABLE procedure is similar to using these other procedures, and many of the prerequisites are the same.

The following sections describe the prerequisites to complete before running the MAINTAIN_CHANGE_TABLE procedure:

Many of these prerequisites are described in detail in Oracle Streams Replication Administrator's Guide.

Configure an Oracle Streams Administrator on All Databases

Each database in the environment must have an Oracle Streams administrator to configure and manage the Oracle Streams components. See Oracle Streams Replication Administrator's Guide for instructions.

Configure Network Connectivity and Database Links

Depending on the type of Oracle Streams environment you plan to configure, network connectivity and one or more database links might be required. If the environment will include more than one database, then network connectivity between the databases in the environment is required.

The following database links are required for each type of Oracle Streams environment:

  • Local capture and apply on one database: No database links are required.

  • Local capture and remote apply: A database link from the source database to the destination database is required.

  • Downstream capture and local apply: The following database links are required:

    • A database link from the source database to the destination database

    • A database link from the destination database to the source database

  • Downstream capture and remote apply: The following database links are required:

    • A database link from the source database to the destination database

    • A database link from the source database to the capture database

    • A database link from the capture database to the source database

    • A database link from the capture database to the destination database

See Oracle Streams Replication Administrator's Guide for instructions.

Ensure That the Source Database Is in ARCHIVELOG Mode

The source database that contains the source table must be in ARCHIVELOG mode because an Oracle Streams capture process scans the redo log to capture changes. If you plan to configure a downstream capture process, then the capture database also must be in ARCHIVELOG mode. See Oracle Database Administrator's Guide for instructions.

Set Initialization Parameters That Are Relevant to Oracle Streams

Some initialization parameters are important for the configuration, operation, reliability, and performance of an Oracle Streams environment. Set these parameters appropriately for your Oracle Streams environment. See Oracle Streams Replication Administrator's Guide for instructions.

Configure the Oracle Streams Pool

The Oracle Streams pool is a portion of memory in the System Global Area (SGA) that is used by Oracle Streams. Configure your database memory so that there is enough space available in the Oracle Streams pool. See Oracle Streams Replication Administrator's Guide for instructions.

Configure Log File Transfer to a Downstream Capture Database

If you decided to use a local capture process at the source database, then log file transfer is not required. However, if you decided to use downstream capture that uses redo transport services to transfer archived redo log files to the downstream database automatically, then configure log file transfer from the source database to the capture database before configuring the Oracle Streams environment. See Oracle Streams Replication Administrator's Guide for instructions.

Configure Standby Redo Logs for Real-Time Downstream Capture

If you decided to use a real-time downstream capture process, then you must configure standby redo logs at the capture database. See Oracle Streams Replication Administrator's Guide for instructions.

Configure the Required Directory Object If You Are Using a Script

If you decided to generate a script with the MAINTAIN_CHANGE_TABLE procedure and configure the Oracle Streams environment with the script, then create the directory object that will store the script in the capture database. The capture database is the database on which you will run the procedure. This directory object is not required if you are not generating a script.

A directory object is similar to an alias for a directory on a file system. Each directory object must be created using the SQL statement CREATE DIRECTORY, and the user who invokes the MAINTAIN_CHANGE_TABLE procedure must have READ and WRITE privilege on the directory object.

For example, the following statement creates a directory object named db_files_directory that corresponds to the /usr/db_files directory:

CREATE DIRECTORY db_files_directory AS '/usr/db_files';

The user who creates the directory object automatically has READ and WRITE privilege on the directory object. When you are configuring an Oracle Streams replication environment, typically the Oracle Streams administrator creates the directory object.

Instantiate the Source Table at the Destination Database

If you decided to replicate the source table, then instantiate the source table at the destination database. Instantiation is not required if you decided not to replicate the source table.

If instantiation is required because you decided to replicate the source table, then complete the following steps before running the MAINTAIN_CHANGE_TABLE procedure:

  1. Prepare the source table for instantiation.

  2. Ensure that the source table and the replica table are consistent.

  3. Set the instantiation SCN for the replica table at the destination database.

Configuring an Oracle Streams Environment That Records Table Changes

This section uses examples to illustrate how to configure an Oracle Streams environment that records table changes. Specifically, this section illustrates the four types of Oracle Streams environments that record table changes.

This section includes the following examples:

Recording Table Changes Using Local Capture and Apply on One Database

This example illustrates how to record the changes to a table using local capture and apply on one database. Specifically, this example records the changes made to the hr.jobs table.

The following table lists the decisions that were made about the Oracle Streams environment configured in this example.

Decision Assumption for This Example
Decide Which Type of Environment to Configure This example configures local capture and apply on one database.
Decide Which Columns to Track This example tracks all of the columns in the hr.jobs table.
Decide Which Metadata to Record This example records the command_type, value_type (OLD or NEW), and commit_scn metadata.
Decide Which Values to Track for Update Operations This example tracks both the old and new column values when an update is performed on the source table.
Decide Whether to Configure a KEEP_COLUMNS Transformation This example does not configure a KEEP_COLUMNS declarative rule-based transformation.
Decide Whether to Specify CREATE TABLE Options for the Change Table This example does not specify any CREATE TABLE options. The change table is created with the default CREATE TABLE options.
Decide Whether to Perform the Configuration Actions Directly or with a Script This example performs the configuration actions directly. It does not use a script.
Decide Whether to Replicate the Source Table This example does not replicate the source table.

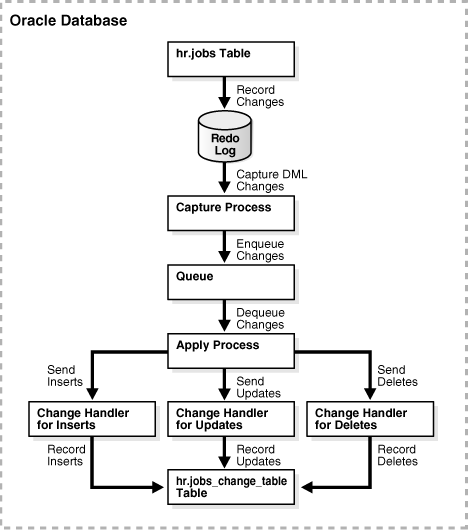

Figure 20-1 provides an overview of the Oracle Stream environment created in this example.

Figure 20-1 Recording Changes Using Local Capture and Apply on One Database

Description of Figure 20-1 follows
Description of "Figure 20-1 Recording Changes Using Local Capture and Apply on One Database"

Complete the following steps to configure an Oracle Streams environment that records the changes to a table using local capture and apply on one database:

  1. Complete the required prerequisites before running the MAINTAIN_CHANGE_TABLE procedure. See "Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure" for instructions.

    For this configuration, the following tasks must be completed:

  2. Connect to the database as the Oracle Streams administrator.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  3. Run the MAINTAIN_CHANGE_TABLE procedure:

    BEGIN
      DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE(
        change_table_name       => 'hr.jobs_change_table',
        source_table_name       => 'hr.jobs',
        column_type_list        => 'job_id VARCHAR2(10),
                                    job_title VARCHAR2(35),
                                    min_salary NUMBER(6),
                                    max_salary NUMBER(6)',
        extra_column_list        => 'command_type,value_type,commit_scn',
        capture_values           => '*',
        keep_change_columns_only => FALSE);
    END;
    /


    This procedure uses the default value for each parameter that is not specified. The keep_change_columns_only parameter is set to FALSE because all of the columns in the hr.jobs table are listed in the column_type_list parameter.

    When this procedure completes, the Oracle Streams environment is configured.

    If this procedure encounters an error and stops, then see Oracle Streams Replication Administrator's Guide for information about either recovering from the error or rolling back the configuration operation by using the DBMS_STREAMS_ADM.RECOVER_OPERATION procedure.

The resulting Oracle Streams environment has the following characteristics:

  • An unconditional supplemental log group includes all of the columns in the hr.jobs table.

  • The database has an hr.jobs_change_table. This change table has the following definition:

    Name                                      Null?    Type
     ----------------------------------------- -------- ---------------------------
     COMMAND_TYPE$                                      VARCHAR2(10)
     VALUE_TYPE$                                        VARCHAR2(3)
     COMMIT_SCN$                                        NUMBER
     JOB_ID                                             VARCHAR2(10)
     JOB_TITLE                                          VARCHAR2(35)
     MIN_SALARY                                         NUMBER(6)
     MAX_SALARY                                         NUMBER(6)

  • The database has a queue with a system-generated name. This queue is used by the capture process and apply process.

  • A capture process with a system-generated name captures data manipulation language (DML) changes made to the hr.jobs table.

  • An apply process with a system-generated name. The apply process uses change handlers with system-generated names to process the captured row LCRs for inserts, updates, and deletes on the hr.jobs table. The change handlers use the information in the row LCRs to populate the hr.jobs_change_table.

See Also:

"Monitoring a Change Table" for an example that makes changes to the hr.jobs table and then queries the hr.jobs_change_table to verify change tracking

Recording Table Changes Using Local Capture and Remote Apply with Replication

This example illustrates how to record the changes to a table using local capture and remote apply. In addition to recording table changes, the Oracle Stream environment configured by this example also replicates the changes made to the table.

Specifically, this example records the changes made to a subset of columns in the hr.departments table. This example also replicates data manipulation language (DML) changes made to all of the columns in the hr.departments table. The Oracle Steams environment configured in this example captures the changes on the source database ct1.example.com and sends the changes to the destination database ct2.example.com. An apply process on ct2.example.com records the changes in a change table and applies the changes to the replica hr.departments table.

The following table lists the decisions that were made about the Oracle Streams environment configured in this example.

Decision Assumption for This Example
Decide Which Type of Environment to Configure This example configures local capture and remote apply using two databases: the source database is ct1.example.com and the destination database is ct2.example.com. The capture process will be a local capture process on ct1.example.com.
Decide Which Columns to Track This example tracks the department_id and manager_id columns in the hr.departments table.
Decide Which Metadata to Record This example records the command_type and value_type (OLD or NEW) metadata. This metadata is recorded by default when the extra_column_list parameter is not specified in MAINTAIN_CHANGE_TABLE.
Decide Which Values to Track for Update Operations This example tracks both the old and new column values when an update is performed on the source table.
Decide Whether to Configure a KEEP_COLUMNS Transformation This example does not configure a KEEP_COLUMNS declarative rule-based transformation because all of the table columns are replicated.
Decide Whether to Specify CREATE TABLE Options for the Change Table This example does not specify any CREATE TABLE options. The change table is created with the default CREATE TABLE options.
Decide Whether to Perform the Configuration Actions Directly or with a Script This example performs the configuration actions directly. It does not use a script.
Decide Whether to Replicate the Source Table This example replicates the source table at the destination database. Therefore, the hr.departments table exists on both the source database and the destination database, and the MAINTAIN_CHANGE_TABLE procedure configures a one-way replication environment for this table from the source database to the destination database.

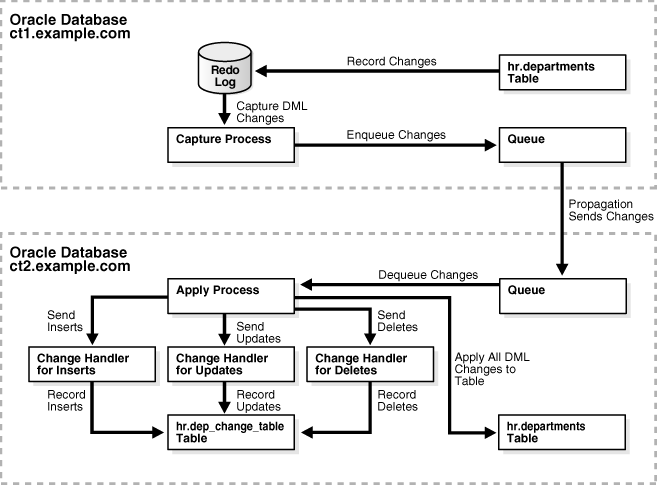

Figure 20-2 provides an overview of the Oracle Stream environment created in this example.

Figure 20-2 Recording Changes Using Local Capture and Remote Apply with Replication

Description of Figure 20-2 follows
Description of "Figure 20-2 Recording Changes Using Local Capture and Remote Apply with Replication"

Complete the following steps to configure an Oracle Streams environment that records and replicates the changes to a table local capture and remote apply:

  1. Complete the required prerequisites before running the MAINTAIN_CHANGE_TABLE procedure. See "Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure" for instructions.

    For this configuration, the following tasks must be completed:

  2. Connect to the source database ct1.example.com as the Oracle Streams administrator.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  3. Run the MAINTAIN_CHANGE_TABLE procedure:

    BEGIN
      DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE(
        change_table_name       => 'hr.dep_change_table',
        source_table_name       => 'hr.departments',
        column_type_list        => 'department_id NUMBER(4),
                                    manager_id NUMBER(6)',
        capture_values           => '*',
        source_database          => 'ct1.example.com',
        destination_database     => 'ct2.example.com',
        keep_change_columns_only => FALSE,
        execute_lcr              => TRUE);
    END;
    /


    This procedure uses the default value for each parameter that is not specified. The keep_change_columns_only parameter is set to FALSE because the execute_lcr parameter is set to TRUE. The row logical change records (LCRs) must contain information about changes to all of the columns in the table because all of the columns are replicated at the destination database. When the execute_lcr parameter is set to TRUE, the keep_change_columns_only parameter can be set to TRUE only if the column_type_list parameter includes all of the columns that are replicated, which is not the case in this example.

    When this procedure completes, the Oracle Streams environment is configured.

    If this procedure encounters an error and stops, then see Oracle Streams Replication Administrator's Guide for information about either recovering from the error or rolling back the configuration operation by using the DBMS_STREAMS_ADM.RECOVER_OPERATION procedure.

The resulting Oracle Streams environment has the following characteristics:

  • An unconditional supplemental log group includes the columns in the hr.departments table for which changes are recorded at the source database ct1.example.com. These columns are the ones specified in the column_type_list parameter of the MAINTAIN_CHANGE_TABLE procedure.

  • The destination database ct2.example.com has an hr.dep_change_table. This change table has the following definition:

    Name                                      Null?    Type
     ----------------------------------------- -------- ---------------------------
     COMMAND_TYPE$                                      VARCHAR2(10)
     VALUE_TYPE$                                        VARCHAR2(3)
     DEPARTMENT_ID                                      NUMBER(4)
     MANAGER_ID                                         NUMBER(6)

  • The source database ct1.example.com has a queue with a system-generated name. This queue is used by the capture process.

  • The destination database ct2.example.com has a queue with a system-generated name. This queue is used by the apply process.

  • The source database ct1.example.com has a local capture process with a system-generated name that captures data manipulation language (DML) changes made to the hr.departments table.

  • The destination database ct2.example.com has an apply process with a system-generated name. The apply process uses change handlers with system-generated names to process the captured row LCRs for inserts, updates, and deletes on the hr.departments table. The change handlers use the information in the row LCRs to populate the hr.dep_change_table.

    The apply process also includes change handlers with system-generated names to execute row LCRs for each type of operation (insert, update, and delete). The row LCRs are executed so that the changes made to the source table are applied to the replica hr.departments table at the destination database.

  • A propagation running on the ct1.example.com database with a system-generated name sends the captured changes from the ct1.example.com database to the ct2.example.com database.

Recording Table Changes Using Downstream Capture and Local Apply

This example illustrates how to record the changes to a table using downstream capture and local apply. Specifically, this example records the changes made to the hr.locations table using a source database and a destination database. The destination database is also the capture database for the downstream capture process.

The following table lists the decisions that were made about the Oracle Streams environment configured in this example.

Decision Assumption for This Example
Decide Which Type of Environment to Configure This example configures downstream capture and local apply using the source database ct1.example.com and the destination database ct2.example.com. The capture process will be a real-time downstream capture process running on ct2.example.com.
Decide Which Columns to Track This example tracks all of the columns in the hr.locations table.
Decide Which Metadata to Record This example records the following metadata: command_type, value_type (OLD or NEW), object_owner, object_name, and username.
Decide Which Values to Track for Update Operations This example tracks both the old and new column values when an update is performed on the source table.
Decide Whether to Configure a KEEP_COLUMNS Transformation This example does not configure a KEEP_COLUMNS declarative rule-based transformation.
Decide Whether to Specify CREATE TABLE Options for the Change Table This example does not specify any CREATE TABLE options. The change table is created with the default CREATE TABLE options.
Decide Whether to Perform the Configuration Actions Directly or with a Script This example performs the configuration actions directly. It does not use a script.
Decide Whether to Replicate the Source Table This example does not replicate the source table.

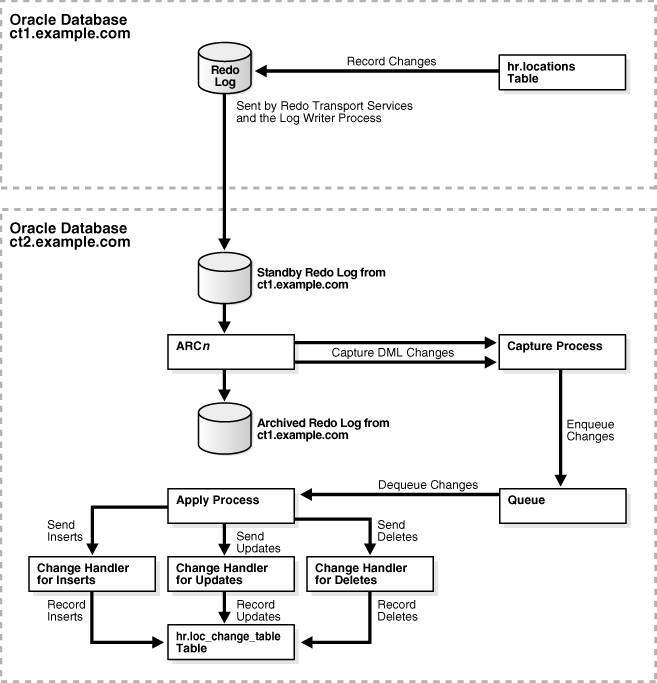

Figure 20-3 provides an overview of the Oracle Stream environment created in this example.

Figure 20-3 Recording Changes Using Downstream Capture and Local Apply

Description of Figure 20-3 follows
Description of "Figure 20-3 Recording Changes Using Downstream Capture and Local Apply"

Complete the following steps to configure an Oracle Streams environment that records the changes to a table using downstream capture and remote apply:

  1. Complete the required prerequisites before running the MAINTAIN_CHANGE_TABLE procedure. See "Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure" for instructions.

    For this configuration, the following tasks must be completed:

    • Configure an Oracle Streams administrator on both databases. See "Configure an Oracle Streams Administrator on All Databases".

    • Configure network connectivity and database links:

      • Configure network connectivity between the source database ct1.example.com and the destination database ct2.example.com.

      • Because downstream capture will be configured at the destination database, create a database link from the source database ct1.example.com to the destination database ct2.example.com. The database link is used to send redo log data from ct1.example.com to ct2.example.com.

      • Because downstream capture will be configured at the destination database, create a database link from the destination database ct2.example.com to the source database ct1.example.com. The database link is used to complete management tasks related to downstream capture on the source database.

      See Oracle Streams Replication Administrator's Guide for instructions.

    • Ensure that the source database and the destination database are in ARCHIVELOG mode. In this example, the source database is ct1.example.com and the destination database is ct2.example.com. See "Ensure That the Source Database Is in ARCHIVELOG Mode".

    • Ensure that the initialization parameters are set properly at both databases. See "Set Initialization Parameters That Are Relevant to Oracle Streams".

    • Configure the Oracle Streams pool properly at both databases. See "Configure the Oracle Streams Pool".

    • Because a destination database will be the capture database for changes made to the source database, configure log file copying from the source database ct1.example.com to the capture database ct2.example.com. See "Configure Log File Transfer to a Downstream Capture Database".

    • Because this example configures a real-time downstream capture process, add standby redo logs at the capture database, and configure standby redo logs at the capture database ct2.example.com. See "Configure Standby Redo Logs for Real-Time Downstream Capture".

  2. Connect to the destination database ct2.example.com as the Oracle Streams administrator.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  3. Run the MAINTAIN_CHANGE_TABLE procedure:

    BEGIN
      DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE(
        change_table_name       => 'hr.loc_change_table',
        source_table_name       => 'hr.locations',
        column_type_list        => 'location_id NUMBER(4),
                                    street_address VARCHAR2(40),
                                    postal_code VARCHAR2(12),
                                    city VARCHAR2(30),
                                    state_province VARCHAR2(25),
                                    country_id CHAR(2)',
        extra_column_list       => 'command_type,value_type,object_owner,
                                    object_name,username',
        capture_values          => '*',
        source_database          => 'ct1.example.com',
        destination_database     => 'ct2.example.com',
        keep_change_columns_only => FALSE);
    END;
    /


    This procedure uses the default value for each parameter that is not specified. The keep_change_columns_only parameter is set to FALSE because all of the columns in the hr.locations table are listed in the column_type_list parameter.

    When this procedure completes, the Oracle Streams environment is configured.

    If this procedure encounters an error and stops, then see Oracle Streams Replication Administrator's Guide for information about either recovering from the error or rolling back the configuration operation by using the DBMS_STREAMS_ADM.RECOVER_OPERATION procedure.

  4. Set the downstream_real_time_mine capture process parameter to Y.

    1. Query the CAPTURE_NAME column in the DBA_CAPTURE view to determine the name of the capture process.

    2. Run the SET_PARAMETER procedure in the DBMS_CAPTURE_ADM package to set the downstream_real_time_mine capture process parameter to Y.

      For example, if the capture process name is cap$chg5, then run the following procedure:

      BEGIN
        DBMS_CAPTURE_ADM.SET_PARAMETER(
          capture_name => 'cap$chg5',
          parameter    => 'downstream_real_time_mine',
          value        => 'Y');
      END;
      /

  5. Connect to the source database ct1.example.com as an administrative user with the necessary privileges to switch log files.

  6. Archive the current log file at the source database:

    ALTER SYSTEM ARCHIVE LOG CURRENT;


    Archiving the current log file at the source database starts real time mining of the source database redo log.

The resulting Oracle Streams environment has the following characteristics:

  • An unconditional supplemental log group at the source database ct1.example.com includes all o the columns in the hr.locations table.

  • Because username is specified in the extra_column_list parameter, the source database is configured to place additional information about the username of the user who makes a change in the redo log. The capture process captures this information, and it is recorded in the change table. The other values specified in the extra_column_list parameter (command_type, value_type, object_owner, and object_name) are always tracked in the redo log. Therefore, no additional configuration is necessary to capture this information.

  • The destination database ct2.example.com has an hr.loc_change_table. This change table has the following definition:

    Name                                      Null?    Type
     ----------------------------------------- -------- ---------------------------
     COMMAND_TYPE$                                      VARCHAR2(10)
     VALUE_TYPE$                                        VARCHAR2(3)
     OBJECT_OWNER$                                      VARCHAR2(30)
     OBJECT_NAME$                                       VARCHAR2(30)
     USERNAME$                                          VARCHAR2(30)
     LOCATION_ID                                        NUMBER(4)
     STREET_ADDRESS                                     VARCHAR2(40)
     POSTAL_CODE                                        VARCHAR2(12)
     CITY                                               VARCHAR2(30)
     STATE_PROVINCE                                     VARCHAR2(25)
     COUNTRY_ID                                         CHAR(2)

  • The destination database ct2.example.com has a queue with a system-generated name. This queue is used by the downstream capture process and the apply process.

  • The destination database ct2.example.com has a real-time downstream capture process with a system-generated name that captures data manipulation language (DML) changes made to the hr.locations table.

  • The destination database ct2.example.com has an apply process with a system-generated name. The apply process uses change handlers with system-generated names to process the captured row LCRs for inserts, updates, and deletes on the hr.locations table. The change handlers use the information in the row LCRs to populate the hr.loc_change_table.

Recording Table Changes Using Downstream Capture and Remote Apply

This example illustrates how to record the changes to a table using downstream capture and remote apply. Specifically, this example records the changes made to the hr.employees table using three databases: the source database, the destination database, and the capture database.

The following table lists the decisions that were made about the Oracle Streams environment configured in this example.

Decision Assumption for This Example
Decide Which Type of Environment to Configure This example configures downstream capture and remote apply using three databases: the source database is ct1.example.com, the destination database is ct2.example.com, and the capture database is ct3.example.com. The capture process will be a real-time downstream capture process.
Decide Which Columns to Track This example tracks the columns in the hr.employees table, except for the salary and commission_pct columns.
Decide Which Metadata to Record This example records the following metadata: command_type, value_type (OLD or NEW), object_owner, object_name, and username.
Decide Which Values to Track for Update Operations This example tracks both the old and new column values when an update is performed on the source table.
Decide Whether to Configure a KEEP_COLUMNS Transformation This example configures a KEEP_COLUMNS declarative rule-based transformation so that row LCRs do not contain salary and commission percentage information for employees.
Decide Whether to Specify CREATE TABLE Options for the Change Table This example specifies a STORAGE clause in the CREATE TABLE options.
Decide Whether to Perform the Configuration Actions Directly or with a Script This example performs the configuration actions directly. It does not use a script.
Decide Whether to Replicate the Source Table This example does not replicate the source table.

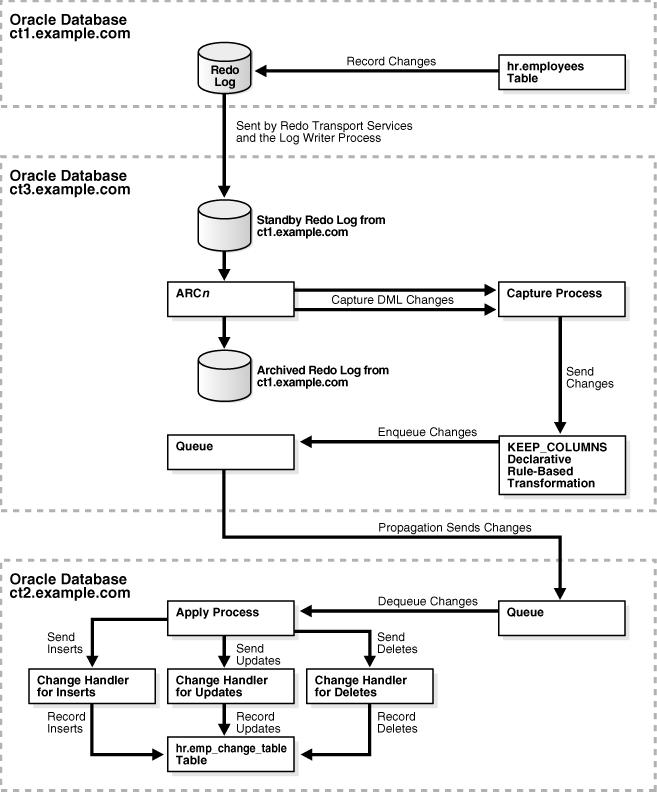

Figure 20-4 provides an overview of the Oracle Stream environment created in this example.

Figure 20-4 Recording Changes Using Downstream Capture and Remote Apply

Description of Figure 20-4 follows
Description of "Figure 20-4 Recording Changes Using Downstream Capture and Remote Apply"

Complete the following steps to configure an Oracle Streams environment that records the changes to a table using downstream capture and remote apply:

  1. Complete the required prerequisites before running the MAINTAIN_CHANGE_TABLE procedure. See "Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure" for instructions.

    For this configuration, the following tasks must be completed:

    • Configure an Oracle Streams administrator on all of three databases. See "Configure an Oracle Streams Administrator on All Databases".

    • Configure network connectivity and database links:

      • Configure network connectivity between the source database ct1.example.com and the destination database ct2.example.com.

      • Configure network connectivity between the source database ct1.example.com and the third database ct3.example.com.

      • Configure network connectivity between the destination database ct2.example.com and the third database ct3.example.com.

      • Create a database link from the source database ct1.example.com to the destination database ct2.example.com.

      • Because downstream capture will be configured at the third database, create a database link from the source database ct1.example.com to the third database ct3.example.com.

      • Because downstream capture will be configured at the third database, create a database link from the third database ct3.example.com to the source database ct1.example.com.

      • Because downstream capture will be configured at the third database, create a database link from the third database ct3.example.com to the destination database ct2.example.com.

      See Oracle Streams Replication Administrator's Guide for instructions.

    • Ensure that the source database and the capture database are in ARCHIVELOG mode. In this example, the source database is ct1.example.com and the capture database is ct3.example.com. See "Ensure That the Source Database Is in ARCHIVELOG Mode".

    • Ensure that the initialization parameters are set properly at all databases. See "Set Initialization Parameters That Are Relevant to Oracle Streams".

    • Configure the Oracle Streams pool properly at all databases. See "Configure the Oracle Streams Pool".

    • Because a third database (ct3.example.com) will be the capture database for changes made to the source database, configure log file copying from the source database ct1.example.com to the capture database ct3.example.com. See "Configure Log File Transfer to a Downstream Capture Database".

    • Because this example configures a real-time downstream capture process, add standby redo logs at the capture database, and configure standby redo logs at the capture database ct3.example.com. See "Configure Standby Redo Logs for Real-Time Downstream Capture".

  2. Connect to the capture database ct3.example.com as the Oracle Streams administrator.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  3. Run the MAINTAIN_CHANGE_TABLE procedure:

    BEGIN
      DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE(
        change_table_name       => 'hr.emp_change_table',
        source_table_name       => 'hr.employees',
        column_type_list        => 'employee_id VARCHAR2(6),
                                    first_name VARCHAR2(20),
                                    last_name VARCHAR2(25),
                                    email VARCHAR2(25),
                                    phone_number VARCHAR2(20),
                                    hire_date DATE,
                                    job_id VARCHAR2(10),
                                    manager_id NUMBER(6),
                                    department_id NUMBER(4)',
        capture_values          => '*',
        options_string          => 'STORAGE (INITIAL     6144
                                             NEXT        6144
                                             MINEXTENTS     1
                                             MAXEXTENTS     5)',
        source_database          => 'ct1.example.com',
        destination_database     => 'ct2.example.com',
        keep_change_columns_only => TRUE);
    END;
    /


    This procedure uses the default value for each parameter that is not specified. The options_string parameter specifies a storage clause for the change table. The keep_change_columns_only parameter is set to TRUE to create a keep columns declarative rule-based transformation that excludes the salary and commission_pct columns from captured row logical change records (LCRs). The salary and commission_pct columns are excluded because they are not in the column_type_list parameter.

    When this procedure completes, the Oracle Streams environment is configured.

    If this procedure encounters an error and stops, then see Oracle Streams Replication Administrator's Guide for information about either recovering from the error or rolling back the configuration operation by using the DBMS_STREAMS_ADM.RECOVER_OPERATION procedure.

  4. Set the downstream_real_time_mine capture process parameter to Y.

    1. Query the CAPTURE_NAME column in the DBA_CAPTURE view to determine the name of the capture process.

    2. Run the SET_PARAMETER procedure in the DBMS_CAPTURE_ADM package to set the downstream_real_time_mine capture process parameter to Y.

      For example, if the capture process name is cap$chg5, then run the following procedure:

      BEGIN
        DBMS_CAPTURE_ADM.SET_PARAMETER(
          capture_name => 'cap$chg5',
          parameter    => 'downstream_real_time_mine',
          value        => 'Y');
      END;
      /

  5. Connect to the source database ct1.example.com as an administrative user with the necessary privileges to switch log files.

  6. Archive the current log file at the source database:

    ALTER SYSTEM ARCHIVE LOG CURRENT;


    Archiving the current log file at the source database starts real time mining of the source database redo log.

The resulting Oracle Streams environment has the following characteristics:

  • An unconditional supplemental log group includes the columns in the hr.employees table for which changes are recorded at the source database ct1.example.com. These columns are the ones specified in the column_type_list parameter of the MAINTAIN_CHANGE_TABLE procedure.

  • The destination database ct2.example.com has an hr.emp_change_table. This change table has the following definition:

    Name                                      Null?    Type
     ----------------------------------------- -------- ---------------------------
     COMMAND_TYPE$                                      VARCHAR2(10)
     VALUE_TYPE$                                        VARCHAR2(3)
     EMPLOYEE_ID                               NOT NULL NUMBER(6)
     FIRST_NAME                                         VARCHAR2(20)
     LAST_NAME                                 NOT NULL VARCHAR2(25)
     EMAIL                                     NOT NULL VARCHAR2(25)
     PHONE_NUMBER                                       VARCHAR2(20)
     HIRE_DATE                                 NOT NULL DATE
     JOB_ID                                    NOT NULL VARCHAR2(10)
     MANAGER_ID                                         NUMBER(6)
     DEPARTMENT_ID                                      NUMBER(4)

  • The capture database ct3.example.com has a queue with a system-generated name. This queue is used by the downstream capture process.

  • The destination database ct2.example.com has a queue with a system-generated name. This queue is used by the apply process.

  • The capture database ct3.example.com has a real-time downstream capture process with a system-generated name that captures data manipulation language (DML) changes made to the hr.employees table.

  • The capture database ct3.example.com has a KEEP_COLUMNS declarative rule-based transformation that keeps all of the columns in the row LCRs for the hr.employees table, except for the salary and commission_pct columns.

  • A propagation running on the ct3.example.com database with a system-generated name sends the captured changes from the ct3.example.com database to the ct2.example.com database.

  • The destination database ct2.example.com has an apply process with a system-generated name. The apply process uses change handlers with system-generated names to process the captured row LCRs for inserts, updates, and deletes on the hr.employees table. The change handlers use the information in the row LCRs to populate the hr.emp_change_table.

Managing an Oracle Streams Environment That Records Table Changes

This section describes setting and unsetting change handlers.

This section contains these topics:

Unsetting and Setting a Change Handler

The SET_CHANGE_HANDLER procedure in the DBMS_APPLY_ADM package can unset and set a change handler for a specified operation on a specified table for a single apply process. This procedure assumes that the Oracle Streams components are configured to capture changes to the specified table and send the changes to the specified apply process.

For the example in this section, assume that you want to unset the change handler for update operations that was created in "Recording Table Changes Using Local Capture and Remote Apply with Replication". Next, you want to reset this change handler.

Complete the following steps to set a change handler:

  1. Connect to the database that contains the apply process as the Oracle Streams administrator.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  2. Identify the change handler to modify.

    This example unsets the change handler for UPDATE operations on the hr.departments table. Assume that these changes are applied by the app$chg38 apply process. Run the following query to determine the owner of the change table, the name of the change table, the capture values tracked in the change table, and the name of the change handler:

    COLUMN CHANGE_TABLE_OWNER HEADING 'Change Table Owner' FORMAT A20
    COLUMN CHANGE_TABLE_NAME HEADING 'Change Table Name' FORMAT A20
    COLUMN CAPTURE_VALUES HEADING 'Capture|Values' FORMAT A7
    COLUMN HANDLER_NAME HEADING 'Change Handler Name' FORMAT A25

    SELECT CHANGE_TABLE_OWNER,
           CHANGE_TABLE_NAME,
           CAPTURE_VALUES,
           HANDLER_NAME
      FROM DBA_APPLY_CHANGE_HANDLERS
      WHERE SOURCE_TABLE_OWNER = 'HR' AND
            SOURCE_TABLE_NAME  = 'DEPARTMENTS' AND
            APPLY_NAME         = 'APP$CHG38' AND
            OPERATION_NAME     = 'UPDATE';


    Your output looks similar to the following:

    Capture
    Change Table Owner   Change Table Name    Values  Change Handler Name
    -------------------- -------------------- ------- -------------------------
    HR                   DEP_CHANGE_TABLE     *       HR_DEPARTMENTS_CHG$10


    Make a note of the values returned by this query, and use these values in the subsequent steps in this example.

  3. Unset the change handler.

    To unset a change handler, specify NULL in the change_handler_name parameter in the SET_CHANGE_HANDLER procedure, and specify the change table owner, change table name, capture values, operation, source table, and apply process using the other procedure parameters. For example:

    BEGIN
      DBMS_APPLY_ADM.SET_CHANGE_HANDLER(
        change_table_name    =>  'hr.dep_change_table',
        source_table_name    =>  'hr.departments',
        capture_values       =>  '*',
        apply_name           =>  'app$chg38',
        operation_name       =>  'UPDATE',
        change_handler_name  =>  NULL);
    END;
    /


    When this change handler is unset, it no longer records update changes.

  4. Set the change handler.

    To set the change handler, specify the change handler in the change_handler_name parameter in the SET_CHANGE_HANDLER procedure, and specify the change table owner, change table name, capture values, operation, source table, and apply process using the other procedure parameters. For example:

    BEGIN
      DBMS_APPLY_ADM.SET_CHANGE_HANDLER(
        change_table_name    =>  'hr.dep_change_table',
        source_table_name    =>  'hr.departments',
        capture_values       =>  '*',
        apply_name           =>  'app$chg38',
        operation_name       =>  'UPDATE',
        change_handler_name  =>  'hr_departments_chg$10');
    END;
    /


    When this change handler is reset, it records update changes.

Recording Changes to a Table Using Existing Oracle Streams Components

You can configure existing Oracle Streams components to record changes to a table. These existing components include capture processes, propagations, and apply processes. To use existing components, specify the component names when you run the MAINTAIN_CHANGE_TABLE procedure in the DBMS_STREAMS_ADM package.

The example in this section builds on the Oracle Streams environment created in "Recording Table Changes Using Local Capture and Apply on One Database". That example configured an Oracle Streams environment that records changes to the hr.jobs table. The example in this section configures the existing capture process and apply process to record changes to the hr.employees table as well.

The following table lists the decisions that were made about the changes that will be recorded for the hr.employees table.

Decision Assumption for This Example
Decide Which Type of Environment to Configure This example uses existing Oracle Streams components that perform local capture and apply on one database.
Decide Which Columns to Track This example tracks all of the columns in the hr.employees table.
Decide Which Metadata to Record This example records the command_type, value_type (OLD or NEW), and commit_scn metadata.
Decide Which Values to Track for Update Operations This example tracks both the old and new column values when an update is performed on the source table.
Decide Whether to Configure a KEEP_COLUMNS Transformation This example does not configure a KEEP_COLUMNS declarative rule-based transformation.
Decide Whether to Specify CREATE TABLE Options for the Change Table This example does not specify any CREATE TABLE options. The change table is created with the default CREATE TABLE options.
Decide Whether to Perform the Configuration Actions Directly or with a Script This example performs the configuration actions directly. It does not use a script.
Decide Whether to Replicate the Source Table This example does not replicate the source table.

Complete the following steps to record changes to a table using existing Oracle Streams components:

  1. Ensure that the required prerequisites are met before running the MAINTAIN_CHANGE_TABLE procedure. See "Prerequisites for the MAINTAIN_CHANGE _TABLE Procedure" for instructions.

    For this configuration, the following tasks must be completed:

    In this example, these requirements should already be met because an existing Oracle Streams environment is recording changes to the hr.jobs table.

  2. Determine the names of the existing Oracle Streams components.

    In SQL*Plus, connect to the database that contains a component and query the appropriate data dictionary view:

    • Query the CAPTURE_NAME column in the DBA_CAPTURE view to determine the names of the capture processes in a database.

    • Query the PROPAGATION_NAME column in the DBA_PROPAGATION view to determine the names of the propagations in a database.

    • Query the APPLY_NAME column in the DBA_APPLY view to determine the names of the apply processes in a database.

    This example records changes using a capture process and apply process in a single database. Therefore, it does not use a propagation.

    Assume that the name of the capture process is cap$chg3 and that the name of the apply process is app$chg4.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  3. Connect to the database that contains the existing capture process as the Oracle Streams administrator.

  4. Run the MAINTAIN_CHANGE_TABLE procedure:

    BEGIN
      DBMS_STREAMS_ADM.MAINTAIN_CHANGE_TABLE(
        change_table_name       => 'hr.employees_change_table',
        source_table_name       => 'hr.employees',
        column_type_list        => 'employee_id VARCHAR2(6),
                                    first_name VARCHAR2(20),
                                    last_name VARCHAR2(25),
                                    email VARCHAR2(25),
                                    phone_number VARCHAR2(20),
                                    hire_date DATE,
                                    job_id VARCHAR2(10),
                                    salary NUMBER(8,2),
                                    commission_pct NUMBER(2,2),
                                    manager_id NUMBER(6),
                                    department_id NUMBER(4)',
        extra_column_list        => 'command_type,value_type,commit_scn',
        capture_values           => '*',
        capture_name             => 'cap$chg3',
        apply_name               => 'app$chg4',
        keep_change_columns_only => FALSE);
    END;
    /


    This procedure uses the default value for each parameter that is not specified. The keep_change_columns_only parameter is set to FALSE because all of the columns in the hr.jobs table are listed in the column_type_list parameter.

    When this procedure completes, the Oracle Streams environment is configured.

    If this procedure encounters an error and stops, then see Oracle Streams Replication Administrator's Guide for information about either recovering from the error or rolling back the configuration operation by using the DBMS_STREAMS_ADM.RECOVER_OPERATION procedure.

The resulting Oracle Streams environment has the following characteristics:

  • The characteristics previously described in "Recording Table Changes Using Local Capture and Apply on One Database".

  • An unconditional supplemental log group includes all of the columns in the hr.employees table.

  • The database has an hr.employees_change_table. This change table has the following definition:

    Name                                      Null?    Type
     ----------------------------------------- -------- ---------------------------
     COMMAND_TYPE$                                      VARCHAR2(10)
     VALUE_TYPE$                                        VARCHAR2(3)
     COMMIT_SCN$                                        NUMBER
     EMPLOYEE_ID                                        VARCHAR2(6)
     FIRST_NAME                                         VARCHAR2(20)
     LAST_NAME                                          VARCHAR2(25)
     EMAIL                                              VARCHAR2(25)
     PHONE_NUMBER                                       VARCHAR2(20)
     HIRE_DATE                                          DATE
     JOB_ID                                             VARCHAR2(10)
     SALARY                                             NUMBER(8,2)
     COMMISSION_PCT                                     NUMBER(2,2)
     MANAGER_ID                                         NUMBER(6)
     DEPARTMENT_ID                                      NUMBER(4)

  • The capture process cap$chg3 captures data manipulation language (DML) changes made to the hr.employees table.

  • An apply process app$chg4 uses change handlers with system-generated names to process the captured row LCRs for inserts, updates, and deletes on the hr.employees table. The change handlers use the information in the row LCRs to populate the hr.employees_change_table.

Maintaining Change Tables

Change tables can grow large over time. You can query one or more change tables to obtain a transactionally consistent set of change data. When the change data is no longer needed, you can remove it from the change tables. To perform these operations, configure the change table to track commit SCN metadata by including commit_scn in the extra_column_list parameter when you run the MAINTAIN_CHANGE_TABLE procedure. You can use the commit SCN to obtain consistent data and to specify which data to remove when it is no longer needed.

The example in this section maintains the change tables created in the following sections:

The example in this section queries the change tables to obtain a transactionally consistent set of change data and then removes the change data that has been viewed.

Complete the following steps to maintain change tables:

  1. Determine the current low-watermark of the apply process that applies changes to the change table. Changes that were committed at a system change number (SCN) less than or equal to the low-watermark have definitely been applied.

    For example, if the name of the apply process is app$chg4, then run the following query to determine its low-watermark:

    SELECT APPLIED_MESSAGE_NUMBER
      FROM DBA_APPLY_PROGRESS
      WHERE APPLY_NAME='APP$CHG4';


    Make a note of the returned low-watermark SCN. For this example, assume that the low-watermark SCN is 663090.

  2. Query the change tables for changes that are less than or equal to the low-watermark returned in Step 1.

    For example, run the following query on the hr.jobs_change_table:

    SELECT * FROM hr.jobs_change_table WHERE commit_scn$ <= 663090;


    For example, run the following query on the hr.employees_change_table:

    SELECT * FROM hr.employees_change_table WHERE commit_scn$ <= 663090;


    These queries specify the low-watermark SCN returned in Step 1. The changes returned are transactionally consistent up to the specified SCN.

  3. When the changes viewed in Step 2 are no longer needed, run the following statements to remove the changes:

    DELETE FROM hr.jobs_change_table WHERE commit_scn$ <= 663090;

    DELETE FROM hr.employees_change_table WHERE commit_scn$ <= 663090;

    COMMIT;


    These queries specify the same low-watermark SCN returned in Step 1 and used in the queries in Step 2.

There are other ways to maintain change tables. For example, you can query them using a range of changes between two SCN values. You can also create a view to show a consistent set of data in two or more change tables.

Managing the Oracle Streams Environment

After the MAINTAIN_CHANGE_TABLE procedure has configured the Oracle Streams environment, you can manage the Oracle Streams environment by referring to the sections in the following table.

Monitoring an Oracle Streams Environment That Records Table Changes

This section describes monitoring the Oracle Streams components in a configuration that tracks table changes.

This section contains these topics:

Monitoring a Change Table

You can monitor a change table using SELECT statement the same way you monitor other database tables. The columns in the change table depend on the column_type_list parameter in the MAINTAIN_CHANGE_TABLE procedure. The change table can include a tracking column for each column in the source table, or it can include a subset of the columns in the source table. In addition, the change table can include several additional columns that contain metadata about each change.

For example, the Oracle Streams environment configured in "Recording Table Changes Using Local Capture and Apply on One Database" records changes to the hr.jobs table. Each column in the hr.jobs table is tracked in the change table hr.jobs_change_table, and the default metadata columns (command_type$, value_type$, and commit_scn$) are included in the change table.

To monitor this sample change table, complete the following steps:

  1. Connect to the database as hr user.

    See Oracle Database Administrator's Guide for information about connecting to a database in SQL*Plus.

  2. Make changes to the source table so that the change table is populated:

    INSERT INTO hr.jobs VALUES('BN_CNTR','Bean Counter',6000,8000);
    COMMIT;

    UPDATE hr.jobs SET min_salary=7000 WHERE job_id='BN_CNTR';
    COMMIT;

    DELETE FROM hr.jobs WHERE job_id='BN_CNTR';
    COMMIT;

  3. Query the change table:

    COLUMN COMMAND_TYPE$ HEADING 'Command Type' FORMAT A12
    COLUMN VALUE_TYPE$ HEADING 'Value|Type' FORMAT A5
    COLUMN COMMIT_SCN$ HEADING 'Commit SCN' FORMAT 9999999
    COLUMN JOB_ID HEADING 'Job ID' FORMAT A10
    COLUMN JOB_TITLE HEADING 'Job Title' FORMAT A12
    COLUMN MIN_SALARY HEADING 'Minimum|Salary' FORMAT 9999999
    COLUMN MAX_SALARY HEADING 'Maximum|Salary' FORMAT 9999999

    SELECT * FROM hr.jobs_change_table;


    Your output looks similar to the following:

    Value                                     Minimum  Maximum
    Command Type Type  Commit SCN Job ID     Job Title      Salary   Salary
    ------------ ----- ---------- ---------- ------------ -------- --------
    INSERT       NEW       663075 BN_CNTR    Bean Counter     6000     8000
    UPDATE       OLD       663082 BN_CNTR    Bean Counter     6000     8000
    UPDATE       NEW       663082 BN_CNTR    Bean Counter     7000     8000
    DELETE       OLD       663090 BN_CNTR    Bean Counter     7000     8000


    This output shows the changes made in Step 2.

Monitoring Change Handlers

This section describes monitoring change handlers.

This section contains these topics:

Displaying General Information About Change Handlers

You can query the DBA_APPLY_CHANGE_HANDLERS view to display the following information about each change handler in a database:

  • The name of the change handler

  • The captured values tracked by the change handler for update operations, either NEW for new column values, OLD for old column values, or * for both new and old column values

  • The name of the apply process that uses the change handler

  • The operation for which the change handler is invoked, either INSERT, UPDATE, or DELETE

Run the following query to display this information:

COLUMN HANDLER_NAME HEADING 'Change Handler Name' FORMAT A30
COLUMN CAPTURE_VALUES HEADING 'Capture|Values' FORMAT A7
COLUMN APPLY_NAME HEADING 'Apply|Process' FORMAT A10
COLUMN OPERATION_NAME HEADING 'Operation' FORMAT A10

SELECT HANDLER_NAME,
       CAPTURE_VALUES,
       APPLY_NAME,
       OPERATION_NAME
  FROM DBA_APPLY_CHANGE_HANDLERS
  ORDER BY HANDLER_NAME;

Your output looks similar to the following:

Capture Apply
Change Handler Name            Values  Process    Operation
------------------------------ ------- ---------- ----------
HR_DEPARTMENTS_CHG$40                  APP$CHG38  INSERT
HR_DEPARTMENTS_CHG$41                  APP$CHG38  DELETE
HR_DEPARTMENTS_CHG$42          *       APP$CHG38  UPDATE
HR_JOBS_CHG$80                         APP$CHG79  INSERT
HR_JOBS_CHG$81                         APP$CHG79  DELETE
HR_JOBS_CHG$82                 *       APP$CHG79  UPDATE

Notice that the "Capture Values" column is NULL for INSERT and DELETE operations. The DBA_APPLY_CHANGE_HANDLERS view only displays captured values for change handlers that track UPDATE operations. Only new column values are possible for inserts, and only old column values are possible for deletes.

Displaying the Change Table and Source Table for Change Handlers

You can query the DBA_APPLY_CHANGE_HANDLERS view to display the following information about each change handler in a database:

  • The name of the change handler

  • The owner of the change table that tracks changes to the source table

  • The name of the change table that tracks changes to the source table

  • The owner of the source table

  • The name of the source table

Run the following query to display this information:

COLUMN HANDLER_NAME HEADING 'Change Handler Name' FORMAT A25
COLUMN CHANGE_TABLE_OWNER HEADING 'Change|Table|Owner' FORMAT A8
COLUMN CHANGE_TABLE_NAME HEADING 'Change|Table|Name' FORMAT A17
COLUMN SOURCE_TABLE_OWNER HEADING 'Source|Table|Owner' FORMAT A8
COLUMN SOURCE_TABLE_NAME HEADING 'Source|Table|Name' FORMAT A17

SELECT HANDLER_NAME,
       CHANGE_TABLE_OWNER,
       CHANGE_TABLE_NAME,
       SOURCE_TABLE_OWNER,
       SOURCE_TABLE_NAME
  FROM DBA_APPLY_CHANGE_HANDLERS
  ORDER BY HANDLER_NAME;

Your output looks similar to the following:

Change   Change            Source   Source
                          Table    Table             Table    Table
Change Handler Name       Owner    Name              Owner    Name
------------------------- -------- ----------------- -------- -----------------
HR_DEPARTMENTS_CHG$40     HR       DEP_CHANGE_TABLE  HR       DEPARTMENTS
HR_DEPARTMENTS_CHG$41     HR       DEP_CHANGE_TABLE  HR       DEPARTMENTS
HR_DEPARTMENTS_CHG$42     HR       DEP_CHANGE_TABLE  HR       DEPARTMENTS
HR_JOBS_CHG$80            HR       JOBS_CHANGE_TABLE HR       JOBS
HR_JOBS_CHG$81            HR       JOBS_CHANGE_TABLE HR       JOBS
HR_JOBS_CHG$82            HR       JOBS_CHANGE_TABLE HR       JOBS

Monitoring the Oracle Streams Environment

After the MAINTAIN_CHANGE_TABLE procedure has configured the Oracle Streams environment, you can monitor the Oracle Streams environment by referring to the sections in the following table.
