3 Logical Data Model Dimensions

This chapter describes the logical dimensions, and hierarchies, of the data model, as shown in Table 3-1.

Table 3-1 Logical Data Model Dimensions

Dimension

Access Method

Account

Account Payment Method Status Type

Account Refund Reason

Address Location

Age Band

Age On Net Band

ARPU Band

Bank Direct Debit Channel

Ber Fer Type

Billing Cycle

Billing Status Type

Business Time

Calendar Time

Call Category

Call Center Agent

Call Center Case Title

Call Center

Call Direction

Call Other Type

Call Routing Type

Call Service Type

Call Source Destination

Call Success Fail Type

Call Type

Campaign Channel

Cell Outage Reason

Change Proposed By Type

Collection Agency

Commission Type

Content Type

Contract Change Initiator Type

Contract Assignment Reason

Contract

Credit Category

Customer Revenue Band

Customer Segment

Dealer

Debt Aging Band

Direct Debit Status Reason

Divert Retrieve Type

Employee

Event Result

Event Type

External Operator

Fraud Profile Class

Geography

Give Away Type

GPRS Services

Handset Model

IN Platform

Initiative Type

Interaction Channel

Internet Service Provider

Invoice Adjustment Reason

Invoice Adjustment Type

Item

Legal Process Status Type

Loyalty Program Channel

Market Area

Network

Network Element

Network Touchpoint Class

Network Touchpoint Status

Network Touchpoint Type

Notification Type

NP Request Type

On Off Net

Organization

Partner Settlement Reason

Party

Payment Channel

Payment Method Type

Payment Transaction Type

PCU Outage Reason

Peak Offpeak Time

PPA Category

Product

Product Market Plan

Promotion

Promotion Result Type

Recharge Revenue Slab

Redemption Type

RF Carrier

Roaming Type

Sales Channel

Sales Channel Representative

Service Coverage Area

Subscription

Subsidy Type

Switch

Technology Type

Time Slot

UMS Access Type

Value Added Services (VAS)


Logical Data Model Dimensions

This sections lists the logical data model dimensions.

Access Method

Description: ACCESS METHOD

Access Method Hierarchy

Standard Access Method Hierarchy

Description of image001.gif follows
Description of the illustration image001.gif

Access Method Levels

Table 3-2 shows Access Method Total: All access method is the most aggregate level of the dimension.

Table 3-2 Access Method Total

Sr. Number Attribute Description

1.

ACCESS METHOD TOTAL

Code for All Access Method.


Table 3-3 shows Access Method Type: This entity keeps all types of the Access Telephone Numbers, such as Wire line, Wireless.

Table 3-3 Access Method Type

Sr. Number Attribute Description Sample Value

1

ACCESS METHOD TYPE CODE

A code, used to uniquely identify the access method type.

FLTN

2

ACCESS METHOD TYPE DESC

A textual description of the Access Method Type.

Fixed Line Telephone Numbers

3

ACCESS METHOD TYPE NAME

The name assigned to the Access Method Type.

Fixed Line Telephone Numbers

4

LANGUAGE CODE

Unique identifier for Language



Table 3-4 shows Access Method Detail: Detail level of the dimension. Stores the Access Method Information.

Table 3-4 Access Method Detail

Sr. Number Attribute Description Sample Value

1

ACCESS METHOD CODE

A sequence of numbers (like phone number) electronically registered to telecommunications equipment that gives the Customer access to services or products. Other access method like DSL account, Service ID might be character type.

867558305000

2

ACCESS METHOD DESC

Access method full description.

WRLS867558305000

3

ACCESS METHOD NAME

ACCESS METHOD NAME. ACCESS METHOD NAME

WRLS867558305000

4

ACCESS METHOD POOL CODE

Unique identifier for Access Method Pool



5

ACCESS METHOD SEGMENT CODE

Unique identifier for Access Method Segment



1

ACCESS METHOD TYPE CODE

A code, used to uniquely identify a access method type.

FLTN

2

ACCOUNT CODE

This is usually natural key of the account. Optional column, At certain time period, the access method may not be bound to an account.

10000101

3

CUSTOMER SELECT INDICATOR

Indicates whether the phone number (access method identifier) is selected by a customer.



4

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

5

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

6

NETWORK CODE

Identifier of the network.



7

SILENT NUMBER INDICATOR

An indicator that indicates whether a party has a silent number. A silent number could not be found on the White Pages. access method full description



8

STATUS CODE

Current STATUS CODE, standard SCD2 column.



9

SWITCH CODE

Unique identifier for Switch



Account

Description: ACCOUNT

Account Hierarchies

Standard Account Hierarchy:

Description of image002.gif follows
Description of the illustration image002.gif

Account Levels

Table 3-5 shows Account Total: All accounts are most aggregate level of the dimension.

Table 3-5 Account Total

Sr. Number Attribute Description

1.

ACCOUNT TOTAL

Code for All account.


Table 3-6 shows Account Detail: All account types are most aggregate level of the dimension.

Table 3-6 Account Detail

Sr. Number Attribute Description Sample Value

1

ACCOUNT CODE

This is usually natural key of the account.

10000102

2

ACCOUNT NAME

The name for the account.



3

ACCOUNT SEGMENT CODE

Unique identifier for Account Segment



4

ACCOUNT TYPE CODE

Unique identifier for Account Type

PRPD

5

ACCOUNTING CYCLE CODE

Unique identifier for Accounting Cycle



6

ADVERTISING STATUS

Indicated if it need some advertising material for a particular invoice arrangement, and if customer explicitly requested NOT to send.



7

BILLING CYCLE CODE

Unique identifier for Billing Cycle

MO

8

BILLING PERIOD CODE

Unique identifier for Billing period



9

CREATE DATE

The date when the account was created.

4/4/2006 12:00:00 AM

10

CREATE STAFF

the employee number of who created the account.



11

CREDIT CATEGORY CODE

Current Credit Category Code.



12

CREDIT RATING DATE

CREDIT RATING DATE is when the credit category code is rated for the account.



13

CURRENCY CODE

Unique identifier for Currency

USD

14

CUSTOMER CODE

Unique identifier for Customer



15

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

16

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

17

GROUP PLAN INDICATOR

Indicates whether an account belongs to a group plan/solution.



18

LAST ACTIVATE DATE

The last date when account was activated.



19

LAST REOPEN DATE

Last time when account was reopen.



20

LAST SUSPEND DATE

Last date when the account was suspended for certain reasons.



21

MULTIPLE CUSTOMER INDICATOR

Indicates whether one bill has multiple customer.



22

ORGANIZATION BUSINESS UNIT CODE

Unique identifier for Organization Business Unit



23

PAYMENT DAYS

The number of days after customer billing before certain actions (like debt collection) would be taken.



24

STATUS CODE

STATUS CODE, standard SCD2 column.



25

TERMINATION DATE

TERMINATION DATE.

3/3/2008 12:00:00 AM


Account Payment Method Status Type

Description: ACCOUNT PAYMENT METHOD STATUS TYPE

Account Payment Method Status Type Hierarchy

Standard Account Payment Method Status Type Hierarchy:

Description of image003.gif follows
Description of the illustration image003.gif

Account Payment Method Status Type Levels

Table 3-7 shows Account Payment Method Status Type Total: All Account Payment Method Status Types are most aggregate level of the dimension.

Table 3-7 Account Payment Method Status Type Total

Sr. Number Attribute Description

1.

ACCOUNT PAYMENT METHOD STATUS TYPE TOTAL

Code for All Account Payment Method Status Type.


Table 3-8 shows Account Payment Method Status Type Detail: All Account Payment Method Status Types are most aggregate level of the dimension.

Table 3-8 Account Payment Method Status Type Detail

Sr. Number Attribute Description Sample Value

1

ACCOUNT PAYMENT METHOD STATUS TYPE CODE

Code for Direct Debit Status

CHECK

2

ACCOUNT PAYMENT METHOD STATUS TYPE DESC

Direct Debit Status Description

CHECK

3

ACCOUNT PAYMENT METHOD STATUS TYPE NAME

Direct Debit Status Short Description

Transaction By Check

4

LANGUAGE CODE

Unique identifier for Language



Account Refund Reason

Description: ACCOUNT REFUND REASON

Account Refund Reason Hierarchies

Standard Account Refund Reason Hierarchy:

Description of image004.gif follows
Description of the illustration image004.gif

Account Refund Reason Levels

Table 3-9 shows Account Refund Reason Total: All Account Refund Reasons are the most aggregate level of the dimension.

Table 3-9 Account Refund Reason Total

Sr. Number Attribute Description

1.

ACCOUNT REFUND REASON TOTAL

Code for All Account Refund Reason.


Table 3-10 shows Account Refund Reason Detail: All Account Refund Reason Types are most aggregate level of the dimension.

Table 3-10 Account Refund Reason Detail

Sr. Number Attribute Description Sample Value

1

ACCOUNT REFUND REASON CODE

A code, used to uniquely identify ACCOUNT REFUND REASON.

INVCADJ

2

ACCOUNT REFUND REASON DESC

A textual description of ACCOUNT REFUND REASON.

Invoice Adjustment

3

ACCOUNT REFUND REASON NAME

The name assigned to ACCOUNT REFUND REASON.

Invoice Adjustment

4

LANGUAGE CODE

Unique identifier for Language



Address Location

Description: ADDRESS LOCATION

Address Location Hierarchies

Standard Address Location Hierarchy:

Description of image005.gif follows
Description of the illustration image005.gif

Address Location Levels

Table 3-11 shows Address Location Total: All Address Location is most aggregate level of the dimension.

Table 3-11 Address Location Total

Sr. Number Attribute Description

1.

ADDRESS LOCATION TOTAL

Code for All Address Locations.


Table 3-12 shows Address Location Detail: All Address Locations are most aggregate level of the dimension.

Table 3-12 Address Location Detail

Sr. Number Attribute Description Sample Value

1

ADDRESS DESCRIPTION

Address description. Textual description of the address.



2

ADDRESS LATITUDE MEASURE

This is the Latitude value of the specified location



3

ADDRESS LINE 1

Address. Line one of detailed postal address

123 Park Avenue

4

ADDRESS LINE 2

Address. Line two of detailed postal address

ABC Tower

5

ADDRESS LINE 3

Address. Line three of detailed postal address

Suite 1111

6

ADDRESS LINES PHONETIC

Phonetic or Kana representation of the Kanji address lines (used in Japan)



7

ADDRESS LOCATION CODE

unique identifier for the address.



8

ADDRESS LONGITUDE MEASURE

This is the longitude location of the specified address.



9

ADDRESS STYLE

Any specific style of the address. It might include the detail like All Capital words, case, font and so on.



10

ADDRESS TYPE CODE

Unique identifier for the address type.

Shipping

11

REGION NAME

Name of the Reason



12

SUBREGION DESC

description of sub region



13

TAX AUTHORITY CODE

Unique identified for the tax authority



14

WORLD DESC

Description of world



15

WORLD NAME

Name of the world



16

ADDRESS LATITUDE MEASURE

This is the Latitude value of the specified location



17

POSTAL PLUS CODE

Four digit extension to the United States Postal ZIP code.



18

STREET CODE

Uniquely identifier of state



19

CITY DESC

Description of the city



20

FLAT ROOM CODE

Uniquely identifier of the flat room



21

GEOGRAPHY STATE CODE

State of the geography



22

POST OFFICE BOX

PO box if available.



23

STATE DESC

Description of the state



24

STATE NAME

Name of the state



26

BUILDING DESC

Description for Building



27

COUNTY DESC

Description for County



28

GEOGRAPHY COUNTRY CODE

Code for Geography Country



29

POSTCODE CODE

Code for Post Code



30

ADDRESS DESCRIPTION

Address description. Textual description of the address.



31

ADDRESS TYPE CODE

Unique identifier for the address type.



32

BUILDING NAME

Name for Building



33

COUNTY NAME

Name for County



34

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



35

FLAT ROOM DESC

Description for Flat Room



36

GEOGRAPHY COUNTY CODE

Code for Geography County



37

GEOGRAPHY ENTITY CODE

unique geography identifier. A unique identifier for the geography entities, could be a system generated unique key for Geography entity.



38

REGION DESC

Description for Region



39

WORLD CODE

Description for World



42

LONGITUDE

The angular distance between a point on any meridian and the prime meridian at Greenwich



43

PRIMARY ADDRESS TELEPHONE

Telephonic address



44

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



47

COUNTRY NAME

Name for Country



48

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



49

EMPLOYEE CODE

Code for Employee



50

FLOOR DESC

Description for Floor



51

SUBREGION NAME

Name for Subregion



52

ADDRESS LOCATION CODE

unique identifier for the address.



53

CITY NAME

Name for City



54

COUNTRY DESC

Description for Country



55

FLAT ROOM NAME

Name for Flat Room



56

GEOGRAPHY CITY CODE

Code for Geography City



57

GEOGRAPHY SUBREGION CODE

Code for Geography Subregion



58

STREET DESC

Description for Street



59

STREET NAME

Name for Street



60

TIME ZONE CODE

Unique Identifier for time zone.




GEOGRAPHY LOCATION CODE




ELEVATION




ELEVATION UOM CODE




GEOGRAPHY REGION CODE




PRIMARY EMAIL ADDRESS



Age Band

Description: AGE BAND

Age Band Hierarchies

Standard Age Band Hierarchy

Description of image006.gif follows
Description of the illustration image006.gif

Age Band Levels

Table 3-13 shows Age Band Total: All Age Bands are most aggregate level of the dimension.

Table 3-13 Age Band Total

Sr. Number Attribute Description

1.

AGE BAND TOTAL

Code for All Age Bands.


Table 3-14 shows Age Band Detail: All Age Bands are most aggregate level of the dimension.

Table 3-14 Age Band Detail

Sr. Number Attribute Description Sample Value

1

AGE BAND CODE

Code for Age band.

AGBND1

2

AGE BAND DESC

Long Description for age band value.

Age Band 21-30

3

AGE BAND FROM

Lower limit of age value of the slab.

21

4

AGE BAND NAME

Description for age band value.

Age Band 21-30

5

AGE BAND TO

Upper limit of age value of the slab.

30

6

LANGUAGE CODE

Unique identifier for Language



Age On Net Band

Description: AGE ON NET BAND

Age on Net Band Hierarchies

Standard Age On Net Band Hierarchy:

Description of image007.gif follows
Description of the illustration image007.gif

Age on Net Band Levels

Table 3-15 shows Age on Net Band Total: All age on net bands are most aggregate level of the dimension.

Table 3-15 Age on Net Band Total

Sr. Number Attribute Description

1.

AGE ON NET BAND TOTAL

Code for All Age On Net Band.


Table 3-16 shows Age On Net Band Detail: All Age on net bands are most aggregate level of the dimension.

Table 3-16 Age On Net Band Detail

Sr. Number Attribute Description Sample Value

1

AGE ON NET BAND CODE

Code for age on Net band.

AGBND1

2

AGE ON NET BAND DESC

Long Description for age on net band value.

Age on net Band 0-20

3

AGE ON NET BAND FROM

Lower limit of age on net band value of the slab.

21

4

AGE ON NET BAND NAME

Description for age on net band value.

Age on net Band 21-30

5

AGE ON NET BAND TO

Upper limit of age on net band value of the slab.

30

6

LANGUAGE CODE

Unique identifier for Language.



ARPU Band

Description: ARPU BAND

ARPU Band Hierarchies

Standard ARPU Band Hierarchy:

Description of image008.gif follows
Description of the illustration image008.gif

ARPU Band Levels

Table 3-17 shows ARPU Band Total: All ARPU Bands are most aggregate level of the dimension.

Table 3-17 ARPU Band Total

Sr. Number Attribute Description

1.

ARPU BAND TOTAL

Code for All ARPU Band.


Table 3-18 shows ARPU Band Detail: All ARPU Bands are most aggregate level of the dimension.

Table 3-18 ARPU Band Detail

Sr. Number Attribute Description Sample Value

1

ARPU BAND CODE

Unique identifier for revenue band. For example: 0_1000, 1000_3000.

ARPU1000

2

ARPU BAND DESC

Description revenue band.

ARPU Ranging From 0-1000

3

ARPU BAND END VALUE

The end point of a band (the end point is included in the band).

$1,000.00

4

ARPU BAND END VALUE LOCAL

The end point of a band.



5

ARPU BAND END VALUE REPORTING

The end point of a band.



6

ARPU BAND NAME

Name of revenue band.



7

ARPU BAND START VALUE

The start point of a band (the start value is included in the band).

$0.00

8

ARPU BAND START VALUE LOCAL

The start point of a band.



9

ARPU BAND START VALUE REPORTING

The start point of a band.



10

LANGUAGE CODE

Unique identifier for Language



Bank Direct Debit Channel

Description: BANK DIRECT DEBIT CHANNEL

Bank Direct Debit Channel Hierarchies

Standard Bank Direct Debt Channel Hierarchy:

Description of image009.gif follows
Description of the illustration image009.gif

Bank Direct Debit Channel Levels

Table 3-19 shows Bank Direct Debt Channel Total: All Bank Direct Debt Channel is most aggregate level of the dimension.

Table 3-19 Bank Direct Debt Channel Total

Sr. Number Attribute Description

1.

BANK DIRECT DEBT CHANNEL TOTAL

Code for All Bank Direct Debt Channel.


Table 3-20 shows Bank Direct Debit Channel Detail: All Bank Direct Debt Channel is most aggregate level of the dimension.

Table 3-20 Bank Direct Debit Channel Detail

Sr. Number Attribute Description Sample Value

1

BANK BRANCH CODE

Bank Branch id/code.



2

BANK DIRECT DEBIT CHANNEL CODE

Unique identifier for Bank Direct Debit Channel

SHP

3

PAYMENT CHANNEL CODE



4

CHANNEL CODE



5

CHANNEL TYPE CODE



6

PARTY CODE



7

PARTY TYPE CODE



8

CHANNEL NAME



9

CHANNEL DESC



10

CAPACITY QUANTITY



11

EFFECTIVE FROM DATE



12

EFFECTIVE TO DATE



13

STATUS CODE



Ber Fer Type

Description: BER FER TYPE

Ber Fer Type Hierarchies

Standard Ber Fer Type Hierarchy:

Description of image010.gif follows
Description of the illustration image010.gif

Ber Fer Type Levels

Table 3-21 shows Ber Fer Type Total: All Ber Fer Types are most aggregate level of the dimension.

Table 3-21 Ber Fer Type Total

Sr. Number Attribute Description

1.

BER FER TYPE TOTAL

Code for All Ber Fer Type.


Table 3-22 shows Ber Fer Type Detail: All Ber Fer Type are most aggregate level of the dimension.

Table 3-22 Ber Fer Type Detail

Sr. Number Attribute Description Sample Value

1

BER FER TYPE CODE

Unique identifier for Ber Fer Type

BER

2

BER FER TYPE DESC

Description for Ber Fer Type

Bit Error Ratio

3

BER FER TYPE NAME

Name of Ber Fer Type

Bit Error Ratio

4

LANGUAGE CODE

Unique identifier for Language



Billing Cycle

Description: BILLING CYCLE

Billing Cycle Hierarchies

Standard Billing Cycle Hierarchy:

Description of image011.gif follows
Description of the illustration image011.gif

Billing Cycle Levels

The next figure shows Billing Cycle Total: All Billing Cycle is most aggregate level of the dimension.

Table 3-23 Billing Cycle Total

Sr. Number Attribute Description Sample Value

1

BILLING CYCLE CODE

Code.

BIWK

2

BILLING CYCLE DESC

Full description.

Billed every 2 weeks

3

BILLING CYCLE NAME

Name of the Billing Cycle.

Bi-Week

4

BILLING CYCLE PERIOD UOM

The time period unit used to define the Cycle.



5

BILLING CYCLE UNIT AMOUNT

Amount of period unit in the billing cycle.



6

BILLING CYCLE UNIT AMOUNT LOCAL

Amount of period unit in the billing cycle.



7

BILLING CYCLE UNIT AMOUNT REPORTING

Amount of period unit in the billing cycle.



8

LANGUAGE CODE

Unique identifier for Language



Billing Status Type

Description: BILLING STATUS TYPE

Billing Status Type Hierarchies

Standard Billing Status Type Hierarchy:

Description of image012.gif follows
Description of the illustration image012.gif

Billing Status Type Levels

Table 3-24 shows Billing Status Type Total: All Billing Status Type are most aggregate level of the dimension.

Table 3-24 Billing Status Type Total

Sr. Number Attribute Description

1.

BILLING STATUS TYPE TOTAL

Code for All Billing Status Type.


Table 3-25 shows Billing Status Type Detail: All Billing Status Type is most aggregate level of the dimension.

Table 3-25 Billing Status Type Detail

Sr. Number Attribute Description Sample Value

1

BILLING STATUS CATEGORY CODE

BILLING STATUS CATEGORY CODE.

FAILED

2

BILLING STATUS TYPE CODE

BILLING STATUS TYPE code.

FAILDAT

3

BILLING STATUS TYPE DESC

BILLING STATUS TYPE description.

Status type of billing result: Incorrect_data_failed

4

BILLING STATUS TYPE NAME

BILLING STATUS TYPE NAME

Incorrect data failed

5

LANGUAGE CODE

Unique identifier for Language



Business Time

Description: Calendar as defined and applied to a business unit. Corresponds business calendar entities (BUSINESS YEAR, BUSINESS HALF YEAR, BUSINESS QUARTER, BUSINESS MONTH, BUSINESS HALF MONTH, DAY.

Business Time Hierarchies

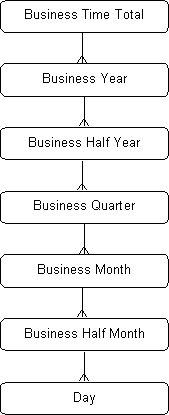

Standard Business Time Hierarchy:

Description of image013.gif follows
Description of the illustration image013.gif

Business Time Level

Table 3-26 shows Business Time Total: This is the most aggregate level of the Time dimension.

Table 3-26 Business Time Total

Sr. Number Attribute Description

1.

ALL BUSINESS TIME CODE

Identification for the top level value


Table 3-27 shows Business Year: It captures information relating to a year in a Business Calendar.

Table 3-27 Business Year

Sr. Number Attribute Description Sample Value

1

BUSINESS CALENDAR NAME

Textual name of the business Calendar

BUSINESS

2

BUSINESS YEAR CODE

Unique warehouse key of the Year, in the Calendar.

20050101

3

BUSINESS YEAR DESC

Calendar year description.

BY 2005

4

BUSINESS YEAR END DATE

Calendar year end date.

12/31/2005 12:00:00 AM

5

BUSINESS YEAR NUMBER

Calendar year number



6

BUSINESS YEAR START DATE

Calendar year start date

12/31/2005 12:00:00 AM

7

BUSINESS YEAR TIMESPAN

The length, in terms of days, of this year in the Calendar. For example: 365 days

365

8

TOTAL CODE



Table 3-28 shows Business Half Year: It captures information relating to half year in a Business Calendar.

Table 3-28 Business Half Year

Sr. Number Attribute Description Sample Value

1

BUSINESS HALF YEAR CODE

Unique warehouse key of the half year, in the Calendar.

20050101

2

BUSINESS HALF YEAR DESC

Calendar half year description.

BY 2005 HY1

3

BUSINESS HALF YEAR END DATE

Calendar half year end date.

12/31/2005 12:00:00 AM

4

BUSINESS HALF YEAR NUMBER

A numeric representation of half year number in the Calendar. It contains values 1 or 2.

1

5

BUSINESS HALF YEAR START DATE

Calendar half year start date.

12/31/2005 0:00

6

BUSINESS HALF YEAR TIMESPAN

The length, in terms of days, of this half year in the Calendar. For example: 178 days

181

7

BUSINESS YEAR CODE

Unique key of the year, in which this half year occurred in the Calendar.

20050101

8

BUSINESS YEAR START DAY CODE

Code for calendar year start day



Table 3-29 shows Business Quarter: It captures information relating to half year in a Business Calender.

Table 3-29 Business Quarter

Sr. Number Attribute Description Sample Value

1

BUSINESS HALF YEAR CODE

Unique key of the half year

20050101

2

BUSINESS HALF YEAR START DAY CODE

Calendar year start date



3

BUSINESS QUARTER CODE

Unique key of business quarter

20050101

4

BUSINESS QUARTER DESC

Description for business quarter

BY 2005 Q1

5

BUSINESS QUARTER END DATE

Calendar year end date

12/31/2005 0:00

6

BUSINESS QUARTER NUMBER

Number for business quarter

1

7

BUSINESS QUARTER START DATE

Calendar year start date

12/31/2005 0:00

8

BUSINESS QUARTER TIMESPAN

The length, in terms of days, of this quarter

90

9

BUSINESS YEAR CODE

Unique key of the year, in which this half year occurred in the Calendar.



10

BUSINESS YEAR START DAY CODE

Code for year start date



Table 3-30 shows Business Month: It captures information relating to a month in a Business Calendar.

Table 3-30 Business Month

Sr. Number Attribute Description Sample Value

1

BUSINESS HALF YEAR CODE

Unique warehouse key for half year

20050101

2

BUSINESS HALF YEAR START DAY CODE

Unique warehouse key for year start day

20050101

3

BUSINESS MONTH CODE

Unique warehouse key of the month, in the Calendar.

20050101

4

BUSINESS MONTH DESC

Calendar month description.

BY 2005 M1

5

BUSINESS MONTH END DATE

Calendar month end date

12/31/2005 0:00

6

BUSINESS MONTH NUMBER

A numeric representation of the month number in the Calendar. It ranges from 1 to 12

1

7

BUSINESS MONTH START DATE

Calendar month start date

12/31/2005 0:00

8

BUSINESS MONTH TIMESPAN

The length, in terms of days, of this month in the Calendar. For example: 30 days

28

9

BUSINESS QUARTER CODE

Unique key of the quarter, in which this month occurred in the Calendar.

20050101

10

BUSINESS QUARTER START DAY CODE

Unique warehouse key for quarter start day



11

BUSINESS YEAR CODE

Unique warehouse key for year

20050101

12

BUSINESS YEAR START DAY CODE

Unique warehouse key year start day



Table 3-31 shows Business Half Month: It captures information relating to a Fortnight in a Business Calendar.

Table 3-31 Business Half Month

Sr. Number Attribute Description Sample Value

1

BUSINESS HALF MONTH CODE

Unique warehouse key of the Fortnight, in the Calendar.

20050101

2

BUSINESS HALF MONTH DESC

Calendar half month description.

BY 2005 M1 HM1

3

BUSINESS HALF MONTH END DATE

Calendar half month end date.

12/31/2005 12:00:00 AM

4

BUSINESS HALF MONTH NUMBER

A numeric representation of the fortnight number in the Calendar. It ranges from 1 to 24

1

5

BUSINESS HALF MONTH START DATE

Calendar half month start date

12/31/2005 12:00:00 AM

6

BUSINESS HALF MONTH TIMESPAN

The length, in terms of days, of this fortnight in the Calendar. For example: 15 days

15

7

BUSINESS HALF YEAR CODE

Unique warehouse key for half year

20050101

8

BUSINESS HALF YEAR START DAY CODE

Unique warehouse key for half year start day

20050101

9

BUSINESS MONTH CODE

Unique key of the month, in which this fortnight occurred in the Calendar.

20050101

10

BUSINESS MONTH START DAY CODE

Unique warehouse key for month start day



11

BUSINESS QUARTER CODE

Unique warehouse key for quarter

20050101

12

BUSINESS QUARTER START DAY CODE

Unique warehouse key for quarter start day



13

BUSINESS YEAR CODE

Unique warehouse key for year

20050101

14

BUSINESS YEAR START DAY CODE

Unique warehouse key for year start day



Table 3-32 shows Day: It captures information relating to a Day.

Table 3-32 Day

Sr. Number Attribute Description Sample Value

1

BUSINESS CURRENT IND

Business Current indicator 'Y' or 'N'



2

BUSINESS DATE

Business date.



3

BUSINESS DATE DESC

Business Date description.



4

BUSINESS DAY CODE

Code for Calendar Day

20050101

5

BUSINESS DAY OF YEAR

Business day of year



6

BUSINESS DAY TIME SPAN

The length, in terms of days, of this fortnight in the Calendar.



7

BUSINESS END DATE

Business end date.

12/31/2005 12:00:00 AM

8

BUSINESS HALF MONTH CODE

Unique warehouse key for half month

20050101

9

BUSINESS HALF MONTH DESCRIPTION

Calendar half month description.



10

BUSINESS HALF MONTH END DATE

Calendar half month end date.

12/31/2005 12:00:00 AM

11

BUSINESS HALF MONTH NUMBER

A numeric representation of the fortnight number in the Calendar. It ranges from 1 to 24.

1

12

BUSINESS HALF MONTH START DATE

Calendar half month start date.

12/31/2005 12:00:00 AM

13

BUSINESS HALF MONTH START DAY CODE

Unique ware house key for half month start day.

20050101

14

BUSINESS HALF MONTH TIMESPAN

The length, in terms of days, of this fortnight in the Calendar. For example: 15 days

15

15

BUSINESS HALF YEAR CODE

Unique warehouse key for half year

20050101

16

BUSINESS HALF YEAR DESC

Business half year description.



17

BUSINESS HALF YEAR END DATE

Business half year end date.

12/31/2005 12:00:00 AM

18

BUSINESS HALF YEAR NUMBER

Business half year number



19

BUSINESS HALF YEAR START DATE

Business half year start date

12/31/2005 12:00:00 AM

20

BUSINESS HALF YEAR START DAY CODE

Unique warehouse key for half year start day

20050101

21

BUSINESS HALF YEAR TIMESPAN

The length, in terms of days, of this half year in the Calendar. For example: 178 days

181

22

BUSINESS MONTH CODE

Unique key of the month, in which this fortnight occurred in the Calendar

20050101

23

BUSINESS MONTH DESC

Calendar month description

BY 2005 M1

24

BUSINESS MONTH END DATE

Calendar month end date.

12/31/2005 12:00:00 AM

25

BUSINESS MONTH NUMBER

A numeric representation of the month number in the Calendar. It ranges from 1 to 12.

1

26

BUSINESS MONTH START DATE

Calendar month start date.

12/31/2005 12:00:00 AM

27

BUSINESS MONTH START DAY CODE

Unique warehouse key for month start day

20050101

28

BUSINESS MONTH TIME SPAN

The length, in terms of days, of this month in the Calendar. For example: 30 days

28

29

BUSINESS QUARTER CODE

Unique warehouse key for quarter

20050101

30

BUSINESS QUARTER DESC

Calendar quarter description.

BY 2005 Q1

31

BUSINESS QUARTER END DATE

Business quarter end date.

12/31/2005 12:00:00 AM

32

BUSINESS QUARTER NUMBER

Number for business quarter



33

BUSINESS QUARTER START DATE

Business quarter start date

12/31/2005 12:00:00 AM

34

BUSINESS QUARTER START DAY CODE

Unique warehouse key for quarter start day

20050101

35

BUSINESS QUARTER TIME SPAN

The length, in terms of days, of this year in the Calendar.



36

BUSINESS START DATE

Business start date.

12/31/2005 12:00:00 AM

37

BUSINESS WEEK CODE

Unique identifier for business week

20050101

38

BUSINESS WEEK DAY

Business week day.



39

BUSINESS WEEK DAY CODE

Unique identifier for business week day.

20050101

40

BUSINESS WEEK DAY DESC

Business week day description



41

BUSINESS WEEK DESC

Business week description.



42

BUSINESS WEEK END DATE

Business week end date.

12/31/2005 12:00:00 AM

43

BUSINESS WEEK NUMBER

Number for business week



44

BUSINESS WEEK START DATE

Business week start date.

12/31/2005 12:00:00 AM

45

BUSINESS WEEK START DAY CODE

Unique identifier for business week start day

20050101

46

BUSINESS WEEK TIME SPAN

The length, in terms of days, of this year in the Calendar.



47

BUSINESS WEEKEND IND

Weekend indicator 'Y' or 'N'



48

BUSINESS WORKING DAY IND

Working day indicator 'Y' or "N'



49

BUSINESS YEAR CODE

Unique warehouse key for year

20050101

50

BUSINESS YEAR DESC

Calendar year description



51

BUSINESS YEAR END DATE

Calendar year end date.

12/31/2005 12:00:00 AM

52

BUSINESS YEAR NUMBER

Calendar year number.



53

BUSINESS YEAR START DATE

Calendar year start date.

12/31/2005 12:00:00 AM

54

BUSINESS YEAR START DAY CODE

Unique warehouse key for year start day

20050101

55

BUSINESS YEAR TIMESPAN

The length, in terms of days, of this year in the Calendar. For example: 365 days

365


Calendar Time

Description: Information related to the calendar, including: CALENDAR YEAR, CALENDAR HALF YEAR, CALENDAR QUARTER, CALENDAR MONTH, CALENDAR HALF MONTH, DAY.

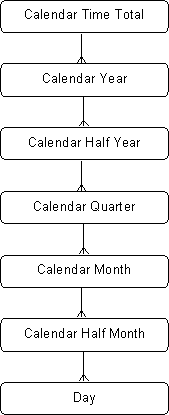

Calendar Time Hierarchy

Standard Calendar Time Hierarchy:

Description of image014.gif follows
Description of the illustration image014.gif

Calendar Time Level

Table 3-33 shows Calendar Time Total: This is the most aggregate level of the Time dimension.

Table 3-33 Calendar Time Total

Sr. Number Attribute Description

1.

ALL CALENDAR TIME CODE

Identification for the top level value


Table 3-34 shows Calendar Year: It captures information relating to a year in a Business Calender.

Table 3-34 Calendar Year

Sr. Number Attribute Description Sample Value

1

CALENDAR NAME

Textual name of the business Calendar



2

CALENDAR YEAR CODE

Unique warehouse key of the Year, in the Calendar.



3

CALENDAR YEAR DESC

Calendar year description.



4

CALENDAR YEAR END DATE

Calendar year end date.

12/31/2005 12:00:00 AM

5

CALENDAR YEAR NUMBER

Calendar year number.



6

CALENDAR YEAR START DATE

Calendar year start date.

12/31/2005 0:00

7

CALENDAR YEAR TIMESPAN

The length, in terms of days, of this year in the Calendar. For example: 365 days



Table 3-35 shows Calendar Half Year: It captures information relating to half year in a Business Calender.

Table 3-35 Calendar Half Year

Sr. Number Attribute Description Sample Value

1

CALENDAR HALF YEAR CODE

Unique warehouse key of the half year, in the Calendar.



2

CALENDAR HALF YEAR DESC

Calendar half year description.



3

CALENDAR HALF YEAR END DATE

Calendar half year end date.

12/31/2005 12:00:00 AM

4

CALENDAR HALF YEAR NUMBER

A numeric representation of half year number in the Calendar. It contains values 1 or 2.



5

CALENDAR HALF YEAR START DATE

Calendar half year start date.

12/31/2005 0:00

6

CALENDAR HALF YEAR TIMESPAN

The length, in terms of days, of this half year in the Calendar. For example: 178 days



7

CALENDAR YEAR CODE

Unique key of the year, in which this half year occurred in the Calendar.



8

CALENDAR YEAR START DAY CODE

Code for calendar year start day



Table 3-36 shows Calendar Quarter: It captures information relating to half year in a Business Calendar.

Table 3-36 Calendar Quarter

Sr. Number Attribute Description Sample Value

1

CALENDAR HALF YEAR CODE

Unique key of the half year

20050101

2

CALENDAR HALF YEAR START DAY CODE

Calendar year start date

20050101

3

CALENDAR QUARTER CODE

Unique key of Calendar quarter

20050101

4

CALENDAR QUARTER DESC

Description for Calendar quarter

CY 2005 Q1

5

CALENDAR QUARTER END DATE

Calendar year end date

12/31/2005 0:00

6

CALENDAR QUARTER NUMBER

Number for Calendar quarter



7

CALENDAR QUARTER START DATE

Calendar year start date

12/31/2005 0:00

8

CALENDAR QUARTER TIMESPAN

The length, in terms of days, of this quarter



9

CALENDAR YEAR CODE

Unique key of the year, in which this half year occurred in the Calendar.

20050101

10

CALENDAR YEAR START DAY CODE

Code for year start date

20050101


Table 3-37 shows Calendar Month: It captures information relating to a month in a Calendar.

Table 3-37 Calendar Month

Sr. Number Attribute Description Sample Value

1

CALENDAR HALF YEAR CODE

Unique warehouse key for half year

20050101

2

CALENDAR HALF YEAR START DAY CODE

Unique warehouse key for year start day



3

CALENDAR MONTH CODE

Unique warehouse key of the month, in the Calendar.

20050101

4

CALENDAR MONTH DESC

Calendar month description.



5

CALENDAR MONTH END DATE

Calendar month end date.

12/31/2005 12:00:00 AM

6

CALENDAR MONTH NUMBER

A numeric representation of the month number in the Calendar. It ranges from 1 to 12.



7

CALENDAR MONTH START DATE

Calendar month start date.

12/31/2005 0:00

8

CALENDAR MONTH TIMESPAN

The length, in terms of days, of this month in the Calendar. For example: 30 days



9

CALENDAR QUARTER CODE

Unique key of the quarter, in which this month occurred in the Calendar.

20050101

10

CALENDAR QUARTER START DAY CODE

Unique warehouse key for quarter start day



11

CALENDAR YEAR CODE

Unique warehouse key for year

20050101

12

CALENDAR YEAR START DAY CODE

Unique warehouse key year start day



Table 3-38 shows Calendar Half Month: It captures information relating to a Fortnight in a Business Calendar.

Table 3-38 Calendar Half Month

Sr. Number Attribute Description Sample Value

1

CALENDAR HALF MONTH CODE

Unique warehouse key of the Fortnight, in the Calendar.

20050101

2

CALENDAR HALF MONTH DESC

Calendar half month description.



3

CALENDAR HALF MONTH END DATE

Calendar half month end date.

12/31/2005 12:00:00 AM

4

CALENDAR HALF MONTH NUMBER

A numeric representation of the fortnight number in the Calendar. It ranges from 1 to 24.



5

CALENDAR HALF MONTH START DATE

Calendar half month start date



6

CALENDAR HALF MONTH TIMESPAN

The length, in terms of days, of this fortnight in the Calendar. For example: 15 days



7

CALENDAR HALF YEAR CODE

Unique warehouse key for half year.



8

CALENDAR HALF YEAR START DAY CODE

Unique warehouse key for half year start day



9

CALENDAR MONTH CODE

Unique key of the month, in which this fortnight occurred in the Calendar.

20050101

10

CALENDAR MONTH START DAY CODE

Unique warehouse key for month start day



11

CALENDAR QUARTER CODE

Unique warehouse key for quarter

20050101

12

CALENDAR QUARTER START DAY CODE

Unique warehouse key for quarter start day



13

CALENDAR YEAR CODE

Unique warehouse key for year

20050101

14

CALENDAR YEAR START DAY CODE

Unique warehouse key for year start day



Table 3-39 shows Day: It captures information relating to a day.

Table 3-39 Day

Sr. Number Attribute Description Sample Value

1

CALENDAR CURRENT IND

Calendar current indicator 'Y' or 'N'



2

CALENDAR DATE

Calendar date.



3

CALENDAR DATE DESC

Calendar date description.



4

CALENDAR DAY OF YEAR

Calendar day of year.



5

CALENDAR DAY TIMESPAN

The length, in terms of days.



6

CALENDAR END DATE

Calendar end date

12/31/2005 0:00

7

CALENDAR HALF MONTH CODE

Calendar Half Month Code

20050101

8

CALENDAR HALF MONTH DESC

Calendar half month description.



9

CALENDAR HALF MONTH END DATE

Calendar half month end date

12/31/2005 0:00

10

CALENDAR HALF MONTH NUMBER

A numeric representation of the month number in the Calendar. It ranges from 1 to 12.



11

CALENDAR HALF MONTH START DATE

Calendar half month start date.

12/31/2005 0:00

12

CALENDAR HALF MONTH START DAY CODE

The unique identifier for a calendar half month start day.



13

CALENDAR HALF MONTH TIMESPAN

The length, in terms of days, of this fortnight in the Calendar. For example: 15 days



14

CALENDAR HALF YEAR CODE

The unique identifier for a calendar half year.

20050101

15

CALENDAR HALF YEAR DESC

Calendar half year description.



16

CALENDAR HALF YEAR END DATE

Calendar half year description,

12/31/2005 0:00

17

CALENDAR HALF YEAR NUMBER

A numeric representation of half year number in the Calendar. It contains values 1 or 2.



18

CALENDAR HALF YEAR START DATE

Calendar half year start date.

12/31/2005 0:00

19

CALENDAR HALF YEAR START DAY CODE

The unique identifier for a calendar half year start day.

20050101

20

CALENDAR HALF YEAR TIME SPAN

The length, in terms of days, of this half year in the Calendar. For example: 178 days



21

CALENDAR HOLIDAY IND

It indicates holiday indicator 'Y' or 'N'



22

CALENDAR MONTH CODE

The unique identifier for a calendar month.

20050101

23

CALENDAR MONTH DESC

Calendar month description.



24

CALENDAR MONTH END DATE

Calendar month end date.

12/31/2005 0:00

25

CALENDAR MONTH NUMBER

A numeric representation of the month number in the Calendar. It ranges from 1 to 12.



26

CALENDAR MONTH START DATE

Calendar month start date.

12/31/2005 0:00

27

CALENDAR MONTH START DAY CODE

The unique identifier for a calendar month start day

20050101

28

CALENDAR MONTH TIME SPAN

The length, in terms of days, of this month in the Calendar. For example: 30 days



29

CALENDAR QUARTER CODE

The unique identifier for calendar quarter.

20050101

30

CALENDAR QUARTER DESC

Calendar quarter description.



31

CALENDAR QUARTER END DATE

Calendar quarter end date.

12/31/2005 0:00

32

CALENDAR QUARTER NUMBER

Number for Calendar quarter



33

CALENDAR QUARTER START DATE

Calendar quarter start date.

12/31/2005 0:00

34

CALENDAR QUARTER START DAY CODE

The unique identifier for a calendar quarter start day.

20050101

35

CALENDAR QUARTER TIMESPAN

The length, in terms of days, of this quarter



36

CALENDAR START DATE

Calendar Start Date

12/31/2005 0:00

37

CALENDAR WEEK CODE

The unique identifier for calendar week.

20050101

38

CALENDAR WEEK DAY

Calendar week day



39

CALENDAR WEEK DAY CODE

The unique identifier for a calendar week day.

20050101

40

CALENDAR WEEK DAY DESCRIPTION

Calendar week day description.



41

CALENDAR WEEK DESC

Calendar week description.



42

CALENDAR WEEK END DATE

Calendar week end date.

12/31/2005 0:00

43

CALENDAR WEEK NUMBER

A numeric representation of the week number in the Calendar.



44

CALENDAR WEEK START DATE

Calendar week start date

12/31/2005 0:00

45

CALENDAR WEEK TIMESPAN

The length, in terms of days, of this week



46

CALENDAR WEEKEND IND

It indicates calendar weekend indicator 'Y' or 'N'



47

CALENDAR WORKING DAY IND

It indicates the calendar working day indicator 'Y' or 'N'



48

CALENDAR YEAR CODE

The unique identifier for a calendar year.

20050101

49

CALENDAR YEAR DESC

Calendar week description.



50

CALENDAR YEAR END DATE

Calendar year end date.

12/31/2005 0:00

51

CALENDAR YEAR NUMBER

A numeric representation of the year number in the Calendar.



52

CALENDAR YEAR START DATE

Calendar year start date.

12/31/2005 0:00

53

CALENDAR YEAR START DAY CODE

The unique identifier for a calendar year starts date.



54

CALENDAR YEAR TIME SPAN

The length, in terms of days, of this year in the Calendar. For example: 365 days



55

CALENDAR WEEK START DAY CODE

The unique identifier for a calendar week starts date.

20050101

56

DAY CODE

The unique identifier for a calendar date



Call Category

Description: CALL CATEGORY

Call Category Hierarchies

Standard Call Category Hierarchy:

Description of image015.gif follows
Description of the illustration image015.gif

Call Category Levels

Table 3-40 shows Call Category Total: All Call Category are most aggregate level of the dimension.

Table 3-40 Call Category Total

Sr. Number Attribute Description

1.

CALL CATEGORY TOTAL

Code for All Call Categories.


Table 3-41 shows Call Category Detail: All Call Category is most aggregate level of the dimension.

Table 3-41 Call Category Detail

Sr. Number Attribute Description Sample Value

1

CALL CATEGORY CODE

Code for Call Category.

DATA

2

CALL CATEGORY DESC

Description of the Call Category.

Data Call

3

CALL CATEGORY NAME

Short description of the Call Category.

Data Call


Call Center Agent

Description: CALL CENTER AGENT

Call Center Agent Hierarchy

Standard Call Center Agent Hierarchy:

Description of image016.gif follows
Description of the illustration image016.gif

Call Center Agent Levels

Table 3-42 shows Call Center Agent Total: All call center agent are most aggregate level of the dimension.

Table 3-42 Call Center Agent Total

Sr. Number Attribute Description

1.

CALL CENTER AGENT TOTAL

Code for All Call Center Agent Subscribers.


Table 3-43 shows Call Center Agent Type: The type of Call Center Agent. Examples includes: Employee, IVR.

Table 3-43 Call Center Agent Type

Sr. Number Attribute Description Sample Value

1

CALL CENTER AGENT TYPE DESC

Description of the Agent type.

AUTO

2

CALL CENTER AGENT TYPE NAME

Name of Agent type.



3

LANGUAGE CODE

Uniquely identifier of language



4

CALL CENTER AGENT TYPE CODE



The next table shows Call Center Agent Detail: Detail level of the dimension. Stores the Call Center Agent Information.

Table 3-44 Call Center Agent Detail

Sr. Number Attribute Description Sample Value

1

CALL CENTER AGENT CODE

All the possible agents with whom the customer can make a contact like IVR, Human Agent, Corporate agent, CRC, and so on.

CODE-1

2

CALL CENTER AGENT DESC

Description of the Agent.



3

CALL CENTER AGENT NAME

Name of Agent.

HUMAN

4

CALL CENTER AGENT TYPE CODE

Foreign key, to indicate which type this agent is, for example: Auto, Human.



5

CALL CENTER CODE

Uniquely identifier of call center



6



7

BILLING ADDRESS EFFECTIVE DATE

Date on which the billing address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



8

BUSINESS DIVISION EXECUTIVE NAME

BUSINESS DIVISION EXECUTIVE LAST NAME is the last name of the business division executive to whom the employee reports to. Like LOB Owner.



9

BUSINESS PHONE NUMBER

Phone number used for business purpose



10

CELL PHONE NO

Redundancy to 'party contact information'



11

CHILDREN COUNT

Number of children



12

CONTACT ADDRESS EFFECTIVE DATE

Date on which the contact address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



13

COST CENTER NUMBER

The cost center to which the bank employee expenses are charged.



14

DATE OF BIRTH

Date of Birth of the individual.



15

DATE OF DEATH

Date of natural person death.



16

DEATH CERTIFICATE CODE

The certification document number for customer's death.



17

DEPENDENTS COUNT

Number of dependents



18

DRIVER LICENSE NUMBER

Driver License Number in most countries.



19

DWELLING SIZE

Size of dwelling



20

DWELLING TENURE

Tenure of dwelling



21

ECONOMICALLY ACTIVE IND

customer is economically active (is not a minor or pensioner and so on.)



22

EDUCATION CODE

The customer highest level of education.



23

EMAIL

Redundancy to 'party contact information'



24

EMPLOYEE CODE

A code for any person or business that is of interest to the Communications Service Provider.



25

EMPLOYEE DESIGNATION CODE

Unique warehouse key, representing the designation



26

EMPLOYEE DISCOUNT GROUP CODE

Unique identifier for Employee Discount Group



27

EMPLOYEE KEY

Key value for each employee



28

EMPLOYEE NUMBER

Internal number for the employee.



29

EMPLOYEE TYPE CODE

Unique identifier for Employee Type

PT

30

EMPLOYEE TYPE DESC

Description of the Employee Type

Part Time

31

EMPLOYEE TYPE NAME

Unique identifier for the Employee Type

Part Time

32

EMPLOYER TAX NUMBER

The tax code of Employer.



33

EMPLOYMENT BEGIN DATE

Start date for the employment.

12/31/2005 12:00:00 AM

34

EMPLOYMENT END DATE

If the employee quit from the Bank, we still hold the information of his past employment



35

EMPLOYMENT EXEMPT IND

An employee exempt from the overtime policies of the University due to the nature of the work, as compared to (Non-Exempt).

Education requirements of the position and salary range. These employees are paid an annual salary and are not customarily eligible for overtime pay.



36

EMPLOYMENT STATUS

EMPLOYEE STATUS is the abbreviated identifier for the employment status. Employee



37

END OF JOB CONTRACT

End date of the customer's job contract (for contracts concluded for definite terms).



38

ETHNIC BACKGROUND

Customer Attribute of an employee



39

ETHNICITY

Classifies the individual for minority reporting purposes.



40

FAMILY NAME IN MAIDEN

Given name in maiden



41

FIRST NAME

First name of a party individual



42

FORM OF EMPLOYMENT

The customer's form of employment (private entrepreneur, employee, civil servant and so on.)



43

GENDER CODE

For PARTYs that are people, this is their GENDER.

For PARTYs that are organizations, this is indicates whether the organization is foreign or domestically owned.



44

GIVEN NAME IN MAIDEN

Given name in maiden



45

HOME TELEPHONE NO

Redundance to 'party contact information'



46

HOUSEHOLD KEY

The code of household which the party belongs to.



47

INCOME

Income of a party individual



48

INCOME LCL

Income of a party individual



49

INCOME RPT

Income of a party individual



50

JOB CONTRACT TYPE

Type of the customer's job contract



51

JOB KEY

Code for job of subscriber.



52

JOB POSITION

job Position.



53

LANGUAGE CODE

Unique identifier for Language



54

LAST NAME

Last name of a party individual



55

LAST PERFORMANCE RATING

This describes the annual rating assigned to the employee.



56

LAST PERFORMANCE RATING DATE

When the last rating is done.



57

LEGAL TITLE TO HOUSING

The customer's legal title to home (rents, owns and so on.)



58

LIVING AT CURRENT ADDRESS SINCE

Date since the customer has lived at the present address.



59

MANAGER CODE

manager's employee code.



60

MARITAL STATUS

CSALADI ALLAPOT. Marital status



61

MARTIAL STATUS CODE



62

MIDDLE NAME

Middle name of a party individual



63

MOTHER FIRST NAME

Mother's first name



64

MOTHER LAST NAME

Mother's last name



65

NAME OF WORKPLACE

Name of workplace



66

NAME PREFIX

Name prefix

For example: Mr, Mrs, Ms, Dr,



67

NAME SUFFIX

Name suffix. For example: PhD, MD, JD, MA



68

NATIONALITY CODE

Code for Nationality of subscriber



69

NUMBER OF EARNERS IN HOUSEHOLD

Number of wage earners in the household.



70

NUMBER OF PERSONS LIVING IN HOUSEHOLD

Number of persons sharing the customer's household.



72

OFFICE TELEPHONE NO

Redundancy to 'party contact information'



73

ORGANIZATION BUSINESS UNIT KEY



74

PERSONAL ID NUMBER

In China, this one will be same as party.national_identifier.



75

PLACE OF BIRTH

Where the person was born.



76

PREVIOUS EMPLOYER TAX NUMBER

Tax number of previous employer.



77

PREVIOUS EMPLOYMENT END DATE

End date of previous job.



78

PREVIOUS EMPLOYMENT START DATE

Start date of previous job.

12/31/2005 12:00:00 AM

79

SOC JOB KEY



80

SOCIAL SECURITY NUMBER

In US, this code will be same as party.national_identifier. Null if some country does not have.



81

SOURCE OF INCOME

Source of income (can typify, may be several)



82

START OF EMPLOYMENT

Start of employment



83

TAX NUMBER

Tax number



84

ACTIVE IND

Activate Indicator



85

ADDRESS

Address



86

BARING REASON CODE

Unique identifier for Baring Reason



87

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



88

CITY

City of the party. Redundance to party location history.



89

COUNTRY

Country of the party. Redundance to party location history.



90

CUSTOMER IND

Indicator for Customer



91

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



92

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



93

EMPLOYEE NAME

Name of the employee



94

PARTY DESC

Description for the Party



95

PARTY KEY

Key value for Party



96

PARTY NAME

Name of the Party



97

PARTY TYPE CODE

Unique identifier for Party Type



98

POST CODE

Unique identifier for Post



99

SOURCE SYSTEM KEY

Key value for Source System



100

STATE

State Name



101

STATUS CODE

Current Status



Call Center Case Title

Description: CALL CENTER CASE TITLE

Call Center Case Title Hierarchies

Standard Call Center Case Title Hierarchy:

Description of image101.gif follows
Description of the illustration image101.gif

Call Center Case Levels

Table 3-45 shows Call Center Case Title Total: All call center case title are most aggregate level of the dimension.

Table 3-45 Call Center Case Title Total

Sr. Number Attribute Description

1.

CALL CENTER CASE TITLE TOTAL

Total of all call center case titles.


Table 3-46 shows Call Center Case Title Detail: Detail level of the dimension. Stores the Call Center Case Title Information.

Table 3-46 Call Center Case Title Detail

Sr. Number Attribute Description Sample Value

1

CALL CENTER CASE SUB TYPE CODE

Code or Id for Call Center Case Sub Type.



2

CALL CENTER CASE TITLE CODE

Code or Id for Call Center Case Title.

CBPWD

3

CALL CENTER CASE TITLE DESC

Description of the Call Center Case Title.



4

CALL CENTER CASE TITLE NAME

Name of Call Center Case Title.



5

LANGUAGE CODE

Uniquely identifier of language



Call Center

Description: CALL CENTER

Call Center Hierarchies

Standard Call Center Hierarchy:

Description of image018.gif follows
Description of the illustration image018.gif

Call Center Levels

Table 3-47 shows Call Center Total: All call centers is most aggregate level of the dimension.

Table 3-47 Call Center Total

Sr. Number Attribute Description

1.

CALL CENTER TOTAL

Code for All Call Centers.


Table 3-48 shows Call Center: Detail level of the dimension. Stores the Call Center Information.

Table 3-48 Call Center Detail

Sr. Number Attribute Description

1

CALL CENTER CODE

CODE-1

2

NUMBER OF EMPLOYEES

NUMBER OF EMPLOYEES.

3

NUMBER OF LINES

How many telephone lines (trunk) are offered.

4

PRIMARY LANGUAGE

The language/Dialects the call center can support.

5

ACCOUNT CLERK CODE

This field is client specific. The definition and use of this field is customizable for each client.

6

ADDRESS LINE 1

Address. Line one of detailed postal address

7

ADDRESS LINE 2

Address. Line two of detailed postal address

8

ADDRESS LINE 3

Address. Line three of detailed postal address

9

ADDRESS LOCATION CODE

Unique identifier for the address. unique identifier for the address location

10

ADDRESS TYPE CODE

Unique identifier of the address type.

11

ADDRESS USAGE

Describes how the address is used

12

ANNUAL REVENUE

Revenue of the company.

13

ANNUAL REVENUE LOCAL

Revenue of the company.

14

ANNUAL REVENUE REPORTING

Revenue of the company.

15

ANNUAL SALES

Sales for Annual

16

ANNUAL SALES LOCAL

Local Sales for Annual

17

ANNUAL SALES REPORTING

Reporting Sales for Annual

18

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.

19

BANKRUPTCY START DATE

start date of bankruptcy.

20

BUSINESS ENTITY CODE

Unique Identifier for Business Entity

21

BUSINESS UNIT CONCEPT

Possible values include, Convenience, General Merchandise, Category dominant anchors with few small tenants, Fashion, Higher-end (Upscale), Fashion oriented, Manufacturer's Outlet, Leisure, Tourist oriented and Discount.

22

BUSINESS UNIT TYPE CODE

Unique identifier of the business unit type

23

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.

24

CHANNEL TYPE CODE

Unique identifier of the channel type

25

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.

26

CONSTRUCTION STATUS

Identifies the status of the site such as 'Under Construction', 'New', and so on.

27

CONTACT CODE

ID of the contact person for the organization.

28

CONTACT NAME

Contact Employee for organization.

29

CONTACT NUMBER

This is the number for the method specified to contact this site. There can be multiple contact numbers of each type for each site.

30

CONTACT TYPE CODE

This is the general method to use to contact a site, that is, Phone, Fax, Telex, and so on.

31

COURT CODE

Code of the law of court.

32

DOMESTIC INDICATOR

For PARTYs that are organizations, this indicates whether the organization is foreign or domestically owned.

33

DUNS NUMBER

DUNS NUMBER is an identifier for organization.

34

EMPLOYEE COUNT

Total number of employee in the company or organization.

35

EQUITY AMOUNT

The equity value of the company/org.

36

EQUITY AMOUNT LOCAL

The equity value of the company/org.

37

EQUITY AMOUNT REPORTING

The equity value of the company/org.

38

EXTERNAL NAME

Name/Number assigned to site for electronic communication. For example: EDI transactions.

39

FINAL SETTLEMENT END DATE

End date of final settlement.

40

FINAL SETTLEMENT START DATE

Start date of final settlement

41

JUDICIAL DISTRAINT CODE

Case identifier of the judicial distraint

42

JUDICIAL DISTRAINT DATE

Date of the judicial distraint

43

LIQUIDATION END DATE

The date when the company/org was liquidated. If is null and start_date is not null, the company is undergoing the liquidation.

44

LIQUIDATION START DATE

Start date of liquidation

45

LOCATION TYPE CODE

Unique identifier for location type

46

LONG DESCRIPTION

The 10 character abbreviation of the store name

47

MANAGER CODE

ID of the manager for the organization.

48

MANAGER EMPLOYEE NUMBER

Unique key denoting the employee number of the employee's manager.

49

MANAGER NAME

Name of manager for the whole company.

50

ORGANIZATION BANNER CODE



51

ORGANIZATION BUSINESS UNIT CODE

Unique identifier for Business Unit. To identify whether the site is a store, distribution center or warehouse.

52

ORGANIZATION BUSINESS UNIT TYPE CODE

Unique identifier for Organization business unit type

53

ORGANIZATION CODE

The unique identifier of the organization

54

ORGANIZATION DISTRICT CODE

District code of ORGANIZATION DISTRICT

55

ORGANIZATION DIVISION CODE

Division code of a ORGANIZATION

56

ORGANIZATION NAME

Name of the organization

57

ORGANIZATIONAL DEMOGRAPHY VALUE CODE

Unique identifier for organization demographic value

58

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.

59

PAYMENT ACCOUNT NUMBER

Account number for payments.

60

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.

61

POSTAL PLUS CODE

Four digit extension to the United States Postal ZIP code.

62

POSTCODE

Postal codes of interest to the Retail Organization

63

PRIMARY ADDRESS TELEPHONE

Default Address Telephone Number

64

PRIMARY BUSINESS UNIT CALENDAR CODE

Primary Business Unit Calendar Code

65

PRIMARY CURRENCY ISO CODE

The unique ISO standard identifier of the CURRENCY

66

PRIMARY EMAIL ADDRESS

Default Email Address

67

PRIMARY MARKET AREA CODE

Market area code under which the business unit falls

68

PRIMARY TRADE AREA CODE

Primary Trade area code, under which the business unit falls

69

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.

70

SECONDARY DESCRIPTION

The secondary description or name of the store or warehouse.

72

SHOPPING CENTER TYPE

Shopping center is group of retail and other commercial establishments that is planned, developed, owned, and managed as a single property.=- Strip Center (Neighborhood, Community)- Mall (Power, Super Regional, Regional, Fashion/Specialty, Lifestyle, Outlet, Theme/Festival)

73

SHORT DESCRIPTION

The 3 character abbreviation of the store name.

74

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.

75

TAX EXEMPT STATUS

Indicates if the org. is tax exempt.

76

TERMINATION DATE

Termination date of the company in case of company was founded with termination date.

77

TIME ZONE

It denotes which TimeZone the Site is in.

78

TOTAL LINEAR DISTANCE

The total linear selling space of the location.

79

VALIDATION END DATE

Effective date of the deletion of the company's record from the company register.

70

SECONDARY DESCRIPTION

The secondary description or name of the store or warehouse.

80

VALIDATION START DATE

Date of the registration of the company' record deletion from the company register.

81

VAT INCLUDE INDICATOR

Indicates whether the Value Added Tax will be included in the retail prices for the store. Valid values are 'Y' or 'N'

82

VAT REGION

The number of the Value Added Tax region in which this store or warehouse is contained.

83

PARTY CODE



84

PARTY TYPE CODE



85

BUSINESS LEGAL STATUS CODE



86

SOURCE SYSTEM CODE



87

BARING REASON CODE



88

STATUS CODE



89

CITY



90

STATE



91

COUNTRY



92

PARTY NAME



93

PARTY DESC



94

ADDRESS



95

ACTIVE INDICATOR



96

CUSTOMER INDICATOR



97

EFFECTIVE FROM DATE



98

EFFECTIVE TO DATE



Call Direction

Description: CALL DIRECTION

Call Direction Hierarchies

Standard Call Direction Hierarchy:

Description of image019.gif follows
Description of the illustration image019.gif

Call Direction Levels

Table 3-49 shows Call Direction Total: All Call Directions are most aggregate level of the dimension.

Table 3-49 Call Direction Total

Sr. Number Attribute Description

1.

ALL CALL DIRECTION CODE

Code for Call Directions.


Table 3-50 shows Call Direction Detail: Detail level of the dimension. Stores the Call Direction Information.

Table 3-50 Call Direction Detail

Sr. Number Attribute Description Sample Value

1

CALL DIRECTION CODE

Code for call direction.

IN

2

CALL DIRECTION DESC

Description of call direction.

To indicate incoming call

3

CALL DIRECTION NAME

Name of the call direction.

IN

4

LANGUAGE CODE

Unique identifier for Language



Call Other Type

Description: CALL OTHER TYPE

Call Other Type Hierarchies

Standard Call Other Type Hierarchy:

Description of image020.gif follows
Description of the illustration image020.gif

Call Other Type Levels

Table 3-51 shows Call Other Type Total: All Call Other Types are most aggregate level of the dimension.

Table 3-51 Call Other Type Total

Sr. Number Attribute Description

1.

ALL CALL OTHER TYPE CODE

Code for Call Other Types.


Table 3-52 shows Call Other Type Detail: Detail level of the dimension. Stores the Call other Type Information.

Table 3-52 Call Other Type Detail

Sr. Number Attribute Description Sample Value

1

CALL OTHER TYPE CODE

A code used to uniquely identify a category of Special Services that a Call may utilize. Examples include: 1 - Directory Assistance 2 - 800 3 - 900 4 - 911 5 - Customer Service 6 - Voice Mail.

CUSTSRVC

2

CALL OTHER TYPE DESC

A textual description of a Call Special Service Type.

Customer Service

3

CALL OTHER TYPE NAME

The name assigned to a Call Special Service Type. Examples include: Directory Assistance 800 900 911 Customer Service Voice Mail.

Customer Service

4

LANGUAGE CODE

Unique identifier for Language



Call Routing Type

Description: CALL ROUTING TYPE

Call Routing Type Hierarchies

Standard Call Routing Type Hierarchy:

Description of image021.gif follows
Description of the illustration image021.gif

Call Routing Type Levels

Table 3-53 shows Call Routing Type Total: All Call Routing Type are most aggregate level of the dimension.

Table 3-53 Call Routing Type Total

Sr. Number Attribute Description

1.

ALL CALL ROUTING CODE

Code for All Call Routing Subscribers.


Table shows Call Routing Type Detail: Detail level of the dimension. Stores the Call Routing Type Information.

Table 3-54 Call Routing Type Detail

Sr. Number Attribute Description Sample Value

1

CALL ROUTING TYPE CODE

The code for the type can use number or character.

ATA

2

CALL ROUTING TYPE DESC

Full Description.

Call was routed from Air To Air

3

CALL ROUTING TYPE NAME

The short name for the type.

Air To Air

4

LANGUAGE CODE

Uniquely identifier of language



Call Service Type

Description: CALL SERVICE TYPE

Call Service Type Hierarchies

Standard Service Type Hierarchy:

Description of image022.gif follows
Description of the illustration image022.gif

Call Service Type Levels

Table 3-55 shows Call Service Type Total: All Call Service Type are most aggregate level of the dimension.

Table 3-55 Call Service Type Total

Sr. Number Attribute Description

1.

CALL SERVICE TYPE TOTAL CODE

Code for All Call Service Type.


Table 3-56 shows Call Service Type Detail: Detail level of the dimension. Stores the Call Service Type Information.

Table 3-56 Call Service Type Detail

Sr. Number Attribute Description Sample Value

1

CALL SERVICE TYPE CODE

The code.

1

2

CALL SERVICE TYPE DESC

The full description.

Fire

3

CALL SERVICE TYPE NAME

The title.

Fire

4

LANGUAGE CODE

Uniquely identifier of language



Call Source Destination

Description: CALL SOURCE DESTINATION

Call Source Destination Hierarchies

Standard Call Source Destination Hierarchy:

Description of image023.gif follows
Description of the illustration image023.gif

Call Source Destination Levels

Table 3-57 shows Call Source Destination Total: All Call Source Destination are most aggregate level of the dimension.

Table 3-57 Call Source Destination Total

Sr. Number Attribute Description

1.

CALL SOURCE DESTINATION TOTAL

Code for All Call Source Destination


Table 3-58 shows Call Source Destination Detail: Detail level of the dimension. Stores the Call Source Destination Information.

Table 3-58 Call Source Destination Detail

Sr. Number Attribute Description Sample Value

1

CALL SOURCE DESTINATION CODE

Code for call destination.

8675583965191

2

CALL SOURCE DESTINATION DESC

Description of call destination.

8675583965191

3

CALL SOURCE DESTINATION NAME

Name of the destination.

8675583965191

4

DESTINATION TYPE CODE

Unique identifier of destination type.



5

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

6

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.



7

NETWORK TYPE CODE

Unique identifier of destination network type.



8

NUMBER AREA CODE

Area code. For example: 713-Houston



9

NUMBER NETWORK TYPE CODE

Unique identifier of destination network type.



10

STATUS CODE

Current status of the assignment.



Call Success Fail Type

Description: CALL SUCCESS FAILURE TYPE

Call Successful Fail Hierarchies

Standard Call Success Fail Hierarchy:

Description of image024.gif follows
Description of the illustration image024.gif

Call Success Fail Type Levels

Table 3-59 shows Call Successful Fail Total: All Call Successful/failed is most aggregate level of the dimension.

Table 3-59 Call Successful Fail Total

Sr. Number Attribute Description

1.

ALL SUCCESSFUL/FAILED CODE

Code for All Call Successful/failed.


Table 3-60 shows Call Successful Fail Detail: Detail level of the dimension. Stores the Successful/failed Detail Information.

Table 3-60 Call Successful Fail Detail

Sr. Number Attribute Description Sample Value

1

CALL SUCCESS FAILURE TYPE CODE

Call Success failure id.

FAIL

2

CALL SUCCESS FAILURE TYPE DESC

Call Success failure description.

Fail

3

CALL SUCCESS FAILURE TYPE NAME

Call Success failure short description.

Fail

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Call Type

Description: CALL TYPE

Call Type Hierarchies

Standard Call Type Hierarchy:

Description of image025.gif follows
Description of the illustration image025.gif

Call Type Levels

Table 3-61 shows Call Type Total: All Call Type are most aggregate level of the dimension.

Table 3-61 Call Type Total

Sr. Number Attribute Description

1.

ALL CALL TYPE CODE

Code for All Call Type Subscribers.


Table 3-62 shows Call Type Detail: Detail level of the dimension. Stores the Call Type Information.

Table 3-62 Call Type Detail

Sr. Number Attribute Description Sample Value

1

CALL CATEGORY CODE

The code for the call category.

VOI

2

CALL TYPE CODE

The code for the call type.

INTL

3

CALL TYPE DESC

The Full Description.

International

4

CALL TYPE NAME

The title.

International

5

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Campaign Channel

Description: CAMPAIGN CHANNEL

Campaign Channel Hierarchies

Standard Campaign Channel Hierarchy:

Description of image026.gif follows
Description of the illustration image026.gif

Campaign Channel Levels

Table 3-63 shows Campaign Channel Total: All Campaign Channels are most aggregate level of the dimension.

Table 3-63 Campaign Channel Total

Sr. Number Attribute Description

1.

ALL CAMPAIGN CHANNEL CODE

Code for All Campaign Channel.


Table 3-64 shows Campaign Channel Detail: Detail level of the dimension. Stores the Campaign Channel Information.

Table 3-64 Campaign Channel Detail

Sr. Number Attribute Description Sample Value

1

CAMPAIGN CHANNEL CODE

A unique identifier for a campaign channel.

MAGAZINE

2

CAMPAIGN CHANNEL DESC

The name assigned to a campaign channel.



3

CAMPAIGN CHANNEL NAME

A textual description of an campaign channel.



4

CAMPAIGN CHANNEL TYPE CODE

A code used to uniquely identify a campaign channel type.

MGZN

5

CAPACITY QUANTITY

The number of transaction that a Channel can handle, at a point of time.



6

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



7

CHANNEL DESC

Descriptions of the channels



8

CHANNEL NAME

The name assigned to a channel.



9

CHANNEL TYPE CODE

A code used to uniquely identify a major grouping of Channels. Examples: M - MailT - Telephone TV - Television.

LYLTCHNL

10

EFFECTIVE FROM DATE

The first date of the period when this Channel was valid.

12/31/2005 12:00:00 AM

11

EFFECTIVE TO DATE

The end date of the period when this Channel was valid.

12/31/2005 12:00:00 AM

12

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



13

PARTY TYPE CODE

Type of party

RPRSTTV

14

STATUS CODE

Current status.



Campaign

Description: CAMPAIGN

Campaign Hierarchies

Standard Campaign Hierarchy:

Description of image028.gif follows
Description of the illustration image028.gif

Campaign Levels

Table 3-65 shows Campaign Total: All Campaign is most aggregate level of the dimension.

Table 3-65 Campaign Total

Sr. Number Attribute Description

1.

ALL CAMPAIGN CODE

Code for All Campaign.


Table 3-66 shows Campaign Detail: Detail level of the dimension. Stores the Campaign Information.

Table 3-66 Campaign Detail

Sr. Number Attribute Description Sample Value

1

CAMPAIGN CODE

The campaign which this cost occurs in

CMPGN-1

2

CAMPAIGN DESC

A textual description of the Campaign.



3

CAMPAIGN NAME

Name of the campaign



4

CAMPAIGN PURPOSE

Campaign purpose. The purpose of the campaign being conducted, in most of scenarios this field would be empty since this would be addressed in the Theme and Promotion Theme. But when this campaign is being executed as a continuation of a previous campaign due to demand, this field would contain the reason for the continuation.

ACQUIRE

5

CAMPAIGN PURPOSE TYPE CODE

Unique Identifier for a Campaign purpose type.

RTENTION

6

CAMPAIGN STATUS CODE

A code used to uniquely identify strategy of a Campaign.



7

CAMPAIGN TYPE CODE

Unique Identifier for a Campaign type.

MMPRMTN

8

COST AMOUNT

The monetary cost of a Campaign.



9

COST AMOUNT LOCAL

The monetary cost of a Campaign.



10

COST AMOUNT REPORTING

The monetary cost of a Campaign.



11

COST CODE

Identify the cost to the Carrier.

CMPGN_CSCD_1

12

EFFECTIVE FROM DATE

The start date of a Campaign.

12/31/2005 12:00:00 AM

13

EFFECTIVE TO DATE

The end date of a Campaign.

12/31/2005 12:00:00 AM

14

FUND SOURCE CODE

Campaign fund source type. Possible values would include, Vendor Sponsored, Charity and so on.



15

GLOBAL IND

Flag to indicate if the campaign is run globally.



16

PARTNER IND

Indicates if the campaign has partners.



17

PARTNER NUMBER

Identification number for partner.



18

PLANNED COST

Planned or budgeted total cost for the campaign.



19

PLANNED COST LOCAL

Planned or budgeted total cost for the campaign.



20

PLANNED COST REPORTING

Planned or budgeted total cost for the campaign.



21

PLANNED RESPONSE

Expected or planned response for the campaign.



22

PRIORITY

Campaign priority.



Cell Outage Reason

Description: CELL OUTAGE REASON

Cell Outage Reason Hierarchies

Standard Cell Outage Reason Hierarchy:

Description of image029.gif follows
Description of the illustration image029.gif

Cell Outage Levels

Table 3-67 shows Cell Outage Reason Total: All Cell Outage Reason is most aggregate level of the dimension.

Table 3-67 Cell Outage Reason Total

Sr. Number Attribute Description

1.

ALL CELL OUTAGE REASON CODE

Code for All Cell Outage Reason.


Table 3-68 shows Cell Outage Reason Detail: Detail level of the dimension. Stores the Cell Outage Reason Information.

Table 3-68 Cell Outage Reason Detail

Sr. Number Attribute Description Sample Value

1

CELL OUTAGE REASON CODE

Cause for cell outage.

FAIL

2

CELL OUTAGE REASON DESC

Description of CELL OUTAGE REASON

Fail

3

CELL OUTAGE REASON NAME

Name of the CELL OUTAGE REASON

Fail

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Change Proposed By Type

Description: CHANGE PROPOSED BY TYPE

Change Proposed By Type Hierarchies

Standard Change Proposed By Type Hierarchy:

Description of image030.gif follows
Description of the illustration image030.gif

Change Proposed By Type Levels

Table 3-69 shows Change Proposed By Type Total: All Change Proposed By Type is most aggregate level of the dimension.

Table 3-69 Change Proposed By Type Total

Sr. Number Attribute Description

1.

ALL CHANGE PROPOSED BY TYPE CODE

Code for Change Proposed By Type.


Table 3-70 shows Change Proposed By Type Detail: Detail level of the dimension. Stores the Change Proposed By Type Information.

Table 3-70 Change Proposed By Type Detail

Sr. Number Attribute Description Sample Value

1

CHANGE PROPOSED BY TYPE CODE

Some customer chooses another plan voluntary while other are downgrade/upgraded by the operator.

CMPLN

2

CHANGE PROPOSED BY TYPE DESC

Description of the CHANGE PROPOSED BY TYPE

Complain

3

CHANGE PROPOSED BY TYPE NAME

Name of the CHANGE PROPOSED BY TYPE

Complain

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Collection Agency

Description: COLLECTION AGENCY

Collection Agency Hierarchies

Standard Collection Agency Hierarchy:

Description of image031.gif follows
Description of the illustration image031.gif

Collection Agency Levels

Table 3-71 shows Collection Agency Total: This is the most aggregate level of the Debt Aging Band dimension.

Table 3-71 Collection Agency Total

Sr. Number Attribute Description

1.

ALL COLLECTION AGENCY TOTAL CODE

Identification for the top level value


Table 3-72 shows Collection Agency Detail: Description level of the dimension. It stores the Collection Agency details.

Table 3-72 Collection Agency Detail

Sr. Number Attribute Description Sample Value

1

ANNUAL REVENUE

Revenue of the company.



2

ANNUAL REVENUE LOCAL

Revenue of the company.



3

ANNUAL REVENUE REPORTING

Revenue of the company.



4

ANNUAL SALES

Sales for annual



5

ANNUAL SALES LOCAL

Local sales for annual



6

ANNUAL SALES REPORTING

Reporting sales for annual



7

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.

12/31/2005 12:00:00 AM

8

BANKRUPTCY START DATE

Start date of bankruptcy.

12/31/2005 12:00:00 AM

9

CAMPAIGN PARTNER CODE

CAMPAIGN PARTNER CODE is the code to track campaign partner.



10

CAMPAIGN PARTNER INDICATOR

to indicator this is a campaign partner. The campaign partner can be an external organization or even another Telco operator. The service provider can partner with another service provider if their business is complementary, like 1 wireless operator and 1 local fixed line company. Most of content provider can also partner with the telco for promotion.



11

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.



12

COLLECTION AGENCY CODE

A code for any person or business that is of interest to the Communications Service Provider.

1,2,3

13

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.



14

CONTACT CODE

ID of the contact person for the organization.



15

CONTACT NAME

Contact Employee for organization.



16

COURT CODE

Code of the law of court.



17

DOMESTIC INDICATOR

For PARTYs that are organizations, this indicates whether the organization is foreign or domestically owned.



18

DUNS NUMBER

DUNS NUMBER is an identifier for organization.



19

EMPLOYEE COUNT

Total number of employee in the company or organization.



20

EQUITY AMOUNT

The equity value of the company/org.



21

EQUITY AMOUNT LOCAL

The equity value of the company/org.



22

EQUITY AMOUNT REPORTING

The equity value of the company/org.



23

EXTERNAL ORGANIZATION TYPE CODE

Uniquely identifier of EXTERNAL ORGANIZATION TYPE



24

FINAL SETTLEMENT END DATE

End date of final settlement.



25

FINAL SETTLEMENT START DATE

Start date of final settlement

12/31/2005 0:00

26

JUDICIAL DISTRAINT CODE

Case identifier of the judicial distraint



27

JUDICIAL DISTRAINT DATE

Date of the judicial distraint.

12/31/2005 0:00

28

LIQUIDATION END DATE

The date when the company/org was liquidated. If is null and start_date is not null, the company is undergoing the liquidation.

12/31/2005 0:00

29

LIQUIDATION START DATE

Start date of liquidation.

12/31/2005 0:00

30

MANAGER CODE

ID of the manager for the organization.



31

MANAGER NAME

Name of manager for the whole company.



32

OTHER INDIVIDUAL CODE

Uniquely identifier of OTHER INDIVIDUAL



33

PARTY ORGANIZATION TYPE CODE

Type code of organization party.



34

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.



35

PAYMENT ACCOUNT NUMBER

Account number for payments.



36

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.



37

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.



38

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.



39

TAX EXEMPT STATUS

Indicates if the org. is tax exempt.



40

TERMINATION DATE

Termination date of the company in case of company was founded with termination date.



41

VALIDATION END DATE

Effective date of the deletion of the company's record from the company register.



42

VALIDATION START DATE

Date of the registration of the company' record deletion from the company register

12/31/2005 0:00

43

ACTIVE INDICATOR

Indicates if the party is currently active - which means the party has a current relationship with the carrier.



44

ADDRESS

Address of the party. Redundance to party location history.



45

BARING REASON CODE

Reasons for barring. For example, 1-Credit Limit, 2-Barring period.



46

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



47

CITY

City of the party. Redundance to party location history.



48

COUNTRY

Country of the party. Redundance to party location history.



49

CUSTOMER INDICATOR

Indicates if the party is a customer. Note: the party may have multiple relationships simultaneously - this flag identifies those parties which has a current account with the Telco.



50

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column

12/31/2005 0:00

51

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 0:00

52

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider



53

PARTY DESC

Description of the party. applicable to both individual and organization. Normally it refer to the full name.



54

PARTY NAME

Name of the party. applicable to both individual and organization. Normally it refer to the full name.

Collector1

55

PARTY TYPE CODE

type code. type code



56

POST CODE

Postcode of the party. Redundance to party location history.



57

SOURCE SYSTEM CODE

SOURCE SYSTEM ID, from which source ERP system this recorded was extracted.



58

STATE

State of the party. Redundance to party location history.



59

STATUS CODE

Current status of party.



Commission Type

Description: COMMISSION TYPE

Commission Type Hierarchies

Standard Commission Type Hierarchy:

Description of image032.gif follows
Description of the illustration image032.gif

Commission Type Levels

Table 3-73 shows Commission Type Total: All Commission Type are most aggregate level of the dimension.

Table 3-73 Commission Type Total

Sr. Number Attribute Description

1.

ALL COMMISSION TYPE CODE

Code for All Commission Type.


Table 3-74 shows Commission Type Details: Detail level of the dimension. Stores the Commission Type Information.

Table 3-74 Commission Type Detail

Sr. Number Attribute Description Sample Value

1

COMMISSION TYPE CODE

COMMISSION TYPE CODE.

FLAT

2

COMMISSION TYPE DESC

COMMISSION TYPE DESC.

Flat Rate

3

COMMISSION TYPE NAME

Redemption Type Short Name.

Flat Rate

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Content Type

Description: CONTENT TYPE

Content Type Hierarchies

Standard Content Type Hierarchy:

Description of image033.gif follows
Description of the illustration image033.gif

Content Type Levels

Table 3-75 shows All Content Type: All Content Types are most aggregate level of the dimension.

Table 3-75 All Content Type

Sr. Number Attribute Description

1.

ALL CONTENT TYPE CODE

Code for All Content Type.


Table 3-76 shows Content Type Details: Detail level of the dimension. Stores the Content Types Information.

Table 3-76 Content Type Detail

Sr. Number Attribute Description Sample Value

1

CONTENT TYPE CODE

Type of the content: For example: constellation, jokes, and so on.

CONST

2

CONTENT TYPE DESC

Descriptions of content type

Constellation

3

CONTENT TYPE NAME

Name of the content type.

Constellation

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Contract Change Initiator Type

Description: CONTRACT CHANGE INITIATOR TYPE

Contract Change Initiator Type Hierarchies

Standard Contract Change Initiator Type Hierarchy:

Description of image034.gif follows
Description of the illustration image034.gif

Contract Change Initiator Type Levels

Table 3-77 shows Contract Change Initiator Type Total: All Contract Change Initiator type is most aggregate level of the dimension.

Table 3-77 Contract Change InitiatorType Total

Sr. Number Attribute Description

1.

ALL CONTENT TYPE CODE

Code for All Content Type.


Table 3-78 shows Contract Change Initiator Type Detail: Detail level of the dimension. Stores the Content Type Information.

Table 3-78 Contract Change Initiator Type Detail

Sr. Number Attribute Description Sample Value

1

CONTRACT CHANGE INITIATOR TYPE CODE

CONTRACT CHANGE INITIATOR TYPE CODE.

CUST

2

CONTRACT CHANGE INITIATOR TYPE DESC

CONTRACT CHANGE INITIATOR TYPE DESC.

Cust

3

CONTRACT CHANGE INITIATOR TYPE NAME

CONTRACT CHANGE INITIATOR TYPE name.

Cust

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Contract Assignment Reason

Description: CONTRACT ASSIGNMENT REASON

Contract Assignment Reason Hierarchies

Standard Contract Assignment Reason Hierarchies:

Description of image035.gif follows
Description of the illustration image035.gif

Contract Assignment Reason Level

Table 3-79 shows Contract Assignment Reason Total: It's not actually hierarchy. It is the top level to aggregate.

Table 3-79 Contract Assignment Reason Total

Sr. Number Attribute Description

1

CONTRACT ASSIGNMENT REASON ID

Code of reason


Table 3-80 shows Contract Assignment Reason Detail: Detail level of the Contract Assignment Reason.

Table 3-80 Contract Assignment Reason Detail

Sr. Number Attribute Description Sample Value

1

CONTRACT ASSIGNMENT REASON CODE

Code of reason

CMPLN

2

CONTRACT ASSIGNMENT REASON DESC

Description of reason

Complain

3

CONTRACT ASSIGNMENT REASON NAME

Name of reason

Complain

4

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Contract

Description: CONTRACT

Contract Hierarchies

Standard Contract Hierarchies:

Description of image036.gif follows
Description of the illustration image036.gif

Contract Levels

Table 3-81 shows Contract Total: This is not really a hierarchical dimension but to provide the summary or aggregate value on month based on the entire Contract.

Table 3-81 Contract Total

Sr. Number Attribute Description

1

CONTRACT ID

Id of the contract


Table 3-82 shows Contract Detail: This level represents the detail level information of Contract End Month.

Table 3-82 Contract Detail

Sr. Number Attribute Description Sample Value

1

ACCOUNT CODE

This is usually natural key of the account.



2

ACTUAL COST

Actual cost of the Contract

$2,000.00

3

ACTUAL COST LOCAL

Actual cost of the Contract

$2,000.00

4

ACTUAL COST REPORTING

Actual cost of the Contract

$2,000.00

5

AMORTIZED ACTUAL COST

Amortized cost of the Contract

$2,000.00

6

AMORTIZED ACTUAL COST LOCAL

Amortized cost of the Contract

$2,000.00

7

AMORTIZED ACTUAL COST REPORTING

Amortized cost of the Contract

$2,000.00

8

AMORTIZED STANDARD COST

Amortized Standard Cost of the Contract

$2,000.00

9

AMORTIZED STANDARD COST LOCAL

Amortized Standard Cost of the Contract

$2,000.00

10

AMORTIZED STANDARD COST REPORTING

Amortized Standard Cost of the Contract

$2,000.00

11

AUTOMATIC RENEW INDICATOR

Whether the contract should be automatically renewed when the contract ends.



12

CANCELLATION DATE

The date when customer applied for cancellation.



13

CANCELLATION REASON

Reason of cancel



14

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



15

CONTRACT CODE

CONTRACT CODE.

zone-1000001

16

CONTRACT DATE

The date when the contract was created.

10/11/2008 0:00

17

CONTRACT END DATE

The expected contract end date.

10/11/2008 0:00

18

CONTRACT NAME

The name assigned to a contract.

zone-1000001

19

CONTRACT START DATE

When the contract was set to start. Customer may define a future time as start date of a new contract (future plan) while using current contract

12/31/2005 0:00

20

CONTRACT TYPE CODE

CONTRACT TYPE CODE

LECNRT

21

CUSTOMER CODE

A code for any person or business that is of interest to the Communications Service Provider.



22

CUSTOMER ORDER NUMBER

A unique system assigned identifier for the Customer Order.

11000001

23

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



24

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



25

INTERACTION CHANNEL CODE

Uniquely identifier of Interaction Channel



26

INVC PAYMENT TERM TYPE CODE

Code.



27

LEGAL EFFECTIVE DATE

The date on which a contract take effect.



28

ORGANIZATION BUSINESS UNIT CODE

Unique identifier for Business Unit. To identify whether the site is a store, distribution center or warehouse.



29

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



30

PREMIUM ACTUAL COST

The standard cost of contract normally stay in Product Market plan, Here is actual cost for individual contract. This can only be calculated after the contract generated, therefore not from market plan. Note: Customer can use Gift redemption event " to track the cost instead of updating this column. But this is useful if they want to."

$2,000.00

31

PREMIUM ACTUAL COST LOCAL

The standard costs of contract normally stay in Product Market plan, Here is actual cost for individual contract. This can only be calculated after the contract generated, therefore not from market plan. Note: Customer can use Gift redemption event "to track the cost instead of updating this column. But this is useful if they want to."

$2,000.00

32

PREMIUM ACTUAL COST REPORTING

The standard cost of contract normally stay in Product Market plan, Here is actual cost for individual contract. This can only be calculated after the contract generated, therefore not from market plan. Note: Customer can use Gift redemption event "to track the cost instead of updating this column. But this is useful if they want to."

$2,000.00

33

PRODUCT MARKET PLAN CODE

MARKET PLAN CODE.



34

PROMOTION CODE

A unique identifier for a campaign cell.



35

SALES CHANNEL CODE

Link to sales channel to determine sales representatives caring the customer



36

SALES CHANNEL REPRESENTATIVE CODE

SALES CHANNEL REPRESENTATIVE CODE is used to track and detect sales performance on account payment status.



37

STANDARD COST

Standard cost of the Contract

$2,000.00

38

STANDARD COST LOCAL

Standard cost of the Contract

$2,000.00

39

STANDARD COST REPORTING

Standard cost of the Contract

$2,000.00

40

START BILLING DATE

The date when first bill was generated.



41

STATUS CODE

Current Status



42

SUPPORTING DOCUMENT CODE

Large Binary Object (LOB) column to store support document with type of text or image. It can also be a path string to external storage.



Credit Category

Description: CREDIT CATEGORY

Credit Category Hierarchies

Standard Credit Category Hierarchies:

Description of image037.gif follows
Description of the illustration image037.gif

Credit Category Levels

Table 3-83 shows Credit Category Total: Top most level used in the Credit Category dimension for aggregating data for all Credit categories. Attribute at this level is just the id for the level value.

Table 3-83 Credit Category Total

Sr. Number Attribute Description

1

CREDIT CATEGORY TOTAL ID

Id of the contract Credit Category Total


Table 3-84 shows Credit Category Detail: The detail or lowest level of the dimension, which actually contains the category values. The attributes for this level are id, descriptions for the level values.

Table 3-84 Credit Category Detail

Sr. Number Attribute Description Sample Value

1

CREDIT CATEGORY CODE

Code for Credit Category.

BAD

2

CREDIT CATEGORY DESC

Description for credit category.

Bad Customer

3

CREDIT CATEGORY NAME

Name for Credit Category.

Bad Customer

4

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

5

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.

12/31/2005 12:00:00 AM

6

STATUS CODE

Current STATUS CODE, standard SCD2 column.



Customer Revenue Band

Description: CUSTOMER REVENUE BAND

Customer Revenue Band Hierarchies

Standard Customer Revenue Band Hierarchies:

Description of image038.gif follows
Description of the illustration image038.gif

Customer Revenue Band Levels

Table 3-85 shows Customer Revenue Band Total: This is not really a hierarchical dimension but to provide the summary or aggregate value Customer Revenue.

Table 3-85 Customer Revenue Band Total

Sr. Number Attribute Description

1

CUSTOMER REVENUE BAND TOTAL ID

Id of Customer Revenue Band Total


Table 3-86 shows Customer Revenue Band Detail: This level represents the detail level information of Customer Revenue Band.

Table 3-86 Customer Revenue Band Detail

Sr. Number Attribute Description Sample Value

1

CUSTOMER REVENUE BAND CODE

Unique identifier for revenue band. For example: 0_1000, 1000_3000.

BAND100

2

CUSTOMER REVENUE BAND DESC

Description revenue band.

Customer Revenue Band 100

3

CUSTOMER REVENUE BAND END VALUE

The end point of a band.

$100.00

4

CUSTOMER REVENUE BAND NAME

Name of revenue band.

Customer Revenue Band 100

5

CUSTOMER REVENUE BAND START VALUE

The start point of a band.

$0.00

6

CUSTOMER REVENUE TYPE CODE

For recharging, rent fee, one time equipment purchase,-.

RCG

7

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Customer Segment

Description: CUSTOMER SEGMENT

Customer Segment Hierarchies

Standard Customer Segment Hierarchies:

Description of image039.gif follows
Description of the illustration image039.gif

Customer Segment Levels

Table 3-87 shows Customer Segment Total: This is not really a hierarchical dimension but to provide the summary or aggregate value Customer Segment.

Table 3-87 Customer Segment Total

Sr. Number Attribute Description

1

CUSTOMER SEGMENT TOTAL ID

Id of Customer Segment Total


Table 3-88 shows Customer Segment Detail: This level represents the detail level information of Customer Segment.

Table 3-88 Customer Segment Detail

Sr. Number Attribute Description Sample Value

1

CUSTOMER SEGMENT CODE

A code used to uniquely identify a grouping of Parties or Accounts for marketing and management issues.

1

2

CUSTOMER SEGMENT DESC

A textual description for a Segment.

SGMNT1

3

CUSTOMER SEGMENT NAME

The name assigned to a Segment.

SGMNT1

4

CUSTOMER SEGMENTATION MODEL CODE

Unique identifier for Customer Segmentation Model



5

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



6

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



7

IS LEAF INDICATOR

Is leaf is to indicate if the cluster is leaf of the cluster tree.



8

SEGMENT CRITERIA CODE

SEGMENT CRITERIA CODE.



9

SEGMENT DISPERSION

The dispersion of the training data in this segment.



10

STATUS CODE

Current STATUS CODE, standard SCD2 column.



11

SUPPORTING RECORD COUNT

How many customers are included in segment during training, therefore support the cluster.



12

TREE LEVEL

TREE LEVEL in the cluster tree.

6


Dealer

Description: DEALER

Dealer Hierarchies

Standard Dealer Hierarchies:

Description of image040.gif follows
Description of the illustration image040.gif

Dealer Levels

Table 3-89 shows Dealer Total: This is not really a hierarchical dimension but to provide the summary or aggregate value of Dealer.

Table 3-89 Dealer Total

Sr. Number Attribute Description

1

DEALER TOTAL ID

Id of dealer


Table 3-90 shows Dealer Detail: This level represents the detail level information of Customer Revenue Band.

Table 3-90 Dealer Detail

Sr. Number Attribute Description Sample Value

1

ADDRESS LOCATION CODE

Unique identifier for Address Location



2

ANNUAL REVENUE

Revenue of the company.



3

ANNUAL REVENUE LOCAL

Revenue of the company.



4

ANNUAL REVENUE REPORTING

Revenue of the company.



5

ANNUAL SALES

Annual sales of Dealer



6

ANNUAL SALES LOCAL

Annual sales of Dealer local



7

ANNUAL SALES REPORTING

Annual sales of Dealer reporting



8

AREA CODE

Code for the Area.



9

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.



10

BANKRUPTCY START DATE

start date of bankruptcy.

12/31/2005 12:00:00 AM

11

CAMPAIGN PARTNER CODE

CAMPAIGN PARTNER CODE is the code to track campaign partner.



12

CAMPAIGN PARTNER INDICATOR

To indicator this is a campaign partner. The campaign partner can be an external organization or even another telco operator. The service provider can partner with another service provider if their business are complementary, like 1 wireless operator and 1 local fixed line company. Most of content provider can also partner with the telco for promotion.



13

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.



14

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.



15

CONTACT CODE

ID of the contact person for the organization.



16

CONTACT NAME

Contact Employee for organization.



17

CONTRACT DATE

The date when the contract was created.



18

CONTRACT VALID TILL

Validation details



19

COURT CODE

Code of the law of court.



20

DEALER CODE

Uniquely identifier of dealer



21

DEALER NAME

Name of the dealer



22

DISCOUNT ELIGIBLE INDICATOR

Flag represents eligible for discount or not



23

DISCOUNT GROUP CODE

DISCOUNT GROUP CODE.



24

DOMESTIC INDICATOR

For PARTYs that are organizations, this indicates whether the organization is foreign or domestically owned.



25

DUNS NUMBER

DUNS NUMBER is an identifier for organization.



26

EMAIL ADDRESS

Electronic Address of dealer



27

EMPLOYEE COUNT

Total number of employee in the company or organization.



28

EQUITY AMOUNT

The equity value of the company/org.



29

EQUITY AMOUNT LOCAL

The equity value of the company/org.



30

EQUITY AMOUNT REPORTING

The equity value of the company/org.



31

FINAL SETTLEMENT END DATE

End date of final settlement.



32

FINAL SETTLEMENT START DATE

Start date of final settlement.

12/31/2005 0:00

33

JUDICIAL DISTRAINT CODE

Case identifier of the judicial distraint



34

JUDICIAL DISTRAINT DATE

Date of the judicial distraint



35

LIQUIDATION END DATE

The date when the company/org was liquidated. If is null and start_date is not null, the company is undergoing the liquidation.



36

LIQUIDATION START DATE

Start date of liquidation.

12/31/2005 0:00

37

MANAGER CODE

ID of the manager for the organization



38

MANAGER NAME

Name of manager for the whole company



39

OTHER INDIVIDUAL CODE

Unique identifier for Individual



40

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.



41

PAYMENT ACCOUNT NUMBER

Account number for payments.



42

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.



43

SALES CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



44

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.



45

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.



46

TAX EXEMPT STATUS

Indicates if the org. is tax exempt.



47

TERMINATION DATE

Termination date of the company in case of company was founded with termination date.



48

VALIDATION END DATE

Effective date of the deletion of the company's record from the company register.



49

VALIDATION START DATE

Date of the registration of the company' record deletion from the company register

12/31/2005 0:00

50

ACTIVE INDICATOR

Indicates if the party is currently active - which means the party has a current relationship with the carrier.



51

ADDRESS

Address of the party. Redundance to party location history.



52

BARING REASON CODE

Reasons for barring, eg,1-Credit Limit, 2-Barring period. Reasons for barring. For example 1-Credit Limit, 2-Barring period



53

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



54

CITY

City of the party. Redundance to party location history.



55

COUNTRY

Country of the party. Redundance to party location history.



56

CUSTOMER INDICATOR

Indicates if the party is a customer. Note: the party may have multiple relationships simultaneously - this flag identifies those parties which has a current account with the Telco.



57

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column



58

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column



59

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



60

PARTY DESC

Description of the party. applicable to both individual and organization. Normally it refer to the full name.



61

PARTY NAME

Name of the party. Applicable to both individual and organization. Normally it refers to the full name.



62

PARTY TYPE CODE

type code.



63

POST CODE

Postcode of the party. Redundance to party location history.



64

SOURCE SYSTEM CODE

SOURCE SYSTEM ID, from which source ERP system this recorded was extracted.



65

STATE

State of the party. Redundance to party location history.



66

STATUS CODE

Current status of party.



Debt Aging Band

Description: DEBT AGING BAND

Debt Aging Band Hierarchies

Standard Debt Aging Band Hierarchy:

Description of image041.gif follows
Description of the illustration image041.gif

Debt Aging Band Levels

Table 3-91 shows Debt Aging Band Total: Most aggregate level for the Debt Aging Band dimension to see the aggregated value of all the Debt Aging Band.

Table 3-91 Debt Aging Band Total

Sr. Number Attribute Description

1.

DEBT AGING BAND ID

Code for Debt Aging Band


Table 3-92 shows Debt Aging Band Detail: There are customers who have not paid or partially paid one or more bills. This is called as aging for the bill payment. Based on the age of unpaid or partial paid bill those amounts are put into different buckets for each customer.

Table 3-92 Debt Aging Band Detail

Sr. Number Attribute Description Sample Value

1

DEBT AGING BAND CODE

Code for Aging Slab.

DAB1

2

DEBT AGING BAND DESC

Description for aging Slab.

Debt Aging Band Between 0 And 4

3

DEBT AGING BAND FROM



4

DEBT AGING BAND NAME

Name for aging Slab.

Band(0-4)

5

DEBT AGING BAND TO

0



6

LANGUAGE CODE

Unique identifier for Language

4


Direct Debit Status Reason

Description: DIRECT DEBIT STATUS REASON

Direct Debit Status Reason Hierarchies

Standard Direct Debt Status Reason Hierarchy:

Description of image042.gif follows
Description of the illustration image042.gif

Direct Debit Status Reason Levels

Table 3-93 shows Direct Debit Status Reason Total: Most aggregate level for the Direct Debit Status Reason dimension to see the aggregated value of all the Direct Debit Status Reason.

Table 3-93 Direct Debit Status Reason Total

Sr. Number Attribute Description

1

DIRECT DEBT STATUS REASON ID

Code for Direct Debit Status Reason


Table 3-94 shows Direct Debit Status Reason Detail: All Address Locations are most aggregate level of the dimension.

Table 3-94 Direct Debit Status Reason Detail

Sr. Number Attribute Description Sample Value

1

DIRECT DEBT STATUS REASON CODE

Unique code for Direct Debt Status Reason

ACTV

2

DIRECT DEBT STATUS REASON DESC

Description of Direct Debt Status Reason

Active

3

DIRECT DEBT STATUS REASON NAME

Name for Direct Debt Status Reason

Active

4

LANGUAGE CODE

Unique identifier for Language



Divert Retrieve Type

Description: DIVERT RETRIEVE TYPE

Divert Retrieve type Hierarchies

Standard Divert Retrieve Type Hierarchy:

Description of image043.gif follows
Description of the illustration image043.gif

Divert Retrieve Type Levels

Table 3-95 shows Divert Retrieve Type Total: Most aggregate level for the Divert Retrieve Type Total dimension to see the aggregated value of all the Divert Retrieve Type Total.

Table 3-95 Divert Retrieve Type Total

Sr. Number Attribute Description

1.

DIVERT RETRIEVE TYPE TOTAL ID

Code for Divert Retrieve Type Total


Table 3-96 shows Divert Retrieve Type Detail: Call divert retrieve type indicates if the call is a diverted call or a retrieved call and then it can further drill down to define call as diverted to/retrieved from fax, ums or vms.

Subscriber's calls are diverted to the voice mail or UMS mail box according to subscriber instructions or settings. For example, calls can be diverted when subscriber is busy on other call, subscriber has switched off this handset or subscriber is not reachable for the moment.

Subscriber can later retrieve all his calls that are stored on the mailbox by accessing his mailbox through specified numbers or using Internet in case of UMS.

All this traffic generated by diverted calls as well as retrieved calls is to be analyzed based on the type of call such as diverted or retrieved, type of access to retrieve a call and so on.

Call Divert retrieve dimension helps in achieving this by organizing calls as diverted - retrieved calls.

Table 3-96 Divert Retrieve Type Detail

Sr. Number Attribute Description Sample Value

1

DIVERT RETRIEVE SUB TYPE CODE

Call divert/retrieve subtype ID.



2

DIVERT RETRIEVE SUB TYPE DESC

Call divert/retrieve subtype description.



3

DIVERT RETRIEVE SUB TYPE NAME

Call divert/retrieve subtype short description.



4

DIVERT RETRIEVE TYPE CODE

Code for Divert Retrieve Type.

DVRT

5

DIVERT RETRIEVE TYPE DESC

Divert retrieve Type description.

Call Are Diverted To The Mailbox

6

DIVERT RETRIEVE TYPE NAME

Name of Divert retrieve Type.

Diverted Calls

7

LANGUAGE CODE

Unique identifier for Language



Employee

Description: EMPLOYEE

Employee Hierarchies

Standard Employee Hierarchy:

Description of image044.gif follows
Description of the illustration image044.gif

Employee Levels

Table 3-97 shows Employee Total: Most aggregate level for the Employee Total dimension to see the aggregated value of all the Employee Total

Table 3-97 Employee Total

Sr. Number Attribute Description

1.

EMPLOYEE TOTAL ID

Code for employee total identifier.


Table 3-98 shows Employee Details: Employee of Carrier. Sub entity of Party individual.

Table 3-98 Employee Detail

Sr. Number Attribute Description Sample Value

1

BILLING ADDRESS EFFECTIVE DATE

Date on which the billing address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



2

BUSINESS DIVISION EXECUTIVE NAME

BUSINESS DIVISION EXECUTIVE LAST NAME is the last name of the business division executive to whom the employee reports to. Like LOB Owner.



3

BUSINESS PHONE NUMBER

Phone number used for business purpose



4

CELL PHONE NO

Redundancy to 'party contact information'



5

CHILDREN COUNT

Number of children



6

CONTACT ADDRESS EFFECTIVE DATE

Date on which the contact address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



7

COST CENTER NUMBER

The cost center to which the bank employee expenses are charged.



8

DATE OF BIRTH

Date of Birth of the individual.



9

DATE OF DEATH

Date of natural person death.



10

DEATH CERTIFICATE CODE

The certification document number for customer's death.



11

DEPENDENTS COUNT

Number of dependents



12

DRIVER LICENSE NUMBER

Driver License Number in most countries.



13

DWELLING SIZE

Size of dwelling



14

DWELLING TENURE

Tenure of dwelling



15

ECONOMICALLY ACTIVE IND

customer is economically active (is not a minor or pensioner and so on.)



16

EDUCATION CODE

The customer highest level of education.



17

EMAIL

Redundancy to 'party contact information'



18

EMPLOYEE CODE

A code for any person or business that is of interest to the Communications Service Provider.



19

EMPLOYEE DESIGNATION CODE

Unique warehouse key, representing the designation



20

EMPLOYEE DISCOUNT GROUP CODE

Unique identifier for Employee Discount Group



21

EMPLOYEE KEY

Key value for each employee



22

EMPLOYEE NUMBER

Internal number for the employee.



23

EMPLOYEE TYPE CODE

Unique identifier for Employee Type

PT

24

EMPLOYEE TYPE DESC

Description of the Employee Type

Part Time

25

EMPLOYEE TYPE NAME

Unique identifier for the Employee Type

Part Time

26

EMPLOYER TAX NUMBER

The tax code of Employer.



27

EMPLOYMENT BEGIN DATE

Start date for the employment.

12/31/2005 12:00:00 AM

28

EMPLOYMENT END DATE

If the employee quit from the Bank, we still hold the information of his past employment



29

EMPLOYMENT EXEMPT IND

An employee exempt from the overtime policies of the University due to the nature of the work, as compared to (Non-Exempt).

Education requirements of the position and salary range. These employees are paid an annual salary and are not customarily eligible for overtime pay.



30

EMPLOYMENT STATUS

EMPLOYEE STATUS is the abbreviated identifier for the employment status. Employee



31

END OF JOB CONTRACT

End date of the customer's job contract (for contracts concluded for definite terms).



32

ETHNIC BACKGROUND

Customer Attribute of an employee



33

ETHNICITY

Classifies the individual for minority reporting purposes.



34

FAMILY NAME IN MAIDEN

Given name in maiden



35

FIRST NAME

First name of a party individual



36

FORM OF EMPLOYMENT

The customer's form of employment (private entrepreneur, employee, civil servant and so on.)



37

GENDER CODE

For PARTYs that are people, this is their GENDER.

For PARTYs that are organizations, this is indicates whether the organization is foreign or domestically owned.



38

GIVEN NAME IN MAIDEN

Given name in maiden



39

HOME TELEPHONE NO

Redundance to 'party contact information'



40

HOUSEHOLD KEY

The code of household which the party belongs to.



41

INCOME

Income of a party individual



42

INCOME LCL

Income of a party individual



43

INCOME RPT

Income of a party individual



44

JOB CONTRACT TYPE

Type of the customer's job contract



45

JOB KEY

Code for job of subscriber.



46

JOB POSITION

job Position.



47

LANGUAGE CODE

Unique identifier for Language



48

LAST NAME

Last name of a party individual



49

LAST PERFORMANCE RATING

This describes the annual rating assigned to the employee.



50

LAST PERFORMANCE RATING DATE

When the last rating is done.



51

LEGAL TITLE TO HOUSING

The customer's legal title to home (rents, owns and so on.)



52

LIVING AT CURRENT ADDRESS SINCE

Date since the customer has lived at the present address.



53

MANAGER CODE

manager's employee code.



54

MARITAL STATUS

CSALADI ALLAPOT. Marital status



55

MARTIAL STATUS CODE



56

MIDDLE NAME

Middle name of a party individual



57

MOTHER FIRST NAME

Mother's first name



58

MOTHER LAST NAME

Mother's last name



59

NAME OF WORKPLACE

Name of workplace



60

NAME PREFIX

Name prefix

For example: Mr, Mrs, Ms, Dr,



61

NAME SUFFIX

Name suffix. For example: PhD, MD, JD, MA



62

NATIONALITY CODE

Code for Nationality of subscriber



63

NUMBER OF EARNERS IN HOUSEHOLD

Number of wage earners in the household.



64

NUMBER OF PERSONS LIVING IN HOUSEHOLD

Number of persons sharing the customer's household.



65

OFFICE TELEPHONE NO

Redundancy to 'party contact information'



66

ORGANIZATION BUSINESS UNIT KEY



67

PERSONAL ID NUMBER

In China, this one will be same as party.national_identifier.



68

PLACE OF BIRTH

Where the person was born.



69

PREVIOUS EMPLOYER TAX NUMBER

Tax number of previous employer.



70

PREVIOUS EMPLOYMENT END DATE

End date of previous job.



71

PREVIOUS EMPLOYMENT START DATE

Start date of previous job.

12/31/2005 12:00:00 AM

72

SOC JOB KEY



73

SOCIAL SECURITY NUMBER

In US, this code will be same as party.national_identifier. Null if some country does not have.



74

SOURCE OF INCOME

Source of income (can typify, may be several)



75

START OF EMPLOYMENT

Start of employment



76

TAX NUMBER

Tax number



77

ACTIVE IND

Activate Indicator



78

ADDRESS

Address



79

BARING REASON CODE

Unique identifier for Baring Reason



80

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



81

CITY

City of the party. Redundance to party location history.



82

COUNTRY

Country of the party. Redundance to party location history.



83

CUSTOMER IND

Indicator for Customer



84

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



85

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



86

EMPLOYEE NAME

Name of the employee



87

PARTY DESC

Description for the Party



88

PARTY KEY

Key value for Party



89

PARTY NAME

Name of the Party



90

PARTY TYPE CODE

Unique identifier for Party Type



91

POST CODE

Unique identifier for Post



92

SOURCE SYSTEM KEY

Key value for Source System



93

STATE

State Name



94

STATUS CODE

Current Status



Event Result

Description: EVENT RESULT

Event Result Hierarchies

Standard Event Result Hierarchy:

Description of image045.gif follows
Description of the illustration image045.gif

Event Result Levels

Table 3-99 shows Event Result Total: Most aggregate level for the Event Result dimension to see the aggregated value of all the Event Result.

Table 3-99 Event Result Total

Sr. Number Attribute Description

1.

ALL EVENT RESULT ID

Code for Event Result


Table 3-100 shows Event Result Detail: Keep the result of an event. For example,

  • S: Successful

  • F: failed

Table 3-100 Event Result Detail

Sr. Number Attribute Description Sample Value

2

EVENT RESULT CODE

The unique identifier of an event result.

FAIL

3

EVENT RESULT DESC

The description of an event result.

Failed

4

EVENT RESULT NAME

The name of an event result.

Failed

5

LANGUAGE CODE

Unique identifier for Language



Event Type

Description: EVENT TYPE

Event Type Hierarchies

Standard Event Type Hierarchies:

Description of image046.gif follows
Description of the illustration image046.gif

Event Type Levels

Table 3-101 shows Event Type Total: Most aggregate level for the Event Type to see the aggregated sales of all the Event Type of all types.

Table 3-101 Event Type Total

Sr. Number Attribute Description

1.

ALL EVENT TYPE TOTAL ID

Code for All Event Type


Table 3-102 shows Event Type Detail: This entity keeps all types of events under each category.

Table 3-102 Event Type Detail

Sr. Number Attribute Description Sample Value

1

EVENT CATEGORY CODE

An unique identifier for event class. Examples: A-advertising.

ACCSMTHD

2

EVENT TYPE CODE

A Code used to uniquely identify the type of Event. Examples: M - Marketing, F - Finance.

ACTV

3

EVENT TYPE DESC

A textual description for an Event Type.

Activate

4

EVENT TYPE NAME

The name of type. Examples: Marketing, Finance.

Activate

5

LANGUAGE CODE

Unique identifier for Language



External Operator

Description: EXTERNAL OPERATOR

External Operator Hierarchies

Standard External Operator Hierarchy:

Description of image047.gif follows
Description of the illustration image047.gif

External Operator Levels

Table 3-103 shows All External Operator: Most aggregate level for the External Operator to see the aggregated sales of all the External Operator of all types.

Table 3-103 All External Operator

Sr. Number Attribute Description

1.

ALL EXTERNAL OPERATOR ID

Code for All External Operator


Table 3-104 shows External Operator: Other operators. Those information are required when client roam to their territory or are from those operators.

Table 3-104 External Operator

Sr. Number Attribute Description Sample Value

1

ANNUAL REVENUE LCL

Revenue of the company.



2

ANNUAL REVENUE RPT

Revenue of the company.



3

ANNUAL SALES

Sales for annual



4

ANNUAL SALES LCL

Local Sales for annual



5

ANNUAL SALES RPT

Reporting Sales for annual



6

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.



7

BANKRUPTCY START DATE

Start date of bankruptcy.

12/31/2005 12:00:00 AM

8.

CAMPAIGN PARTNER CODE

CAMPAIGN PARTNER CODE is the code to track campaign partner.



9

CAMPAIGN PARTNER IND

to indicator this is a campaign partner. The campaign pattern can be an external organization or even another telco operator. The service provider can partner with another service provider if their businesses are complementary, like 1 wireless operator and 1 local fixed line company. Most of content provider can also partner with the telco for promotion.



10

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.



11

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.



12

CONTACT CODE

ID of the contact person for the organization.



13

CONTACT NAME

Contact Employee for organization.



14

COUNTRY CODE

Unique identifier for country. For example: USA, UK, CN, JP.



15

COUNTRY DESC

Short Name/description for Governors/Country.



16

COUNTRY NAME

The name of the country associated with this currency.



17

COURT CODE

Code of the law of court.



18

DUNS NUMBER

DUNS NUMBER is an identifier for organization.



19

DOMESTIC IND

For PARTYs that are organizations, this indicates whether the organization is foreign or domestically owned.



20

EMPLOYEE COUNT

Total number of employee in the company or organization.



21

EQUITY AMOUNT

The equity value of the company/org.



22

EQUITY AMOUNT LCL

The equity value of the company/org.



23

EQUITY AMOUNT RPT

The equity value of the company/org.



24

EXTERNAL OPERATOR CODE

Unique identifier for operator. For example: Airtel, CMCC, NTT.



26

EXTERNAL ORGANIZATION TYPE CODE



27

FINAL SETTLEMENT END DATE

End date of final settlement

12/31/2005 0:00

28

FINAL SETTLEMENT START DATE

Start date of final settlement

12/31/2005 0:00

29

JUDICIAL DISTRAINT CODE

Case identifier of the judicial distraint.



30

JUDICIAL DISTRAINT DATE

Date of the judicial distraint.



31

LIQUIDATION END DATE

The date when the company/org was liquidated. If is null and start date is not null, the company is undergoing the liquidation.

12/31/2005 0:00

32

LIQUIDATION START DATE

Start date of liquidation

12/31/2005 0:00

33

MANAGER CODE

ID of the manager for the organization



34

MANAGER NAME

Name of manager for the whole company



35

OPERATOR DESC

Further information with operating country and other details



36

OPERATOR GROUP CODE

Unique identifier for operator type. For example: international, land!-.



37

OPERATOR NAME

The full name of the operator. For example: China Mobile for CMCC.



38

OPERATOR TYPE CODE

Unique identifier for operator type. For example: international, land!-.

LSCL

39

OTHER INDIVIDUAL CODE

Code for individual.



40

PARTY ORGANIZATION TYPE CODE

Unique identifier for Party Organization



41

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.



42

PAYMENT ACCOUNT NUMBER

Account number for payments.



43

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.



44

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.



45

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.



46

TAX EXEMPT STATUS

Indicates if the org. is tax exempt



47

TERMINATION DATE

Termination date of the company in case of company was founded with termination date



48

VALID END DATE

Effective date of the deletion of the company's record from the company register

12/31/2005 0:00

49

VALID START DATE

Date of the registration of the company' record deletion from the company register

12/31/2005 0:00

50

ACTIVE IND

Active Indicator



51

ADDRESS

Address



52

BARING REASON CODE

Unique identifier for Baring Reason



53

BUSINESS LEGAL STATUS CODE

Unique identifier for Business Legal Status



54

CITY

City



55

COUNTRY

Country



56

CUSTOMER IND

Customer Indicator



57

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



58

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



59

PARTY DESC

Description of the party. Applicable to both individual and organization. Normally it refers to the full name.



60

PARTY CODE

Code value for a party.



61

PARTY NAME

Name of the Party



62

PARTY TYPE CODE

Unique identifier for Party



63

POST CODE

Postcode of the party. Redundance to party location history.



64

SOURCE SYSTEM CODE

Code value for source system.



65

STATE

State



66

STATUS CODE

Current Status




ANNUAL REVENUE



Fraud Profile Class

Description: FRAUD PROFILE CLASS

Fraud Profile Class Hierarchies

Standard Fraud Profile Class Hierarchy:

Description of image048.gif follows
Description of the illustration image048.gif

Fraud Profile Class Levels

Table 3-105 shows Fraud Profile Class Total: Most aggregate level for the Fraud Profile Class dimension to see the aggregated value of all the Fraud Profile Class.

Table 3-105 Fraud Profile Class Total

Sr. Number Attribute Description

1.

ALL FRAUD PROFILE CLASS ID

Code for All Fraud Profile Class


Table 3-106 shows Fraud Profile Class Detail: The fraud profile class is generalized after certain analysis process over the past network event. New network event therefore can be tagged through the same model to detect if there are suspicious activities.

Table 3-106 Fraud Profile Class Detail

Sr. Number Attribute Description

1.

FRAUD PROFILE CLASS CODE

Code of The Fraud Profile Class

2.

FRAUD PROFILE CLASS NAME

Name of The Fraud Profile Class

3.

FRAUD PROFILE CLASS DESCRIPTION

Description of The Fraud Profile Class



LANGUAGE CODE



Geography

Description: GEOGRAPHY ENTITY

Geography Hierarchies

Standard Geography Hierarchy:

Description of image049.gif follows
Description of the illustration image049.gif

Geography Levels

Table 3-107 shows Geography World: World level in GEOGRAPHY hierarchy.

Table 3-107 Geography World

Sr. Number Attribute Description Sample Value

1

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column



2

GEOGRAPHY WORLD CODE

Identifier of world.



3

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

4

GEOGRAPHY WORLD NAME

Name of the geography world.



Table 3-108 shows Geography Region: Region level in GEOGRAPHY hierarchy.

Table 3-108 Geography Region

Sr. Number Attribute Description Sample Value

1

GEOGRAPHY REGION CODE

uniquely identifier of geography region



2

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

3

GEOGRAPHY WORLD CODE

Identifier of world.



4

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

5

GEOGRAPHY REGION NAME

Name of the geography region



Table 3-109 shows Geography Sub Region: Sub Region level in GEOGRAPHY hierarchy.

Table 3-109 Geography Sub Region

Sr. Number Attribute Description Sample Value

1

GEOGRAPHY REGION CODE

uniquely identifier of geography region



2

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

3

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

4

GEOGRAPHY SUB REGION NAME

name of the sub region



5

GEOGRAPHY SUB REGION CODE

Uniquely identifier of geography sub region



Table 3-110 shows Geography Country: Country level in GEOGRAPHY hierarchy.

Table 3-110 Geography Country

Sr. Number Attribute Description Sample Value

1

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

2

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

3

GEOGRAPHY COUNTRY CODE

Uniquely identifier of the country.



4

GEOGRAPHY SUB REGION CODE

Uniquely identifier of geography sub region



5

GEOGRAPHY COUNTRY NAME

Name of the country



Table 3-111 shows Geography State: State level in GEOGRAPHY hierarchy.

Table 3-111 Geography State

Sr. Number Attribute Description Sample Value

1

GEOGRAPHY STATE NAME

Name of state



2

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

3

GEOGRAPHY STATE CODE

Uniquely identifier of geography state



4

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

5

GEOGRAPHY COUNTRY CODE

Uniquely identifier of the country.



Table 3-112 shows Geography City: CITY level in GEOGRAPHY hierarchy.

Table 3-112 Geography City

Sr. Number Attribute Description Sample Value

1

GEOGRAPHY CITY NAME

Name of the city



2

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

3

GEOGRAPHY STATE CODE

Uniquely identifier of state



4

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

5

GEOGRAPHY CITY CODE

Uniquely identifier of city



6

GEOGRAPHY CITY DESC

CITY DESC.



Table 3-113 shows Geography County: County level in GEOGRAPHY hierarchy.

Table 3-113 Geography County

Sr. Number Attribute Description Sample Value

1

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column



2

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

3

GEOGRAPHY COUNTY CODE

Uniquely identifier of county



4

GEOGRAPHY COUNTY NAME

Name of the county



5

GEOGRAPHY CITY CODE

Uniquely identifier of city



Table 3-114 shows Address Location: Keep all address. It has levels as country, state, city, address and so on.

Table 3-114 Address Location

Sr. Number Attribute Description

1

ADDRESS STYLE

Any specific style of the address. It might include the detail like All Capital words, case, font and so on.

2

BUILDING CODE

Uniquely identifier of building

3

ELEVATION

Elevation of the Geographic Location

4

ELEVATION UOM CODE

Uniquely identifier of ELEVATION UOM

5

FLOOR CODE

Uniquely identifier of floor

6

FLOOR NAME

Name of the floor

7

GEOGRAPHY LOCATION CODE

Applicable unique geography ID.

8

GEOGRAPHY REGION CODE

Uniquely identifier of GEOGRAPHY REGION

9

LATITUDE

LATITUDE description

10

PRIMARY EMAIL ADDRESS

Email address

11

REGION NAME

Name of the Reason

12

SUBREGION DESC

description of sub region

13

TAX AUTHORITY CODE

Unique identified for the tax authority

14

WORLD DESC

Description of world

15

WORLD NAME

Name of the world

16

ADDRESS LATITUDE MEASURE

This is the Latitude value of the specified location

17

POSTAL PLUS CODE

Four digit extension to the United States Postal ZIP code.

18

STREET CODE

Uniquely identifier of state

19

CITY DESC

Description of the city

20

FLAT ROOM CODE

Uniquely identifier of the flat room

21

GEOGRAPHY STATE CODE

State of the geography

22

POST OFFICE BOX

PO box if available.

23

STATE DESC

Description of the state

24

STATE NAME

Name of the state

25

ADDRESS LONGITUDE MEASURE

This is the longitude location of the specified address.

26

BUILDING DESC

Description for Building

27

COUNTY DESC

Description for County

28

GEOGRAPHY COUNTRY CODE

Code for Geography Country

29

POSTCODE CODE

Code for Post Code

30

ADDRESS DESCRIPTION

Address description. Textual description of the address.

31

ADDRESS TYPE CODE

Unique identifier for the address type.

32

BUILDING NAME

Name for Building

33

COUNTY NAME

Name for County

34

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.

35

FLAT ROOM DESC

Description for Flat Room

36

GEOGRAPHY COUNTY CODE

Code for Geography County

37

GEOGRAPHY ENTITY CODE

unique geography identifier. A unique identifier for the geography entities, could be a system generated unique key for geography entity

38

REGION DESC

Description for Region

39

WORLD CODE

Description for World

40

ADDRESS LINE 2

Address. Line 2 of the detailed postal address

41

ADDRESS LINE 3

Address. Line 3 of the detailed postal address

42

LONGITUDE

The angular distance between a point on any meridian and the prime meridian at Greenwich

43

PRIMARY ADDRESS TELEPHONE

Telephonic address

44

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.

45

ADDRESS LINE 1

Address. Line one of detail postal address

46

ADDRESS LINES PHONETIC

Phonetic or Kana representation of the Kanji address lines (used in Japan).

47

COUNTRY NAME

Name for Country

48

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.

49

EMPLOYEE CODE

Code for Employee

50

FLOOR DESC

Description for Floor

51

SUBREGION NAME

Name for Subregion

52

ADDRESS LOCATION CODE

unique identifier for the address.

53

CITY NAME

Name for City

54

COUNTRY DESC

Description for Country

55

FLAT ROOM NAME

Name for Flat Room

56

GEOGRAPHY CITY CODE

Code for Geography City

57

GEOGRAPHY SUBREGION CODE

Code for Geography Subregion

58

STREET DESC

Description for Street

59

STREET NAME

Name for Street

60

TIME ZONE CODE

Unique Identifier for time zone.


Give Away Type

Description: GIVE AWAY TYPE

Give Away Type Hierarchies

Standard Give Away Hierarchy:

Description of image050.gif follows
Description of the illustration image050.gif

Give Away Type Levels

Table 3-115 shows All Give Away Type: All Give Away are most aggregate level of the dimension.

Table 3-115 All Give Away Type

Sr. Number Attribute Description

1.

ALL GIVE AWAY TYPE CODE

Code for All Give Away Type.


Table 3-116 shows Give Away Type Detail: Detail level of the dimension. Stores the Give Away Type Detail Information.

Table 3-116 Give Away Type Detail

Sr. Number Attribute Description

1.

GIVE AWAY TYPE CODE

Code for Give Away type

2.

GIVE AWAY TYPE DESC

Description of the Give Away Type

3.

GIVE AWAY TYPE NAME

Name of the Give Away type

4.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.


GPRS Services

Description: GPRS SERVICE

GRPS Service Hierarchies

Standard GRPS Service Hierarchy:

Description of image051.gif follows
Description of the illustration image051.gif

GPRS Service Levels

Table 3-117 shows GRRS Services Total: All GPRS Service are most aggregate level of the dimension.

Table 3-117 GRRS Services Total

Sr. Number Attribute Description

1.

ALL GPRS SERVICE CODE

Code for All GPRS Service.


Table 3-118 shows GRRS Services: Detail level of the dimension. Stores the GPRS Service Detail Information.

Table 3-118 GRRS Services Detail

Sr. Number Attribute Description

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field,

2.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

3.

EQUIPMENT FUNCTIONALITY CODE

The code of function

4.

GPRS SERVICE CODE

GPRS service code

5.

GPRS SERVICE DESC

GPRS service description

6.

GPRS SERVICE NAME

GPRS service name

7.

IN PLATFORM CODE

IN PLATFORM CODE.

8.

NETWORK CODE

Identifier of the network.

9.

PRODUCT CODE

The unique identifier of product.

10.

PRODUCT DESC

Full Description.

11.

PRODUCT GROUP CODE

The unique identifier of product group

12.

PRODUCT NAME

Product name.

13.

PRODUCT PACKAGE CHARGE TYPE CODE

The unique identifier of product package charge type.

14.

PRODUCT PACKAGE TYPE CODE

Code for product package type

15.

PRODUCT TYPE CODE

Retrofitted from column PRODUCT_KEY of table FACT_MARKET_SHARE

16.

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



PRODUCT RATING PLAN TYPE CODE



Handset Model

Description: HANDSET MODEL

Handset Model Hierarchies

Standard Handset Model Hierarchy:

Description of image052.gif follows
Description of the illustration image052.gif

Handset Model Levels

Table 3-119 shows Handset Model Total: All Handset Model are most aggregate level of the dimension.

Table 3-119 Handset Model Total

Sr. Number Attribute Description

1.

HANDSET MODEL TOTAL CODE

Code for All Handset Model.


Table 3-120 shows Handset Model Detail: Detail level of the dimension. Stores the Handset Model Detail Information.

Table 3-120 Handset Model Detail

Sr. Number Attribute Description

1.

AVAILABLE FOR SALE DATE

The date when this ITEM becomes available for sale. For example, certain books have specific publication dates, music entertainment release dates.

2.

BRAND CODE

Unique Identifier for a item brand

3.

BRAND NAME

One Item can have one brand name. One brand name can extend to multiple items. A unique name to denote a class of Items as a product of a single supplier or manufacturer. The brand can include private label Items.

4.

COMMISSION IND

A flag to indicate whether this ITEM has a commission related to it or not

5.

CUSTOMER USAGE INDICATOR

Indicates whether equipment should be used by customer, otherwise for service provider.

6.

DISCOUNT IND

A flag to indicate whether this ITEM can be discounted.

7.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

8.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

9.

EQUIPMENT CODE

EQUIPMENT CODE.

10.

EQUIPMENT DESC

EQUIPMENT DESC.

11.

EQUIPMENT FUNCTIONALITY CODE

The code of function

12.

EQUIPMENT NAME

EQUIPMENT NAME.

13.

HANDSET BRAND CODE

Code for Handset Brand.

14.

HANDSET BRAND DESC

Description of the Handset Brand.

15.

HANDSET BRAND NAME

Name of the Handset Brand.

16.

HANDSET MODEL CODE

The date when this ITEM becomes available for sale. For example, certain books have specific publication dates, music entertainment release dates.

17.

HANDSET MODEL DESC

Description of Handset Model.

18.

HANDSET MODEL NAME

Name of the Handset Model.

19.

IN PLATFORM CODE

IN PLATFORM CODE.

20.

INVENTORY IND

Indicates whether an item is an inventory item or a non-inventory item (such as gift certificates, labor)

21.

ITEM CLUSTER CODE

Surrogate key used to identify an Item cluster. This column is used for Behavior Profiling.

22.

ITEM CODE

Unique identifier for item type.

23.

ITEM TYPE CODE

Unique identifier for item type.

24.

MERCHANDISE IND

Indicates whether the item's sales are financially tracked in the stock ledger.

25.

NETWORK CODE

Identifier of the network.

26.

PERISHABLE IND

Indicates whether the item is perishable.

27.

PRICE AUDIT IND

An indicator to denote whether the ITEM was validated (scanned) during verification of the ITEM table.

28.

PRIMARY ALTERNATE ITEM NAME

Default Alternate Item Name

29.

PRIMARY ALTERNATE ITEM NUMBER

Default Alternate Item Number

30

PRODUCT CODE

Description of Handset Model.

31.

PRODUCT GROUP CODE

Code for Product Group.

32.

PRODUCT NAME

Product name.

33.

PRODUCT PACKAGE CHARGE TYPE CODE

Code. For example: CMBND

34.

PRODUCT PACKAGE TYPE CODE

Identifier for the offer. For example: Individual.

35.

PRODUCT RATING PLAN TYPE CODE

Identifier for the offer.

36.

PRODUCT TYPE CODE

Code. For example CALL

37.

RECIPE IND

The recipe identifier that is associated to the selling item.

38.

SECURITY REQUIRED TYPE CODE

A code that defines the security environment and procedures required for receiving, displaying and selling the item. This is for high-priced merchandise like jewelry, certain prescription drugs, ordinance, fireworks, and so on.

39.

SELLABLE IND

Indicates whether the item can be sold. If 'N', then the only analysis available is on customer order lines of type partial within Customer Order Management

40.

SHRINK IND

An indicator to denote if the ITEM could loose weight from the time of order until the time of receipt

41.

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.

42.

STOP SALE IND

Indicates that sale of the item should be stopped immediately at the location.

43.

STORE REORDERABLE IND

Indicates whether the store may re-order the item.

44.

SUBSTITUTE IDENTIFIED IND

An ITEM for which there is a substitute available for sale within the RETAIL STORE

45.

SWELL IND

An indicator to indicate if the ITEM may gain weight or swell from time of order to time of receipt.

46.

TAX EXEMPT CODE

A code to denote the tax exemption status from sales and use tax. The codes refer to the UCC code

47.

UNIT PRICE FACTOR

The number of units of measure per selling unit. Used as the divisor when calculating the ITEMs unit retail price. For example: $1.67 per pound or $2.59 for 32 fl. oz.

48.

UOM CODE

The code used to specify the units in which a value is being expressed, or manner in which a measurement has been taken. This code relates to the UCC data element 355.

49.

VENDOR CODE

The vendor who provide this product. Here product should be an product item. For example: handset, STB

50.

VENDOR SITE CODE

Unique identifier or the Vendor Site



PRODUCT DESC




MODEL TYPE CODE



IN Platform

Description: IN PLATFORM

IN Platform Hierarchies

Standard IN Platform Hierarchy:

Description of image054.gif follows
Description of the illustration image054.gif

IN Platform Level

Table 3-121 shows IN Platform Total: All IN Platform are most aggregate level of the dimension.

Table 3-121 IN Platform Total

Sr. Number Attribute Description

1.

ALL IN PLATFORM CODE

Code for All IN Platform.


Table 3-122 shows IN Platform Detail: Detail level of the dimension. Stores the IN Platform Detail Information.

Table 3-122 IN Platform Detail

Sr. Number Attribute Description Sample Value

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

12/31/2005 12:00:00 AM

3.

IN PLATFORM CODE

Id for IN Platform.

5101

4.

IN PLATFORM DESC

IN Platform description.



5.

IN PLATFORM NAME

IN Platform name.



6.

NETWORK CODE

The network which is used by this platform

1

8.

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



Initiative Type

Description: INITIATIVE TYPE

Initiative Type Hierarchies

Standard Initiative Type Hierarchy:

Description of image056.gif follows
Description of the illustration image056.gif

Initiative Type Levels

Table 3-123 shows Initiative Type Total: All Initiative Type are most aggregate level of the dimension.

Table 3-123 Initiative Type Total

Sr. Number Attribute Description

1.

ALL INITIATIVE TYPE CODE

Code for All Initiative Type.


Table 3-124 shows Initiative Type Detail: Detail level of the dimension. Stores the Initiative Type Detail Information.

Table 3-124 Initiative Type Detail

Sr. Number Attribute Description

1.

INITIATIVE TYPE CODE

The initiative type identifier.

2.

INITIATIVE TYPE NAME

The initiative type name.

3.

INITIATIVE TYPE DESC

The initiative type description

4.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.


Interaction Channel

Description: INTERACTION CHANNEL

Interaction Channel Hierarchies

Standard Interaction Channel Hierarchy:

Description of image057.gif follows
Description of the illustration image057.gif

Interaction Channel Levels

Table 3-125 shows Interaction Channel Total: All Initiative Type are most aggregate level of the dimension.

Table 3-125 Interaction Channel Total

Sr. Number Attribute Description

1.

ALL INTERACTION CHANNEL CODE

Code for All Interaction Channel.


Table 3-126 shows Interaction Channel Detail: Detail level of the dimension. It Stores the Interaction Channel Detail Information.

Table 3-126 Interaction Channel Detail

Sr. Number Attribute Description Sample Value

1.

CAPACITY QUANTITY

The number of transaction that a Channel can handle, at a point of time.



2.

CHANNEL CODE

A unique identifier for channel



3.

CHANNEL DESC

Description for Channel



4.

CHANNEL NAME

The name assigned to a channel.

SHOP

5.

CHANNEL TYPE CODE

A code used to uniquely identify a major grouping of Channels. Examples: M - MailT - Telephone TV - Television.

SLCHNL

6.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

7.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

12/31/2005 12:00:00 AM

8.

INTERACTION CHANNEL CODE

A code for Interaction channel



9.

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



10.

PARTY TYPE CODE

PARTY TYPE CODE.

ORG

11.

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on. An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



Internet Service Provider

Description: An Internet service provider (ISP), also sometimes referred to as an Internet Access Provider (IAP), is a company that offers its customers access to the Internet. The ISP connects to its customers using a data transmission technology appropriate for delivering Internet Protocol datagrams, such as dial-up, DSL, cable modem, wireless, or dedicated high-speed interconnects.

This entity relates an ISP to the Communications Service Provider through a "business" relationship. This entity assigns the definition of the relationship, in entity ISP BUSINESS, with the corresponding ISP.

ISP Usage Events records traffic details of each session the user conducts with the Internet Service Provider ISP. The entity documents the connect and disconnect date/time as well as the number of local and international bytes downloaded as well uploaded. There will typically be multiple rows for each long running session. The entity will be implementation dependent, but normally there will be a record generate each hour - all records for the one session will have the same connect and disconnect date times, but the event start/ed date times will identify the period that the usage (bytes) covers.

Internet Service Provider Hierarchies

Standard Internet Service Provider Hierarchy:

Description of image055.gif follows
Description of the illustration image055.gif

Internet Service Provider Levels

Table 3-127 shows Internet Service Provider Total: All Internet Service Provider are most aggregate level of the dimension.

Table 3-127 Internet Service Provider Total

Sr. Number Attribute Description

1.

ALL INTERNET SERVICE PROVIDER CODE

Code for Internet Service Provider.


Table 3-128 shows Internet Service Provider Detail: Detail level of the dimension. It Stores the Internet Service Provider Detail information.

Table 3-128 Internet Service Provider Detail

Sr. Number Attribute Description Sample Value

1.

ANNUAL REVENUE

Revenue of the company.



2.

ANNUAL REVENUE LOCAL

Revenue of the company in local currency.



3.

ANNUAL REVENUE REPORTING

Revenue of the company in reporting currency.



4.

ANNUAL SALES

Sales of the company



5.

ANNUAL SALES LOCAL

Sales of the company in local currency



6.

ANNUAL SALES REPORTING

Sales of the company in reporting currency



7.

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.

12/31/2005 12:00:00 AM

8.

BANKRUPTCY START DATE

start date of bankruptcy.

12/31/2005 12:00:00 AM

9.

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.



10.

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.



11.

CONTACT CODE

ID of the contact person for the organization.



12.

CONTACT NAME

Contact Employee for organization.



13.

COURT CODE

Code of the law of court.



14.

DOMESTIC INDICATOR

For PARTYs that are organizations, this indicates whether the organization is foreign or domestically owned.



15.

DUNS NUMBER

DUNS NUMBER is an identifier for organization.



16.

EMPLOYEE COUNT

Total number of employee in the company or organization.



17.

EQUITY AMOUNT

The equity value of the company/org.



18.

EQUITY AMOUNT LOCAL

The equity value of the company/org.



19.

EQUITY AMOUNT REPORTING

The equity value of the company/org.



20.

EXTERNAL ORGANIZATION TYPE CODE

code for external organization type



21.

FINAL SETTLEMENT END DATE

End date of final settlement.

12/31/2005 12:00:00 AM

22.

FINAL SETTLEMENT START DATE

Start date of final settlement.

12/31/2005 12:00:00 AM

23.

ISP BUSINESS LICENSE CODE

The ISP business license code issued by regulation authorities.

TYP1

24.

ISP CODE

Unique key for internet service provider

1

25.

ISP TYPE CODE

unique key for internet service provider type.

TYP1

26.

JUDICIAL DISTRAINT CODE

Case identifier of the judicial distraint.



27.

JUDICIAL DISTRAINT DATE

Date of the judicial distraint

12/31/2005 12:00:00 AM

28

LIQUIDATION END DATE

The date when the company/org was liquidated. If is null and start date is not null, the company is undergoing the liquidation

12/31/2005 12:00:00 AM

29

LIQUIDATION START DATE

Start date of liquidation

12/31/2005 12:00:00 AM

30

MANAGER CODE

ID of the manager for the organization



31.

MANAGER NAME

Name of manager for the whole company.



32.

OTHER INDIVIDUAL CODE

code for other individual



33.

PARTY ORGANIZATION TYPE CODE

unique key for organization type party

Individual

34.

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.

12/31/2005 12:00:00 AM

35.

PAYMENT ACCOUNT NUMBER

Account number for payments.



36.

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.

12/31/2005 12:00:00 AM

37.

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.



38.

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.



39.

TAX EXEMPT STATUS

Indicates if the org. is tax exempt.



40.

TERMINATION DATE

Termination date of the company in case of company was founded with termination date.

12/31/2005 12:00:00 AM

41.

VALIDATION END DATE

Effective date of the deletion of the company's record from the company register.

12/31/2005 12:00:00 AM

42.

VALIDATION START DATE

Date of the registration of the company' record deletion from the company register.

12/31/2005 12:00:00 AM



ADDRESS




PARTY CODE




PARTY TYPE CODE




BUSINESS LEGAL STATUS CODE




SOURCE SYSTEM CODE




BARING REASON CODE




POST CODE




STATUS CODE




CITY




STATE




COUNTRY




PARTY NAME




PARTY DESC




ACTIVE INDICATOR




CUSTOMER INDICATOR




EFFECTIVE FROM DATE




EFFECTIVE TO DATE



Invoice Adjustment Reason

Description: INVOICE ADJUSTMENT REASON

Invoice Adjustment Reason Hierarchies

Standard Invoice Adjustment Reason Hierarchy:

Description of image058.gif follows
Description of the illustration image058.gif

Invoice Adjustment Reason Levels

Table 3-129 shows Invoice Adjustment Reason Total: All Invoice Adjustment Reason are most aggregate level of the dimension.

Table 3-129 Invoice Adjustment Reason Total

Sr. Number Attribute Description

1.

ALL INVOICE ADJUSTMENT REASON CODE

Code for All Invoice Adjustment Reason.


Table 3-130 shows Invoice Adjustment Reason Detail: Detail level of the dimension. It Stores the Invoice Adjustment Reason Detail Information.

Table 3-130 Invoice Adjustment Reason Detail

Sr. Number Attribute Description Sample Value

2.

INVOICE ADJUSTMENT RSN CODE

A unique identifier for reason

CMPLN

3.

INVOICE ADJUSTMENT RSN DESC

Description for reason

Customer complain

4.

INVOICE ADJUSTMENT RSN NAME

The name for invoice adjustment.

Customer complain

5.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Invoice Adjustment Type

Description: INVOICE ADJUSTMENT TYPE

Invoice Adjustment Type Hierarchies

Standard Invoice Adjustment Type Hierarchy:

Description of image059.gif follows
Description of the illustration image059.gif

Invoice Adjustment Type Levels

Table 3-131 shows Invoice Adjustment Type Total: All Invoice Adjustment Type are most aggregate level of the dimension.

Table 3-131 Invoice Adjustment Type Total

Sr. Number Attribute Description

1.

ALL INVOICE ADJUSTMENT TYPE CODE

Code for All Invoice Adjustment Type.


Table 3-132 shows Invoice Adjustment Type Detail: Detail level of the dimension. It Stores the Invoice Adjustment Type Detail Information.

Table 3-132 Invoice Adjustment Type Detail

Sr. Number Attribute Description Sample Value

1.

INVOICE ADJUSTMENT TYPE CODE

A code used to uniquely identify a adjustment type.

CMPGN

2.

INVOICE ADJUSTMENT TYPE DESC

A textual description of the adjustment Type.

Invoice Adjustment because of Specific Campaign in certain time period

3.

INVOICE ADJUSTMENT TYPE NAME

The name assigned to a adjustment Type.

Campaign

4.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



Item

Description: ITEM

Item Hierarchies

Standard Item Hierarchy:

Description of image060.gif follows
Description of the illustration image060.gif

Item Levels

Table 3-133 shows Item Total: All Items are most aggregate level of the dimension.

Table 3-133 Item Total

Sr. Number Attribute Description

1.

ALL ITEM CODE

Code for All Items.


Table 3-134 shows Item Detail: Detail level of the dimension. It Stores the Item Detail Information.

Table 3-134 Item Detail

Sr. Number Attribute Description Sample Value

1.

AVAILABLE FOR SALE DATE

The date when this ITEM becomes available for sale. For example, certain books have specific publication dates, music entertainment release dates.

12/31/2005 12:00:00 AM

2.

BRAND CODE

Unique Identifier for a item brand



3.

BRAND NAME

One Item can have one brand name. One brand name can extend to multiple items.

A unique name to denote a class of ITEMs as a product of a single supplier or manufacturer. The brand can include private label ITEMs.



4.

COMMISSION IND

A flag to indicate whether this ITEM has a commission related to it or not



5.

DISCOUNT IND

A flag to indicate whether this ITEM can be discounted.



6.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

7.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

12/31/2005 12:00:00 AM

8.

EQUIPMENT FUNCTIONALITY CODE

The code of function



9.

IN PLATFORM CODE

IN PLATFORM CODE.



10.

ITEM CODE

Unique identifier for item type.

ITEM-1

11.

ITEM TYPE CODE

Unique identifier for item type.

CELL

12.

MERCHANDISE IND

Indicates whether the item's sales are financially tracked in the stock ledger.



13.

MODEL TYPE CODE

Unique Identifier for Model Type



14.

NETWORK CODE

Identifier of the network.



15.

PERISHABLE IND

Indicates whether the item is perishable.



16.

PRIMARY ALTERNATE ITEM NAME

Default Alternate Item Name



17.

PRIMARY ALTERNATE ITEM NUMBER

Default Alternate Item Number



18.

PRODUCT CODE

PRODUCT CODE.



19.

PRODUCT DESC

Full Description.

Broadband

20.

PRODUCT GROUP CODE



21.

PRODUCT NAME

Product name.

BRDBND

22.

PRODUCT PACKAGE CHARGE TYPE CODE

Code.



23.

PRODUCT PACKAGE TYPE CODE

Identifier for the offer.



24.

PRODUCT RATING PLAN TYPE CODE

Identifier for the offer.



25.

PRODUCT TYPE CODE

Retrofitted from column PRODUCT_KEY of table FACT_MARKET_SHARE

NETWORK

26.

RECIPE IND

The recipe identifier that is associated to the selling item.



27.

SECURITY REQUIRED TYPE CODE

A code that defines the security environment and procedures required for receiving, displaying and selling the item. This is for high-priced merchandise like jewelry, certain prescription drugs, ordinance, fireworks, and so on.



28.

SHRINK IND

An indicator to denote if the ITEM could loose weight from the time of order until the time of receipt



29.

STOP SALE IND

Indicates that sale of the item should be stopped immediately at the location.



30.

STORE REORDERABLE IND

Indicates whether the store may re-order the item.



31.

SUBSTITUTE IDENTIFIED IND

An ITEM for which there is a substitute available for sale within the RETAIL STORE



32.

SWELL IND

An indicator to indicate if the ITEM may gain weight or swell from time of order to time of receipt.



33.

TAX EXEMPT CODE

A code to denote the tax exemption status from sales and use tax. The codes refer to the UCC code



34.

UNIT PRICE FACTOR

The number of units of measure per selling unit. Used as the divisor when calculating the ITEMs unit retail price. For example: $1.67 per pound or $2.59 for 32 fl. oz.



35.

UOM CODE

The code used to specify the units in which a value is being expressed, or manner in which a measurement has been taken. This code relates to the UCC data element 355.



36.

VENDOR CODE

The vendor who provide this product. Here product should be an product item. For example: handset, STB



37.

VENDOR SITE CODE

Unique identifier or the Vendor Site




ITEM CLUSTER CODE




INVENTORY IND




SELLABLE IND




PRICE AUDIT IND



Legal Process Status Type

Description: LEGAL PROCESS STATUS TYPE

Legal Process Status Type Hierarchies

Standard Legal Process Status Type Hierarchy:

Description of image061.gif follows
Description of the illustration image061.gif

Legal Process Status type Levels

Table 3-135 shows Legal Process Status Type Total: All Legal Process Status Type are most aggregate level of the dimension.

Table 3-135 Legal Process Status Type Total

Sr. Number Attribute Description

1.

ALL LEGAL PROCESS STATUS TYPE CODE

Code for All Legal Process Status Type.


Table 3-136 shows Legal Process Status Type Detail: Detail level of the dimension. It Stores the Legal Process Status Type Detail Information.

Table 3-136 Legal Process Status Type Detail

Sr. Number Attribute Description

1.

LEGAL PROCESS STATUS TYPE CODE

Legal Process Started Indicator.

2.

LEGAL PROCESS STATUS TYPE DESC

Description for Legal Process Status Type.

3.

LEGAL PROCESS STATUS TYPE NAME

Name for Legal Process Status Type.

4.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.


Loyalty Program Channel

Description: LOYALTY PROGRAM CHANNEL

Loyalty Program Channel Hierarchies

Standard Loyalty Program Channel Hierarchy:

Description of image062.gif follows
Description of the illustration image062.gif

Loyalty Program Channel Levels

Table 3-137 shows Loyalty Program Channel Total: All Loyalty Program Channel are most aggregate level of the dimension.

Table 3-137 Loyalty Program Channel Total

Sr. Number Attribute Description

1.

ALL LOYALTY PROGRAM CHANNEL CODE

Code for All Loyalty Program Channel.


Table 3-138 shows Loyalty Program Channel Detail: Detail level of the dimension. It Stores the Loyalty Program Channel Detail Information.

Table 3-138 Loyalty Program Channel Detail

Sr. Number Attribute Description Sample Value

1.

CAPACITY QUANTITY

The number of transaction that a Channel can handle, at a point of time.



2.

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.

-1,1

3.

CHANNEL DESC

Description for that channel can be handle.



4.

CHANNEL NAME

The name assigned to a channel.



5.

CHANNEL TYPE CODE

Unique identifier of the channel type

LYLTCHNL

6.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

7.

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

12/31/2005 12:00:00 AM

8.

LOYALTY PROGRAM CHANNEL CODE

Code for Loyalty Program Channel

-1,1

9.

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



10.

PARTY TYPE CODE

PARTY TYPE CODE.

CUSTOMER

11.

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on. An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



Market Area

Description: MARKET AREA

Market Area Hierarchies

Standard Market Area Hierarchy:

Description of image063.gif follows
Description of the illustration image063.gif

Market Area Levels

Table 3-139 shows Market Area Total: All Market Area are most aggregate level of dimension.

Table 3-139 Market Area Total

Sr. Number Attribute Description

1.

ALL MARKET AREA CODE

Code for All Market Area's


Table 3-140 shows Market Area Detail: Detail level of the dimension. It Stores the Market Area Information.

Table 3-140 Market Area Details

Sr. Number Attribute Description

1

MARKET AREA CODE

Market Area identifier

2

SERVICE COVERAGE AREA CODE

COVERAGE AREA CODE. Unique identifier for the coverage area

3

ORGANIZATION BUSINESS UNIT CODE

Market Area identifier

4

SECONDARY ZIP CODE

Applicable only in case the zip code spans across multiple zip codes

5

MARKET AREA LEVEL CODE

Identifier for the community or logical segment under the market area.

6

MARKET AREA UOM CODE

This is the unit of measure used to measure the size of the trading area, that is, miles, minutes, and so on.

7

PRIMARY ZIP CODE

Primary Zip code for the market area.

8

MARKET AREA NAME

Name of the market area.

9

MARKET AREA DESC

Description of the market area.

10

AREA TYPE

Type of Trading Area- Urban- Suburban

11

COUNTY

County / District

12.

CITY

City in which the market area belongs

13.

STATE

State or province

14.

COUNTRY

Country of the market area

15.

PULL FACTOR

Ratios that estimate the proportion of local sales that occurs in a town

16.

TRADE AREA CAPTURE

An estimate of the number of people who shop in the local area during a certain period

17.

TOTAL POPULATION

Estimated total population of the market area

18.

STATE POPULATION

Estimated state population of the market area.

19.

STATE SALES

Estimated total retail sales in the state

20.

STATUS CODE

Unique Identifier of the status.



DEFINITION TYPE




AREA SHAPE




STATE SALES LOCAL




STATE SALES REPORTING




EFFECTIVE FROM DATE




EFFECTIVE TO DATE



Network

Description: NETWORK

Network Hierarchies

Standard Network Hierarchy:

Description of image064.gif follows
Description of the illustration image064.gif

Network Levels

Table 3-141 shows Network Total: All Networks are most aggregate level of dimension.

Table 3-141 Network Total

Sr. Number Attribute Description

1.

ALL NETWORK CODE

Code for All Network's.


Table 3-142 shows Network Detail: Detail level of the dimension. It stores the Network information.

Table 3-142 Network Detail

Sr. Number Attribute Description Sample Value

1.

NETWORK CODE

Identifier of the network

CDMA

2.

NETWORK TYPE CODE

A code that uniquely identifies the type of technology (for example GSM, CDMA) being used by a network.

CDMA

3.

EXTERNAL OPERATOR CODE

Unique identifier for operator. For example: Airtel, CMCC, NTT.



4.

SERVICE PROVIDER CODE

Code of the service provider of the network.



5.

NETWORK NAME

Name of the network

CDMA

6.

NETWORK DESC

A textual description that describes the type of technology (for example GSM, CDMA) being used by a network.

CDMA


Network Element

Description: NETWORK ELEMENT

Network Element Hierarchies

Standard Network Element Hierarchy:

Description of image065.gif follows
Description of the illustration image065.gif

Network Element Levels

Table 3-143 shows Network Element Total: All Networks Element are most aggregate level of dimension.

Table 3-143 Network Element Total

Sr. Number Attribute Description

1.

NETWORK ELEMENT TOTAL CODE

Code for All Network Elements.


Table 3-144 shows Network Element Detail: This level explains the detail level of Network element dimension.

Table 3-144 Network Element Detail

Sr. Number Attribute Description Sample Value

1.

NETWORK ELEMENT CODE

cells can split into sectors or individual areas to make them more efficient and to let them to carry more calls

CDMA

2.

NETWORK CODE

Identifier of the network.

CDMA

3.

NETWORK ELEMENT NAME

Name of the Network Element.

CDMA

4.

NETWORK ELEMENT DESC

Description of the Network Element.

CDMA

5.

EFFECTIVE FROM DATE

Date from when Network Element is Effective

12/31/2005 12:00:00 AM

6.

EFFECTIVE TO DATE

Date to when Network Element is Effective

12/31/2005 12:00:00 AM

7.

STATUS CODE

Unique identifier of the status.




TECHNOLOGY CODE



Network Touchpoint Class

Description: NETWORK TOUCHPOINT CLASS

Network Touchpoint Class Hierarchies

Standard Network Touchpoint Class Hierarchy:

Description of image066.gif follows
Description of the illustration image066.gif

Network Touchpoint Class Levels

Table 3-145 shows Network Touchpoint Class Total: All Networks Touch point class are most aggregate level of dimension.

Table 3-145 Network Touchpoint Class Total

Sr. Number Attribute Description

1.

NETWORK TOUCHPOINT CLASS TOTAL CODE

Code for All Network Touchpoint class.


Table 3-146 shows Network Touchpoint Class Detail: Detail level of the dimension. It stores the Network Touchpoint class information.

Table 3-146 Network Touchpoint Class Detail

Sr. Number Attribute Description Sample Value

1.

NETWORK TOUCHPOINT CLASS CODE

Unique identifier of the network touchpoint class.

INDVL

2.

NETWORK TOUCHPOINT CLASS NAME

Name of network touchpoint class.

Individual

3.

NETWORK TOUCHPOINT CLASS DESC

Description of network touchpoint class.

Network touchpoint is owned by Individual customer

4.

LANGUAGE CODE

Code for network touchpoint class languages.



Network Touchpoint Status

Description: NETWORK TOUCHPOINT STATUS

Network Touchpoint Status Hierarchies

Standard Network Touchpoint Status Hierarchy:

Description of image067.gif follows
Description of the illustration image067.gif

Network Touchpoint Status Level

Table 3-147 shows Network Touchpoint Status Total: All Networks Touchpoint Status are most aggregate level of dimension.

Table 3-147 Network Touchpoint Status Total

Sr. Number Attribute Description

1.

NETWORK TOUCHPOINT STATUS TOTAL CODE

Code for All Network Touchpoint Status.


Table 3-148 shows Network Touchpoint Status Detail: Detail level of the dimension. It stores the Network Touchpoint Status information.

Table 3-148 Network Touchpoint Status Detail

Sr. Number Attribute Description

1.

LANGUAGE CODE

Code for network touchpoint status languages

2.

NETWORK TOUCHPOINT STATUS CODE

Unique identifier of the network touchpoint status.

3.

NETWORK TOUCHPOINT STATUS NAME

Name of network touchpoint status.

4.

NETWORK TOUCHPOINT STATUS DESC

Description of network touchpoint status.


Network Touchpoint Type

Description: NETWORK TOUCHPOINT TYPE

Network Touchpoint Type Hierarchies

Standard Network Touchpoint Type Hierarchy:

Description of image068.gif follows
Description of the illustration image068.gif

Network Touchpoint Type Levels

Table 3-149 shows Network Touchpoint Type Total: All Networks Touchpoint Type are most aggregate level of dimension.

Table 3-149 Network Touchpoint Type Total

Sr. Number Attribute Description

1.

NETWORK TOUCHPOINT TYPE TOTAL CODE

Code for All Network Touchpoint Type.


Table 3-150 shows Network Touchpoint Type Detail: Detail level of the dimension. It stores the Network Touchpoint Type information.

Table 3-150 Network Touchpoint Type Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Code for network touchpoint type languages



2.

NETWORK TOUCHPOINT TYPE CODE

Unique identifier of the network touchpoint type.

BRDBND

3.

NETWORK TOUCHPOINT TYPE NAME

Name of the network touchpoint type.

Broadband

4.

NETWORK TOUCHPOINT TYPE DESC

Description of network touchpoint type.

Broadband


Notification Type

Description: NOTIFICATION TYPE

Notification Type Hierarchies

Standard Notification Type Hierarchy:

Description of image069.gif follows
Description of the illustration image069.gif

Notification Type Levels

Table 3-151 shows Notification Type Total: All Notification Type are most aggregate level of dimension.

Table 3-151 Notification Type Total

Sr. Number Attribute Description

1.

NOTIFICATION TYPE TOTAL CODE

Code for All Notification Type total.


Table 3-152 shows Notification Type Detail: Detail level of the dimension. It stores the Notification Type information.

Table 3-152 Notification Type Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Code for Notification type languages



2.

NOTIFICATION TYPE CODE

Code for UMS Notification Type.

FAX

3.

NOTIFICATION TYPE DESC

Description of the UMS Notification Type.

Fax

4.

NOTIFICATION TYPE NAME

Name of the UMS Notification Type.

Fax


NP Request Type

Description: NP REQUEST TYPE

NP Request Type Hierarchies

Standard NP Request Type Hierarchy:

Description of image070.gif follows
Description of the illustration image070.gif

NP Request Type Levels

Table 3-153 shows NP Request Type Total: All NP Request Type Total are most aggregate level of dimension.

Table 3-153 NP Request Type Total

Sr. Number Attribute Description

1.

NP REQUEST TYPE TOTAL CODE

Code for All NP Request Types Total.


Table 3-154 shows NP Request Type Detail: Detail level of the dimension. It stores the NP Request Type information.

Table 3-154 NP Request Type Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Code for NP Request Type language



2.

NP REQUEST TYPE CODE

A code, used to uniquely identify the NP REQUEST TYPE.

IN

3.

NP REQUEST TYPE NAME

The name assigned to the NP REQUEST TYPE.

Porting In

4.

NP REQUEST TYPE DESC

A textual description of the NP REQUEST TYPE.

Porting In


On Off Net

Description: ON OFF NET TYPE

On Off Net Hierarchies

Standard On Off Net Hierarchy:

Description of image102.gif follows
Description of the illustration image102.gif

On Off Net Levels

Table 3-155 shows On Off Net Total: On Off Net Total are most aggregate level of dimension.

Table 3-155 On Off Net Total

Sr. Number Attribute Description

1.

ON OFF NET TOTAL CODE

Code for All On Off Net Total.


Table 3-156 shows On Off Net Detail: Detail level of the dimension. It stores the On Off Net information.

Table 3-156 On Off Net Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Code for On Off Net language



2.

ON OFF NET TYPE CODE

A code, used to uniquely identify the On Off Net TYPE.

OFF

3.

ON OFF NET TYPE NAME

The name assigned to the On Off Net TYPE.

Off Net

4.

ON OFF NET TYPE DESC

A textual description of the On Off Net TYPE.

Off Net


Organization

Description: ORGANIZATION HIERARCHY is the hierarchy of business units within the organization, with ORGANIZATION BUSINESS UNIT as lowest level and ORGANIZATION CORPORATE as highest level.

Organization Hierarchies

Standard Organization Hierarchy:

Banner Hierarchy

Description of image072.gif follows
Description of the illustration image072.gif

Company Hierarchy:

Description of image073.gif follows
Description of the illustration image073.gif

Division Hierarchy:

Description of image074.gif follows
Description of the illustration image074.gif

Organization Corporate Levels

Table 3-157 shows All Organization Total: All Organization Total are most aggregate level of dimension.

Table 3-157 All Organization Total

Sr. Number Attribute Description

1.

ORGANIZATION TOTAL Id's

Code for All Organization Total.


Table 3-158 shows Organization Corporate: Description level of the dimension. It stores the Organization Corporate information.

Table 3-158 Organization Corporate

Sr. Number Attribute Description Sample Value

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

3.

ORGANIZATION CORPORATE CODE

Code for Organization Corporate



4.

ORGANIZATION CORPORATE DESC

Description for Organization Corporate



5.

ORGANIZATION CORPORATE ESTABLISHED



6.

ORGANIZATION CORPORATE NAME

Name for Organization Corporate



7.

STATUS CODE

Current STATUS CODE of the assignment.



Organization Banner Levels

Table 3-159 shows Organization Banner Levels: The name of a company's subsidiary that is recognizable to the consumer or the name of the store as it appears on the catalog, web channel or brick and mortar store.

Table 3-159 Organization Banner Levels

Sr. Number Attribute Description

1.

ALL ORGANIZATION BANNER ID's

Code for All Organization Banner.


Table 3-160 shows Organization Banner: Description level of the dimension. It stores the Organization Banner information.

Table 3-160 Organization Banner

Sr. Number Attribute Description Sample Value

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

3.

ORGANIZATION BANNER CODE

Code for Organization Banner



4.

ORGANIZATION BANNER DESC

Description for Organization Banner.



5.

ORGANIZATION BANNER NAME

Name for Organization Banner



6.

ORGANIZATION CORPORATE CODE

Code for Organization Corporate



7.

STATUS CODE

Current STATUS CODE of the assignment.



Organization Company Levels

Table 3-161 shows All Organization Company: All Organization Company are most aggregate level of Dimension.

Table 3-161 All Organization Company

Sr. Number Attribute Description

1.

ALL ORGANIZATION COMPANY ID's

Code for All Organization Company.


Table 3-162 shows Organization Company: Description level of the dimension. It stores the Organization Company information.

Table 3-162 Organization Company

Sr. Number Attribute Description Sample Value

1

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 0:00

2

ORGANIZATION COMPANY DESC

Description for Organization Company



3

ORGANIZATION COMPANY CODE

Code for Organization Company



4

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

5

ORGANIZATION COMPANY NAME

Name for Organization Company



6

ORGANIZATION CORPORATE CODE



7

STATUS CODE

Current STATUS CODE of the assignment.



Organization Division Levels

Table 3-163 shows Organization Division Total: All Organization Division are most aggregate level of dimension.

Table 3-163 Organization Division Total

Sr. Number Attribute Description

1.

ALL ORGANIZATION DIVISION ID's

Code for All Organization Division.


Table 3-164 shows Organization Division: Description level of the dimension. It stores the Organization Division information.

Table 3-164 Organization Division

Sr. Number Attribute Description Sample Value

1.

ORGANIZATION DIVISION CODE

Code for Organization Division

Ace Comms

3.

ORGANIZATION CORPORATE CODE

Code for Organization Code



4.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

5.

ORGANIZATION DIVISION DESC

Description for Organization Division

Ace Comms

6.

ORGANIZATION DIVISION NAME

Name for Organization Division

Ace Comms

7.

STATUS CODE

Current STATUS CODE of the assignment.




EFFECTIVE TO DATE



Organization Chain: Organization Chain Levels

Table 3-165 shows Organization Chain Total: Chain is the second highest level within the organization hierarchy below company. A chain consists of one or more areas.

Table 3-165 Organization Chain Total

Sr. Number Attribute Description

1.

ALL ORGANIZATION CHAIN ID's

Code for All Organization Chain.


Table 3-166 shows Organization Chain Detail: Description level of the dimension. It stores the Organization Chain information

Table 3-166 Organization Chain Detail

Sr. Number Attribute Description

1.

ORGANIZATION CHAIN CODE

Code for Organization chain

2.

ORGANIZATION CHAIN DESC

Description for Organization Chain

3.

ORGANIZATION CHAIN NAME

Name for Organization Chain

4.

EFFECTIVE FROM DATE

Description for Organization Chain

5.

EFFECTIVE TO DATE

End effective date for the assignment.

6.

ORGANIZATION COMPANY CODE

Code for Organization Company

7.

STATUS CODE

Current STATUS CODE of the assignment.


Organization Area

Table 3-167 shows Organization Area Total: Organization hierarchy level within an organization chain and is the parent of one or more organization regions.

Table 3-167 Organization Area Total

Sr. Number Attribute Description

1.

ALL ORGANIZATION AREA ID's

Code for All Organization Area.


Table 3-168 shows Organization Area Detail: Description level of the dimension. It stores the Organization Area information.

Table 3-168 Organization Area Detail

Sr. Number Attribute Description Sample Value

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

3.

ORGANIZATION AREA CODE

Code for Organization area



4.

ORGANIZATION AREA DESC

Description for Organization Area



5.

ORGANIZATION AREA NAME

Name for Organization Area



6.

ORGANIZATION CHAIN CODE

Code for Organization Chain



7.

STATUS CODE

Current STATUS CODE of the assignment.



Organization Region Levels

Table 3-169 shows All Organization Regions: Region is the fourth highest attribute within the organization hierarchy, below area. A region consists of one or more districts

Table 3-169 All Organization Regions

Sr. Number Attribute Description

1.

ALL ORGANIZATION REGION ID's

Code for All Organization Region.


Table 3-170 shows Organization Region: Description level of the dimension. It stores the Organization Region information.

Table 3-170 Organization Region

Sr. Number Attribute Description Sample Value

1.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

3.

ORGANIZATION AREA CODE

Code for Organization area.



4.

ORGANIZATION REGION CODE

Code for Organization region



5.

ORGANIZATION REGION DESC

Description for Organization region



6.

ORGANIZATION REGION NAME

Name for Organization Region



7.

STATUS CODE

Current STATUS CODE of the assignment.



Organization District Levels

Table 3-171 shows All Organization District: District is the fifth highest attribute within the organization hierarchy, below region. A district consists of one or more business units.

Table 3-171 All Organization District

Sr. Number Attribute Description

1.

ALL ORGANIZATION DISTRICT ID's

Code for All Organization District.


Table 3-172 shows Organization District: Description level of the dimension. It stores the Organization District information.

Table 3-172 Organization District

Sr. Number Attribute Description Sample Value

1.

ORGANIZATION DISTRICT CODE

Code for Organization District

12/31/2005 12:00:00 AM

2.

EFFECTIVE TO DATE

End effective date for the assignment.

12/31/2005 12:00:00 AM

3.

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date



4.

ORGANIZATION DISTRICT DESC

Description for Organization District



5.

ORGANIZATION DISTRICT NAME

Name for Organization District



6.

ORGANIZATION REGION CODE

Code for Organization Region.



7.

STATUS CODE

Current STATUS CODE of the assignment.



Organization Business Unit

Organization business unit contains 2 kinds of information -store and branch company. In the higher level is branch company. Some customer cannot belong to a particular store, in that case, they are associated with a branch company. So branch company are put in organization business unit level. A business unit of the organization that sells, stores, or distributes merchandises and services through either a physical location (store), catalog, web page or other channel, distribution center, or warehouse.

Table 3-173 shows All Organization Business Unit: It is the lowest level of Organization.

Table 3-173 All Organization Business Unit

Sr. Number Attribute Description

1.

ALL ORGANIZATION BUSINESS UNIT ID's

Code for All Organization Business Unit.


Table 3-174 shows Organization Business Unit: Description level of the dimension. It stores the Organization Business Unit information.

Table 3-174 Organization Business Unit

Sr. Number Attribute Description

1

ADDRESS LINE 1

Address. Line one of detailed postal address

2

ADDRESS LINE 2

Address. Line 2 of the detailed postal address

3

ADDRESS LINE 3

Address. Line 3 of the detailed postal address

4

ADDRESS LOCATION CODE

unique identifier for the address Location

5

ADDRESS TYPE CODE

Unique identifier of the address type.

6

ADDRESS USAGE

Describes how the address is used

7

ANNUAL REVENUE

Revenue of the company.

8

ANNUAL REVENUE LOCAL

Revenue of the company.

9

ANNUAL REVENUE REPORTING

Revenue of the company.

10

ANNUAL SALES

Sales of the company

11

ANNUAL SALES LOCAL

Sales of the company

12

ANNUAL SALES REPORTING

Sales of the company

13

BANKRUPTCY END DATE

The end date of bankruptcy. If current date is behind start and end date is null, then the company is undergoing the bankruptcy process.

14

BANKRUPTCY START DATE

start date of bankruptcy.

15

BUSINESS ENTITY CODE

Business Entity Identifier. Unique Identifier for Business Entity.

For example: SPRINT

16

BUSINESS UNIT CONCEPT

"Possible values include, Convenience, General Merchandise, Category dominant anchors with few small tenants, Fashion, Higher-end (Upscale), Fashion oriented, Manufacturer's Outlet, Leisure, Tourist oriented and Discount."

18

BUSINESS UNIT TYPE CODE

Unique identifier of the business unit type

19

CHAIRMAN CODE

Connect to Another Person Party who is responsible for this Organization.

20

CHANNEL TYPE CODE

Unique identifier of the channel type

21

COMPANY REGISTRY NUMBER

Will be same as Party. National_Identifier. Natural Key for Organization.

45

ACCOUNT CLERK CODE

This field is client specific. The definition and use of this field is customizable for each client

46

MANAGER EMPLOYEE NUMBER

Unique key denoting the employee number of the employee's manager.

47

MANAGER NAME

Name of manager for the whole company.

48

ORGANIZATION BANNER CODE

Unique identifier for Organization Banner

49

ORGANIZATION BUSINESS UNIT CODE

Unique identifier for Business Unit. To identify whether the site is a store, distribution center or warehouse.

For example: SPRINT1

50

ORGANIZATION BUSINESS UNIT TYPE CODE

Unique identifier for Organization Business Unit Type

51

ORGANIZATION CODE

The unique identifier of the organization.

For example: ORGUNIT1

52

ORGANIZATION DISTRICT CODE

Unique identifier for Organization district

53

ORGANIZATION DIVISION CODE

Unique identifier for division.

For example: China Mobile Beijing

54

ORGANIZATION NAME

Name of the organization

55

ORGANIZATIONAL DEMOGRAPHY VALUE CODE

Unique identifier for demography

56

PAYMENT ACCOUNT CLOSE DATE

Closing date of the account for payments.

For example: 12/31/2005 12:00:00 AM

57

PAYMENT ACCOUNT NUMBER

Account number for payments.

58

PAYMENT ACCOUNT OPEN DATE

Opening date of the account for payments.

For example: 12/31/2005 12:00:00 AM

59

POSTAL PLUS CODE

Four digit extension to the United States Postal ZIP code.

60

POSTCODE

Postal codes of interest to the Retail Organization

61

PRIMARY ADDRESS TELEPHONE

Default Address Telephone Number

62

PRIMARY BUSINESS UNIT CALENDAR CODE

Primary Business Unit Calendar Code

63

PRIMARY CURRENCY ISO CODE

The unique ISO standard identifier of the CURRENCY

64

PRIMARY EMAIL ADDRESS

Default Email Address

65

PRIMARY TRADE AREA CODE

Primary Trade area code, under which the business unit falls

66

SEAL IMAGE

The image of the Organization's Seal, or the Artificial Person's Signature.

67

SECONDARY DESCRIPTION

"The secondary description or name of the store or warehouse."

68

SHOPPING CENTER TYPE

Shopping center is group of retail and other commercial establishments that is planned, developed, owned, and managed as a single property.

Strip Center (Neighborhood, Community)- Mall (Power, Super Regional, Regional, Fashion/Specialty, Lifestyle, Outlet, Theme/Festival)".

70

SHORT DESCRIPTION

The 3 character abbreviation of the store name.

71

STOCK EXCHANGE NAME

Abbreviation of listed companies as used on the stock exchange.

72

TAX EXEMPT STATUS

Indicates if the org. is tax exempt.

73

TERMINATION DATE

Termination date of the company in case of company was founded with termination date.

For example: 12/31/2005 12:00:00 AM

74

TIME ZONE

It denotes which TimeZone the Site is in.

75

TOTAL LINEAR DISTANCE

The total linear selling space of the location.

76

VALIDATION END DATE

Effective date of the deletion of the company's record from the company register.

For example: 12/31/2005 12:00:00 AM

77

VALIDATION START DATE

Date of the registration of the company' record deletion from the company register.

For example: 12/31/2005 12:00:00 AM

78

VAT INCLUDE INDICATOR

Indicates whether the Value Added Tax will be included in the retail prices for the store. Valid values are 'Y' or 'N'."

80

VAT REGION

"The number of the Value Added Tax region in which this store or warehouse is contained."



PARTY CODE




PARTY TYPE CODE




BUSINESS LEGAL STATUS CODE




SOURCE SYSTEM CODE




BARING REASON CODE




STATUS CODE




CITY




STATE




COUNTRY




PARTY NAME




PARTY DESC




LOCATION TYPE CODE




CONTACT TYPE CODE




ADDRESS




PRIMARY MARKET AREA CODE




ACTIVE INDICATOR




CUSTOMER INDICATOR




JUDICIAL DISTRAINT CODE




CONTACT CODE




COURT CODE




MANAGER CODE




DUNS NUMBER




CONTACT NUMBER




LONG DESCRIPTION




CONSTRUCTION STATUS




CONTACT NAME




EXTERNAL NAME




EMPLOYEE COUNT




EQUITY AMOUNT




EQUITY AMOUNT LOCAL




EQUITY AMOUNT REPORTING




LIQUIDATION START DATE




LIQUIDATION END DATE




DOMESTIC INDICATOR




FINAL SETTLEMENT START DATE




FINAL SETTLEMENT END DATE




JUDICIAL DISTRAINT DATE




EFFECTIVE FROM DATE




EFFECTIVE TO DATE



Partner Settlement Reason

Description: PARTNER SETTLEMENT REASON

Partner Settlement Reason Hierarchies

Standard Partner Settlement Reason Hierarchy:

Description of image075.gif follows
Description of the illustration image075.gif

Partner Settlement Reason Levels

Table 3-175 shows Partner Settlement Reason Total: All Partner Settlement Reason are most aggregate level of dimension.

Table 3-175 Partner Settlement Reason Total

Sr. Number Attribute Description

1.

ALL PARTNER SETTLEMENT REASON CODE

Code for All Partner Settlement Reason.


Table 3-176 shows Partner Settlement Reason Detail: Detail level of the dimension. It stores the Partner Settlement Reason information.

Table 3-176 Partner Settlement Reason Detail

Sr. Number Attribute Description

1.

LANGUAGE CODE

Unique identifier for Language

2.

PARTNER SETTLEMENT REASON CODE

Unique identifier for Partner Settlement

3.

PARTNER SETTLEMENT REASON NAME

Name of the Partner Settlement

4.

PARTNER SETTLEMENT REASON DESC

Description for the Partner Settlement


Party

Description: PARTY

Party Hierarchies

Standard Party Hierarchy:

Description of image076.gif follows
Description of the illustration image076.gif

Party Levels

Table 3-177 shows Party Total: All Party is most aggregate level of dimension.

Table 3-177 Party Total

Sr. Number Attribute Description

1.

ALL PARTY CODE

Code for All Party.


Table 3-178 shows Party Detail: Detail level of the dimension. It stores the Party information.

Table 3-178 Party Detail

Sr. Number Attribute Description Sample Value

1.

ACTIVE INDICATOR

Indicates if the party is currently active - which means the party has a current relationship with the carrier.

Y

2.

ADDRESS

Address of the party. Redundance to party location history.



3.

BARING REASON CODE

Reasons for barring. For example, 1-Credit Limit, 2-Barring period.



4.

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



5.

CITY

City of the party. Redundance to party location history.



6.

COUNTRY

Country of the party. Redundance to party location history.



7.

CUSTOMER INDICATOR

Indicates if the party is a customer. Note: the party may have multiple relationships simultaneously - this flag identifies those parties which has a current account with the Telco.



8.

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column

12/31/2005 12:00:00 AM

9.

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column

12/31/2005 12:00:00 AM

10.

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.

PRTY-50001

11.

PARTY DESC

Description of the party. Applicable to both individual and organization. Normally it refer to the full name.

Sprint

12.

PARTY NAME

Name of the party. Applicable to both individual and organization. Normally it refer to the full name.

Sprint

13.

PARTY TYPE CODE

Party Type Code

ORGUNIT

14.

POST CODE

Postcode of the party. Redundance to party location history.



15.

SOURCE SYSTEM CODE

SOURCE SYSTEM ID, from which source ERP system this recorded was extracted.



16.

STATE

State of the party. Redundance to party location history.



17.

STATUS CODE

Current status of party.



Payment Channel

Description: PAYMENT CHANNEL.

Payment Channel Hierarchies

Standard Payment Channel Hierarchy:

Description of image077.gif follows
Description of the illustration image077.gif

Payment Channel Levels

Table 3-179 shows Payment Channel Total: All Payment Channel are most aggregate level of dimension.

Table 3-179 Payment Channel Total

Sr. Number Attribute Description

1.

PAYMENT CHANNEL TOTAL ID's

Code for All Payment Channel.


Table 3-180 shows Payment Channel Detail: Detail level of the dimension. It stores the Payment Channel Detail information.

Table 3-180 Payment Channel Detail

Sr. Number Attribute Description Sample Value

1.

CAPACITY QUANTITY

The number of transaction that a Channel can handle, at a point of time.

$1.00

2.

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



3.

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



4.

PAYMENT CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



5.

CHANNEL NAME

The name assigned to a channel.

PAY

6.

CHANNEL TYPE CODE

Unique identifier of the channel type

PAY



PARTY TYPE CODE




CHANNEL DESC




EFFECTIVE FROM DATE




EFFECTIVE TO DATE




STATUS CODE



Payment Method Type

Description: PAYMENT METHOD TYPE

Payment Method Type Hierarchies

Standard Payment Method Type Hierarchy:

Description of image078.gif follows
Description of the illustration image078.gif

Payment Method Type Levels

Table 3-181 shows Payment Method Type Total: All Payment Method Types are most aggregate level of dimension.

Table 3-181 Payment Method Type Total

Sr. Number Attribute Description

1.

PAYMENT METHOD TYPE TOTAL ID's

Code for All Payment Method Types.


Table 3-182 shows Payment Method Type Detail: Detail level of the dimension. It stores the Payment Method Type Detail information.

Table 3-182 Payment Method Type Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



2.

PAYMENT METHOD TYPE CODE

Code for All Payment Methods Types

BNK

3.

PAYMENT METHOD TYPE DESC

Payment Method Type Description.

Bank

4.

PAYMENT METHOD TYPE NAME

Payment Method Type Name.

Bank


Payment Transaction Type

Description: PAYMENT TRANSACTION TYPE

Payment Transaction Type Hierarchies

Standard Payment Transaction Type Hierarchy:

Description of image079.gif follows
Description of the illustration image079.gif

Payment Transaction Type Levels

Table 3-183 shows Payment Transaction Type Total: All Payment Transaction Type are most aggregate level of dimension.

Table 3-183 Payment Transaction Type Total

Sr. Number Attribute Description

1.

PAYMENT TRANSACTION TYPE TOTAL CODE

Code for All Payment Transaction Type.


Table 3-184 shows Payment Transaction Type Detail: Detail level of the dimension. It stores the Payment Transaction Type Detail information.

Table 3-184 Payment Transaction Type Detail

Sr. Number Attribute Description Sample Value

1.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.



2.

PAYMENT TRANSACTION TYPE CODE

Code for payment transaction type.

CRDT

3.

PAYMENT TRANSACTION TYPE DESC

Description for payment transaction type.

Credit

4.

PAYMENT TRANSACTION TYPE NAME

Name of payment transaction type.

credit


PCU Outage Reason

Description: PCU OUTAGE REASON

PCU Outage Reason Hierarchies

Standard PCU Outage Reason Hierarchy:

Description of image080.gif follows
Description of the illustration image080.gif

PCU Outage Reason Levels

Table 3-185 shows PCU Outage Reason Total: All PCU Outage Reason are most aggregate level of dimension.

Table 3-185 PCU Outage Reason Total

Sr. Number Attribute Description

1.

PCU OUTAGE REASON TOTAL CODE

Code for All PCU Outage Reason.


Table 3-186 shows PCU Outage Reason Detail: Detail level of the dimension. It stores the PCU Outage Reason Detail information.

Table 3-186 PCU Outage Reason Detail

Sr. Number Attribute Description

1.

LANGUAGE CODE

Language ID---Unique identifier for a row in the Language dimension.

2.

PCU OUTAGE REASON CODE

Code for PCU outage reason.

3.

PCU OUTAGE REASON DESC

Description for PCU outage reason.

4.

PCU OUTAGE REASON NAME

Name of PCU outage reason.


Peak Offpeak Time

Description: PEAK OFFPEAK TIME

Peak Offpeak Time Hierarchies

Standard Peak Offpeak Time Hierarchy:

Description of image081.gif follows
Description of the illustration image081.gif

Peak Offpeak Time Levels

Table 3-187 shows Peak Offpeak Time Total: All Peak Offpeak Time is most aggregate level of dimension.

Table 3-187 Peak Offpeak Time Total

Sr. Number Attribute Description

1.

PEAK OFFPEAK TIME TOTAL Id's

Code for All Peak Offpeak Time.


Table 3-188 shows Peak Offpeak Time Detail: Detail level of the dimension. It stores the Peak Offpeak Time Detail information.

Table 3-188 Peak Offpeak Time Detail

Sr. Number Attribute Description Sample Value

1.

HOLIDAY INDICATOR

Indicates if the time band applies on designated public holidays.

N

2.

PEAK OFFPEAK END

This is to express start and end date for all days, therefore it use varchar2 rather than date data type.

4/1/2008 5:00:00 PM

3.

PEAK OFFPEAK START

This is to express start and end date for all days, therefore it use varchar2 rather than date data type.

4/1/2008 5:00:00 PM

4.

PEAK OFFPEAK TIME CODE

Indicates if this time is busy hour.

PK

5.

PEAK OFFPEAK TIME DESC

Peak Off peak Time Description



6.

PEAK OFFPEAK TIMENAME

Peak Off peak Time name

Peak Time

7.

WEEKDAY INDICATOR

Indicates if the time band applies on week days (Monday through Friday).

Y

8.

WEEKEND INDICATOR

Indicates if the time band applies on weekends (Saturday and Sunday).

Y



LANGUAGE CODE



PPA Category

Description: PPA CATEGORY

PPA Category Hierarchies

Standard PPA Category Hierarchy:

Description of image082.gif follows
Description of the illustration image082.gif

PPA Category Levels

Table 3-189 shows PPA Category Total: Most Aggregate level of the dimension.

Table 3-189 PPA Category Total

Sr. Number Attribute Description

1.

PPA CATEGORY TOTAL ID

Code for All PPA Categories


Table 3-190 shows PPA Category Detail: level of the dimension, stores PPA Category information.

Table 3-190 PPA Category Detail

Sr. Number Attribute Description Sample Value

1.

PPA CATEGORY CD

PPA Category code

FLANSWER

2.

LANGUAGE CODE

Language Code



3.

PPA CATEGORY NAME

PPA Category Short Description

Free Local Answer

4.

PPA CATEGORY DESCRIPTION

PPA Category Description

free local answer


Product

Description: PRODUCT

Product Hierarchies

Standard Product Hierarchy:

Description of image083.gif follows
Description of the illustration image083.gif

Product Levels

Table 3-191 shows Product Total: This is the most aggregate level of the product dimension and hence represents the summation for all products including prepaid and post paid products/packages in the company.

Table 3-191 Product Total

Sr. Number Attribute Description

1.

All PRODUCTS ID

Identification for the top level value


Table 3-192 shows Product Type: The level classifies products into two main categories, that is, Prepaid and Postpaid products.

Table 3-192 Product Type

Sr. Number Attribute Description Sample Value

1.

PRODUCT TYPE CD

Product Type Code

BB

2.

PRODUCT TYPE DESCRIPTION

Product Type Description

Broad Band



PRODUCT TYPE NAME




PRODUCT TYPE DESC




EFFECTIVE FROM DATE




EFFECTIVE TO DATE




STATUS CODE



Product Market Plan

Description: PRODUCT MARKET PLAN

Product Market Plan Hierarchies

Standard Product Hierarchy:

Description of image083a.gif follows
Description of the illustration image083a.gif

Product Market Plan Levels

Table 3-193 shows Product Market Plan Total: This is the most aggregate level of the product market plan dimension.

Table 3-193 Product Market Plan Total

Sr. Number Attribute Description

1.

All PRODUCTS ID

Identification for the top level value


Table 3-194 shows Product Market Plan Type:

Table 3-194 Product Market Plan Type

Sr. Number Attribute Description Sample Value

1.

PRODUCT TYPE CD

Product Type Code

BB

2.

PRODUCT TYPE DESCRIPTION

Product Type Description

Broad Band



PRODUCT TYPE NAME




PRODUCT TYPE DESC




EFFECTIVE FROM DATE




EFFECTIVE TO DATE




STATUS CODE



Table 3-195 shows Product Market Plan Detail: This is the lowest or most granular level of the product market plan dimension.

Table 3-195 Product Market Plan Detail

Sr. Number Attribute Description Sample Value

1

PRODUCT MARKET PLAN KEY

Unique Identifier for market plan



2

PRODUCT MARKET PLAN CODE

MARKET PLAN CODE.

PLAN-1

3

PRODUCT MARKET PLAN NAME

MARKET PLAN NAME.



4

PRODUCT MARKET PLAN TYPE CODE

PREPAID



5

COMMIT SERVICE TIME

How much service time are committed by customer to use.

$23.00

6

DISCOUNT AMOUNT

Total DISCOUNT AMOUNT offered.



7

DISCOUNT AMOUNT LOCAL

Total DISCOUNT AMOUNT offered.



8

DISCOUNT AMOUNT REPORTING

Total DISCOUNT AMOUNT offered.



9

EARLY DEPARTURE PENALTY

The penalty if the subscription was terminated before the committed service time.

$200.00

10

EARLY DEPARTURE PENALTY LOCAL

The penalty if the subscription was terminated before the committed service time.

$200.00

11

EARLY DEPARTURE PENALTY REPORTING

The penalty if the subscription was terminated before the committed service time.

$200.00

12

EFFECTIVE FROM DATE

The date on which an Offering becomes associated with a Product.

12/31/2005 12:00:00 AM

13

EFFECTIVE TO DATE

The date on which an Offering ceases to be associated with a Product.

12/31/2005 12:00:00 AM

14

EXPECTED TOTAL COST

EXPECTED TOTAL COST.



15

EXPECTED TOTAL COST LOCAL

TOTAL COST.



16

EXPECTED TOTAL COST REPORTING

TOTAL COST.



17

EXPECTED TOTAL REVENUE

EXPECTED TOTAL REVENUE.



18

EXPECTED TOTAL REVENUE LOCAL

EXPECTED TOTAL REVENUE.



19

EXPECTED TOTAL REVENUE REPORTING

EXPECTED TOTAL REVENUE.



20

FREE TIME

How much free time provided in the package over the specific product.

$10.00

21

FREE TIME UOM

UOM of free time, like month (for broadband, VAS, and so on) or Minutes (for Call).

Day

22

GROSS ARPU

Expected GROSS ARPU.

$100.00

23

GROSS ARPU LOCAL

Expected GROSS ARPU.

$100.00

24

GROSS ARPU REPORTING

Expected GROSS ARPU.

$100.00

25

INTIAL DEPOSIT AMOUNT

After customer joins the market plan, how much deposit is given



26

INTIAL DEPOSIT AMOUNT LOCAL

After customer joins the market plan, how much deposit is given.



27

INTIAL DEPOSIT AMOUNT REPORTING

After customer joins the market plan, how much deposit is given.



28

JOINT PROGRAM INDICATOR

JOINT_PROGRAM_FLAG.



29

LOYALTY PROGRAM INDICATOR

LOYALTY PROGRAM FLAG.



30

MARKET PLAN FULL DESC

MARKET PLAN FULL DESC.

FREE COMBO FOR 14 YEARS

31

NET ARPU

Expected net arpu.



32

NET ARPU LOCAL

Expected net arpu.



33

NET ARPU REPORTING

Expected net arpu.



34

NEW CUSTOMER ONLY INDICATOR

NEW CUSTOMER ONLY INDICATOR.

N

35

PORTING CHARGE

PORTING CHARGE if available. Charge for porting in, out.



36

PORTING CHARGE LOCAL

PORTING CHARGE if available. Charge for porting in, out.



37

PORTING CHARGE REPORTING

PORTING CHARGE if available. Charge for porting in, out.



38

PREMIUM PAY AMOUNT

PREMIUM PAY AMOUNT. Customer have to pay a certain amount to get premium



39

PREMIUM PAY AMOUNT LOCAL

PREMIUM PAY AMOUNT. Customer have to pay a certain amount to get premium



40

PREMIUM PAY AMOUNT REPORTING

PREMIUM PAY AMOUNT. Customer have to pay a certain amount to get premium



41

PREMIUM PAY METHOD

PREMIUM PAY METHOD.



42

PREPAID SERVICE TIME

$24.00



43

PREPAY AMOUNT

How much prepayment must be made.

$200.00

44

PREPAY AMOUNT LOCAL

How much prepayment must be made.

$200.00

45

PREPAY AMOUNT REPORTING

How much prepayment must be made.

$200.00

46

PREPAY TIME

INITIAL PAY Service TIME.



47

PRIMARY PRODUCT CODE

The short name for the product.



48

PRODUCT RATING PLAN CODE

The code to identify a Pricing plan.



49

REMARK

Remark from creating or amending employee.



50

SERVICE TIME UNIT CHARGE

Charge of every service time unit - normally month, defined by the service time UOM.

$9,000.00

51

SERVICE TIME UNIT CHARGE LOCAL

Charge of every service time unit - normally month, defined by the service time UOM

$9,000.00

52

SERVICE TIME UNIT CHARGE REPORTING

Charge of every service time unit - normally month, defined by the service time UOM

$9,000.00

53

SERVICE TIME UOM

UOM of prepaid service, commit service, trial service time.

Month

54

STATUS CODE



55

TOTAL COST UPGRADE

TOTAL COST UPGRADE



56

TOTAL COST UPGRADE LOCAL

TOTAL COST UPGRADE.



57

TOTAL COST UPGRADE REPORTING

TOTAL COST UPGRADE.



58

TOTAL SERVICE TIME

TOTAL SERVICE TIME.

1

59

TRIAL SERVICE TIME

For how long the customer can terminate the subscription without penalty.



60

VAS INDICATOR

Whether VAS line was included with the package.



Promotion

Description: PROMOTION

Promotion Hierarchies

Standard Promotion Hierarchy:

Description of image084.gif follows
Description of the illustration image084.gif

Promotion Levels

Table 3-196 shows Campaign: A campaign is a concentrated effort to enhance the image of the enterprise, to retain, acquire, or consolidate customers.

Table 3-196 Campaign

Sr. Number Attribute Description Sample Value

1

CAMPAIGN CODE

Unique Identifier for Campaign

CMPGN-1

2

CAMPAIGN DESC

A textual description of the Campaign.



3

CAMPAIGN NAME

Short Name of the Campaign



4

CAMPAIGN PURPOSE

Campaign purpose. The purpose of the campaign being conducted, in most of scenarios this field would be empty since this would be addressed in the Theme and Promotion Theme. But when this campaign is being executed as a continuation of a previous campaign due to demand, this field would contain the reason for that continuation.

ACQUIRE

5

CAMPAIGN PURPOSE TYPE CODE

Unique Identifier for a Campaign purpose type



6

CAMPAIGN STATUS CODE

A code used to uniquely identify strategy of a Campaign.

CSTAT

7

CAMPAIGN TYPE CODE

Unique Identifier for a Campaign type.

MMPRMTN

8

COST AMOUNT

The monetary cost of a Campaign.



9

COST AMOUNT LOCAL

The monetary cost of a Campaign.



10

COST AMOUNT REPORTING

The monetary cost of a Campaign.



11

COST CODE

Identify the cost to the Carrier.



12

EFFECTIVE FROM DATE

The start date of a Campaign.

12/31/2005 12:00:00 AM

13

EFFECTIVE TO DATE

The end date of a Campaign.

12/31/2005 12:00:00 AM

14

FUND SOURCE CODE

Campaign fund source type. Possible values would include, Vendor Sponsored, Charity and so on.



15

GLOBAL IND

Flag to indicate if the campaign is run globally. Flag to indicate if the campaign is run globally.



16

PARTNER IND

Indicates if the campaign has partners. Indicates if the campaign has partners



17

PARTNER NUMBER

Identification number for partner.



18

PLANNED COST

Planned or budgeted total cost for the campaign.



19

PLANNED COST LOCAL

Planned or budgeted total cost for the campaign.



20

PLANNED COST REPORTING

Planned or budgeted total cost for the campaign.



21

PLANNED RESPONSE

Expected or planned response for the campaign.



22

PRIORITY

Campaign priority. Campaign priority



Table 3-197 shows Campaign Type:

Table 3-197 Campaign Type

Sr. Number Attribute Description Sample Value


CAMPAIGN TYPE CODE

A code used to uniquely identify a CAMPAIGN TYPE.

TGPRMTN



CAMPAIGN TYPE DESC

A textual description of a CAMPAIGN TYPE.

A Targeted Promotion



CAMPAIGN TYPE NAME

The name assigned to a CAMPAIGN TYPE.

Targeted Promotion



LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Table 3-198 shows Promotion Type: The type of a promotion, like direct marketing by Phone call, direct marketing by mail, Media Broadcast by TV, and so on.

Table 3-198 Promotion Type

Sr. Number Attribute Description Sample Value

1

PROMOTION TYPE CODE

A code used to uniquely identify a PROMOTION TYPE.

MAIL

2

PROMOTION TYPE DESC

A textual description of a PROMOTION TYPE.

Promotion by Mail

3

PROMOTION TYPE NAME

The name assigned to a PROMOTION TYPE.

Mail

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Table 3-199 shows Promotion Type: This entity keeps types of Campaigns. Examples include: a targeted promotion (to specific individuals, account or group of accounts, a mass market promotion (to a massive audience usually through radio, television, and newspaper.

Table 3-199 Promotion

Sr. Number Attribute Description Sample Value

1

PROMOTION CODE

A unique identifier for a campaign cell.

PRMTN-1

2

PROMOTION DESC

A textual description for a campaign Cell.

PRMTN-1

3

PROMOTION NAME

Name of Promotion

PRMTN-1

4

ACTUAL RESPONSE COUNT

Actual RESPONSE COUNT.



5

ACTUAL SALES AMOUNT

ACTUAL SALES AMOUNT.



6

ACTUAL SALES AMOUNT LOCAL

ACTUAL SALES AMOUNT.



7

ACTUAL SALES AMOUNT REPORTING

ACTUAL SALES AMOUNT.



8

ACTUAL SALES COUNT

ACTUAL SALES COUNT.



9

ACTUAL TOTAL COST

ACTUAL TOTAL COST.



10

ACTUAL TOTAL COST LOCAL

ACTUAL TOTAL COST.



11

ACTUAL TOTAL COST REPORTING

ACTUAL TOTAL COST.



12

CAMPAIGN CHANNEL CODE

A unique identifier for a campaign channel.



13

CAMPAIGN CODE

The campaign which this cost occurs in

CMPGN-1

14

GLOBAL IND

Flag to indicate if the campaign is run globally.



15

PARTICIPANT TARGET NUMBER

The number of target customers within a PROMOTION.

113

16

PARTNER NUMBER

Unique number assigned to the Partner



17

PERSON RESPONSIBLE

Name of the employee who is responsible for the promotion



18

PLANNED RESPONSE COUNT

Number of positive responses expected on the full promotion time.



19

PLANNED SALES AMOUNT

Planned sales amount.



20

PLANNED SALES AMOUNT LOCAL

Planned sales amount local.



21

PLANNED SALES AMOUNT REPORTING

Planned sales amount reporting.



22

PLANNED SALES COUNT

Planned sales count



23

PLANNED TOTAL COST

Planned or budgeted total cost for the promotion.

$200.00

24

PLANNED TOTAL COST LOCAL

Planned or budgeted total cost for the promotion.

$200.00

25

PLANNED TOTAL COST REPORTING

Planned or budgeted total cost reporting for the promotion.

$200.00

26

PROMOTION END DATE

Promotion end date.

12/31/2005 12:00:00 AM

27

PROMOTION PURPOSE

Captures the purpose of the promotion.



28

PROMOTION START DATE

PROMOTION START DATE.

12/31/2005 12:00:00 AM

29

PROMOTION TYPE CODE

A code used to uniquely identify a PROMOTION TYPE.

MAIL

30

TARGET TYPE CODE

A code used to uniquely identify a Categorization for each Target occurrence. Examples include: C = Customer A = Account AM = Access Method M = Market.

ACCS

31

THEME

Promotion theme



32

VERSION NUMBER

Version Number of the campaign. A campaign can have many versions before it goes active



Promotion Result Type

Description: PROMOTION RESULT TYPE

Promotion Result Hierarchies

Standard Promotion Result Type Hierarchy:

Description of image085.gif follows
Description of the illustration image085.gif

Promotion Result Type Levels

Table 3-200 shows Promotion Result Type Total: Top level for the dimension with one single value indicating value for all promotion result type.

Table 3-200 Promotion Result Type Total

Sr. Number Attribute Description

1.

PROMOTION RESULT TYPE TOTAL ID

Code for All Promotion Result Type


Table 3-201 shows Promotion Result Type Detail: Contain actual sales campaign result type values. Data for the sales campaign results will have these values. Like Offer accepted, Attribution prevented

Table 3-201 Promotion Result Type Detail

Sr. Number Attribute Description Sample Value

1

PROMOTION RESULT CTGRY CODE

Code for Sales Campaign result category.



2

PROMOTION RESULT CTGRY DESC

Code for Sales Campaign result category.



3

PROMOTION RESULT CTGRY NAME

Description of the Sales Campaign result category.



4

PROMOTION RESULT TYPE CODE

Name of the Sales Campaign result.

ATRPRVNT

5

PROMOTION RESULT TYPE DESC

Code for Sales Campaign Result.

Attribution Prevented

6

PROMOTION RESULT TYPE NAME

Description of the Sales Campaign result

Attribution Prevented

7

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Recharge Revenue Slab

Description: RECHARGE REVENUE SLAB

Recharge Revenue Slab Hierarchies

Standard recharge revenue slab Hierarchy:

Description of image086.gif follows
Description of the illustration image086.gif

Recharge Revenue Slab Levels

Table 3-202 shows Recharge Revenue Slab Total: Top level for the dimension with one single value indicating value for all slabs.

Table 3-202 Recharge Revenue Slab Total

Sr. Number Attribute Description

1.

RECHARGE REVENUE SLAB TOTAL ID

Code for All recharge revenue slabs


Table 3-203 shows Recharge Revenue Slab Detail: Most detail level holds values for individual recharge slabs.

Table 3-203 Recharge Revenue Slab Detail

Sr. Number Attribute Description Sample Value

1

RECHARGE REVENUE SLAB CODE

Recharge revenue slab ID or code.

RVN100

2

RECHARGE REVENUE SLAB DESC

Recharge revenue slab description.

Recharge revenue earned for $50-100

3

RECHARGE REVENUE SLAB NAME

Recharge revenue slab short description.

$50-100

4

SLAB RANGE END VALUE

End value of the slab.



5

SLAB RANGE END VALUE LOCAL

End value of the slab.



6

SLAB RANGE END VALUE REPORTING

End value of the slab.



7

SLAB RANGE START VALUE

Starting value of the slab.



8

SLAB RANGE START VALUE LOCAL

Starting value of the slab.



9

SLAB RANGE START VALUE REPORTING

Starting value of the slab



10

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Redemption Type

Description: REDEMPTION TYPE

Redemption Type Hierarchies

Standard Redemption Type Hierarchy:

Description of image087.gif follows
Description of the illustration image087.gif

Redemption Type Levels

Table 3-204 shows Redemption Type Total: Top level used to aggregate data for all the redemption types.

Table 3-204 Redemption Type Total

Sr. Number Attribute Description

1.

REDEMPTION TYPE TOTAL ID

Code for All redemption Types


Table 3-205 shows Redemption Type: Granular level of the dimension at which data is available, lists all the redemption types and its descriptions.

Table 3-205 Redemption Type

Sr. Number Attribute Description Sample Value

1

REDEMPTION TYPE CODE

Code for Redemption Types.

ACCTDPST

2

REDEMPTION TYPE DESC

Redemption Type Description.

Account Deposit

3

REDEMPTION TYPE NAME

Redemption Type Short Name.

Account Deposit

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



RF Carrier

Description: RF CARRIER

RF Carrier Hierarchies

Standard RF Carrier Hierarchy:

Description of image088.gif follows
Description of the illustration image088.gif

RF Carrier Levels

Table 3-206 shows RF Carrier Total: Values for all carriers. Data may or may not be seen at this level.

Table 3-206 RF Carrier Total

Sr. Number Attribute Description

1.

CARRIER TOTAL ID

Code for All Carriers


Table 3-207 shows RF Carrier Detail: The detail level of the dimension at which the data will be captured and stored.

Table 3-207 RF Carrier Detail

Sr. Number Attribute Description Sample Value

1

RF CARRIER CODE

Carrier code or ID.



2

RF CARRIER DESC

Carrier description.



3

RF CARRIER NAME

Carrier Name.



4

STATUS CODE

Current Status Identifier



5

BASE TRANSCEIVER STATION CODE

Identifier for Transceiver Station



6

EFFECTIVE FROM DATE

In Effect From

12/31/2005 12:00:00 AM

7

EFFECTIVE TO DATE

In Effect till date

12/31/2005 12:00:00 AM


Roaming Type

Description: ROAMING TYPE

Roaming Type Hierarchies

Standard Roaming Type Hierarchy:

Description of image089.gif follows
Description of the illustration image089.gif

Roaming Type Levels

Table 3-208 shows Roaming Type Total: The Subscriber type defines if the calls made/received are by the Roaming subscriber or by a non-roaming subscriber. Roaming type is further classified as Inbound and outbound roaming subscriber

Table 3-208 Roaming Type Total

Sr. Number Attribute Description

1.

ROAMING TYPE TOTAL CODE

Code for All Roaming Types


Table 3-209 shows Roaming Type: If the calls made/received are by the Roaming subscriber or by a non-roaming subscriber.

Table 3-209 Roaming Type Detail

Sr. Number Attribute Description Sample Value

1

ROAMING TYPE CODE

ROAMING TYPE CODE.

NONROAM

2

ROAMING TYPE DESC

ROAMING TYPE DESC.

Non-Roaming

3

ROAMING TYPE NAME

Short description of the ROAMING TYPE.

Non-Roaming

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Sales Channel

Description: SALES CHANNEL

Sales Channel Hierarchy

Standard Sales Channel Hierarchy:

Description of image090.gif follows
Description of the illustration image090.gif

Sales Channel Levels

Table 3-210 shows Sales Channel Total: The most aggregate level in the channel dimension. It combines the results of all channels and shows the total values for facts if selected in the report.

Table 3-210 Sales Channel Total

Sr. Number Attribute Description

1.

SALES CHANNEL TOTAL ID

Code for All Sales channels value


Table 3-211 shows Sales Channel Detail: Sales channel is not multi tiered. Mainly there are three channels of sales such as Sales Representatives, Outlets and dealers. Which are represented by the channel level, which also becomes the lowest level for the channel dimension.

Table 3-211 Sales Channel Detail

Sr. Number Attribute Description Sample Value

2

SALES CHANNEL CODE

Code for Sales Channel



3

CHANNEL DESC

A text description for the channel



4

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



5

CHANNEL NAME

Short name for the channel

A01

6

CHANNEL TYPE CODE

Unique identifier for channel

SLCHNL

7

CAPACITY QUANTITY

The number of transaction that a Channel can handle, at a point of time.



8

DEALER CODE

The number of transaction that a Channel can handle, at a point of time.



9

EFFECTIVE FROM DATE

The first date of the period when this Channel was valid.

12/31/2005 12:00:00 AM

10

EFFECTIVE TO DATE

The end date of the period when this Channel was valid.

12/31/2005 12:00:00 AM

11

PARTY CODE

A code for any person or business that is of interest to the Communications Service Provider.



12

PARTY TYPE CODE

Code for party types

RPRSTTV

13

STATUS CODE

Current status

A


Sales Channel Representative

Description: SALES CHANNEL REPRESENTATIVE

Sales Channel Hierarchies

Standard Sales Channel Representative Hierarchy:

Description of image091.gif follows
Description of the illustration image091.gif

Sales Channel Representative Levels

Table 3-212 shows Sales Channel Representative Total: The most aggregate level in the channel dimension.

Table 3-212 Sales Channel Representative Total

Sr. Number Attribute Description

1.

SALES CHANNEL REPRESENTATIVE TOTAL ID

Code for All Sales Channel Representative


Table 3-213 shows Sales Channel Representative: This is the most granular level of the channel dimension. Values in this level represent the codes for sales representatives in the shops, Direct sales representatives and Sub-dealers in case of dealers.

Table 3-213 Sales Channel Representative

Sr. Number Attribute Description Sample Value

1

SALES CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



2

SALES CHANNEL REPRESENTATIVE CODE

SALES CHANNEL REPRESENTATIVE CODE is used to track and detect sales performance on account payment status.

SLREP-1



1

BILLING ADDRESS EFFECTIVE DATE

Date on which the billing address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



2

BUSINESS DIVISION EXECUTIVE NAME

BUSINESS DIVISION EXECUTIVE LAST NAME is the last name of the business division executive to whom the employee reports to. Like LOB Owner.



3

BUSINESS PHONE NUMBER

Phone number used for business purpose



4

CELL PHONE NO

Redundancy to 'party contact information'



5

CHILDREN COUNT

Number of children



6

CONTACT ADDRESS EFFECTIVE DATE

Date on which the contact address referenced in the billing_address_id column became active. This facilitates queries such as find customers who changed address in the last 3 months.""



7

COST CENTER NUMBER

The cost center to which the bank employee expenses are charged.



8

DATE OF BIRTH

Date of Birth of the individual.



9

DATE OF DEATH

Date of natural person death.



10

DEATH CERTIFICATE CODE

The certification document number for customer's death.



11

DEPENDENTS COUNT

Number of dependents



12

DRIVER LICENSE NUMBER

Driver License Number in most countries.



13

DWELLING SIZE

Size of dwelling



14

DWELLING TENURE

Tenure of dwelling



15

ECONOMICALLY ACTIVE IND

customer is economically active (is not a minor or pensioner and so on.)



16

EDUCATION CODE

The customer highest level of education.



17

EMAIL

Redundancy to 'party contact information'



18

EMPLOYEE CODE

A code for any person or business that is of interest to the Communications Service Provider.



19

EMPLOYEE DESIGNATION CODE

Unique warehouse key, representing the designation



20

EMPLOYEE DISCOUNT GROUP CODE

Unique identifier for Employee Discount Group



21

EMPLOYEE KEY

Key value for each employee



22

EMPLOYEE NUMBER

Internal number for the employee.



23

EMPLOYEE TYPE CODE

Unique identifier for Employee Type

PT

24

EMPLOYEE TYPE DESC

Description of the Employee Type

Part Time

25

EMPLOYEE TYPE NAME

Unique identifier for the Employee Type

Part Time

26

EMPLOYER TAX NUMBER

The tax code of Employer.



27

EMPLOYMENT BEGIN DATE

Start date for the employment.

12/31/2005 12:00:00 AM

28

EMPLOYMENT END DATE

If the employee quit from the Bank, we still hold the information of his past employment



29

EMPLOYMENT EXEMPT IND

An employee exempt from the overtime policies of the University due to the nature of the work, as compared to (Non-Exempt).

Education requirements of the position and salary range. These employees are paid an annual salary and are not customarily eligible for overtime pay.



30

EMPLOYMENT STATUS

EMPLOYEE STATUS is the abbreviated identifier for the employment status. Employee



31

END OF JOB CONTRACT

End date of the customer's job contract (for contracts concluded for definite terms).



32

ETHNIC BACKGROUND

Customer Attribute of an employee



33

ETHNICITY

Classifies the individual for minority reporting purposes.



34

FAMILY NAME IN MAIDEN

Given name in maiden



35

FIRST NAME

First name of a party individual



36

FORM OF EMPLOYMENT

The customer's form of employment (private entrepreneur, employee, civil servant and so on.)



37

GENDER CODE

For PARTYs that are people, this is their GENDER.

For PARTYs that are organizations, this is indicates whether the organization is foreign or domestically owned.



38

GIVEN NAME IN MAIDEN

Given name in maiden



39

HOME TELEPHONE NO

Redundance to 'party contact information'



40

HOUSEHOLD KEY

The code of household which the party belongs to.



41

INCOME

Income of a party individual



42

INCOME LCL

Income of a party individual



43

INCOME RPT

Income of a party individual



44

JOB CONTRACT TYPE

Type of the customer's job contract



45

JOB KEY

Code for job of subscriber.



46

JOB POSITION

job Position.



47

LANGUAGE CODE

Unique identifier for Language



48

LAST NAME

Last name of a party individual



49

LAST PERFORMANCE RATING

This describes the annual rating assigned to the employee.



50

LAST PERFORMANCE RATING DATE

When the last rating is done.



51

LEGAL TITLE TO HOUSING

The customer's legal title to home (rents, owns and so on.)



52

LIVING AT CURRENT ADDRESS SINCE

Date since the customer has lived at the present address.



53

MANAGER CODE

manager's employee code.



54

MARITAL STATUS

CSALADI ALLAPOT. Marital status



55

MARTIAL STATUS CODE



56

MIDDLE NAME

Middle name of a party individual



57

MOTHER FIRST NAME

Mother's first name



58

MOTHER LAST NAME

Mother's last name



59

NAME OF WORKPLACE

Name of workplace



60

NAME PREFIX

Name prefix

For example: Mr, Mrs, Ms, Dr,



61

NAME SUFFIX

Name suffix. For example: PhD, MD, JD, MA



62

NATIONALITY CODE

Code for Nationality of subscriber



63

NUMBER OF EARNERS IN HOUSEHOLD

Number of wage earners in the household.



64

NUMBER OF PERSONS LIVING IN HOUSEHOLD

Number of persons sharing the customer's household.



65

OFFICE TELEPHONE NO

Redundancy to 'party contact information'



66

ORGANIZATION BUSINESS UNIT KEY



67

PERSONAL ID NUMBER

In China, this one will be same as party.national_identifier.



68

PLACE OF BIRTH

Where the person was born.



69

PREVIOUS EMPLOYER TAX NUMBER

Tax number of previous employer.



70

PREVIOUS EMPLOYMENT END DATE

End date of previous job.



71

PREVIOUS EMPLOYMENT START DATE

Start date of previous job.

12/31/2005 12:00:00 AM

72

SOC JOB KEY



73

SOCIAL SECURITY NUMBER

In US, this code will be same as party.national_identifier. Null if some country does not have.



74

SOURCE OF INCOME

Source of income (can typify, may be several)



75

START OF EMPLOYMENT

Start of employment



76

TAX NUMBER

Tax number



77

ACTIVE IND

Activate Indicator



78

ADDRESS

Address



79

BARING REASON CODE

Unique identifier for Baring Reason



80

BUSINESS LEGAL STATUS CODE

A unique identifier for a legal classification of a non-residential Customer.



81

CITY

City of the party. Redundance to party location history.



82

COUNTRY

Country of the party. Redundance to party location history.



83

CUSTOMER IND

Indicator for Customer



84

EFFECTIVE FROM DATE

EFFECTIVE FROM DATE, standard SCD2 column.



85

EFFECTIVE TO DATE

EFFECTIVE TO DATE, standard SCD2 column.



86

EMPLOYEE NAME

Name of the employee



87

PARTY DESC

Description for the Party



88

PARTY KEY

Key value for Party



89

PARTY NAME

Name of the Party



90

PARTY TYPE CODE

Unique identifier for Party Type



91

POST CODE

Unique identifier for Post



92

SOURCE SYSTEM KEY

Key value for Source System



93

STATE

State Name



94

STATUS CODE

Current Status



Service Coverage Area

Description: SERVICE COVERAGE AREA

Service Coverage Hierarchies

Standard Service Coverage Hierarchy:

Description of image092.gif follows
Description of the illustration image092.gif

Service Coverage Area Levels

Table 3-214 shows Service Coverage Area Total: Service areas are defined so that service providers can determine the demographic / psychographic / population data the geography served by the network.

Table 3-214 Service Coverage Area Total

Sr. Number Attribute Description

1.

SALES CHANNEL REPRESENTATIVE TOTAL ID

Code for All Sales Coverage Area values


Table 3-215 shows Service Coverage Area: This is the detail level of Service Coverage Area.

Table 3-215 Service Coverage Area

Sr. Number Attribute Description

1

AREA SHAPE

Shape of the trade area

2

AREA TYPE

- Urban - Suburban - Exurban - Rural

3

AVERAGE DRIVE TIME

Average drive time from the coverage area to the given store or site.

4

AVERAGE FAMILY SIZE

Average Family Size = Total population divided by number of families

5

AVERAGE HOUSEHOLD SIZE

Average household size in the coverage area.

6

AVERAGE NUMBER VEHICLES PER HOUSEHOLD

Average Number of Vehicles by household = total number of vehicles divided by total number of household.

7

CITY

City. City of the trade area

8

COMMUNITY SEGMENTS

The segmentation system was created to group neighborhoods based on socioeconomic and demographic composition such as age, income, home value, occupation, household type, education, and so on. They help improve the ability to predict behavior of social groups that are geographically clustered.

9

COMMUTER POPULATION

Total commuter population of the coverage area.

10

COUNTRY

Country. Country of the trade area

11

COUNTY

County / District. County / District of the trade area

12

DEFINITION SOURCE

The source of the definition

13

DEFINITION TYPE

Definition type of the market area, some standard classifications can include: Study traffic flow, Use a retail gravity model, Use a zip code method and so on. Some standard classifications can include: Study traffic flow, Use a retail gravity model, Use a zip code method and so on.

14

ISO CURRENCY CODE

Currency used for the demographic information

15

LATITUDE

The latitude measure for the trade area

16

LONGITUDE

The longitude measure for the trade area

17

NUMBER OF HOUSEHOLDS

Approximate total number of households in the coverage area.

18

ORGANIZATION BUSINESS UNIT CODE

Unique identifier for Business Unit. To identify whether the site is a store, distribution center or warehouse.

19

PEAK SEASON POPULATION

The peak trading season of a given area can be determined by the seasonality or yearly economic cycle and so on. This is mostly applicable for renowned tourist spots.

20

PER CAPITA INCOME

Per Capita Income = income of that area divided by total population

21

PER CAPITA INCOME LOCAL

Per Capita Income = income of that area divided by total population

22

PER CAPITA INCOME REPORTING

Per Capita Income = income of that area divided by total population

23

PRIMARY ZIP CODE

Primary zip code of the market area. The primary zip code or the pin code of the Trade area

24

PRODUCT CODE

The short name for the product.

25

PULL FACTOR

Ratios that estimate the proportion of local sales that occurs in a town. Ratio that estimate the proportion of local sales that occurs in a town.

26

SECONDARY ZIP CODE

Secondary zip code in case the zip code spans across multiple zip codes. Applicable only in case the zip code spans across multiple zip codes

27

SERVICE COVERAGE AREA CODE

COVERAGE AREA CODE. Unique identifier for the coverage area

28

SERVICE COVERAGE AREA TYPE CODE



29

STATE

State or province. State or province of the trade area

30

STATE POPULATION

Approximate population of the state.

31

STATE SALES

Estimated total retail sales in the state.

32

TOTAL POPULATION

Estimated total population of the market area

33

TOURIST POPULATION

Expected tourist population of the Trade coverage area.

34

TRADE AREA CAPTURE

An estimate of the number of people who shop in the local area during a certain period.

35

TRADE AREA CODE

Market Area identifier.

36

TRADE AREA DESC

Trade area description. Textual description of the trade area

37

TRADE AREA NAME

Market area name. The name of the trade area


Subscription

Description: SUBSCRIPTION

Subscription Hierarchies

Standard Subscription Hierarchy:

Description of image093.gif follows
Description of the illustration image093.gif

Subscription Levels

Table 3-216 shows Subscription Total: Most aggregate level for the Subscription Dimension.

Table 3-216 Subscription Total

Sr. Number Attribute Description

1.

SUBSCRIPTION TOTAL CODE

Code for All Subsidy Types


Table 3-217 shows Subscription Type: Type of the subscriptions. Examples include: Prepaid wireless, Fixed_line, Broadband, and so on.

Table 3-217 Subscription Type

Sr. Number Attribute Description Sample Value

1

LANGUAGE CODE

Uniquely Identifier for Language



2

SUBSCRIPTION TYPE CATEGORY CODE

Category or classification of the subscription type. Can be used for grouping subscription types for analysis or reporting.

BROADBAND

3

SUBSCRIPTION TYPE CODE

Identifier of the subscription type.

BRDBND

4

SUBSCRIPTION TYPE DESC

Name or description of the subscription type.

Broadband

5

SUBSCRIPTION TYPE NAME

Name or description of the subscription type.

Broadband


Table 3-218 shows Subscription: Different ways to offer subsidies are to give handsets, free minutes or connections subsidies to the customers.

Table 3-218 Subscription

Sr. Number Attribute Description Sample Value

1

SUBSCRIPTION CODE

Unique identifier for a subscription.

SBRP-1000601

2

SUBSCRIPTION END DATE

SUBSCRIPTION END DATE is the day when subscription was decommissioned.

12/31/2005 12:00:00 AM

3

SUBSCRIPTION START DATE

SUBSCRIPTION START DATE is the day when subscription was setup.

12/31/2005 12:00:00 AM

4

SUBSCRIPTION TYPE CODE

Identifier of the subscription type.

BRDBND

5

ACCESS METHOD CODE

A sequence of numbers (like phone number) electronically registered to telecommunications equipment that gives the Customer access to services or products. Other access method like DSL account, Service ID might be character type.



6

ACCOUNT CODE

A code for any person or business that is of interest to the Communications Service Provider. This is usually natural key of the account



7

ACQUISITION COST

ACQUISITION COST for the subscription. This can be derived from underlying contract or product it subscribes to.



8

ACQUISITION COST LOCAL

ACQUISITION COST for the subscription. This can be derived from underlying contract or product it subscribes to.



9

ACQUISITION COST REPORTING

ACQUISITION COST for the subscription. This can be derived from underlying contract or product it subscribes to.



10

CAMPAIGN CHANNEL CODE

A unique identifier for a campaign channel.



11

CHANNEL CODE

The unique identifier for each Channel. A Channel identifies each possible link where interaction between the Communications Service Provider and the Customer occurs.



12

CIRCUIT COMPONENT CODE

Identifies the circuit component.



13

CONTRACT CODE

The contract number based on which the relationship was founded.



14

CUSTOMER CODE

A code for any person or business that is of interest to the Communications Service Provider.



15

EFFECTIVE FROM DATE

Active from. Standard SCD field, Effective Start Date

12/31/2005 12:00:00 AM

16

EFFECTIVE TO DATE

Date the party left the program. Will be null if the party is currently a member of the program.

12/31/2005 12:00:00 AM

17

ESSENTIAL SERVICE INDICATOR

The code indicates the server was associated with critical customer; examples are hospital, police, Fire.



18

NETWORK TOUCHPOINT CODE

Identifier of the site.



19

NETWORK TYPE CODE

A code that uniquely identifies the type of technology (for example GSM, CDMA) being used by a network.

PSTN

20

ORGANIZATION BUSINESS UNIT CODE

Foreign key to the Organization Job Role At Site table, to identify the store schedule.



21

PRODUCT CODE

Product code. Product dimension cannot be used in rolling-up. Since customer will be counted several times.



22

SALES CHANNEL REPRESENTATIVE CODE

SALES CHANNEL REPRESENTATIVE CODE is used to track and detect sales performance on account payment status.



23

STATUS CODE

An indicator of the address current status. For instance, this address may be valid, invalid, temporary, and so on.



Subsidy Type

Description: SUBSIDY TYPE

Subsidy Type Hierarchies

Standard Subsidy Type Hierarchy:

Description of image094.gif follows
Description of the illustration image094.gif

Subsidy Type Levels

Table 3-219 shows Subsidy Type Total: Most aggregate level for the Subsidy Type dimension to see the aggregated value of all the subsidy types.

Table 3-219 Subsidy Type Total

Sr. Number Attribute Description

1.

SUBSIDY TYPE TOTAL CODE

Code for All Subsidy Types


Table 3-220 shows Subsidy Type Detail: This level stores the actual values for subsidy types and enables analysis of related facts by subsidy types. This is the most granular level of the dimension data will be captured and stored at this level.

Table 3-220 Subsidy Type Detail

Sr. Number Attribute Description Sample Value

1

SUBSIDY TYPE CODE

Code for Subsidy type

ACCTDPST

2

SUBSIDY TYPE DESC

Description of the Subsidy Type

Account Deposit

3

SUBSIDY TYPE NAME

Name of the Subsidy type

Account Deposit

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Switch

Description: SWITCH

Switch Hierarchies

Standard Switch Hierarchy:

Description of image095.gif follows
Description of the illustration image095.gif

Switch Levels

Table 3-221 shows Switch Total: Network switches or exchanges. It may a position switch (digital or analog), or GSM MSC.

Table 3-221 Switch Total

Sr. Number Attribute Description

1.

SWITCH TOTAL CODE

Code for Switches


Table 3-222 shows Switch Detail: Network switches or exchanges. It may a position switch (digital or analog), or GSM MSC.

Table 3-222 Switch Detail

Sr. Number Attribute Description Sample Value

1

SWITCH CODE

A unique identifier for a telecommunications device used to route telephone calls and communication transmissions.

ANALOG

2

SWITCH TYPE CODE

A code used to categorize a switch.



4

TECHNOLOGY CODE

A code that uniquely identifies a technology.



7

EFFECTIVE FROM DATE

Effective from date when valid

12/31/2005 12:00:00 AM

8

EFFECTIVE TO DATE

Effective to date when valid

12/31/2005 12:00:00 AM

9

EQUIPMENT CENTER CODE

The equipment center, where this equipment locates in.



10

EXTERNAL OUTBOUND INDICATOR

Indicate if the switch belongs to external operator, then the circuit.



11

NETWORK ELEMENT DESC

A text description for the Network



12

NETWORK ELEMENT CODE

Identifier of the network.



13

NETWORK ELEMENT NAME

Short name of the network.



14

NETWORK CODE

Code for the network.




STATUS CODE



Technology Type

Description: TECHNOLOGY TYPE

Technology Type Hierarchies

Standard Technology Type Hierarchy:

Description of image096.gif follows
Description of the illustration image096.gif

Technology Type Levels

Table 3-223 shows Technology Type Total: Categories for a Technology. For example, wireless, copper line, Optical Fiber.

Table 3-223 Technology Type Total

Sr. Number Attribute Description

1.

ALL TECHNOLOGY CODE

Code for all technologies.


Table 3-224 shows Technology Types: Detail level of each technology type. Categories for Technology, for example, wireless, copper line, Optical Fiber

Table 3-224 Technology Types

Sr. Number Attribute Description Sample Value

1

TECHNOLOGY TYPE CODE

A code that uniquely identifies technology type.

CL

2

TECHNOLOGY TYPE DESC

A textual description that describes a technology type.

Copper Line

3

TECHNOLOGY TYPE NAME

A name assigned to a technology type.

Copper Line

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Time Slot

Description: TIME SLOT

Time Slot Hierarchies

Standard Time Slot Hierarchy:

Description of image097.gif follows
Description of the illustration image097.gif

Time Slot Levels

Table 3-225 shows Time Slot Total: Level to be used for summary analysis for all time slots. Most aggregate level of the dimension.

Table 3-225 Time Slot Total

Sr. Number Attribute Description

1.

TIME SLOT TOTAL ID

Key/code for grouping all the time hour slots of the day.


Table 3-226 shows Time Slot Detail: Most detail level of the dimension at which data will be captured in the facts. Values will be used for detail analysis.

Table 3-226 Time Slot Detail

Sr. Number Attribute Description Sample Value

1

HALF HOUR CODE

Retrofitted from column HALF_HOUR_CODE of table TIME_SLOT_DIM



2

HALF HOUR NAME

Retrofitted from column HALF_HOUR_NAME of table TIME_SLOT_DIM

01:00 - 01:29 AM

3

HALF HOUR NUMBER

Retrofitted from column HLF_HOUR_NUMBER of table TIME_SLOT_DIM



4

HALF HOUR TIME OF DAY

Retrofitted from column HLF_HOUR_TIME_OF_DAY of table TIME_SLOT_DIM

5/15/2008 1:00:00 AM

5

HOUR CODE

Retrofitted from column HOUR_CODE of table TIME_SLOT_DIM



6

HOUR NAME

Retrofitted from column HOUR_NAME of table TIME_SLOT_DIM

01:00 - 01:29 AM

7

HOUR NUMBER

Retrofitted from column HOUR_NUMBER of table TIME_SLOT_DIM

1

8

HOUR TIME OF DAY

Retrofitted from column HOUR_TIME_OF_DAY of table TIME_SLOT_DIM

5/5/2008 1:00:00 AM

9

QTR HOUR CODE

Retrofitted from column QTR_HOUR_CODE of table TIME_SLOT_DIM



10

QTR HOUR NAME

Retrofitted from column QTR_HOUR_NAME of table TIME_SLOT_DIM



11

QTR HOUR NUMBER

Retrofitted from column QTR_HOUR_NUMBER of table TIME_SLOT_DIM



12

QTR HOUR TIME OF DAY

Retrofitted from column QTR_HOUR_TIME_OF_DAY of table TIME_SLOT_DIM



13

TIME SLOT CODE

TIME SLOT CODE.

5,6

14

TIME SLOT NAME

TIME SLOT NAME.

01:00 - 01:14 AM

15

WHOLE DAY CODE

Retrofitted from column WHOLE_DAY_CODE of table TIME_SLOT_DIM



16

WHOLE DAY NAME

Retrofitted from column WHOLE_DAY_NAME of table TIME_SLOT_DIM



UMS Access Type

Description: UMS ACCESS TYPE

UMS Access Type Hierarchies

Standard UMS Access Type Hierarchy:

Description of image098.gif follows
Description of the illustration image098.gif

UMS Access Type Levels

Table 3-227 shows UMS Access Type Total: Most aggregate level shows sum of values for all types of UMS access.

Table 3-227 UMS Access Type Total

Sr. Number Attribute Description

1.

UMS ACCESS TYPE TOTAL ID

Code for All UMS Access Types


Table 3-228 shows UMS Access Type Detail: The granular level at which data will be captured. The values at this level indicate the actual UMS access types that are used to notify the UMS subscribers.

Table 3-228 UMS Access Type Detail

Sr. Number Attribute Description Sample Value

1

UMS ACCESS TYPE CODE

Code for UMS Access Type.

FAX

2

UMS ACCESS TYPE DESC

Description of the UMS Access Type.

Fax

3

UMS ACCESS TYPE NAME

Short description of the UMS Access Type.

Fax

4

LANGUAGE CODE

Unique identifier for a row in the Language dimension.



Value Added Services (VAS)

Description: VALUE ADDED SERVICE

Value Added Services Hierarchies

Standard Value Added Service Hierarchy:

Description of image099.gif follows
Description of the illustration image099.gif

Value Added Services Levels

Table 3-229 shows Value Added Service (VAS) Total: All VAS is the most aggregate level of the dimension and is used to see the results for all the services, that is, irrespective of type and individual service.

Table 3-229 Value Added Service Total

Sr. Number Attribute Description

1.

VALUE ADDED SERVICE TOTAL CODE

Code for All Value Added Service


Table 3-230 shows Value Added Service (VAS): is the lowest level or the most detail level, at which data related to VAS facts will be captured and stored. The values in this level indicate the actual value added services offered by Service provider

Table 3-230 Value Added Service

Sr. Number Attribute Description Sample Value

1

VALUE ADDED SERVICE TYPE NAME

Short description of the VAS type.



2

VALUE ADDED SERVICE TYPE DESC

Description of the VAS Type.



3

VALUE ADDED SERVICE TYPE CODE

Code for VAS type.



4

VALUE ADDED SERVICE NAME

Short description of the VAS.

Product 1

5

VALUE ADDED SERVICE DESC

Description of VAS.

ZeroBalImpact

6

VALUE ADDED SERVICE CODE

Code or Id for VAS.

1

7

PRODUCT TYPE CODE

Retrofitted from column PRODUCT_KEY of table FACT_MARKET_SHARE



8

PRODUCT RATING PLAN TYPE CODE

Identifier for the offer.



9

PRODUCT PACKAGE TYPE CODE

Identifier for the offer.



10

PRODUCT PACKAGE CHARGE TYPE CODE

Code.



11

PRODUCT NAME

Product name.



12

PRODUCT GROUP CODE

Unique identifier for Product Group.



13

PRODUCT CODE

Uniquely identifier of product.

$13.00

14

NETWORK CODE

The network which is used by this platform



15

IN PLATFORM CODE

Code for IN Platform



16

EQUIPMENT FUNCTIONALITY CODE

The code of function



18

EFFECTIVE TO DATE

The end date of the period when this Channel was valid.

12/31/2005 12:00:00 AM

19

EFFECTIVE FROM DATE

Standard SCD field, effective from date

12/31/2005 12:00:00 AM



PROD_DESC
