4 SDO_TOPO_MAP Package Subprograms

The MDSYS.SDO_TOPO_MAP package contains subprograms (functions and procedures) that constitute part of the PL/SQL application programming interface (API) for the Spatial topology data model. This package contains subprograms related to editing topologies. These subprograms use a TopoMap object, either one that you previously created or that Spatial creates implicitly.

To use the subprograms in this chapter, you must understand the conceptual information about topology in Chapter 1, as well as the information about editing topologies in Chapter 2.

The rest of this chapter provides reference information about the SDO_TOPO_MAP subprograms, listed in alphabetical order.


SDO_TOPO_MAP.ADD_EDGE

Format

SDO_TOPO_MAP.ADD_EDGE(

     topology IN VARCHAR2,

     node_id1 IN NUMBER,

     node_id2 IN NUMBER,

     geom IN SDO_GEOMETRY

     ) RETURN NUMBER;

Description

Adds an edge to a topology, and returns the edge ID of the added edge.

Parameters

topology

Name of the topology to which to add the edge, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

node_id1

Node ID of the start node for the edge to be added.

node_id2

Node ID of the end node for the edge to be added.

geom

SDO_GEOMETRY object (line or contiguous line string geometry) representing the edge to be added.

Usage Notes

Spatial automatically assigns an edge ID to the added edge. If topology is not null, the appropriate entry is inserted in the <topology-name>_EDGE$ table; and if the addition of the edge affects the face information table, the appropriate entries in the <topology-name>_FACE$ table are updated. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

If node_id1 and node_id2 are the same value, a loop edge is created.

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addEdge method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds an edge connecting node N3 to node N4 in the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.ADD_EDGE(null, 3, 4,
  SDO_GEOMETRY(2002, NULL, NULL, SDO_ELEM_INFO_ARRAY(1, 2, 1),
    SDO_ORDINATE_ARRAY(25,35, 20,37)))
  INTO :res_number;

Call completed.

SQL> PRINT res_number;

RES_NUMBER
----------
        29

SDO_TOPO_MAP.ADD_ISOLATED_NODE

Format

SDO_TOPO_MAP.ADD_ISOLATED_NODE(

     topology IN VARCHAR2,

     face_id IN NUMBER,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.ADD_ISOLATED_NODE(

     topology IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.ADD_ISOLATED_NODE(

     topology IN VARCHAR2,

     face_id IN NUMBER,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.ADD_ISOLATED_NODE(

     topology IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Adds an isolated node (that is, an island node) to a topology, and returns the node ID of the added isolated node.

Parameters

topology

Name of the topology to which to add the isolated node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

face_id

Face ID of the face on which the isolated node is to be added. (An exception is raised if the specified point is not on the specified face.)

point

SDO_GEOMETRY object (point geometry) representing the isolated node to be added.

x

X-axis value of the point representing the isolated node to be added.

y

Y-axis value of the point representing the isolated node to be added.

Usage Notes

Spatial automatically assigns a node ID to the added node. If topology is not null, the appropriate entry is inserted in the <topology-name>_NODE$ table, and the <topology-name>_FACE$ table is updated to include an entry for the added isolated node. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

If you know the ID of the face on which the isolated node is to be added, you can specify the face_id parameter. If you specify this parameter, there are two benefits:

To add a non-isolated node, use the SDO_TOPO_MAP.ADD_NODE function.

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addIsolatedNode method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds an isolated node to the right of isolated node N4 on face F2, and it returns the node ID of the added node. It uses the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

DECLARE
  result_num NUMBER;
BEGIN
result_num := SDO_TOPO_MAP.ADD_ISOLATED_NODE(null, 2,
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(22,37,NULL), NULL, NULL));
DBMS_OUTPUT.PUT_LINE('Result = ' || result_num);
END;
/
Result = 24

PL/SQL procedure successfully completed.

SDO_TOPO_MAP.ADD_LINEAR_GEOMETRY

Format

SDO_TOPO_MAP.ADD_LINEAR_GEOMETRY(

     topology IN VARCHAR2,

     curve IN SDO_GEOMETRY

     ) RETURN SDO_NUMBER_ARRAY;

or

SDO_TOPO_MAP.ADD_LINEAR_GEOMETRY(

     topology IN VARCHAR2,

     coords IN SDO_NUMBER_ARRAY

     ) RETURN SDO_NUMBER_ARRAY;

Description

Adds a linear (line string or multiline string) geometry to the topology, inserting edges and nodes as necessary based on the full intersection of the geometry with the edges and nodes in the topology graph, and an array of the edge IDs of the inserted and shared edges in sequence from the start to the end of the geometry.

Parameters

topology

Name of the topology to which to add the edge or edges, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

curve

SDO_GEOMETRY object (curve or line string geometry) representing the edge or edges to be added.

coords

SDO_NUMBER_ARRAY object specifying the coordinates of the edge or edges to be added.

Usage Notes

This function creates at least one new edge, and more edges if necessary. For example, if the line string geometry intersects an existing edge, two edges are created for the added line string, and the existing edge (the one being intersected) is divided into two edges. If topology is not null, Spatial automatically updates the <topology-name>_EDGE$ table as needed. (If topology is null, you can update this table at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

This function returns an array of the edge IDs of the inserted and shared edges in sequence from the start to the end of the geometry. If a segment in the added geometry overlaps an existing edge in the topology, the sign of the returned edge depends on the directions of the added segment and the existing edge: if the direction of the existing edge is the same as the linear geometry, the returned edge element is positive; if the direction of the existing edge is the opposite of the linear geometry, the returned edge element is negative.

An exception is raised if the object in the curve or coords parameter contains any line segments that run together (overlap) in any manner; however, the line segments can cross at one or more points.

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addLinearGeometry method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds an edge representing a specified line string geometry, and it returns the edge ID of the added edge. It uses the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.ADD_LINEAR_GEOMETRY(null,
  SDO_GEOMETRY(2002, NULL, NULL, SDO_ELEM_INFO_ARRAY(1,2,1),
    SDO_ORDINATE_ARRAY(50,10, 55,10, 57,11)))
FROM DUAL;

SDO_TOPO_MAP.ADD_LINEAR_GEOMETRY(NULL,SDO_GEOMETRY(2002,NULL,NULL,SDO_ELEM_INFO_
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(31)

SDO_TOPO_MAP.ADD_LOOP

Format

SDO_TOPO_MAP.ADD_LOOP(

     topology IN VARCHAR2,

     node_id IN NUMBER,

     geom IN SDO_GEOMETRY

     ) RETURN NUMBER;

Description

Adds an edge that loops and connects to the same node, and returns the edge ID of the added edge.

Parameters

topology

Name of the topology to which to add the edge, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

node_id

Node ID of the node to which to add the edge that will start and end at this node.

geom

SDO_GEOMETRY object (line string geometry) representing the edge to be added. The start and end points of the line string must be the same point representing node_id.

Usage Notes

This function creates a new edge, as well as a new face consisting of the interior of the loop. If the edge is added at an isolated node, the edge is an isolated edge. If topology is not null, Spatial automatically updates the <topology-name>_EDGE$ and <topology-name>_FACE$ tables as needed. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addLoop method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds an edge loop starting and ending at node N4, and it returns the edge ID of the added edge. It uses the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.ADD_LOOP(null, 4,
  SDO_GEOMETRY(2002, NULL, NULL, SDO_ELEM_INFO_ARRAY(1, 2, 1),
    SDO_ORDINATE_ARRAY(20,37, 20,39, 25,39, 20,37)))
  INTO :res_number;

Call completed.

SQL> PRINT res_number;

RES_NUMBER
----------
        30

SDO_TOPO_MAP.ADD_NODE

Format

SDO_TOPO_MAP.ADD_NODE(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     point IN SDO_GEOMETRY,

     coord_index IN NUMBER,

     is_new_shape_point IN VARCHAR2

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.ADD_NODE(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     x IN NUMBER,

     y IN NUMBER,

     coord_index IN NUMBER,

     is_new_shape_point IN VARCHAR2

     ) RETURN NUMBER;

Description

Adds a non-isolated node to a topology to split an existing edge, and returns the node ID of the added node.

Parameters

topology

Name of the topology to which to add the node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

edge_id

Edge ID of the edge on which the node is to be added.

point

SDO_GEOMETRY object (point geometry) representing the node to be added. The point must be an existing shape point or a new point that breaks a line segment connecting two consecutive shape points.

x

X-axis value of the point representing the node to be added. The point must be an existing shape point or a new point that breaks a line segment connecting two consecutive shape points.

y

Y-axis value of the point representing the node to be added. The point must be an existing shape point or a new point that breaks a line segment connecting two consecutive shape points.

coord_index

The index (position) of the array position in the edge coordinate array on or after which the node is to be added. Each vertex (node or shape point) has a position in the edge coordinate array. The start point (node) is index (position) 0, the first point after the start point is 1, and so on. (However, the coord_index value cannot be the index of the last vertex.) For example, if the edge coordinates are (2,2, 5,2, 8,3) the index of the second vertex (5,2) is 1.

is_new_shape_point

TRUE if the added node is to be a new shape point following the indexed vertex (coord_index value) of the edge; FALSE if the added node is exactly on the indexed vertex.

A value of TRUE lets you add a node at a new point, breaking an edge segment at the coordinates specified in the point parameter or the x and y parameter pair. A value of FALSE causes the coordinates in the point parameter or the x and y parameter pair to be ignored, and causes the node to be added at the existing shape point associated with the coord_index value.

Usage Notes

Spatial automatically assigns a node ID to the added node and creates a new edge. The split piece at the beginning of the old edge is given the edge ID of the old edge. If topology is not null, appropriate entries are inserted in the <topology-name>_NODE$ and <topology-name>_EDGE$ tables. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

To add an isolated node (that is, an island node), use the SDO_TOPO_MAP.ADD_ISOLATED_NODE function.

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addNode method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds a non-isolated node to the right of node N2 on edge E2, and it returns the node ID of the added node. It uses the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

DECLARE
  result_num NUMBER;
BEGIN
result_num := SDO_TOPO_MAP.ADD_NODE(null, 2,
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(27,30,NULL), NULL, NULL),
  0, 'TRUE');
DBMS_OUTPUT.PUT_LINE('Result = ' || result_num);
END;
/
Result = 26

PL/SQL procedure successfully completed.

SDO_TOPO_MAP.ADD_POINT_GEOMETRY

Format

SDO_TOPO_MAP.ADD_POINT_GEOMETRY(

     topology IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.ADD_POINT_GEOMETRY(

     topology IN VARCHAR2,

     coord IN SDO_NUMBER_ARRAY

     ) RETURN NUMBER;

Description

Adds a node representing a specified point geometry or coordinate pair, and returns the node ID of the added node.

Parameters

topology

Name of the topology to which to add the node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

point

SDO_GEOMETRY object (point geometry) representing the node to be added.

coord

SDO_NUMBER_ARRAY object specifying the coordinates of the node to be added.

Usage Notes

If the point coincides with an existing node, no changes are made to the topology. Otherwise, an isolated node or a node splitting an edge is added.

For information about adding and deleting nodes and edges, see Chapter 2.

This function is equivalent to using the addPointGeometry method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds a node representing a specified point geometry, and it returns the node ID of the added node. It uses the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.ADD_POINT_GEOMETRY(null,
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(57,12,NULL), NULL, NULL))
FROM DUAL;

SDO_TOPO_MAP.ADD_POINT_GEOMETRY(NULL,SDO_GEOMETRY(2001,NULL,SDO_POINT_TYPE(57,12
--------------------------------------------------------------------------------
                                                                              29

The following example adds a node at the specified coordinates (58, 12), and it returns the node ID of the added node. It uses the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.ADD_POINT_GEOMETRY(null, SDO_NUMBER_ARRAY(58,12))
FROM DUAL;

SDO_TOPO_MAP.ADD_POINT_GEOMETRY(NULL,SDO_NUMBER_ARRAY(58,12))
-------------------------------------------------------------
                                                           30

SDO_TOPO_MAP.ADD_POLYGON_GEOMETRY

Format

SDO_TOPO_MAP.ADD_POLYGON_GEOMETRY(

     topology IN VARCHAR2,

     polygon IN SDO_GEOMETRY

     ) RETURN SDO_NUMBER_ARRAY;

or

SDO_TOPO_MAP.ADD_POLYGON_GEOMETRY(

     topology IN VARCHAR2,

     coords IN SDO_NUMBER_ARRAY

     ) RETURN SDO_NUMBER_ARRAY;

Description

Adds one or more faces representing a specified polygon geometry, and returns the face ID of each added face.

Parameters

topology

Name of the topology to which to add the face or faces, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

polygon

SDO_GEOMETRY object (polygon or multipolygon geometry) representing the face or faces to be added. Each polygon in the object must have a single exterior ring that can contain any number of interior rings.

coords

SDO_NUMBER_ARRAY object specifying the coordinates of a single polygon geometry representing the face or faces to be added. The vertices of the polygon must be in counterclockwise order, with the last vertex the same as the first vertex.

Usage Notes

This function creates at least one new face, and more faces if necessary. For example, if the polygon geometry intersects an existing face, faces are created for the added polygon, and the existing face (the one being intersected) definition is adjusted. If topology is not null, Spatial automatically updates the <topology-name>_FACE$ table as needed. (If topology is null, you can update this table at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

If the polygon coincides with an existing face, no changes are made to the topology.

For a multipolygon geometry, no exterior ring may overlap any other exterior ring. For example, you cannot add a face representing the following single multipolygon geometry: a park (exterior ring) containing a lake (interior ring) with an island in the lake (exterior ring inside the preceding interior ring).

This function is equivalent to using the addPolygonGeometry method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds a face representing a specified polygon geometry, and it returns and prints the face ID of the added edge. It uses the current updatable TopoMap object.

DECLARE
  res_number_array SDO_NUMBER_ARRAY;
  face_count NUMBER;
  face_ctr NUMBER;
  this_face NUMBER;
BEGIN
res_number_array := SDO_TOPO_MAP.ADD_POLYGON_GEOMETRY(null,
  SDO_GEOMETRY(2003, NULL, NULL, SDO_ELEM_INFO_ARRAY(1,1003,1),
    SDO_ORDINATE_ARRAY(61,10, 70,10, 70,15, 65,15, 61,10)));
-- DBMS_OUTPUT.PUT_LINE('Result = ' || res_number_array);
-- Print each face associated with the geometry.
face_count := res_number_array.count;
for face_ctr in 1..face_count loop
  this_face := res_number_array(face_ctr);
  dbms_output.put_line ('this face = '|| this_face);
  end loop;  -- printed each face
END;
/
this face = 12

SDO_TOPO_MAP.CHANGE_EDGE_COORDS

Format

SDO_TOPO_MAP.CHANGE_EDGE_COORDS(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     geom IN SDO_GEOMETRY);

or

SDO_TOPO_MAP.CHANGE_EDGE_COORDS(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     geom IN SDO_GEOMETRY,

     moved_iso_nodes OUT SDO_NUMBER_ARRAY,

     moved_iso_edges OUT SDO_NUMBER_ARRAY,

     allow_iso_moves IN VARCHAR2);

Description

Changes the coordinates and related information about an edge.

Parameters

topology

Name of the topology containing the edge, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

edge_id

Edge ID of the edge whose coordinates are to be changed.

geom

SDO_GEOMETRY object (line or contiguous line string geometry) representing the modified edge. The start and end points of the modified edge must be the same as for the original edge.

moved_iso_nodes

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the node ID values of any isolated nodes that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the node ID values of any isolated nodes that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

moved_iso_edges

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the edge ID values of any isolated edges that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the edge ID values of any isolated edges that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

allow_iso_moves

TRUE causes Spatial to allow an edge coordinates change operation that would cause any isolated nodes or edges to be in a different face, and to adjust the containing face information for such isolated nodes and edges; FALSE causes Spatial not to allow an edge coordinates change operation that would cause any isolated nodes or edges to be in a different face.

If you use the format that does not include the allow_iso_moves parameter, Spatial allows edge move operations that would cause any isolated nodes or edges to be in a different face, and it adjusts the containing face information for such isolated nodes and edges.

Usage Notes

If this procedure modifies a boundary between faces, Spatial automatically performs the following operations and updates the topology data model tables as needed: reassigning island nodes and faces, and adjusting the MBRs of the faces on both sides.

If topology is not null, this procedure modifies the information about the specified edge in the <topology-name>_EDGE$ table (described in Section 1.5.1). (If topology is null, you can update this table at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

You cannot use this procedure to change the start point or the end point, or both, of the specified edge. To do any of these operations, you must delete the edge, delete the node or nodes for the start or end point (or both) to be changed, add the necessary new node or nodes, and add the edge.

For information about editing topological elements, see Chapter 2.

This procedure is equivalent to using the changeEdgeCoords method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example changes the coordinates of edge E1. (It changes only the third point, from 16,38 to 16,39.) It uses the current updatable TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.CHANGE_EDGE_COORDS(null, 1,
  SDO_GEOMETRY(2002, NULL, NULL, SDO_ELEM_INFO_ARRAY(1, 2, 1),
    SDO_ORDINATE_ARRAY(8,30, 16,30, 16,39, 3,38, 3,30, 8,30)));

SDO_TOPO_MAP.CLEAR_TOPO_MAP

Format

SDO_TOPO_MAP.CLEAR_TOPO_MAP(

     topo_map IN VARCHAR2);

Description

Clears all objects and changes in the cache associated with a TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

Usage Notes

If the TopoMap object is updatable, this procedure changes it to be read-only.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

Contrast this procedure with the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure, which applies the changes in the cache associated with the TopoMap object to the topology. You cannot call the SDO_TOPO_MAP.CLEAR_TOPO_MAP procedure if you previously used the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure on the specified TopoMap object.

This procedure is equivalent to using the clearCache method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example clears the cache associated with the TopoMap object named CITY_DATA_TOPOMAP, which is associated with the topology named CITY_DATA. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.CLEAR_TOPO_MAP('CITY_DATA_TOPOMAP');

SDO_TOPO_MAP.COMMIT_TOPO_MAP

Format

SDO_TOPO_MAP.COMMIT_TOPO_MAP;

Description

Updates the topology to reflect changes made to the current updatable TopoMap object, commits all changes to the database, and makes the TopoMap object read-only.

Parameters

None.

Usage Notes

Use this procedure when you are finished with a batch of edits to a topology and you want to commit all changes to the database. After the commit operation completes, you cannot edit the TopoMap object. To make further edits to the topology, you must either clear the cache (using the SDO_TOPO_MAP.CLEAR_TOPO_MAP procedure) or create a new TopoMap object (using the SDO_TOPO_MAP.CREATE_TOPO_MAP procedure), and then load the topology into the TopoMap object for update (using the SDO_TOPO_MAP.LOAD_TOPO_MAP function or procedure).

Contrast this procedure with the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure, which leaves the TopoMap object available for editing operations and which does not perform a commit operation (and thus does not end the database transaction).

To roll back all TopoMap object changes, use the SDO_TOPO_MAP.ROLLBACK_TOPO_MAP procedure.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

This procedure is equivalent to using the commitDB method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example commits to the database all changes to the current updatable TopoMap object, and prevents further editing of the TopoMap object.

EXECUTE SDO_TOPO_MAP.COMMIT_TOPO_MAP;

SDO_TOPO_MAP.CREATE_EDGE_INDEX

Format

SDO_TOPO_MAP.CREATE_EDGE_INDEX(

     topo_map IN VARCHAR2);

Description

Creates an internal R-tree index (or rebuilds the index if one already exists) on the edges in the cache associated with a TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

Usage Notes

You can cause Spatial to create in-memory R-tree indexes to be built on the edges and faces in the specified TopoMap object. These indexes use some memory resources and take some time to create; however, they significantly improve performance if you edit a large number of topological elements in the session. They can also improve performance for queries that use a read-only TopoMap object. If the TopoMap object is updatable and if you are performing many editing operations, you should probably rebuild the indexes periodically; however, if the TopoMap object will not be updated, create the indexes when or after loading the read-only TopoMap object or after calling the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure.

Compare this procedure with the SDO_TOPO_MAP.CREATE_FACE_INDEX procedure, which creates an internal R-tree index (or rebuilds the index if one already exists) on the faces in the cache associated with a TopoMap object.

This procedure is equivalent to using the createEdgeIndex method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example creates an internal R-tree index (or rebuilds the index if one already exists) on the edges in the cache associated with the TopoMap object named CITY_DATA_TOPOMAP, which is associated with the topology named CITY_DATA. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.CREATE_EDGE_INDEX('CITY_DATA_TOPOMAP');

SDO_TOPO_MAP.CREATE_FACE_INDEX

Format

SDO_TOPO_MAP.CREATE_FACE_INDEX(

     topo_map IN VARCHAR2);

Description

Creates an internal R-tree index (or rebuilds the index if one already exists) on the faces in the cache associated with a TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

Usage Notes

You can cause Spatial to create in-memory R-tree indexes to be built on the edges and faces in the specified TopoMap object. These indexes use some memory resources and take some time to create; however, they significantly improve performance if you edit a large number of topological elements in the session. They can also improve performance for queries that use a read-only TopoMap object. If the TopoMap object is updatable and if you are performing many editing operations, you should probably rebuild the indexes periodically; however, if the TopoMap object will not be updated, create the indexes when or after loading the read-only TopoMap object or after calling the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure.

Compare this procedure with the SDO_TOPO_MAP.CREATE_EDGE_INDEX procedure, which creates an internal R-tree index (or rebuilds the index if one already exists) on the edges in the cache associated with a TopoMap object.

This procedure is equivalent to using the createFaceIndex method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example creates an internal R-tree index (or rebuilds the index if one already exists) on the faces in the cache associated with the TopoMap object named CITY_DATA_TOPOMAP, which is associated with the topology named CITY_DATA. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.CREATE_FACE_INDEX('CITY_DATA_TOPOMAP');

SDO_TOPO_MAP.CREATE_FEATURE

Format (no topology geometry layer hierarchy or lowest level in a hierarchy)

SDO_TOPO_MAP.CREATE_FEATURE(

     topology IN VARCHAR2,

     table_name IN VARCHAR2,

     column_name IN VARCHAR2,

     geom IN SDO_GEOMETRY

     ) RETURN SDO_TOPO_GEOMETRY;

Format (parent level in a hierarchy)

SDO_TOPO_MAP.CREATE_FEATURE(

     topology IN VARCHAR2,

     table_name IN VARCHAR2,

     column_name IN VARCHAR2,

     dml_condition IN VARCHAR2

     ) RETURN SDO_TOPO_GEOMETRY;

Description

Creates a feature from Oracle Spatial geometries. (This function is intended to be used for inserting rows into a feature table.)

Parameters

topology

Topology having the associated specified feature table and feature column.

table_name

Name of the feature table containing the feature column specified in column_name.

column_name

Name of the feature column (of type SDO_TOPO_GEOMETRY) containing the topology geometries.

geom

Geometry objects.

dml_condition

For topologies with a topology geometry layer hierarchy (described in Section 1.4): DML condition for selecting rows from a child layer to be inserted into a parent layer. Specify the condition in a quoted string, but without the word WHERE. For example, to select only rows where the STATE_ABBR column value is MA, specify the following: 'state_abbr=''MA'''

Usage Notes

This function is used to create features from existing geometries stored in a spatial table. Creating features from existing geometries is one approach to creating topology features; the other approach is to load the topology data into the node, edge, and face information tables. Both approaches are described in Section 1.1, which contains the following subsections:

When you use the first format of this function, you must first create and load an updatable TopoMap object. To create a topology feature or an associated topological element, the function internally calls the addPointGeometry, addLinearGeometry, or addPolygonGeometry method of the updatable TopoMap object, depending on the SDO_GTYPE value of the geometry object, and it calls the updateTopology method of the updatable TopoMap object to write topological elements to the database. If this function is called in an INSERT or UPDATE statement, a feature is created or updated in the feature table. When the function completes, it has the effect of overlaying the geometry onto the topology. (That is, Spatial uses an implicitly created TopoMap object to create a new TopoMap object for each call to this function.)

When you use the second format of this function, you do not need to create an updatable TopoMap object. The function internally collects TG_ID values of features in the child level based on the dml_condition parameter value, and it assembles an SDO_TGL_OBJECT_ARRAY object to create the SDO_GEOMETRY object.

To ensure that this function works correctly with all geometries, use a loop to call the function for each geometry. Do not use this function in a subquery in an INSERT or UPDATE statement, because doing so may cause inconsistencies in the topology, and you may not receive any error or warning messages about the inconsistencies.

An exception is raised if one or more of the following conditions exist:

Examples

The following example populates the FEATURE column in the CITY_STREETS, TRAFFIC_SIGNS, and LAND_PARCELS feature tables with all geometries in the GEOMETRY column in the CITY_STREETS_GEOM, TRAFFIC_SIGNS_GEOM, and LAND_PARCELS_GEOM spatial tables, respectively. This example assumes that an updatable TopoMap object has been created and loaded for the CITY_DATA topology. (The example refers to definitions and data from Section 1.12.2.)

BEGIN
  FOR street_rec IN (SELECT name, geometry FROM city_streets_geom) LOOP
   INSERT INTO city_streets VALUES(street_rec.name,
     SDO_TOPO_MAP.CREATE_FEATURE('CITY_DATA', 'CITY_STREETS', 'FEATURE',
         street_rec.geometry));
  END LOOP;

  FOR sign_rec IN (SELECT name, geometry FROM traffic_signs_geom) LOOP
   INSERT INTO traffic_signs VALUES(sign_rec.name,
     SDO_TOPO_MAP.CREATE_FEATURE('CITY_DATA', 'TRAFFIC_SIGNS', 'FEATURE',
         sign_rec.geometry));
  END LOOP;

  FOR parcel_rec IN (SELECT name, geometry FROM land_parcels_geom) LOOP
   INSERT INTO land_parcels VALUES(parcel_rec.name,
     SDO_TOPO_MAP.CREATE_FEATURE('CITY_DATA', 'LAND_PARCELS', 'FEATURE',
         parcel_rec.geometry));
  END LOOP;
END;
/

The following example creates a topology that has a topology geometry layer hierarchy with two layers: counties and states. The calls to the CREATE_FEATURE function that create parent layer (state) features include the dml_condition parameter (for example, 'p_name=''NH''').

declare
 name varchar2(64);
 cursor c1 is select state_abrv, county from
   counties order by 1, 2;
 stateabrv varchar2(2);
begin

 -- Initialize.
 sdo_topo_map.create_topo_map('cnty', 'm2', 10000, 10000, 10000);
 sdo_topo_map.load_topo_map('m2', -180, -90, 180, 90, 'true');

 -- Insert one county at a time.
 for cnty_rec in c1 loop
   stateabrv := cnty_rec.state_abrv;
   name := cnty_rec.county;
   insert into cnty_areas select state_abrv || '-' ||county,
     sdo_topo_map.create_feature('CNTY', 'CNTY_AREAS', 'FEATURE', geom) from
     counties where state_abrv=stateabrv and county=name;
 end loop;

 -- Roll back topology.
 sdo_topo_map.rollback_topo_map();
 sdo_topo_map.drop_topo_map('m2');

 -- Roll back inserts.
 rollback;

exception
 when others then
   dbms_output.put_line(SQLERRM);
   sdo_topo_map.rollback_topo_map();
   sdo_topo_map.drop_topo_map('m2');
   rollback;
end;
/

-- Add parent feature layer.
--
--   The following commented out statement can be used to populate the
--     child_layer_id parameter in sdo_topo.add_topo_geometry_layer.
--
--   select tg_layer_id
--     from user_sdo_topo_info
--     where TOPOLOGY = 'SC'
--       and table_name = 'SC_AREAS';
--
execute sdo_topo.add_topo_geometry_layer('SC','SC_P_AREAS', 'FEATURE', -
                                      'POLYGON', NULL, child_layer_id => 1);

-- Create and insert state features (logically) from county features.
insert into sc_p_areas (f_name, p_name, feature) values ('NH', 'US',
  sdo_topo_map.create_feature('SC','SC_P_AREAS','FEATURE','p_name=''NH'''));
insert into sc_p_areas (f_name, p_name, feature) values ('CT', 'US',
  sdo_topo_map.create_feature('SC','SC_P_AREAS','FEATURE','p_name=''CT'''));
insert into sc_p_areas (f_name, p_name, feature) values ('ME', 'US',
  sdo_topo_map.create_feature('SC','SC_P_AREAS','FEATURE','p_name=''ME'''));
insert into sc_p_areas (f_name, p_name, feature) values ('MA', 'US',
  sdo_topo_map.create_feature('SC','SC_P_AREAS','FEATURE','p_name=''MA'''));
commit;

SDO_TOPO_MAP.CREATE_TOPO_MAP

Format

SDO_TOPO_MAP.CREATE_TOPO_MAP(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     number_of_edges IN NUMBER DEFAULT 100,

     number_of_nodes IN NUMBER DEFAULT 80,

     number_of_faces IN NUMBER DEFAULT 30);

Description

Creates a TopoMap object cache associated with an existing topology.

Parameters

topology

Name of the topology. Must not exceed 20 characters.

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

number_of_edges

An estimate of the maximum number of edges that will be in the TopoMap object at any given time. If you do not specify this parameter, a default value of 100 is used.

number_of_nodes

An estimate of the maximum number of nodes that will be in the TopoMap object at any given time. If you do not specify this parameter, a default value of 80 is used.

number_of_faces

An estimate of the maximum number of faces that will be in the TopoMap object at any given time. If you do not specify this parameter, a default value of 30 is used.

Usage Notes

The number_of_edges, number_of_nodes, and number_of_faces parameters let you improve the performance and memory usage of the procedure when you have a good idea of the approximate number of edges, nodes, or faces (or any combination) that will be placed in the cache associated with the specified TopoMap object. Spatial initially allocates memory cache for the specified or default number of objects of each type, and incrementally increases the allocation later if more objects need to be accommodated.

You can create more than one TopoMap object in a user session; however, there can be no more than one updatable TopoMap object at any given time in a user session.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

Using this procedure is equivalent to calling the constructor of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example creates a TopoMap object named CITY_DATA_TOPOMAP and its associated cache, and it associates the TopoMap object with the topology named CITY_DATA. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.CREATE_TOPO_MAP('CITY_DATA', 'CITY_DATA_TOPOMAP');

SDO_TOPO_MAP.DROP_TOPO_MAP

Format

SDO_TOPO_MAP.DROP_TOPO_MAP(

     topo_map IN VARCHAR2);

Description

Deletes a TopoMap object from the current user session.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

Usage Notes

This procedure rolls back any uncommitted changes if the TopoMap object is updatable (that is, performs the equivalent of an SDO_TOPO_MAP.ROLLBACK_TOPO_MAP operation). It clears the cache associated with the TopoMap object, and removes the TopoMap object from the session.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

Using this procedure is equivalent to setting the variable of the TopoMap object to a null value in a client-side Java application. (The client-side Java API is described in Section 1.8.2.)

Examples

The following example drops the TopoMap object named CITY_DATA_TOPOMAP. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.DROP_TOPO_MAP('CITY_DATA_TOPOMAP');

SDO_TOPO_MAP.GET_CONTAINING_FACE

Format

SDO_TOPO_MAP.GET_CONTAINING_FACE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.GET_CONTAINING_FACE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Returns the face ID number of the face that contains the specified point.

Parameters

topology

Name of the topology that contains the face and the point, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

point

Geometry object specifying the point.

x

X-axis value of the point.

y

Y-axis value of the point.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function determines, from the faces in the specified TopoMap object (including any island faces), which one face (if any) contains the specified point in its open set, excluding islands. (The open set, excluding islands, of a face consists of all points inside, but not on the boundary of, the face.) If the point is exactly on the boundary of a face, the function returns a value of 0 (zero).

If the entire topology has been loaded into the TopoMap object and if the point is not in any finite face in the cache, this function returns a value of -1 (for the universe face). If a window from the topology has been loaded into the TopoMap object and if the point is not in any finite face in the cache, this function returns a value of -1 (for the universe face) if the point is inside the window and a value of 0 (zero) if the point is outside the window. If neither the entire topology nor a window has been loaded, this function returns 0 (zero).

This function is equivalent to using the getContainingFace method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the face ID number of the face that contains the point at (22, 37) in the CITY_DATA_TOPOMAP TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_CONTAINING_FACE(null, 'CITY_DATA_TOPOMAP',
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(22,37,NULL), NULL, NULL))
  FROM DUAL;

SDO_TOPO_MAP.GET_CONTAINING_FACE(NULL,'CITY_DATA_TOPOMAP',SDO_GEOMETRY(2001,NULL
--------------------------------------------------------------------------------
                                                                               2

SDO_TOPO_MAP.GET_EDGE_ADDITIONS

Format

SDO_TOPO_MAP.GET_EDGE_ADDITIONS() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of edge ID numbers of edges that have been added to the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the edge ID numbers of edges in the current updatable TopoMap object that have been added since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no additions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getEdgeAdditions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID numbers of edges that have been added to the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_EDGE_ADDITIONS FROM DUAL;

GET_EDGE_ADDITIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(28, 29, 30, 32)

SDO_TOPO_MAP.GET_EDGE_CHANGES

Format

SDO_TOPO_MAP.GET_EDGE_CHANGES() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of edge ID numbers of edges that have been changed (modified) in the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the edge ID numbers of edges in the current updatable TopoMap object that have been changed since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no changes during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getEdgeChanges method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID numbers of edges that have been changed in the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_EDGE_CHANGES FROM DUAL;

GET_EDGE_CHANGES
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(3, 2, 1)

SDO_TOPO_MAP.GET_EDGE_COORDS

Format

SDO_TOPO_MAP.GET_EDGE_COORDS(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     edge_id IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an array with the coordinates of the start node, shape points, and end node for the specified edge.

Parameters

topology

Name of the topology that contains the edge, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

edge_id

Edge ID value of the edge.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function is equivalent to using the getEdgeCoords method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the coordinates of the start node, shape points, and end node for the edge whose edge ID value is 1. The returned array contains coordinates for six points. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_EDGE_COORDS(null, 'CITY_DATA_TOPOMAP', 1) FROM DUAL;

SDO_TOPO_MAP.GET_EDGE_COORDS(NULL,'CITY_DATA_TOPOMAP',1)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(8, 30, 16, 30, 16, 38, 3, 38, 3, 30, 8, 30)

SDO_TOPO_MAP.GET_EDGE_DELETIONS

Format

SDO_TOPO_MAP.GET_EDGE_DELETIONS() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of edge ID numbers of edges that have been deleted from the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the edge ID numbers of edges in the current updatable TopoMap object that have been deleted since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no deletions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getEdgeDeletions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID numbers of edges that have been deleted from the current updatable TopoMap object. In this case, the return of an empty SDO_NUMBER_ARRAY object indicates that no edges have been deleted.

SELECT SDO_TOPO_MAP.GET_EDGE_DELETIONS FROM DUAL;

GET_EDGE_DELETIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY()

SDO_TOPO_MAP.GET_EDGE_NODES

Format

SDO_TOPO_MAP.GET_EDGE_NODES(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     edge_id IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an array with the ID numbers of the start and end nodes on the specified edge.

Parameters

topology

Name of the topology that contains the edge, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

edge_id

Edge ID value of the edge.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

If the edge starts and ends at a node, the ID number of the node is the first and last number in the array.

This function has no exact equivalent method in the TopoMap class of the client-side Java API (described in Section 1.8.2). The getEdge method returns a Java edge object of the oracle.spatial.topo.Edge class.

Examples

The following example returns the ID numbers of the nodes on the edge whose edge ID value is 1. The returned array contains two nodes ID numbers, both of them 1 (for the same node), because the specified edge starts and ends at the node with node ID 1 and has a loop edge. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_EDGE_NODES(null, 'CITY_DATA_TOPOMAP', 1) FROM DUAL;

SDO_TOPO_MAP.GET_EDGE_NODES(NULL,'CITY_DATA_TOPOMAP',1)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(1, 1)

SDO_TOPO_MAP.GET_FACE_ADDITIONS

Format

SDO_TOPO_MAP.GET_FACE_ADDITIONS() RETURN SDO_NUMBER_ARRAY

Description

Returns an array of face ID numbers of faces that have been added to the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the face ID numbers of faces in the current updatable TopoMap object that have been added since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no additions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getFaceAdditions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the face ID numbers of faces that have been added to the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_FACE_ADDITIONS FROM DUAL;

GET_FACE_ADDITIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(11)

SDO_TOPO_MAP.GET_FACE_CHANGES

Format

SDO_TOPO_MAP.GET_FACE_CHANGES() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of face ID numbers of faces that have been changed (modified) in the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the face ID numbers of faces in the current updatable TopoMap object that have been changed since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no changes during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getFaceChanges method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the face ID numbers of faces that have been changed in the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_FACE_CHANGES FROM DUAL;

GET_FACE_CHANGES
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(2, 1, -1)

SDO_TOPO_MAP.GET_FACE_BOUNDARY

Format

SDO_TOPO_MAP.GET_FACE_BOUNDARY(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     face_id IN NUMBER

     option IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an array with the edge ID numbers of the edges that make up the boundary for the specified face.

Parameters

topology

Name of the topology that contains the face, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

face_id

Face ID value of the face.

option

One of the following numbers to indicate an option for computing the boundary: 0 for an external boundary ring without spurs (that is, without doubly traced edges), 1 for external and internal rings without spurs, or 2 for external and internal rings with spurs. A value of 2 returns the full, though possibly degenerate, boundary.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function is equivalent to using the getFaceBoundary method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edges in the external boundary ring without spurs for the face whose face ID value is 3. The returned array contains four edge ID values. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_FACE_BOUNDARY(null, 'CITY_DATA_TOPOMAP', 3, 0) FROM DUAL;

SDO_TOPO_MAP.GET_FACE_BOUNDARY(NULL,'CITY_DATA_TOPOMAP',3,0)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(19, 6, 21, 9)

SDO_TOPO_MAP.GET_FACE_DELETIONS

Format

SDO_TOPO_MAP.GET_FACE_DELETIONS() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of face ID numbers of faces that have been deleted from the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the face ID numbers of faces in the current updatable TopoMap object that have been deleted since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no deletions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getFaceDeletions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the face ID numbers of faces that have been deleted from the current updatable TopoMap object. In this case, the return of an empty SDO_NUMBER_ARRAY object indicates that no faces have been deleted.

SELECT SDO_TOPO_MAP.GET_FACE_DELETIONS FROM DUAL;

GET_FACE_DELETIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY()

SDO_TOPO_MAP.GET_NEAREST_EDGE

Format

SDO_TOPO_MAP.GET_NEAREST_EDGE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.GET_NEAREST_EDGE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Returns the edge ID number of the edge that is nearest (closest to) the specified point.

Parameters

topology

Name of the topology that contains the edge and the point, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

point

Geometry object specifying the point.

x

X-axis value of the point.

y

Y-axis value of the point.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

The nearest edge is determined from the representation of the topology in the database, using the spatial index. If there are changed, added, or deleted edges in the instance and the database has not been updated to reflect those changes, the result may not reflect the true situation in the TopoMap object cache.

If multiple edges are equally close to the point, any one of the edge ID values is returned. If no edges exist in the topology, this function returns 0 (zero).

This function is equivalent to using the getNearestEdge method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID number of the edge that is closest to the point at (8, 8) in the CITY_DATA_TOPOMAP TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NEAREST_EDGE(null, 'CITY_DATA_TOPOMAP',
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(8,8,NULL), NULL, NULL))
  FROM DUAL;

SDO_TOPO_MAP.GET_NEAREST_EDGE(NULL,'CITY_DATA_TOPOMAP',SDO_GEOMETRY(2001,NULL,SD
--------------------------------------------------------------------------------
                                                                              22

SDO_TOPO_MAP.GET_NEAREST_EDGE_IN_CACHE

Format

SDO_TOPO_MAP.GET_NEAREST_EDGE_IN_CACHE(

     topo_map IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.GET_NEAREST_EDGE_IN_CACHE(

     topo_map IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Returns the edge ID number of the edge that, of the edges loaded in the specified TopoMap object, is nearest (closest to) the specified point.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

point

Geometry object specifying the point.

x

X-axis value of the point.

y

Y-axis value of the point.

Usage Notes

If multiple edges are equally close to the point, any one of the edge ID values is returned. If no topology data is loaded or if no edges exist in the cache, this function returns 0 (zero).

This function is equivalent to using the getNearestEdgeInCache method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID number of the edge that is closest to the point at (8, 8) in the CITY_DATA_TOPOMAP TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NEAREST_EDGE_IN_CACHE('CITY_DATA_TOPOMAP',
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(8,8,NULL), NULL, NULL))
  FROM DUAL;

SDO_TOPO_MAP.GET_NEAREST_EDGE_IN_CACHE('CITY_DATA_TOPOMAP',SDO_GEOMETRY(2001,NUL
--------------------------------------------------------------------------------
                                                                              22

SDO_TOPO_MAP.GET_NEAREST_NODE

Format

SDO_TOPO_MAP.GET_NEAREST_NODE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.GET_NEAREST_NODE(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Returns the node ID number of the node that is nearest (closest to) the specified point.

Parameters

topology

Name of the topology that contains the node and the point, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

point

Geometry object specifying the point.

x

X-axis value of the point.

y

Y-axis value of the point.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

The nearest node is determined from the representation of the topology in the database, using the spatial index. If there are changed, added, or deleted nodes in the instance and the database has not been updated to reflect those changes, the result may not reflect the true situation in the TopoMap object cache.

If multiple nodes are equally close to the point, any one of the node ID values is returned.

This function is equivalent to using the getNearestNode method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the node ID number of the node that is closest to the point at (8, 8) in the CITY_DATA_TOPOMAP TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NEAREST_NODE(null, 'CITY_DATA_TOPOMAP',
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(8,8,NULL), NULL, NULL))
  FROM DUAL;

SDO_TOPO_MAP.GET_NEAREST_NODE(NULL,'CITY_DATA_TOPOMAP',SDO_GEOMETRY(2001,NULL,SD
--------------------------------------------------------------------------------
                                                                               8

SDO_TOPO_MAP.GET_NEAREST_NODE_IN_CACHE

Format

SDO_TOPO_MAP.GET_NEAREST_NODE_IN_CACHE(

     topo_map IN VARCHAR2,

     point IN SDO_GEOMETRY

     ) RETURN NUMBER;

or

SDO_TOPO_MAP.GET_NEAREST_NODE_IN_CACHE(

     topo_map IN VARCHAR2,

     x IN NUMBER,

     y IN NUMBER

     ) RETURN NUMBER;

Description

Returns the node ID number of the node that, of the nodes loaded in the specified TopoMap object, is nearest (closest to) the specified point.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

point

Geometry object specifying the point.

x

X-axis value of the point.

y

Y-axis value of the point.

Usage Notes

If multiple nodes are equally close to the point, any one of the node ID values is returned. If no topology data is loaded or if no nodes exist in the cache, this function returns 0 (zero).

This function is equivalent to using the getNearestNodeInCache method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the node ID number of the node that is closest to the point at (8, 8) in the CITY_DATA_TOPOMAP TopoMap object. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NEAREST_NODE_IN_CACHE('CITY_DATA_TOPOMAP',
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(8,8,NULL), NULL, NULL))
  FROM DUAL;

SDO_TOPO_MAP.GET_NEAREST_NODE_IN_CACHE('CITY_DATA_TOPOMAP',SDO_GEOMETRY(2001,NUL
--------------------------------------------------------------------------------
                                                                               8

SDO_TOPO_MAP.GET_NODE_ADDITIONS

Format

SDO_TOPO_MAP.GET_NODE_ADDITIONS() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of node ID numbers of nodes that have been added to the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the node ID numbers of nodes in the current updatable TopoMap object that have been added since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no additions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getNodeAdditions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the node ID numbers of nodes that have been added to the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_NODE_ADDITIONS FROM DUAL;

GET_NODE_ADDITIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(24, 25, 26, 27, 28)

SDO_TOPO_MAP.GET_NODE_CHANGES

Format

SDO_TOPO_MAP.GET_NODE_CHANGES() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of node ID numbers of nodes that have been changed (modified) in the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the node ID numbers of nodes in the current updatable TopoMap object that have been changed since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no changes during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getNodeChanges method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the node ID numbers of nodes that have been changed in the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_NODE_CHANGES FROM DUAL;

GET_NODE_CHANGES
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(2, 4)

SDO_TOPO_MAP.GET_NODE_COORD

Format

SDO_TOPO_MAP.GET_NODE_COORD(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     node_id IN NUMBER

     ) RETURN SDO_GEOMETRY;

Description

Returns an SDO_GEOMETRY object with the coordinates of the specified node.

Parameters

topology

Name of the topology that contains the node, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

node_id

Node ID value of the node.

Usage Notes

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function is equivalent to using the getNodeCoord method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns a geometry object with the coordinates of the node whose node ID value is 14. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NODE_COORD(null, 'CITY_DATA_TOPOMAP', 14) FROM DUAL;

SDO_TOPO_MAP.GET_NODE_COORD(NULL,'CITY_DATA_TOPOMAP',14)(SDO_GTYPE, SDO_SRID, SD
--------------------------------------------------------------------------------
SDO_GEOMETRY(2001, 0, SDO_POINT_TYPE(21, 14, NULL), NULL, NULL)

SDO_TOPO_MAP.GET_NODE_DELETIONS

Format

SDO_TOPO_MAP.GET_NODE_DELETIONS() RETURN SDO_NUMBER_ARRAY;

Description

Returns an array of node ID numbers of nodes that have been deleted from the current updatable TopoMap object.

Parameters

None.

Usage Notes

This function returns the node ID numbers of nodes in the current updatable TopoMap object that have been deleted since the object was most recently loaded (using SDO_TOPO_MAP.LOAD_TOPO_MAP), updated (using SDO_TOPO_MAP.UPDATE_TOPO_MAP), cleared (using SDO_TOPO_MAP.CLEAR_TOPO_MAP), committed (using SDO_TOPO_MAP.COMMIT_TOPO_MAP), or rolled back (using SDO_TOPO_MAP.ROLLBACK_TOPO_MAP). If there have been no deletions during that time, the function returns an empty SDO_NUMBER_ARRAY object.

This function is equivalent to using the getNodeDeletions method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the node ID numbers of nodes that have been deleted from the current updatable TopoMap object. In this case, the return of an empty SDO_NUMBER_ARRAY object indicates that no nodes have been deleted.

SELECT SDO_TOPO_MAP.GET_NODE_DELETIONS FROM DUAL;

GET_NODE_DELETIONS
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY()

SDO_TOPO_MAP.GET_NODE_FACE_STAR

Format

SDO_TOPO_MAP.GET_NODE_FACE_STAR(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     node_id IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an SDO_NUMBER_ARRAY object with the face ID numbers, in clockwise order, of the faces that are connected to the specified node.

Parameters

topology

Name of the topology that contains the node, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

node_id

Node ID value of the node.

Usage Notes

The node face star of a node is the faces that are connected to the node. One face is returned for each edge connected to the node. For an isolated node, the containing face is returned. A face may appear more than once in the list.

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function is equivalent to using the getNodeFaceStar method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

To return the node star of a node, use the SDO_TOPO_MAP.GET_NODE_STAR function.

Examples

The following example returns the node face star of the node whose node ID value is 14. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NODE_FACE_STAR(null, 'CITY_DATA_TOPOMAP', 14) FROM DUAL;

SDO_TOPO_MAP.GET_NODE_FACE_STAR(NULL,'CITY_DATA_TOPOMAP',14)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(4, 7, 6, 3)

SDO_TOPO_MAP.GET_NODE_STAR

Format

SDO_TOPO_MAP.GET_NODE_STAR(

     topology IN VARCHAR2,

     topo_map IN VARCHAR2,

     node_id IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an SDO_NUMBER_ARRAY object with the edge ID numbers, in clockwise order, of the edges that are connected to the specified node.

Parameters

topology

Name of the topology that contains the node, or a null value, as explained in Section 2.1.3. Must not exceed 20 characters.

topo_map

Name of the TopoMap object, or a null value, as explained in Section 2.1.3. (TopoMap objects are explained in Section 2.1.1.)

node_id

Node ID value of the node.

Usage Notes

The node star of a node is the edges that are connected to the node. A positive edge ID represents an edge for which the node is its start node. A negative edge ID represents an edge for which the node is its end node. If any loops are connected to the node, edges may appear in the list twice with opposite signs.

The topology or topo_map parameter should specify a valid name, as explained in Section 2.1.3.

This function is equivalent to using the getNodeStar method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

To return the node face star of a node, use the SDO_TOPO_MAP.GET_NODE_FACE_STAR function.

Examples

The following example returns the node star of the node whose node ID value is 14. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_NODE_STAR(null, 'CITY_DATA_TOPOMAP', 14) FROM DUAL;

SDO_TOPO_MAP.GET_NODE_STAR(NULL,'CITY_DATA_TOPOMAP',14)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(19, -10, -20, -9)

SDO_TOPO_MAP.GET_TOPO_NAME

Format

SDO_TOPO_MAP.GET_TOPO_NAME(

     topo_map IN VARCHAR2

     ) RETURN VARCHAR2;

Description

Returns the name of the topology associated with the specified TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

Usage Notes

This function is equivalent to using the getTopoName method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the name of the topology associated with the TopoMap object named CITY_DATA_TOPOMAP. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.GET_TOPO_NAME('CITY_DATA_TOPOMAP') FROM DUAL;

SDO_TOPO_MAP.GET_TOPO_NAME('CITY_DATA_TOPOMAP')
--------------------------------------------------------------------------------
CITY_DATA

SDO_TOPO_MAP.GET_TOPO_TRANSACTION_ID

Format

SDO_TOPO_MAP.GET_TOPO_TRANSACTION_ID() RETURN NUMBER;

Description

Returns the topology transaction ID number, if data has been loaded into the current updatable TopoMap object.

Parameters

None.

Usage Notes

For each row in the history information table for a topology, the TOPO_TX_ID column contains the topology transaction ID number. The history information table is described in Section 1.5.5.

This function is equivalent to using the getTopoTransactionId method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the topology transaction ID number for the current updatable TopoMap object.

SELECT SDO_TOPO_MAP.GET_TOPO_TRANSACTION_ID FROM DUAL;

GET_TOPO_TRANSACTION_ID
-----------------------
                      1

SDO_TOPO_MAP.LIST_TOPO_MAPS

Format

SDO_TOPO_MAP.LIST_TOPO_MAPS() RETURN VARCHAR2;

Description

Returns a comma-delimited list of entries for each TopoMap object currently active in the session, or an empty string if there are no currently active TopoMap objects.

Parameters

None.

Usage Notes

Each entry in the comma-delimited list contains the following information: the name of the TopoMap object, the name of the topology associated with the TopoMap object, and either updatable if the TopoMap object can be updated (that is, edited) or read-only if the TopoMap object cannot be updated.

For more information about TopoMap objects, including updatable and read-only status, see Section 2.1.1.

To remove a TopoMap object from the session, use the SDO_TOPO_MAP.DROP_TOPO_MAP procedure.

Examples

The following example lists the Topomap object name, topology name, and whether the object is updatable or read-only for each TopoMap object currently active in the session. (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.LIST_TOPO_MAPS FROM DUAL;

LIST_TOPO_MAPS
--------------------------------------------------------------------------------
(CITY_DATA_TOPOMAP, CITY_DATA, updatable)

SDO_TOPO_MAP.LOAD_TOPO_MAP

Format (Function)

SDO_TOPO_MAP.LOAD_TOPO_MAP(

     topo_map IN VARCHAR2,

     allow_updates IN VARCHAR2,

     build_indexes IN VARCHAR2 DEFAULT 'TRUE'

     ) RETURN VARCHAR2;

or

SDO_TOPO_MAP.LOAD_TOPO_MAP(

     topo_map IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER,

     allow_updates IN VARCHAR2,

     build_indexes IN VARCHAR2 DEFAULT 'TRUE'

     ) RETURN VARCHAR2;

Format (Procedure)

SDO_TOPO_MAP.LOAD_TOPO_MAP(

     topo_map IN VARCHAR2,

     allow_updates IN VARCHAR2,

     build_indexes IN VARCHAR2 DEFAULT 'TRUE');'

or

SDO_TOPO_MAP.LOAD_TOPO_MAP(

     topo_map IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER,

     allow_updates IN VARCHAR2,

     build_indexes IN VARCHAR2 DEFAULT 'TRUE');'

Description

Loads the topological elements (primitives) for an entire topology or a window (rectangular portion) of a topology into a TopoMap object. If you use a function format, returns the string TRUE if topological elements were loaded into the cache, and FALSE if no topological elements were loaded into the cache.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

xmin

Lower-left X coordinate value for the window (rectangular portion of the topology) to be loaded.

See the Usage Notes and Figure 4-1 for information about which topological elements are loaded when you specify a window.

ymin

Lower-left Y coordinate value for the window (rectangular portion of the topology) to be loaded.

xmax

Upper-right X coordinate value for the window (rectangular portion of the topology) to be loaded.

ymax

Upper-right Y coordinate value for the window (rectangular portion of the topology) to be loaded.

allow_updates

TRUE makes the TopoMap object updatable; that is, it allows topology editing operations to be performed on the TopoMap object and changes to be written back to the database. FALSE makes the TopoMap object read-only with respect to the database; that is, it allows topology editing operations to be performed on the TopoMap object but does not allow changes to be written back to the database.

Making a TopoMap object updatable causes the topological elements in the TopoMap object to be locked, which means that they cannot be included in an updatable TopoMap object in the session of another database user. (Within any given user session, there can be no more than one updatable TopoMap object active.)

build_indexes

TRUE (the default) builds in-memory R-tree indexes for edge and face data; FALSE does not build in-memory R-tree indexes for edge and face data. The indexes improve the performance of editing operations, especially with large topologies.

Usage Notes

Using a procedure format for loading the TopoMap object is more efficient than using the function format, if you do not need to know if any topological elements were loaded (for example, if the specified topology or rectangular area is empty). Using a function format lets you know if any topological elements were loaded.

You must create the TopoMap object (using the SDO_TOPO_MAP.CREATE_TOPO_MAP procedure) before you load data into it.

You cannot use this function or procedure if the TopoMap object already contains data. If the TopoMap object contains any data, you must do one of the following before calling this function or procedure: commit the changes (using the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure) and clear the cache (using the SDO_TOPO_MAP.CLEAR_TOPO_MAP procedure), or roll back the changes (using the SDO_TOPO_MAP.ROLLBACK_TOPO_MAP procedure).

For information about using an in-memory cache to edit topological elements, see Section 2.1.

This function or procedure is equivalent to using the loadTopology or loadWindow method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Every TopoMap object, whether for an entire topology or for a window specified using the xmin, ymin, xmax, and ymax parameters, has a region associated with it. For an updatable TopoMap object, updates are allowed only within this region. (The region might also contain topological elements that you cannot update directly, but that might be modified by Oracle Spatial as needed as a result of your editing operations.)

When a TopoMap object is loaded, all nodes, faces, and edges that intersect the region for the TopoMap object are loaded. When a face is loaded, all edges and nodes that are on the boundary of the face are loaded. When an edge is loaded, the start node and end node of the edge are loaded. Consider the topology and the window (shown by a dashed line) in Figure 4-1.

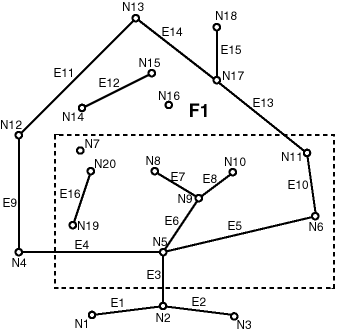

Figure 4-1 Loading Topological Elements into a Window

Description of Figure 4-1 follows
Description of "Figure 4-1 Loading Topological Elements into a Window"

With the window shown in Figure 4-1:

Examples

The following example loads all CITY_DATA topology elements into its associated TopoMap object for editing and builds the in-memory R-tree indexes by default. It returns a result indicating that the operation was successful and that some topological elements were loaded into the cache. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.LOAD_TOPO_MAP('CITY_DATA_TOPOMAP', 'TRUE') INTO :res_varchar;

Call completed.

PRINT res_varchar;

RES_VARCHAR
--------------------------------------------------------------------------------
TRUE

SDO_TOPO_MAP.MOVE_EDGE

Format

SDO_TOPO_MAP.MOVE_EDGE(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     s_node_id IN NUMBER,

     t_node_id IN NUMBER,

     edge_coords IN SDO_NUMBER_ARRAY);

or

SDO_TOPO_MAP.MOVE_EDGE(

     topology IN VARCHAR2,

     edge_id IN NUMBER,

     s_node_id IN NUMBER,

     t_node_id IN NUMBER,

     edge_coords IN SDO_NUMBER_ARRAY,

     moved_iso_nodes OUT SDO_NUMBER_ARRAY,

     moved_iso_edges OUT SDO_NUMBER_ARRAY,

     allow_iso_moves IN VARCHAR2);

Description

Moves a non-isolated edge.

Parameters

topology

Name of the topology in which to move the edge, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

edge_id

Edge ID of the edge to be moved.

edge_coords

An array of coordinates of the resulting moved edge, from start point to end point.

s_node_id

Node ID of the source node, which identifies the point (start node or end node of the edge) affected by the move, before the move occurs. For example, if the end point of edge E19 is to be moved from node N17 to node N16, the s_node_id value is the node ID number for node N17.

t_node_id

Node ID of the target node, which identifies the point affected by the move, after the move occurs. For example, if the end point of edge E19 is to be moved from node N17 to node N16, the t_node_id value is the node ID number for node N16.

moved_iso_nodes

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the node ID values of any isolated nodes that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the node ID values of any isolated nodes that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

moved_iso_edges

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the edge ID values of any isolated edges that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the edge ID values of any isolated edges that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

allow_iso_moves

TRUE causes Spatial to allow an edge move operation that would cause any isolated nodes or edges to be in a different face, and to adjust the containing face information for such isolated nodes and edges; FALSE causes Spatial not to allow an edge move operation that would cause any isolated nodes or edges to be in a different face.

If you use the format that does not include the allow_iso_moves parameter, Spatial allows an edge move operation that would cause any isolated nodes or edges to be in a different face, and it adjusts the containing face information for such isolated nodes and edges.

Usage Notes

For information about moving edges, see Section 2.3.2.

This procedure is equivalent to using the moveEdge method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example moves the edge with edge ID value 19, and it displays the edge coordinates before and after the move. The edge move operation moves the end point of the edge from the node with node ID value 17 to the node with node ID value 16. (The edge being moved is E19 in Figure 1-2 in Section 1.2; and the edge is being changed from going vertically up to node N17, to going diagonally up and left to node N16. The example refers to definitions and data from Section 1.12.1.)

-- Get coordinates of edge E19.
SELECT SDO_TOPO_MAP.GET_EDGE_COORDS(null, 'CITY_DATA_TOPOMAP', 19) FROM DUAL;

SDO_TOPO_MAP.GET_EDGE_COORDS(NULL,'CITY_DATA_TOPOMAP',19)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(21, 14, 21, 22)

-- Move edge E19: from N14 -> N17 to N14 -> N16. The 3rd and 4th parameters
-- identify N17 and N16.
CALL SDO_TOPO_MAP.MOVE_EDGE(null, 19, 17, 16,
  SDO_NUMBER_ARRAY(21,14, 9,22));

Call completed.

-- Get coordinates of edge E19 after the move.
SELECT SDO_TOPO_MAP.GET_EDGE_COORDS(null, 'CITY_DATA_TOPOMAP', 19) FROM DUAL;

SDO_TOPO_MAP.GET_EDGE_COORDS(NULL,'CITY_DATA_TOPOMAP',19)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(21, 14, 9, 22)

SDO_TOPO_MAP.MOVE_ISOLATED_NODE

Format

SDO_TOPO_MAP.MOVE_ISOLATED_NODE(

     topology IN VARCHAR2,

     node_id IN NUMBER,

     point IN SDO_GEOMETRY);

or

SDO_TOPO_MAP.MOVE_ISOLATED_NODE(

     topology IN VARCHAR2,

     node_id IN NUMBER,

     x IN NUMBER,

     y IN NUMBER);

Description

Moves an isolated (island) node.

Parameters

topology

Name of the topology in which to move the node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

node_id

Node ID of the node to be moved.

point

SDO_GEOMETRY object (point geometry) representing the location to which the isolated node is to be moved.

x

X-axis value of the point representing the location to which the isolated node is to be moved.

y

Y-axis value of the point representing the location to which the isolated node is to be moved.

Usage Notes

For information about moving nodes, see Section 2.2.2.

The node must be moved to a location inside the face in which it is currently located. Otherwise, you must delete the node and re-create it.

This procedure is equivalent to using the moveIsolatedNode method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example adds an isolated node and then moves it. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.ADD_ISOLATED_NODE(null, 2,
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(22,38,NULL), NULL, NULL))
  INTO :res_number;

-- Move the just-added isolated node (from 20,38 to 22,39).
CALL SDO_TOPO_MAP.MOVE_ISOLATED_NODE( null, :res_number,
  SDO_GEOMETRY(2001, NULL, SDO_POINT_TYPE(22,39,NULL), NULL, NULL));

SDO_TOPO_MAP.MOVE_NODE

Format

SDO_TOPO_MAP.MOVE_NODE(

     topology IN VARCHAR2,

     node_id IN NUMBER,

     edges_coords IN SDO_EDGE_ARRAY);

or

SDO_TOPO_MAP.MOVE_NODE(

     topology IN VARCHAR2,

     node_id IN NUMBER,

     edges_coords IN SDO_EDGE_ARRAY,

     moved_iso_nodes OUT SDO_NUMBER_ARRAY,

     moved_iso_edges OUT SDO_NUMBER_ARRAY,

     allow_iso_moves IN VARCHAR2);

Description

Moves a non-isolated node and its attached edges.

Parameters

topology

Name of the topology in which to move the node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

node_id

Node ID of the node to be moved.

edges_coords

An array of arrays, of type SDO_EDGE_ARRAY (described in Section 1.6.7). Each inner array consists of coordinates of each resulting attached edge, from start point to end point. The outer array consists of the attached edge arrays, starting with the start edge of the node to be moved and proceeding in clockwise order (with the sequence of the edges as would be obtained in a call to the SDO_TOPO_MAP.GET_NODE_STAR function).

The array for each edge must include the start and end points. Any loops that connect twice at the moved node must be specified twice in the array.

moved_iso_nodes

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the node ID values of any isolated nodes that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the node ID values of any isolated nodes that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

moved_iso_edges

Output parameter in which, if the allow_iso_moves parameter value is TRUE, Spatial stores the edge ID values of any isolated edges that have moved to a different face as a result of this procedure. If the allow_iso_moves parameter value is FALSE, Spatial stores the edge ID values of any isolated edges that did not move but that would have moved to a different face if the allow_iso_moves parameter value had been TRUE.

allow_iso_moves

TRUE causes Spatial to allow a node move operation that would cause any isolated nodes or edges to be in a different face, and to adjust the containing face information for such isolated nodes and edges; FALSE causes Spatial not to allow a node move operation that would cause any isolated nodes or edges to be in a different face.

If you use the format that does not include the allow_iso_moves parameter, Spatial allows a node move operation that would cause any isolated nodes or edges to be in a different face, and it adjusts the containing face information for such isolated nodes and edges.

Usage Notes

For information about moving nodes, see Section 2.2.2.

This procedure is equivalent to using the moveNode method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example moves node N3 and adjusts the coordinates of the only attached edge. (The example refers to definitions and data from Section 1.12.1.)

-- Move node N3 to right: from 25,35 to 26,35.
-- E3 is changed from 25,30 -> 25,35 to 25,30 -> 26,35.
CALL SDO_TOPO_MAP.MOVE_NODE(null, 3,
  SDO_EDGE_ARRAY(SDO_NUMBER_ARRAY(25,30, 26,35)));

SDO_TOPO_MAP.REMOVE_EDGE

Format

SDO_TOPO_MAP.REMOVE_EDGE(

     topology IN VARCHAR2,

     edge_id IN NUMBER);

Description

Removes an edge from a topology.

Parameters

topology

Name of the topology from which to remove the edge, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

edge_id

Edge ID of the edge to be removed.

Usage Notes

If topology is not null, Spatial automatically updates the appropriate entries in the <topology-name>_EDGE$ and <topology-name>_FACE$ tables. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

For information about removing an edge from a topology, see Section 2.3.3.

Examples

The following example removes the edge with edge ID value 99 from the current updatable TopoMap object.

CALL SDO_TOPO_MAP.REMOVE_EDGE(null, 99);

SDO_TOPO_MAP.REMOVE_NODE

Format

SDO_TOPO_MAP.REMOVE_NODE(

     topology IN VARCHAR2,

     node_id IN NUMBER);

Description

Removes a node from a topology.

Parameters

topology

Name of the topology from which to remove the node, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

node_id

Node ID of the node to be removed.

Usage Notes

If topology is not null, Spatial automatically updates the appropriate entries in the <topology-name>_NODE$ and <topology-name>_EDGE$ tables, and in the <topology-name>_FACE$ table if necessary. (If topology is null, you can update these tables at any time by calling the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure.)

For information about removing a node from a topology, see Section 2.2.3.

Examples

The following example removes the node with node ID value 500 from the current updatable TopoMap object.

CALL SDO_TOPO_MAP.REMOVE_NODE(null, 500);

SDO_TOPO_MAP.REMOVE_OBSOLETE_NODES

Format

SDO_TOPO_MAP.REMOVE_OBSOLETE_NODES(

     topology IN VARCHAR2);

Description

Removes obsolete nodes from a topology. (Obsolete nodes are explained in Section 2.2.4.)

Parameters

topology

Name of the topology from which to remove obsolete nodes, or null if you are using an updatable TopoMap object (see Section 2.1.2). Must not exceed 20 characters.

Usage Notes

For information about removing obsolete nodes from a topology, see Section 2.2.4.

Examples

The following example removes all obsolete nodes from the current updatable TopoMap object.

CALL SDO_TOPO_MAP.REMOVE_OBSOLETE_NODES(null);

SDO_TOPO_MAP.ROLLBACK_TOPO_MAP

Format

SDO_TOPO_MAP.ROLLBACK_TOPO_MAP;

Description

Rolls back all changes to the database that were made using the current updatable TopoMap object, discards any changes in the object, clears the object's cache structure, and makes the object read-only.

Parameters

None.

Usage Notes

Use this procedure when you are finished with a batch of edits to a topology and you want to discard (that is, not commit) all changes to the database and in the cache. After the rollback operation completes, you cannot edit the TopoMap object. To make further edits to the topology, you can load the topology into the same TopoMap object for update (using the SDO_TOPO_MAP.LOAD_TOPO_MAP function or procedure), or you can create a new TopoMap object (using the SDO_TOPO_MAP.CREATE_TOPO_MAP procedure) and load the topology into that TopoMap object for update.

To commit all TopoMap object changes, use the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

This procedure is equivalent to using the rollbackDB method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example rolls back from the database all changes associated with the current updatable TopoMap object.

EXECUTE SDO_TOPO_MAP.ROLLBACK_TOPO_MAP;

SDO_TOPO_MAP.SEARCH_EDGE_RTREE_TOPO_MAP

Format

SDO_TOPO_MAP.SEARCH_EDGE_RTREE_TOPO_MAP(

     topo_map IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER,

     capacity IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an array with the edge ID numbers of the edges that interact with a specified query window. The query uses the edge R-tree built on the specified TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

xmin

Lower-left X coordinate value for the query window.

ymin

Lower-left Y coordinate value for the query window.

xmax

Upper-right X coordinate value for the query window.

ymax

Upper-right Y coordinate value for the query window.

capacity

Maximum number of edge ID values to be returned. If you specify 0 or a negative number, 100 is used.

Usage Notes

This procedure is equivalent to using the searchEdgeRTree method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the edge ID numbers (up to 200) of edge that interact with a query window whose lower-left corner is at (5,5) and upper-right corner is at (30,40). (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.SEARCH_EDGE_RTREE_TOPO_MAP('CITY_DATA_TOPOMAP', -
  5,5, 30,40, 200) FROM DUAL;

SDO_TOPO_MAP.SEARCH_EDGE_RTREE_TOPO_MAP('CITY_DATA_TOPOMAP',5,5,30,40,200)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(12, 13, 22, 20, 9, 21, 19, 6, 10, 7, 26, 3, 1, 25, 2)

SDO_TOPO_MAP.SEARCH_FACE_RTREE_TOPO_MAP

Format

SDO_TOPO_MAP.SEARCH_FACE_RTREE_TOPO_MAP(

     topo_map IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER,

     capacity IN NUMBER

     ) RETURN SDO_NUMBER_ARRAY;

Description

Returns an array with the face ID numbers of the faces that interact with a specified query window. The query uses the face R-tree built on the specified TopoMap object.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

xmin

Lower-left X coordinate value for the query window.

ymin

Lower-left Y coordinate value for the query window.

xmax

Upper-right X coordinate value for the query window.

ymax

Upper-right Y coordinate value for the query window.

capacity

Maximum number of face ID values to be returned. If you specify 0 or a negative number, 100 is used.

Usage Notes

This procedure is equivalent to using the searchFaceRTree method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example returns the face ID numbers (up to 200) of faces that interact with a query window whose lower-left corner is at (5,5) and upper-right corner is at (30,40). (The example refers to definitions and data from Section 1.12.1.)

SELECT SDO_TOPO_MAP.SEARCH_FACE_RTREE_TOPO_MAP('CITY_DATA_TOPOMAP', -
  5,5, 30,40, 200) FROM DUAL;

SDO_TOPO_MAP.SEARCH_FACE_RTREE_TOPO_MAP('CITY_DATA_TOPOMAP',5,5,30,40,200)
--------------------------------------------------------------------------------
SDO_NUMBER_ARRAY(6, 7, 3, 4, 9, 1, 2)

SDO_TOPO_MAP.SET_MAX_MEMORY_SIZE

Format

SDO_TOPO_MAP.SET_MAX_MEMORY_SIZE(

     maxsize IN NUMBER DEFAULT 268435456);

Description

Sets the Java maximum heap size for an application to run in an Oracle Java virtual machine.

Parameters

maxsize

Number of bytes for the Java maximum heap size. The default value is 268435456 (256 MB).

Usage Notes

If you encounter the java.lang.OutOfMemoryError exception, you can use this procedure to increase the maximum heap size.

If you specify a value greater than the system limit, the system limit is used.

Examples

The following example sets the Java maximum heap size to 536870912 (512 MB).

EXECUTE SDO_TOPO_MAP.SET_MAX_MEMORY_SIZE(536870912);

SDO_TOPO_MAP.UPDATE_TOPO_MAP

Format

SDO_TOPO_MAP.UPDATE_TOPO_MAP;

Description

Updates the topology to reflect edits made to the current updatable TopoMap object.

Parameters

None.

Usage Notes

Use this procedure to update the topology periodically during an editing session, as explained in Section 2.1.4. Updates are made, as needed, to the edge, face, and node information tables (described in Section 1.5). The TopoMap object remains open for further editing operations. The updates are not actually committed to the database until you call the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure.

This procedure performs a level-0 validation of the TopoMap object before it updates the topology. (See the explanation of the level parameter for the SDO_TOPO_MAP.VALIDATE_TOPO_MAP function.)

If you caused in-memory R-tree indexes to be created when you loaded the TopoMap object (by specifying or accepting the default value of TRUE for the build_indexes parameter with the SDO_TOPO_MAP.LOAD_TOPO_MAP function or procedure), you can rebuild these indexes by using the SDO_TOPO_MAP.CREATE_EDGE_INDEX and SDO_TOPO_MAP.CREATE_FACE_INDEX procedures. For best index performance, these indexes should be rebuilt periodically when you are editing a large number of topological elements.

Contrast this procedure with the SDO_TOPO_MAP.CLEAR_TOPO_MAP procedure, which clears the cache associated with a specified TopoMap object and makes the object read-only.

To commit all TopoMap object changes, use the SDO_TOPO_MAP.COMMIT_TOPO_MAP procedure.

For information about using an in-memory cache to edit topological elements, see Section 2.1.

This procedure is equivalent to using the updateTopology method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example updates the topology associated with the current updatable TopoMap object to reflect changes made to that object.

EXECUTE SDO_TOPO_MAP.UPDATE_TOPO_MAP;

SDO_TOPO_MAP.VALIDATE_TOPO_MAP

Format

SDO_TOPO_MAP.VALIDATE_TOPO_MAP(

     topo_map IN VARCHAR2,

     level IN NUMBER DEFAULT 1

     ) RETURN VARCHAR2;

Description

Performs a first-order validation of a TopoMap object, and optionally (by default) checks the computational geometry also; returns the string TRUE if the structure of the topological elements in TopoMap object is consistent, and raises an exception if the structure of the topological elements in TopoMap object is not consistent.

Parameters

topo_map

Name of the TopoMap object. (TopoMap objects are explained in Section 2.1.1.)

level

A value of 0 checks for the following conditions as part of a first-order validation:

  • All faces are closed, and none have infinite loops.

  • All previous and next edge pointers are consistent.

  • All edges meet at nodes.

  • Each island node is associated with a face.

  • All edges on a face boundary are associated with the face.

A value of 1 (the default) checks for all conditions associated with a value of 0, plus the following conditions related to computational geometry:

  • Each island is inside the boundary of its associated face.

  • No edge intersects itself or another edge.

  • Start and end coordinates of edges match coordinates of nodes.

  • Node stars are properly ordered geometrically.

Usage Notes

This function checks the consistency of all pointer relationships among edges, nodes, and faces. You can use this function to validate an updatable TopoMap object before you update the topology (using the SDO_TOPO_MAP.UPDATE_TOPO_MAP procedure) or to validate a read-only TopoMap object before issuing queries.

This function uses a tolerance value of 10E-15 for its internal computations, as explained in Section 1.2.1.

This function is equivalent to using the validateCache method of the TopoMap class of the client-side Java API (described in Section 1.8.2).

Examples

The following example validates the topology in the TopoMap object named CITY_DATA_TOPOMAP, and it returns a result indicating that the topology is valid. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.VALIDATE_TOPO_MAP('CITY_DATA_TOPOMAP') INTO :res_varchar;

Call completed.

PRINT res_varchar;

RES_VARCHAR
--------------------------------------------------------------------------------
TRUE

SDO_TOPO_MAP.VALIDATE_TOPOLOGY

Format

SDO_TOPO_MAP.VALIDATE_TOPOLOGY(

     topology IN VARCHAR2,

     ) RETURN VARCHAR2;

or

SDO_TOPO_MAP.VALIDATE_TOPOLOGY(

     topology IN VARCHAR2,

     prevent_updates IN VARCHAR2,

     level IN NUMBER DEFAULT 1

     ) RETURN VARCHAR2;

or

SDO_TOPO_MAP.VALIDATE_TOPOLOGY(

     topology IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER

     ) RETURN VARCHAR2;

or

SDO_TOPO_MAP.VALIDATE_TOPOLOGY(

     topology IN VARCHAR2,

     xmin IN NUMBER,

     ymin IN NUMBER,

     xmax IN NUMBER,

     ymax IN NUMBER,

     prevent_updates IN VARCHAR2,

     level IN NUMBER DEFAULT 1

     ) RETURN VARCHAR2;

Description

Loads an entire topology or a window (rectangular portion) of a topology into a TopoMap object; returns the string TRUE if the structure of the topology is consistent, and raises an exception if the structure of the topology is not consistent.

Parameters

topology

Name of the topology to be validated. Must not exceed 20 characters.

xmin

Lower-left X coordinate value for the window (rectangular portion of the topology) to be validated.

ymin

Lower-left Y coordinate value for the window (rectangular portion of the topology) to be validated.

xmax

Upper-right X coordinate value for the window (rectangular portion of the topology) to be validated.

ymax

Upper-right Y coordinate value for the window (rectangular portion of the topology) to be validated.

prevent_updates

TRUE prevents other users from updating the topology while the validation is being performed; FALSE allows other users to update the topology while the validation is being performed. If you specify FALSE, any topology changes made by other users while the validation is being performed will not be considered by this function and will not affect the result.

level

A value of 0 checks for the following conditions:

  • All faces are closed, and none have infinite loops.

  • All previous and next edge pointers are consistent.

  • All edges meet at nodes.

  • Each island node is associated with a face.

  • All edges on a face boundary are associated with the face.

A value of 1 (the default) checks for all conditions associated with a value of 0, plus the following conditions related to computational geometry:

  • Each island is inside the boundary of its associated face.

  • No edge intersects itself or another edge.

  • Start and end coordinates of edges match coordinates of nodes.

  • Node stars are properly ordered geometrically.

Usage Notes

This function implicitly creates a TopoMap object, and removes the object after the validation is complete. (TopoMap objects are described in Section 2.1.1.)

This function uses a tolerance value of 10E-15 for its internal computations, as explained in Section 1.2.1.

Examples

The following example validates the topology named CITY_DATA, and it returns a result indicating that the topology is valid. (The example refers to definitions and data from Section 1.12.1.)

CALL SDO_TOPO_MAP.VALIDATE_TOPOLOGY('CITY_DATA') INTO :res_varchar;

Call completed.

PRINT res_varchar;

RES_VARCHAR
--------------------------------------------------------------------------------
TRUE
