What is ClickHouse?¶

ClickHouse is a column-oriented database management system (DBMS) for online analytical processing of queries (OLAP).

In a "normal" row-oriented DBMS, data is stored in this order:

In other words, all the values related to a row are physically stored next to each other.

Examples of a row-oriented DBMS are MySQL, Postgres, and MS SQL Server.

In a column-oriented DBMS, data is stored like this:

These examples only show the order that data is arranged in. The values from different columns are stored separately, and data from the same column is stored together.

Examples of a column-oriented DBMS: Vertica, Paraccel (Actian Matrix and Amazon Redshift), Sybase IQ, Exasol, Infobright, InfiniDB, MonetDB (VectorWise and Actian Vector), LucidDB, SAP HANA, Google Dremel, Google PowerDrill, Druid, and kdb+.

Different orders for storing data are better suited to different scenarios. The data access scenario refers to what queries are made, how often, and in what proportion; how much data is read for each type of query – rows, columns, and bytes; the relationship between reading and updating data; the working size of the data and how locally it is used; whether transactions are used, and how isolated they are; requirements for data replication and logical integrity; requirements for latency and throughput for each type of query, and so on.

The higher the load on the system, the more important it is to customize the system set up to match the requirements of the usage scenario, and the more fine grained this customization becomes. There is no system that is equally well-suited to significantly different scenarios. If a system is adaptable to a wide set of scenarios, under a high load, the system will handle all the scenarios equally poorly, or will work well for just one or few of possible scenarios.

Key Properties of the OLAP scenario¶

• The vast majority of requests are for read access.
• Data is updated in fairly large batches (> 1000 rows), not by single rows; or it is not updated at all.
• Data is added to the DB but is not modified.
• For reads, quite a large number of rows are extracted from the DB, but only a small subset of columns.
• Tables are "wide," meaning they contain a large number of columns.
• Queries are relatively rare (usually hundreds of queries per server or less per second).
• For simple queries, latencies around 50 ms are allowed.
• Column values are fairly small: numbers and short strings (for example, 60 bytes per URL).
• Requires high throughput when processing a single query (up to billions of rows per second per server).
• Transactions are not necessary.
• Low requirements for data consistency.
• There is one large table per query. All tables are small, except for one.
• A query result is significantly smaller than the source data. In other words, data is filtered or aggregated, so the result fits in a single server's RAM.

It is easy to see that the OLAP scenario is very different from other popular scenarios (such as OLTP or Key-Value access). So it doesn't make sense to try to use OLTP or a Key-Value DB for processing analytical queries if you want to get decent performance. For example, if you try to use MongoDB or Redis for analytics, you will get very poor performance compared to OLAP databases.

Why Column-Oriented Databases Work Better in the OLAP Scenario¶

Column-oriented databases are better suited to OLAP scenarios: they are at least 100 times faster in processing most queries. The reasons are explained in detail below, but the fact is easier to demonstrate visually:

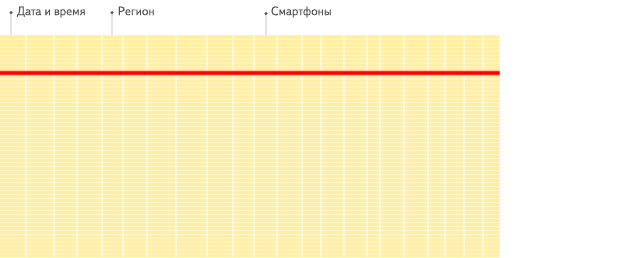

Row-oriented DBMS

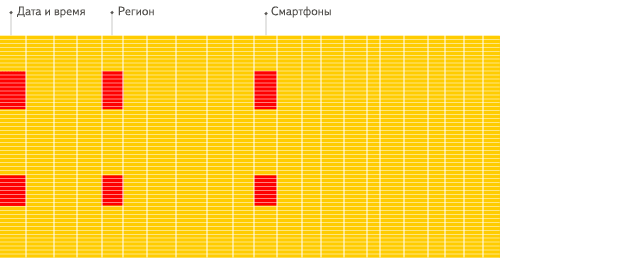

Column-oriented DBMS

See the difference?

Input/output¶

1. For an analytical query, only a small number of table columns need to be read. In a column-oriented database, you can read just the data you need. For example, if you need 5 columns out of 100, you can expect a 20-fold reduction in I/O.
2. Since data is read in packets, it is easier to compress. Data in columns is also easier to compress. This further reduces the I/O volume.
3. Due to the reduced I/O, more data fits in the system cache.

For example, the query "count the number of records for each advertising platform" requires reading one "advertising platform ID" column, which takes up 1 byte uncompressed. If most of the traffic was not from advertising platforms, you can expect at least 10-fold compression of this column. When using a quick compression algorithm, data decompression is possible at a speed of at least several gigabytes of uncompressed data per second. In other words, this query can be processed at a speed of approximately several billion rows per second on a single server. This speed is actually achieved in practice.

$ clickhouse-client
ClickHouse client version 0.0.52053.
Connecting to localhost:9000.
Connected to ClickHouse server version 0.0.52053.

:) SELECT CounterID, count() FROM hits GROUP BY CounterID ORDER BY count() DESC LIMIT 20

SELECT
CounterID,
count()
FROM hits
GROUP BY CounterID
ORDER BY count() DESC
LIMIT 20

┌─CounterID─┬──count()─┐
│    114208 │ 56057344 │
│    115080 │ 51619590 │
│      3228 │ 44658301 │
│     38230 │ 42045932 │
│    145263 │ 42042158 │
│     91244 │ 38297270 │
│    154139 │ 26647572 │
│    150748 │ 24112755 │
│    242232 │ 21302571 │
│    338158 │ 13507087 │
│     62180 │ 12229491 │
│     82264 │ 12187441 │
│    232261 │ 12148031 │
│    146272 │ 11438516 │
│    168777 │ 11403636 │
│   4120072 │ 11227824 │
│  10938808 │ 10519739 │
│     74088 │  9047015 │
│    115079 │  8837972 │
│    337234 │  8205961 │
└───────────┴──────────┘

20 rows in set. Elapsed: 0.153 sec. Processed 1.00 billion rows, 4.00 GB (6.53 billion rows/s., 26.10 GB/s.)

:)

CPU¶

Since executing a query requires processing a large number of rows, it helps to dispatch all operations for entire vectors instead of for separate rows, or to implement the query engine so that there is almost no dispatching cost. If you don't do this, with any half-decent disk subsystem, the query interpreter inevitably stalls the CPU. It makes sense to both store data in columns and process it, when possible, by columns.

There are two ways to do this:

1. A vector engine. All operations are written for vectors, instead of for separate values. This means you don't need to call operations very often, and dispatching costs are negligible. Operation code contains an optimized internal cycle.

2. Code generation. The code generated for the query has all the indirect calls in it.

This is not done in "normal" databases, because it doesn't make sense when running simple queries. However, there are exceptions. For example, MemSQL uses code generation to reduce latency when processing SQL queries. (For comparison, analytical DBMSs require optimization of throughput, not latency.)

Note that for CPU efficiency, the query language must be declarative (SQL or MDX), or at least a vector (J, K). The query should only contain implicit loops, allowing for optimization.

Original article

Distinctive Features of ClickHouse¶

True Column-Oriented DBMS¶

In a true column-oriented DBMS, no extra data is stored with the values. Among other things, this means that constant-length values must be supported, to avoid storing their length "number" next to the values. As an example, a billion UInt8-type values should actually consume around 1 GB uncompressed, or this will strongly affect the CPU use. It is very important to store data compactly (without any "garbage") even when uncompressed, since the speed of decompression (CPU usage) depends mainly on the volume of uncompressed data.

This is worth noting because there are systems that can store values of different columns separately, but that can't effectively process analytical queries due to their optimization for other scenarios. Examples are HBase, BigTable, Cassandra, and HyperTable. In these systems, you will get throughput around a hundred thousand rows per second, but not hundreds of millions of rows per second.

It's also worth noting that ClickHouse is a database management system, not a single database. ClickHouse allows creating tables and databases in runtime, loading data, and running queries without reconfiguring and restarting the server.

Data Compression¶

Some column-oriented DBMSs (InfiniDB CE and MonetDB) do not use data compression. However, data compression does play a key role in achieving excellent performance.

Disk Storage of Data¶

Keeping data physically sorted by primary key makes it possible to extract data for it's specific values or value ranges with low latency, less than few dozen milliseconds. Some column-oriented DBMSs (such as SAP HANA and Google PowerDrill) can only work in RAM. This approach encourages the allocation of a larger hardware budget than is actually necessary for real-time analysis. ClickHouse is designed to work on regular hard drives, which means the cost per GB of data storage is low, but SSD and additional RAM are also fully used if available.

Parallel Processing on Multiple Cores¶

Large queries are parallelized in a natural way, taking all the necessary resources that available on the current server.

Distributed Processing on Multiple Servers¶

Almost none of the columnar DBMSs mentioned above have support for distributed query processing. In ClickHouse, data can reside on different shards. Each shard can be a group of replicas that are used for fault tolerance. The query is processed on all the shards in parallel. This is transparent for the user.

SQL Support¶

ClickHouse supports a declarative query language based on SQL that is identical to the SQL standard in many cases. Supported queries include GROUP BY, ORDER BY, subqueries in FROM, IN, and JOIN clauses, and scalar subqueries. Dependent subqueries and window functions are not supported.

Vector Engine¶

Data is not only stored by columns, but is processed by vectors (parts of columns). This allows us to achieve high CPU efficiency.

Real-time Data Updates¶

ClickHouse supports tables with a primary key. In order to quickly perform queries on the range of the primary key, the data is sorted incrementally using the merge tree. Due to this, data can continually be added to the table. No locks are taken when new data is ingested.

Index¶

Having a data physically sorted by primary key makes it possible to extract data for it's specific values or value ranges with low latency, less than few dozen milliseconds.

Suitable for Online Queries¶

Low latency means that queries can be processed without delay and without trying to prepare answer in advance, right at the same moment while user interface page is loading. In other words, online.

Support for Approximated Calculations¶

ClickHouse provides various ways to trade accuracy for performance:

1. Aggregate functions for approximated calculation of the number of distinct values, medians, and quantiles.
2. Running a query based on a part (sample) of data and getting an approximated result. In this case, proportionally less data is retrieved from the disk.
3. Running an aggregation for a limited number of random keys, instead of for all keys. Under certain conditions for key distribution in the data, this provides a reasonably accurate result while using fewer resources.

Data replication and data integrity support¶

Uses asynchronous multimaster replication. After being written to any available replica, data is distributed to all the remaining replicas in the background. The system maintains identical data on different replicas. Recovery after most failures is performed automatically, and in complex cases — semi-automatically.

For more information, see the section Data replication.

Original article

ClickHouse Features that Can be Considered Disadvantages¶

1. No full-fledged transactions.
2. Lack of ability to modify or delete already inserted data with high rate and low latency. There are batch deletes and updates available to clean up or modify data, for example to comply with GDPR.
3. The sparse index makes ClickHouse not really suitable for point queries retrieving single rows by their keys.

Original article

Performance¶

According to internal testing results at Yandex, ClickHouse shows the best performance (both the highest throughput for long queries and the lowest latency on short queries) for comparable operating scenarios among systems of its class that were available for testing. You can view the test results on a separate page.

This has also been confirmed by numerous independent benchmarks. They are not difficult to find using an internet search, or you can see our small collection of related links.

Throughput for a Single Large Query¶

Throughput can be measured in rows per second or in megabytes per second. If the data is placed in the page cache, a query that is not too complex is processed on modern hardware at a speed of approximately 2-10 GB/s of uncompressed data on a single server (for the simplest cases, the speed may reach 30 GB/s). If data is not placed in the page cache, the speed depends on the disk subsystem and the data compression rate. For example, if the disk subsystem allows reading data at 400 MB/s, and the data compression rate is 3, the speed will be around 1.2 GB/s. To get the speed in rows per second, divide the speed in bytes per second by the total size of the columns used in the query. For example, if 10 bytes of columns are extracted, the speed will be around 100-200 million rows per second.

The processing speed increases almost linearly for distributed processing, but only if the number of rows resulting from aggregation or sorting is not too large.

Latency When Processing Short Queries¶

If a query uses a primary key and does not select too many rows to process (hundreds of thousands), and does not use too many columns, we can expect less than 50 milliseconds of latency (single digits of milliseconds in the best case) if data is placed in the page cache. Otherwise, latency is calculated from the number of seeks. If you use rotating drives, for a system that is not overloaded, the latency is calculated by this formula: seek time (10 ms) * number of columns queried * number of data parts.

Throughput When Processing a Large Quantity of Short Queries¶

Under the same conditions, ClickHouse can handle several hundred queries per second on a single server (up to several thousand in the best case). Since this scenario is not typical for analytical DBMSs, we recommend expecting a maximum of 100 queries per second.

Performance When Inserting Data¶

We recommend inserting data in packets of at least 1000 rows, or no more than a single request per second. When inserting to a MergeTree table from a tab-separated dump, the insertion speed will be from 50 to 200 MB/s. If the inserted rows are around 1 Kb in size, the speed will be from 50,000 to 200,000 rows per second. If the rows are small, the performance will be higher in rows per second (on Banner System data -> 500,000 rows per second; on Graphite data -> 1,000,000 rows per second). To improve performance, you can make multiple INSERT queries in parallel, and performance will increase linearly.

Original article

Yandex.Metrica Use Case¶

ClickHouse was originally developed to power Yandex.Metrica, the second largest web analytics platform in the world, and continues to be the core component of this system. With more than 13 trillion records in the database and more than 20 billion events daily, ClickHouse allows generating custom reports on the fly directly from non-aggregated data. This article briefly covers the goals of ClickHouse in the early stages of its development.

Yandex.Metrica builds customized reports on the fly based on hits and sessions, with arbitrary segments defined by the user. This often requires building complex aggregates, such as the number of unique users. New data for building a report is received in real time.

As of April 2014, Yandex.Metrica was tracking about 12 billion events (page views and clicks) daily. All these events must be stored in order to build custom reports. A single query may require scanning millions of rows within a few hundred milliseconds, or hundreds of millions of rows in just a few seconds.

Usage in Yandex.Metrica and Other Yandex Services¶

ClickHouse is used for multiple purposes in Yandex.Metrica. Its main task is to build reports in online mode using non-aggregated data. It uses a cluster of 374 servers, which store over 20.3 trillion rows in the database. The volume of compressed data, without counting duplication and replication, is about 2 PB. The volume of uncompressed data (in TSV format) would be approximately 17 PB.

ClickHouse is also used for:

• Storing data for Session Replay from Yandex.Metrica.
• Processing intermediate data.
• Building global reports with Analytics.
• Running queries for debugging the Yandex.Metrica engine.
• Analyzing logs from the API and the user interface.

ClickHouse has at least a dozen installations in other Yandex services: in search verticals, Market, Direct, business analytics, mobile development, AdFox, personal services, and others.

Aggregated and Non-aggregated Data¶

There is a popular opinion that in order to effectively calculate statistics, you must aggregate data, since this reduces the volume of data.

But data aggregation is a very limited solution, for the following reasons:

• You must have a pre-defined list of reports the user will need.
• The user can't make custom reports.
• When aggregating a large quantity of keys, the volume of data is not reduced, and aggregation is useless.
• For a large number of reports, there are too many aggregation variations (combinatorial explosion).
• When aggregating keys with high cardinality (such as URLs), the volume of data is not reduced by much (less than twofold).
• For this reason, the volume of data with aggregation might grow instead of shrink.
• Users do not view all the reports we generate for them. A large portion of calculations are useless.
• The logical integrity of data may be violated for various aggregations.

If we do not aggregate anything and work with non-aggregated data, this might actually reduce the volume of calculations.

However, with aggregation, a significant part of the work is taken offline and completed relatively calmly. In contrast, online calculations require calculating as fast as possible, since the user is waiting for the result.

Yandex.Metrica has a specialized system for aggregating data called Metrage, which is used for the majority of reports. Starting in 2009, Yandex.Metrica also used a specialized OLAP database for non-aggregated data called OLAPServer, which was previously used for the report builder. OLAPServer worked well for non-aggregated data, but it had many restrictions that did not allow it to be used for all reports as desired. These included the lack of support for data types (only numbers), and the inability to incrementally update data in real-time (it could only be done by rewriting data daily). OLAPServer is not a DBMS, but a specialized DB.

To remove the limitations of OLAPServer and solve the problem of working with non-aggregated data for all reports, we developed the ClickHouse DBMS.

Original article

Getting Started¶

System Requirements¶

ClickHouse can run on any Linux, FreeBSD or Mac OS X with x86_64 CPU architecture.

Though pre-built binaries are typically compiled to leverage SSE 4.2 instruction set, so unless otherwise stated usage of CPU that supports it becomes an additional system requirement. Here's the command to check if current CPU has support for SSE 4.2:

$ grep -q sse4_2 /proc/cpuinfo && echo "SSE 4.2 supported" || echo "SSE 4.2 not supported"

Installation¶

From DEB Packages¶

Yandex ClickHouse team recommends using official pre-compiled deb packages for Debian or Ubuntu.

To install official packages add the Yandex repository in /etc/apt/sources.list or in a separate /etc/apt/sources.list.d/clickhouse.list file:

deb http://repo.yandex.ru/clickhouse/deb/stable/ main/

If you want to use the most recent version, replace stable with testing (this is not recommended for production environments).

Then run these commands to actually install packages:

sudo apt-get install dirmngr    # optional
sudo apt-key adv --keyserver keyserver.ubuntu.com --recv E0C56BD4    # optional
sudo apt-get update
sudo apt-get install clickhouse-client clickhouse-server

You can also download and install packages manually from here: https://repo.yandex.ru/clickhouse/deb/stable/main/.

From RPM Packages¶

Yandex does not run ClickHouse on rpm based Linux distributions and rpm packages are not as thoroughly tested. So use them at your own risk, but there are many other companies that do successfully run them in production without any major issues.

For CentOS, RHEL or Fedora there are the following options:

• Packages from https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/ are generated from official deb packages by Yandex and have byte-identical binaries.
• Packages from https://github.com/Altinity/clickhouse-rpm-install are built by independent company Altinity, but are used widely without any complaints.
• Or you can use Docker (see below).

From Docker Image¶

To run ClickHouse inside Docker follow the guide on Docker Hub. Those images use official deb packages inside.

From Sources¶

To manually compile ClickHouse, follow the instructions for Linux or Mac OS X.

You can compile packages and install them or use programs without installing packages. Also by building manually you can disable SSE 4.2 requirement or build for AArch64 CPUs.

Client: dbms/programs/clickhouse-client
Server: dbms/programs/clickhouse-server

You'll need to create a data and metadata folders and chown them for the desired user. Their paths can be changed in server config (src/dbms/programs/server/config.xml), by default they are:

/opt/clickhouse/data/default/
/opt/clickhouse/metadata/default/

On Gentoo you can just use emerge clickhouse to install ClickHouse from sources.

Launch¶

To start the server as a daemon, run:

$ sudo service clickhouse-server start

See the logs in the /var/log/clickhouse-server/ directory.

If the server doesn't start, check the configurations in the file /etc/clickhouse-server/config.xml.

You can also manually launch the server from the console:

$ clickhouse-server --config-file=/etc/clickhouse-server/config.xml

In this case, the log will be printed to the console, which is convenient during development. If the configuration file is in the current directory, you don't need to specify the --config-file parameter. By default, it uses ./config.xml.

ClickHouse supports access restriction settings. They are located in the users.xml file (next to config.xml). By default, access is allowed from anywhere for the default user, without a password. See user/default/networks. For more information, see the section "Configuration Files".

After launching server, you can use the command-line client to connect to it:

$ clickhouse-client

By default it connects to localhost:9000 on behalf of the user default without a password. It can also be used to connect to a remote server using --host argument.

The terminal must use UTF-8 encoding. For more information, see the section "Command-line client".

Example:

$ ./clickhouse-client
ClickHouse client version 0.0.18749.
Connecting to localhost:9000.
Connected to ClickHouse server version 0.0.18749.

:) SELECT 1

SELECT 1

┌─1─┐
│ 1 │
└───┘

1 rows in set. Elapsed: 0.003 sec.

:)

Congratulations, the system works!

To continue experimenting, you can download one of test data sets or go through tutorial.

Original article

OnTime¶

This dataset can be obtained in two ways:

• import from raw data
• download of prepared partitions

Import From Raw Data¶

Downloading data:

for s in `seq 1987 2018`
do
for m in `seq 1 12`
do
wget https://transtats.bts.gov/PREZIP/On_Time_Reporting_Carrier_On_Time_Performance_1987_present_${s}_${m}.zip
done
done

(from https://github.com/Percona-Lab/ontime-airline-performance/blob/master/download.sh )

Creating a table:

CREATE TABLE `ontime` (
  `Year` UInt16,
  `Quarter` UInt8,
  `Month` UInt8,
  `DayofMonth` UInt8,
  `DayOfWeek` UInt8,
  `FlightDate` Date,
  `UniqueCarrier` FixedString(7),
  `AirlineID` Int32,
  `Carrier` FixedString(2),
  `TailNum` String,
  `FlightNum` String,
  `OriginAirportID` Int32,
  `OriginAirportSeqID` Int32,
  `OriginCityMarketID` Int32,
  `Origin` FixedString(5),
  `OriginCityName` String,
  `OriginState` FixedString(2),
  `OriginStateFips` String,
  `OriginStateName` String,
  `OriginWac` Int32,
  `DestAirportID` Int32,
  `DestAirportSeqID` Int32,
  `DestCityMarketID` Int32,
  `Dest` FixedString(5),
  `DestCityName` String,
  `DestState` FixedString(2),
  `DestStateFips` String,
  `DestStateName` String,
  `DestWac` Int32,
  `CRSDepTime` Int32,
  `DepTime` Int32,
  `DepDelay` Int32,
  `DepDelayMinutes` Int32,
  `DepDel15` Int32,
  `DepartureDelayGroups` String,
  `DepTimeBlk` String,
  `TaxiOut` Int32,
  `WheelsOff` Int32,
  `WheelsOn` Int32,
  `TaxiIn` Int32,
  `CRSArrTime` Int32,
  `ArrTime` Int32,
  `ArrDelay` Int32,
  `ArrDelayMinutes` Int32,
  `ArrDel15` Int32,
  `ArrivalDelayGroups` Int32,
  `ArrTimeBlk` String,
  `Cancelled` UInt8,
  `CancellationCode` FixedString(1),
  `Diverted` UInt8,
  `CRSElapsedTime` Int32,
  `ActualElapsedTime` Int32,
  `AirTime` Int32,
  `Flights` Int32,
  `Distance` Int32,
  `DistanceGroup` UInt8,
  `CarrierDelay` Int32,
  `WeatherDelay` Int32,
  `NASDelay` Int32,
  `SecurityDelay` Int32,
  `LateAircraftDelay` Int32,
  `FirstDepTime` String,
  `TotalAddGTime` String,
  `LongestAddGTime` String,
  `DivAirportLandings` String,
  `DivReachedDest` String,
  `DivActualElapsedTime` String,
  `DivArrDelay` String,
  `DivDistance` String,
  `Div1Airport` String,
  `Div1AirportID` Int32,
  `Div1AirportSeqID` Int32,
  `Div1WheelsOn` String,
  `Div1TotalGTime` String,
  `Div1LongestGTime` String,
  `Div1WheelsOff` String,
  `Div1TailNum` String,
  `Div2Airport` String,
  `Div2AirportID` Int32,
  `Div2AirportSeqID` Int32,
  `Div2WheelsOn` String,
  `Div2TotalGTime` String,
  `Div2LongestGTime` String,
  `Div2WheelsOff` String,
  `Div2TailNum` String,
  `Div3Airport` String,
  `Div3AirportID` Int32,
  `Div3AirportSeqID` Int32,
  `Div3WheelsOn` String,
  `Div3TotalGTime` String,
  `Div3LongestGTime` String,
  `Div3WheelsOff` String,
  `Div3TailNum` String,
  `Div4Airport` String,
  `Div4AirportID` Int32,
  `Div4AirportSeqID` Int32,
  `Div4WheelsOn` String,
  `Div4TotalGTime` String,
  `Div4LongestGTime` String,
  `Div4WheelsOff` String,
  `Div4TailNum` String,
  `Div5Airport` String,
  `Div5AirportID` Int32,
  `Div5AirportSeqID` Int32,
  `Div5WheelsOn` String,
  `Div5TotalGTime` String,
  `Div5LongestGTime` String,
  `Div5WheelsOff` String,
  `Div5TailNum` String
) ENGINE = MergeTree(FlightDate, (Year, FlightDate), 8192)

Loading data:

for i in *.zip; do echo $i; unzip -cq $i '*.csv' | sed 's/\.00//g' | clickhouse-client --host=example-perftest01j --query="INSERT INTO ontime FORMAT CSVWithNames"; done

Dowload of Prepared Partitions¶

curl -O https://clickhouse-datasets.s3.yandex.net/ontime/partitions/ontime.tar
tar xvf ontime.tar -C /var/lib/clickhouse # path to ClickHouse data directory
## check permissions of unpacked data, fix if required
sudo service clickhouse-server restart
clickhouse-client --query "select count(*) from datasets.ontime"

Queries¶

Q0.

select avg(c1) from (select Year, Month, count(*) as c1 from ontime group by Year, Month);

Q1. The number of flights per day from the year 2000 to 2008

SELECT DayOfWeek, count(*) AS c FROM ontime WHERE Year >= 2000 AND Year <= 2008 GROUP BY DayOfWeek ORDER BY c DESC;

Q2. The number of flights delayed by more than 10 minutes, grouped by the day of the week, for 2000-2008

SELECT DayOfWeek, count(*) AS c FROM ontime WHERE DepDelay>10 AND Year >= 2000 AND Year <= 2008 GROUP BY DayOfWeek ORDER BY c DESC

Q3. The number of delays by airport for 2000-2008

SELECT Origin, count(*) AS c FROM ontime WHERE DepDelay>10 AND Year >= 2000 AND Year <= 2008 GROUP BY Origin ORDER BY c DESC LIMIT 10

Q4. The number of delays by carrier for 2007

SELECT Carrier, count(*) FROM ontime WHERE DepDelay>10 AND Year = 2007 GROUP BY Carrier ORDER BY count(*) DESC

Q5. The percentage of delays by carrier for 2007

SELECT Carrier, c, c2, c*1000/c2 as c3
FROM
(
    SELECT
        Carrier,
        count(*) AS c
    FROM ontime
    WHERE DepDelay>10
        AND Year=2007
    GROUP BY Carrier
)
ANY INNER JOIN
(
    SELECT
        Carrier,
        count(*) AS c2
    FROM ontime
    WHERE Year=2007
    GROUP BY Carrier
) USING Carrier
ORDER BY c3 DESC;

Better version of the same query:

SELECT Carrier, avg(DepDelay > 10) * 1000 AS c3 FROM ontime WHERE Year = 2007 GROUP BY Carrier ORDER BY Carrier

Q6. The previous request for a broader range of years, 2000-2008

SELECT Carrier, c, c2, c*1000/c2 as c3
FROM
(
    SELECT
        Carrier,
        count(*) AS c
    FROM ontime
    WHERE DepDelay>10
        AND Year >= 2000 AND Year <= 2008
    GROUP BY Carrier
)
ANY INNER JOIN
(
    SELECT
        Carrier,
        count(*) AS c2
    FROM ontime
    WHERE Year >= 2000 AND Year <= 2008
    GROUP BY Carrier
) USING Carrier
ORDER BY c3 DESC;

Better version of the same query:

SELECT Carrier, avg(DepDelay > 10) * 1000 AS c3 FROM ontime WHERE Year >= 2000 AND Year <= 2008 GROUP BY Carrier ORDER BY Carrier

Q7. Percentage of flights delayed for more than 10 minutes, by year

SELECT Year, c1/c2
FROM
(
    select
        Year,
        count(*)*1000 as c1
    from ontime
    WHERE DepDelay>10
    GROUP BY Year
)
ANY INNER JOIN
(
    select
        Year,
        count(*) as c2
    from ontime
    GROUP BY Year
) USING (Year)
ORDER BY Year

Better version of the same query:

SELECT Year, avg(DepDelay > 10) FROM ontime GROUP BY Year ORDER BY Year

Q8. The most popular destinations by the number of directly connected cities for various year ranges

SELECT DestCityName, uniqExact(OriginCityName) AS u FROM ontime WHERE Year >= 2000 and Year <= 2010 GROUP BY DestCityName ORDER BY u DESC LIMIT 10;

Q9.

select Year, count(*) as c1 from ontime group by Year;

Q10.

select
   min(Year), max(Year), Carrier, count(*) as cnt,
   sum(ArrDelayMinutes>30) as flights_delayed,
   round(sum(ArrDelayMinutes>30)/count(*),2) as rate
FROM ontime
WHERE
   DayOfWeek not in (6,7) and OriginState not in ('AK', 'HI', 'PR', 'VI')
   and DestState not in ('AK', 'HI', 'PR', 'VI')
   and FlightDate < '2010-01-01'
GROUP by Carrier
HAVING cnt > 100000 and max(Year) > 1990
ORDER by rate DESC
LIMIT 1000;

Bonus:

SELECT avg(cnt) FROM (SELECT Year,Month,count(*) AS cnt FROM ontime WHERE DepDel15=1 GROUP BY Year,Month)

select avg(c1) from (select Year,Month,count(*) as c1 from ontime group by Year,Month)

SELECT DestCityName, uniqExact(OriginCityName) AS u FROM ontime GROUP BY DestCityName ORDER BY u DESC LIMIT 10;

SELECT OriginCityName, DestCityName, count() AS c FROM ontime GROUP BY OriginCityName, DestCityName ORDER BY c DESC LIMIT 10;

SELECT OriginCityName, count() AS c FROM ontime GROUP BY OriginCityName ORDER BY c DESC LIMIT 10;

This performance test was created by Vadim Tkachenko. See:

• https://www.percona.com/blog/2009/10/02/analyzing-air-traffic-performance-with-infobright-and-monetdb/
• https://www.percona.com/blog/2009/10/26/air-traffic-queries-in-luciddb/
• https://www.percona.com/blog/2009/11/02/air-traffic-queries-in-infinidb-early-alpha/
• https://www.percona.com/blog/2014/04/21/using-apache-hadoop-and-impala-together-with-mysql-for-data-analysis/
• https://www.percona.com/blog/2016/01/07/apache-spark-with-air-ontime-performance-data/
• http://nickmakos.blogspot.ru/2012/08/analyzing-air-traffic-performance-with.html

Original article

New York Taxi Data¶

This dataset can be obtained in two ways:

• import from raw data
• download of prepared partitions

How to Import The Raw Data¶

See https://github.com/toddwschneider/nyc-taxi-data and http://tech.marksblogg.com/billion-nyc-taxi-rides-redshift.html for the description of a dataset and instructions for downloading.

Downloading will result in about 227 GB of uncompressed data in CSV files. The download takes about an hour over a 1 Gbit connection (parallel downloading from s3.amazonaws.com recovers at least half of a 1 Gbit channel). Some of the files might not download fully. Check the file sizes and re-download any that seem doubtful.

Some of the files might contain invalid rows. You can fix them as follows:

sed -E '/(.*,){18,}/d' data/yellow_tripdata_2010-02.csv > data/yellow_tripdata_2010-02.csv_
sed -E '/(.*,){18,}/d' data/yellow_tripdata_2010-03.csv > data/yellow_tripdata_2010-03.csv_
mv data/yellow_tripdata_2010-02.csv_ data/yellow_tripdata_2010-02.csv
mv data/yellow_tripdata_2010-03.csv_ data/yellow_tripdata_2010-03.csv

Then the data must be pre-processed in PostgreSQL. This will create selections of points in the polygons (to match points on the map with the boroughs of New York City) and combine all the data into a single denormalized flat table by using a JOIN. To do this, you will need to install PostgreSQL with PostGIS support.

Be careful when running initialize_database.sh and manually re-check that all the tables were created correctly.

It takes about 20-30 minutes to process each month's worth of data in PostgreSQL, for a total of about 48 hours.

You can check the number of downloaded rows as follows:

time psql nyc-taxi-data -c "SELECT count(*) FROM trips;"
### Count
 1298979494
(1 row)

real    7m9.164s

(This is slightly more than 1.1 billion rows reported by Mark Litwintschik in a series of blog posts.)

The data in PostgreSQL uses 370 GB of space.

Exporting the data from PostgreSQL:

COPY
(
    SELECT trips.id,
           trips.vendor_id,
           trips.pickup_datetime,
           trips.dropoff_datetime,
           trips.store_and_fwd_flag,
           trips.rate_code_id,
           trips.pickup_longitude,
           trips.pickup_latitude,
           trips.dropoff_longitude,
           trips.dropoff_latitude,
           trips.passenger_count,
           trips.trip_distance,
           trips.fare_amount,
           trips.extra,
           trips.mta_tax,
           trips.tip_amount,
           trips.tolls_amount,
           trips.ehail_fee,
           trips.improvement_surcharge,
           trips.total_amount,
           trips.payment_type,
           trips.trip_type,
           trips.pickup,
           trips.dropoff,

           cab_types.type cab_type,

           weather.precipitation_tenths_of_mm rain,
           weather.snow_depth_mm,
           weather.snowfall_mm,
           weather.max_temperature_tenths_degrees_celsius max_temp,
           weather.min_temperature_tenths_degrees_celsius min_temp,
           weather.average_wind_speed_tenths_of_meters_per_second wind,

           pick_up.gid pickup_nyct2010_gid,
           pick_up.ctlabel pickup_ctlabel,
           pick_up.borocode pickup_borocode,
           pick_up.boroname pickup_boroname,
           pick_up.ct2010 pickup_ct2010,
           pick_up.boroct2010 pickup_boroct2010,
           pick_up.cdeligibil pickup_cdeligibil,
           pick_up.ntacode pickup_ntacode,
           pick_up.ntaname pickup_ntaname,
           pick_up.puma pickup_puma,

           drop_off.gid dropoff_nyct2010_gid,
           drop_off.ctlabel dropoff_ctlabel,
           drop_off.borocode dropoff_borocode,
           drop_off.boroname dropoff_boroname,
           drop_off.ct2010 dropoff_ct2010,
           drop_off.boroct2010 dropoff_boroct2010,
           drop_off.cdeligibil dropoff_cdeligibil,
           drop_off.ntacode dropoff_ntacode,
           drop_off.ntaname dropoff_ntaname,
           drop_off.puma dropoff_puma
    FROM trips
    LEFT JOIN cab_types
        ON trips.cab_type_id = cab_types.id
    LEFT JOIN central_park_weather_observations_raw weather
        ON weather.date = trips.pickup_datetime::date
    LEFT JOIN nyct2010 pick_up
        ON pick_up.gid = trips.pickup_nyct2010_gid
    LEFT JOIN nyct2010 drop_off
        ON drop_off.gid = trips.dropoff_nyct2010_gid
) TO '/opt/milovidov/nyc-taxi-data/trips.tsv';

The data snapshot is created at a speed of about 50 MB per second. While creating the snapshot, PostgreSQL reads from the disk at a speed of about 28 MB per second. This takes about 5 hours. The resulting TSV file is 590612904969 bytes.

Create a temporary table in ClickHouse:

CREATE TABLE trips
(
trip_id                 UInt32,
vendor_id               String,
pickup_datetime         DateTime,
dropoff_datetime        Nullable(DateTime),
store_and_fwd_flag      Nullable(FixedString(1)),
rate_code_id            Nullable(UInt8),
pickup_longitude        Nullable(Float64),
pickup_latitude         Nullable(Float64),
dropoff_longitude       Nullable(Float64),
dropoff_latitude        Nullable(Float64),
passenger_count         Nullable(UInt8),
trip_distance           Nullable(Float64),
fare_amount             Nullable(Float32),
extra                   Nullable(Float32),
mta_tax                 Nullable(Float32),
tip_amount              Nullable(Float32),
tolls_amount            Nullable(Float32),
ehail_fee               Nullable(Float32),
improvement_surcharge   Nullable(Float32),
total_amount            Nullable(Float32),
payment_type            Nullable(String),
trip_type               Nullable(UInt8),
pickup                  Nullable(String),
dropoff                 Nullable(String),
cab_type                Nullable(String),
precipitation           Nullable(UInt8),
snow_depth              Nullable(UInt8),
snowfall                Nullable(UInt8),
max_temperature         Nullable(UInt8),
min_temperature         Nullable(UInt8),
average_wind_speed      Nullable(UInt8),
pickup_nyct2010_gid     Nullable(UInt8),
pickup_ctlabel          Nullable(String),
pickup_borocode         Nullable(UInt8),
pickup_boroname         Nullable(String),
pickup_ct2010           Nullable(String),
pickup_boroct2010       Nullable(String),
pickup_cdeligibil       Nullable(FixedString(1)),
pickup_ntacode          Nullable(String),
pickup_ntaname          Nullable(String),
pickup_puma             Nullable(String),
dropoff_nyct2010_gid    Nullable(UInt8),
dropoff_ctlabel         Nullable(String),
dropoff_borocode        Nullable(UInt8),
dropoff_boroname        Nullable(String),
dropoff_ct2010          Nullable(String),
dropoff_boroct2010      Nullable(String),
dropoff_cdeligibil      Nullable(String),
dropoff_ntacode         Nullable(String),
dropoff_ntaname         Nullable(String),
dropoff_puma            Nullable(String)
) ENGINE = Log;

It is needed for converting fields to more correct data types and, if possible, to eliminate NULLs.

time clickhouse-client --query="INSERT INTO trips FORMAT TabSeparated" < trips.tsv

real    75m56.214s

Data is read at a speed of 112-140 Mb/second. Loading data into a Log type table in one stream took 76 minutes. The data in this table uses 142 GB.

(Importing data directly from Postgres is also possible using COPY ... TO PROGRAM.)

Unfortunately, all the fields associated with the weather (precipitation...average_wind_speed) were filled with NULL. Because of this, we will remove them from the final data set.

To start, we'll create a table on a single server. Later we will make the table distributed.

Create and populate a summary table:

CREATE TABLE trips_mergetree
ENGINE = MergeTree(pickup_date, pickup_datetime, 8192)
AS SELECT

trip_id,
CAST(vendor_id AS Enum8('1' = 1, '2' = 2, 'CMT' = 3, 'VTS' = 4, 'DDS' = 5, 'B02512' = 10, 'B02598' = 11, 'B02617' = 12, 'B02682' = 13, 'B02764' = 14)) AS vendor_id,
toDate(pickup_datetime) AS pickup_date,
ifNull(pickup_datetime, toDateTime(0)) AS pickup_datetime,
toDate(dropoff_datetime) AS dropoff_date,
ifNull(dropoff_datetime, toDateTime(0)) AS dropoff_datetime,
assumeNotNull(store_and_fwd_flag) IN ('Y', '1', '2') AS store_and_fwd_flag,
assumeNotNull(rate_code_id) AS rate_code_id,
assumeNotNull(pickup_longitude) AS pickup_longitude,
assumeNotNull(pickup_latitude) AS pickup_latitude,
assumeNotNull(dropoff_longitude) AS dropoff_longitude,
assumeNotNull(dropoff_latitude) AS dropoff_latitude,
assumeNotNull(passenger_count) AS passenger_count,
assumeNotNull(trip_distance) AS trip_distance,
assumeNotNull(fare_amount) AS fare_amount,
assumeNotNull(extra) AS extra,
assumeNotNull(mta_tax) AS mta_tax,
assumeNotNull(tip_amount) AS tip_amount,
assumeNotNull(tolls_amount) AS tolls_amount,
assumeNotNull(ehail_fee) AS ehail_fee,
assumeNotNull(improvement_surcharge) AS improvement_surcharge,
assumeNotNull(total_amount) AS total_amount,
CAST((assumeNotNull(payment_type) AS pt) IN ('CSH', 'CASH', 'Cash', 'CAS', 'Cas', '1') ? 'CSH' : (pt IN ('CRD', 'Credit', 'Cre', 'CRE', 'CREDIT', '2') ? 'CRE' : (pt IN ('NOC', 'No Charge', 'No', '3') ? 'NOC' : (pt IN ('DIS', 'Dispute', 'Dis', '4') ? 'DIS' : 'UNK'))) AS Enum8('CSH' = 1, 'CRE' = 2, 'UNK' = 0, 'NOC' = 3, 'DIS' = 4)) AS payment_type_,
assumeNotNull(trip_type) AS trip_type,
ifNull(toFixedString(unhex(pickup), 25), toFixedString('', 25)) AS pickup,
ifNull(toFixedString(unhex(dropoff), 25), toFixedString('', 25)) AS dropoff,
CAST(assumeNotNull(cab_type) AS Enum8('yellow' = 1, 'green' = 2, 'uber' = 3)) AS cab_type,

assumeNotNull(pickup_nyct2010_gid) AS pickup_nyct2010_gid,
toFloat32(ifNull(pickup_ctlabel, '0')) AS pickup_ctlabel,
assumeNotNull(pickup_borocode) AS pickup_borocode,
CAST(assumeNotNull(pickup_boroname) AS Enum8('Manhattan' = 1, 'Queens' = 4, 'Brooklyn' = 3, '' = 0, 'Bronx' = 2, 'Staten Island' = 5)) AS pickup_boroname,
toFixedString(ifNull(pickup_ct2010, '000000'), 6) AS pickup_ct2010,
toFixedString(ifNull(pickup_boroct2010, '0000000'), 7) AS pickup_boroct2010,
CAST(assumeNotNull(ifNull(pickup_cdeligibil, ' ')) AS Enum8(' ' = 0, 'E' = 1, 'I' = 2)) AS pickup_cdeligibil,
toFixedString(ifNull(pickup_ntacode, '0000'), 4) AS pickup_ntacode,

CAST(assumeNotNull(pickup_ntaname) AS Enum16('' = 0, 'Airport' = 1, 'Allerton-Pelham Gardens' = 2, 'Annadale-Huguenot-Prince\'s Bay-Eltingville' = 3, 'Arden Heights' = 4, 'Astoria' = 5, 'Auburndale' = 6, 'Baisley Park' = 7, 'Bath Beach' = 8, 'Battery Park City-Lower Manhattan' = 9, 'Bay Ridge' = 10, 'Bayside-Bayside Hills' = 11, 'Bedford' = 12, 'Bedford Park-Fordham North' = 13, 'Bellerose' = 14, 'Belmont' = 15, 'Bensonhurst East' = 16, 'Bensonhurst West' = 17, 'Borough Park' = 18, 'Breezy Point-Belle Harbor-Rockaway Park-Broad Channel' = 19, 'Briarwood-Jamaica Hills' = 20, 'Brighton Beach' = 21, 'Bronxdale' = 22, 'Brooklyn Heights-Cobble Hill' = 23, 'Brownsville' = 24, 'Bushwick North' = 25, 'Bushwick South' = 26, 'Cambria Heights' = 27, 'Canarsie' = 28, 'Carroll Gardens-Columbia Street-Red Hook' = 29, 'Central Harlem North-Polo Grounds' = 30, 'Central Harlem South' = 31, 'Charleston-Richmond Valley-Tottenville' = 32, 'Chinatown' = 33, 'Claremont-Bathgate' = 34, 'Clinton' = 35, 'Clinton Hill' = 36, 'Co-op City' = 37, 'College Point' = 38, 'Corona' = 39, 'Crotona Park East' = 40, 'Crown Heights North' = 41, 'Crown Heights South' = 42, 'Cypress Hills-City Line' = 43, 'DUMBO-Vinegar Hill-Downtown Brooklyn-Boerum Hill' = 44, 'Douglas Manor-Douglaston-Little Neck' = 45, 'Dyker Heights' = 46, 'East Concourse-Concourse Village' = 47, 'East Elmhurst' = 48, 'East Flatbush-Farragut' = 49, 'East Flushing' = 50, 'East Harlem North' = 51, 'East Harlem South' = 52, 'East New York' = 53, 'East New York (Pennsylvania Ave)' = 54, 'East Tremont' = 55, 'East Village' = 56, 'East Williamsburg' = 57, 'Eastchester-Edenwald-Baychester' = 58, 'Elmhurst' = 59, 'Elmhurst-Maspeth' = 60, 'Erasmus' = 61, 'Far Rockaway-Bayswater' = 62, 'Flatbush' = 63, 'Flatlands' = 64, 'Flushing' = 65, 'Fordham South' = 66, 'Forest Hills' = 67, 'Fort Greene' = 68, 'Fresh Meadows-Utopia' = 69, 'Ft. Totten-Bay Terrace-Clearview' = 70, 'Georgetown-Marine Park-Bergen Beach-Mill Basin' = 71, 'Glen Oaks-Floral Park-New Hyde Park' = 72, 'Glendale' = 73, 'Gramercy' = 74, 'Grasmere-Arrochar-Ft. Wadsworth' = 75, 'Gravesend' = 76, 'Great Kills' = 77, 'Greenpoint' = 78, 'Grymes Hill-Clifton-Fox Hills' = 79, 'Hamilton Heights' = 80, 'Hammels-Arverne-Edgemere' = 81, 'Highbridge' = 82, 'Hollis' = 83, 'Homecrest' = 84, 'Hudson Yards-Chelsea-Flatiron-Union Square' = 85, 'Hunters Point-Sunnyside-West Maspeth' = 86, 'Hunts Point' = 87, 'Jackson Heights' = 88, 'Jamaica' = 89, 'Jamaica Estates-Holliswood' = 90, 'Kensington-Ocean Parkway' = 91, 'Kew Gardens' = 92, 'Kew Gardens Hills' = 93, 'Kingsbridge Heights' = 94, 'Laurelton' = 95, 'Lenox Hill-Roosevelt Island' = 96, 'Lincoln Square' = 97, 'Lindenwood-Howard Beach' = 98, 'Longwood' = 99, 'Lower East Side' = 100, 'Madison' = 101, 'Manhattanville' = 102, 'Marble Hill-Inwood' = 103, 'Mariner\'s Harbor-Arlington-Port Ivory-Graniteville' = 104, 'Maspeth' = 105, 'Melrose South-Mott Haven North' = 106, 'Middle Village' = 107, 'Midtown-Midtown South' = 108, 'Midwood' = 109, 'Morningside Heights' = 110, 'Morrisania-Melrose' = 111, 'Mott Haven-Port Morris' = 112, 'Mount Hope' = 113, 'Murray Hill' = 114, 'Murray Hill-Kips Bay' = 115, 'New Brighton-Silver Lake' = 116, 'New Dorp-Midland Beach' = 117, 'New Springville-Bloomfield-Travis' = 118, 'North Corona' = 119, 'North Riverdale-Fieldston-Riverdale' = 120, 'North Side-South Side' = 121, 'Norwood' = 122, 'Oakland Gardens' = 123, 'Oakwood-Oakwood Beach' = 124, 'Ocean Hill' = 125, 'Ocean Parkway South' = 126, 'Old Astoria' = 127, 'Old Town-Dongan Hills-South Beach' = 128, 'Ozone Park' = 129, 'Park Slope-Gowanus' = 130, 'Parkchester' = 131, 'Pelham Bay-Country Club-City Island' = 132, 'Pelham Parkway' = 133, 'Pomonok-Flushing Heights-Hillcrest' = 134, 'Port Richmond' = 135, 'Prospect Heights' = 136, 'Prospect Lefferts Gardens-Wingate' = 137, 'Queens Village' = 138, 'Queensboro Hill' = 139, 'Queensbridge-Ravenswood-Long Island City' = 140, 'Rego Park' = 141, 'Richmond Hill' = 142, 'Ridgewood' = 143, 'Rikers Island' = 144, 'Rosedale' = 145, 'Rossville-Woodrow' = 146, 'Rugby-Remsen Village' = 147, 'Schuylerville-Throgs Neck-Edgewater Park' = 148, 'Seagate-Coney Island' = 149, 'Sheepshead Bay-Gerritsen Beach-Manhattan Beach' = 150, 'SoHo-TriBeCa-Civic Center-Little Italy' = 151, 'Soundview-Bruckner' = 152, 'Soundview-Castle Hill-Clason Point-Harding Park' = 153, 'South Jamaica' = 154, 'South Ozone Park' = 155, 'Springfield Gardens North' = 156, 'Springfield Gardens South-Brookville' = 157, 'Spuyten Duyvil-Kingsbridge' = 158, 'St. Albans' = 159, 'Stapleton-Rosebank' = 160, 'Starrett City' = 161, 'Steinway' = 162, 'Stuyvesant Heights' = 163, 'Stuyvesant Town-Cooper Village' = 164, 'Sunset Park East' = 165, 'Sunset Park West' = 166, 'Todt Hill-Emerson Hill-Heartland Village-Lighthouse Hill' = 167, 'Turtle Bay-East Midtown' = 168, 'University Heights-Morris Heights' = 169, 'Upper East Side-Carnegie Hill' = 170, 'Upper West Side' = 171, 'Van Cortlandt Village' = 172, 'Van Nest-Morris Park-Westchester Square' = 173, 'Washington Heights North' = 174, 'Washington Heights South' = 175, 'West Brighton' = 176, 'West Concourse' = 177, 'West Farms-Bronx River' = 178, 'West New Brighton-New Brighton-St. George' = 179, 'West Village' = 180, 'Westchester-Unionport' = 181, 'Westerleigh' = 182, 'Whitestone' = 183, 'Williamsbridge-Olinville' = 184, 'Williamsburg' = 185, 'Windsor Terrace' = 186, 'Woodhaven' = 187, 'Woodlawn-Wakefield' = 188, 'Woodside' = 189, 'Yorkville' = 190, 'park-cemetery-etc-Bronx' = 191, 'park-cemetery-etc-Brooklyn' = 192, 'park-cemetery-etc-Manhattan' = 193, 'park-cemetery-etc-Queens' = 194, 'park-cemetery-etc-Staten Island' = 195)) AS pickup_ntaname,

toUInt16(ifNull(pickup_puma, '0')) AS pickup_puma,

assumeNotNull(dropoff_nyct2010_gid) AS dropoff_nyct2010_gid,
toFloat32(ifNull(dropoff_ctlabel, '0')) AS dropoff_ctlabel,
assumeNotNull(dropoff_borocode) AS dropoff_borocode,
CAST(assumeNotNull(dropoff_boroname) AS Enum8('Manhattan' = 1, 'Queens' = 4, 'Brooklyn' = 3, '' = 0, 'Bronx' = 2, 'Staten Island' = 5)) AS dropoff_boroname,
toFixedString(ifNull(dropoff_ct2010, '000000'), 6) AS dropoff_ct2010,
toFixedString(ifNull(dropoff_boroct2010, '0000000'), 7) AS dropoff_boroct2010,
CAST(assumeNotNull(ifNull(dropoff_cdeligibil, ' ')) AS Enum8(' ' = 0, 'E' = 1, 'I' = 2)) AS dropoff_cdeligibil,
toFixedString(ifNull(dropoff_ntacode, '0000'), 4) AS dropoff_ntacode,

CAST(assumeNotNull(dropoff_ntaname) AS Enum16('' = 0, 'Airport' = 1, 'Allerton-Pelham Gardens' = 2, 'Annadale-Huguenot-Prince\'s Bay-Eltingville' = 3, 'Arden Heights' = 4, 'Astoria' = 5, 'Auburndale' = 6, 'Baisley Park' = 7, 'Bath Beach' = 8, 'Battery Park City-Lower Manhattan' = 9, 'Bay Ridge' = 10, 'Bayside-Bayside Hills' = 11, 'Bedford' = 12, 'Bedford Park-Fordham North' = 13, 'Bellerose' = 14, 'Belmont' = 15, 'Bensonhurst East' = 16, 'Bensonhurst West' = 17, 'Borough Park' = 18, 'Breezy Point-Belle Harbor-Rockaway Park-Broad Channel' = 19, 'Briarwood-Jamaica Hills' = 20, 'Brighton Beach' = 21, 'Bronxdale' = 22, 'Brooklyn Heights-Cobble Hill' = 23, 'Brownsville' = 24, 'Bushwick North' = 25, 'Bushwick South' = 26, 'Cambria Heights' = 27, 'Canarsie' = 28, 'Carroll Gardens-Columbia Street-Red Hook' = 29, 'Central Harlem North-Polo Grounds' = 30, 'Central Harlem South' = 31, 'Charleston-Richmond Valley-Tottenville' = 32, 'Chinatown' = 33, 'Claremont-Bathgate' = 34, 'Clinton' = 35, 'Clinton Hill' = 36, 'Co-op City' = 37, 'College Point' = 38, 'Corona' = 39, 'Crotona Park East' = 40, 'Crown Heights North' = 41, 'Crown Heights South' = 42, 'Cypress Hills-City Line' = 43, 'DUMBO-Vinegar Hill-Downtown Brooklyn-Boerum Hill' = 44, 'Douglas Manor-Douglaston-Little Neck' = 45, 'Dyker Heights' = 46, 'East Concourse-Concourse Village' = 47, 'East Elmhurst' = 48, 'East Flatbush-Farragut' = 49, 'East Flushing' = 50, 'East Harlem North' = 51, 'East Harlem South' = 52, 'East New York' = 53, 'East New York (Pennsylvania Ave)' = 54, 'East Tremont' = 55, 'East Village' = 56, 'East Williamsburg' = 57, 'Eastchester-Edenwald-Baychester' = 58, 'Elmhurst' = 59, 'Elmhurst-Maspeth' = 60, 'Erasmus' = 61, 'Far Rockaway-Bayswater' = 62, 'Flatbush' = 63, 'Flatlands' = 64, 'Flushing' = 65, 'Fordham South' = 66, 'Forest Hills' = 67, 'Fort Greene' = 68, 'Fresh Meadows-Utopia' = 69, 'Ft. Totten-Bay Terrace-Clearview' = 70, 'Georgetown-Marine Park-Bergen Beach-Mill Basin' = 71, 'Glen Oaks-Floral Park-New Hyde Park' = 72, 'Glendale' = 73, 'Gramercy' = 74, 'Grasmere-Arrochar-Ft. Wadsworth' = 75, 'Gravesend' = 76, 'Great Kills' = 77, 'Greenpoint' = 78, 'Grymes Hill-Clifton-Fox Hills' = 79, 'Hamilton Heights' = 80, 'Hammels-Arverne-Edgemere' = 81, 'Highbridge' = 82, 'Hollis' = 83, 'Homecrest' = 84, 'Hudson Yards-Chelsea-Flatiron-Union Square' = 85, 'Hunters Point-Sunnyside-West Maspeth' = 86, 'Hunts Point' = 87, 'Jackson Heights' = 88, 'Jamaica' = 89, 'Jamaica Estates-Holliswood' = 90, 'Kensington-Ocean Parkway' = 91, 'Kew Gardens' = 92, 'Kew Gardens Hills' = 93, 'Kingsbridge Heights' = 94, 'Laurelton' = 95, 'Lenox Hill-Roosevelt Island' = 96, 'Lincoln Square' = 97, 'Lindenwood-Howard Beach' = 98, 'Longwood' = 99, 'Lower East Side' = 100, 'Madison' = 101, 'Manhattanville' = 102, 'Marble Hill-Inwood' = 103, 'Mariner\'s Harbor-Arlington-Port Ivory-Graniteville' = 104, 'Maspeth' = 105, 'Melrose South-Mott Haven North' = 106, 'Middle Village' = 107, 'Midtown-Midtown South' = 108, 'Midwood' = 109, 'Morningside Heights' = 110, 'Morrisania-Melrose' = 111, 'Mott Haven-Port Morris' = 112, 'Mount Hope' = 113, 'Murray Hill' = 114, 'Murray Hill-Kips Bay' = 115, 'New Brighton-Silver Lake' = 116, 'New Dorp-Midland Beach' = 117, 'New Springville-Bloomfield-Travis' = 118, 'North Corona' = 119, 'North Riverdale-Fieldston-Riverdale' = 120, 'North Side-South Side' = 121, 'Norwood' = 122, 'Oakland Gardens' = 123, 'Oakwood-Oakwood Beach' = 124, 'Ocean Hill' = 125, 'Ocean Parkway South' = 126, 'Old Astoria' = 127, 'Old Town-Dongan Hills-South Beach' = 128, 'Ozone Park' = 129, 'Park Slope-Gowanus' = 130, 'Parkchester' = 131, 'Pelham Bay-Country Club-City Island' = 132, 'Pelham Parkway' = 133, 'Pomonok-Flushing Heights-Hillcrest' = 134, 'Port Richmond' = 135, 'Prospect Heights' = 136, 'Prospect Lefferts Gardens-Wingate' = 137, 'Queens Village' = 138, 'Queensboro Hill' = 139, 'Queensbridge-Ravenswood-Long Island City' = 140, 'Rego Park' = 141, 'Richmond Hill' = 142, 'Ridgewood' = 143, 'Rikers Island' = 144, 'Rosedale' = 145, 'Rossville-Woodrow' = 146, 'Rugby-Remsen Village' = 147, 'Schuylerville-Throgs Neck-Edgewater Park' = 148, 'Seagate-Coney Island' = 149, 'Sheepshead Bay-Gerritsen Beach-Manhattan Beach' = 150, 'SoHo-TriBeCa-Civic Center-Little Italy' = 151, 'Soundview-Bruckner' = 152, 'Soundview-Castle Hill-Clason Point-Harding Park' = 153, 'South Jamaica' = 154, 'South Ozone Park' = 155, 'Springfield Gardens North' = 156, 'Springfield Gardens South-Brookville' = 157, 'Spuyten Duyvil-Kingsbridge' = 158, 'St. Albans' = 159, 'Stapleton-Rosebank' = 160, 'Starrett City' = 161, 'Steinway' = 162, 'Stuyvesant Heights' = 163, 'Stuyvesant Town-Cooper Village' = 164, 'Sunset Park East' = 165, 'Sunset Park West' = 166, 'Todt Hill-Emerson Hill-Heartland Village-Lighthouse Hill' = 167, 'Turtle Bay-East Midtown' = 168, 'University Heights-Morris Heights' = 169, 'Upper East Side-Carnegie Hill' = 170, 'Upper West Side' = 171, 'Van Cortlandt Village' = 172, 'Van Nest-Morris Park-Westchester Square' = 173, 'Washington Heights North' = 174, 'Washington Heights South' = 175, 'West Brighton' = 176, 'West Concourse' = 177, 'West Farms-Bronx River' = 178, 'West New Brighton-New Brighton-St. George' = 179, 'West Village' = 180, 'Westchester-Unionport' = 181, 'Westerleigh' = 182, 'Whitestone' = 183, 'Williamsbridge-Olinville' = 184, 'Williamsburg' = 185, 'Windsor Terrace' = 186, 'Woodhaven' = 187, 'Woodlawn-Wakefield' = 188, 'Woodside' = 189, 'Yorkville' = 190, 'park-cemetery-etc-Bronx' = 191, 'park-cemetery-etc-Brooklyn' = 192, 'park-cemetery-etc-Manhattan' = 193, 'park-cemetery-etc-Queens' = 194, 'park-cemetery-etc-Staten Island' = 195)) AS dropoff_ntaname,

toUInt16(ifNull(dropoff_puma, '0')) AS dropoff_puma

FROM trips

This takes 3030 seconds at a speed of about 428,000 rows per second. To load it faster, you can create the table with the Log engine instead of MergeTree. In this case, the download works faster than 200 seconds.

The table uses 126 GB of disk space.

:) SELECT formatReadableSize(sum(bytes)) FROM system.parts WHERE table = 'trips_mergetree' AND active

SELECT formatReadableSize(sum(bytes))
FROM system.parts
WHERE (table = 'trips_mergetree') AND active

┌─formatReadableSize(sum(bytes))─┐
│ 126.18 GiB                     │
└────────────────────────────────┘

Among other things, you can run the OPTIMIZE query on MergeTree. But it's not required, since everything will be fine without it.

Dowload of Prepared Partitions¶

curl -O https://clickhouse-datasets.s3.yandex.net/trips_mergetree/partitions/trips_mergetree.tar
tar xvf trips_mergetree.tar -C /var/lib/clickhouse # path to ClickHouse data directory
## check permissions of unpacked data, fix if required
sudo service clickhouse-server restart
clickhouse-client --query "select count(*) from datasets.trips_mergetree"

Results on Single Server¶

Q1:

SELECT cab_type, count(*) FROM trips_mergetree GROUP BY cab_type

0.490 seconds.

Q2:

SELECT passenger_count, avg(total_amount) FROM trips_mergetree GROUP BY passenger_count

1.224 seconds.

Q3:

SELECT passenger_count, toYear(pickup_date) AS year, count(*) FROM trips_mergetree GROUP BY passenger_count, year

2.104 seconds.

Q4:

SELECT passenger_count, toYear(pickup_date) AS year, round(trip_distance) AS distance, count(*)
FROM trips_mergetree
GROUP BY passenger_count, year, distance
ORDER BY year, count(*) DESC

3.593 seconds.

The following server was used:

Two Intel(R) Xeon(R) CPU E5-2650 v2 @ 2.60GHz, 16 physical kernels total,128 GiB RAM,8x6 TB HD on hardware RAID-5

Execution time is the best of three runsBut starting from the second run, queries read data from the file system cache. No further caching occurs: the data is read out and processed in each run.

Creating a table on three servers:

On each server:

CREATE TABLE default.trips_mergetree_third ( trip_id UInt32,  vendor_id Enum8('1' = 1, '2' = 2, 'CMT' = 3, 'VTS' = 4, 'DDS' = 5, 'B02512' = 10, 'B02598' = 11, 'B02617' = 12, 'B02682' = 13, 'B02764' = 14),  pickup_date Date,  pickup_datetime DateTime,  dropoff_date Date,  dropoff_datetime DateTime,  store_and_fwd_flag UInt8,  rate_code_id UInt8,  pickup_longitude Float64,  pickup_latitude Float64,  dropoff_longitude Float64,  dropoff_latitude Float64,  passenger_count UInt8,  trip_distance Float64,  fare_amount Float32,  extra Float32,  mta_tax Float32,  tip_amount Float32,  tolls_amount Float32,  ehail_fee Float32,  improvement_surcharge Float32,  total_amount Float32,  payment_type_ Enum8('UNK' = 0, 'CSH' = 1, 'CRE' = 2, 'NOC' = 3, 'DIS' = 4),  trip_type UInt8,  pickup FixedString(25),  dropoff FixedString(25),  cab_type Enum8('yellow' = 1, 'green' = 2, 'uber' = 3),  pickup_nyct2010_gid UInt8,  pickup_ctlabel Float32,  pickup_borocode UInt8,  pickup_boroname Enum8('' = 0, 'Manhattan' = 1, 'Bronx' = 2, 'Brooklyn' = 3, 'Queens' = 4, 'Staten Island' = 5),  pickup_ct2010 FixedString(6),  pickup_boroct2010 FixedString(7),  pickup_cdeligibil Enum8(' ' = 0, 'E' = 1, 'I' = 2),  pickup_ntacode FixedString(4),  pickup_ntaname Enum16('' = 0, 'Airport' = 1, 'Allerton-Pelham Gardens' = 2, 'Annadale-Huguenot-Prince\'s Bay-Eltingville' = 3, 'Arden Heights' = 4, 'Astoria' = 5, 'Auburndale' = 6, 'Baisley Park' = 7, 'Bath Beach' = 8, 'Battery Park City-Lower Manhattan' = 9, 'Bay Ridge' = 10, 'Bayside-Bayside Hills' = 11, 'Bedford' = 12, 'Bedford Park-Fordham North' = 13, 'Bellerose' = 14, 'Belmont' = 15, 'Bensonhurst East' = 16, 'Bensonhurst West' = 17, 'Borough Park' = 18, 'Breezy Point-Belle Harbor-Rockaway Park-Broad Channel' = 19, 'Briarwood-Jamaica Hills' = 20, 'Brighton Beach' = 21, 'Bronxdale' = 22, 'Brooklyn Heights-Cobble Hill' = 23, 'Brownsville' = 24, 'Bushwick North' = 25, 'Bushwick South' = 26, 'Cambria Heights' = 27, 'Canarsie' = 28, 'Carroll Gardens-Columbia Street-Red Hook' = 29, 'Central Harlem North-Polo Grounds' = 30, 'Central Harlem South' = 31, 'Charleston-Richmond Valley-Tottenville' = 32, 'Chinatown' = 33, 'Claremont-Bathgate' = 34, 'Clinton' = 35, 'Clinton Hill' = 36, 'Co-op City' = 37, 'College Point' = 38, 'Corona' = 39, 'Crotona Park East' = 40, 'Crown Heights North' = 41, 'Crown Heights South' = 42, 'Cypress Hills-City Line' = 43, 'DUMBO-Vinegar Hill-Downtown Brooklyn-Boerum Hill' = 44, 'Douglas Manor-Douglaston-Little Neck' = 45, 'Dyker Heights' = 46, 'East Concourse-Concourse Village' = 47, 'East Elmhurst' = 48, 'East Flatbush-Farragut' = 49, 'East Flushing' = 50, 'East Harlem North' = 51, 'East Harlem South' = 52, 'East New York' = 53, 'East New York (Pennsylvania Ave)' = 54, 'East Tremont' = 55, 'East Village' = 56, 'East Williamsburg' = 57, 'Eastchester-Edenwald-Baychester' = 58, 'Elmhurst' = 59, 'Elmhurst-Maspeth' = 60, 'Erasmus' = 61, 'Far Rockaway-Bayswater' = 62, 'Flatbush' = 63, 'Flatlands' = 64, 'Flushing' = 65, 'Fordham South' = 66, 'Forest Hills' = 67, 'Fort Greene' = 68, 'Fresh Meadows-Utopia' = 69, 'Ft. Totten-Bay Terrace-Clearview' = 70, 'Georgetown-Marine Park-Bergen Beach-Mill Basin' = 71, 'Glen Oaks-Floral Park-New Hyde Park' = 72, 'Glendale' = 73, 'Gramercy' = 74, 'Grasmere-Arrochar-Ft. Wadsworth' = 75, 'Gravesend' = 76, 'Great Kills' = 77, 'Greenpoint' = 78, 'Grymes Hill-Clifton-Fox Hills' = 79, 'Hamilton Heights' = 80, 'Hammels-Arverne-Edgemere' = 81, 'Highbridge' = 82, 'Hollis' = 83, 'Homecrest' = 84, 'Hudson Yards-Chelsea-Flatiron-Union Square' = 85, 'Hunters Point-Sunnyside-West Maspeth' = 86, 'Hunts Point' = 87, 'Jackson Heights' = 88, 'Jamaica' = 89, 'Jamaica Estates-Holliswood' = 90, 'Kensington-Ocean Parkway' = 91, 'Kew Gardens' = 92, 'Kew Gardens Hills' = 93, 'Kingsbridge Heights' = 94, 'Laurelton' = 95, 'Lenox Hill-Roosevelt Island' = 96, 'Lincoln Square' = 97, 'Lindenwood-Howard Beach' = 98, 'Longwood' = 99, 'Lower East Side' = 100, 'Madison' = 101, 'Manhattanville' = 102, 'Marble Hill-Inwood' = 103, 'Mariner\'s Harbor-Arlington-Port Ivory-Graniteville' = 104, 'Maspeth' = 105, 'Melrose South-Mott Haven North' = 106, 'Middle Village' = 107, 'Midtown-Midtown South' = 108, 'Midwood' = 109, 'Morningside Heights' = 110, 'Morrisania-Melrose' = 111, 'Mott Haven-Port Morris' = 112, 'Mount Hope' = 113, 'Murray Hill' = 114, 'Murray Hill-Kips Bay' = 115, 'New Brighton-Silver Lake' = 116, 'New Dorp-Midland Beach' = 117, 'New Springville-Bloomfield-Travis' = 118, 'North Corona' = 119, 'North Riverdale-Fieldston-Riverdale' = 120, 'North Side-South Side' = 121, 'Norwood' = 122, 'Oakland Gardens' = 123, 'Oakwood-Oakwood Beach' = 124, 'Ocean Hill' = 125, 'Ocean Parkway South' = 126, 'Old Astoria' = 127, 'Old Town-Dongan Hills-South Beach' = 128, 'Ozone Park' = 129, 'Park Slope-Gowanus' = 130, 'Parkchester' = 131, 'Pelham Bay-Country Club-City Island' = 132, 'Pelham Parkway' = 133, 'Pomonok-Flushing Heights-Hillcrest' = 134, 'Port Richmond' = 135, 'Prospect Heights' = 136, 'Prospect Lefferts Gardens-Wingate' = 137, 'Queens Village' = 138, 'Queensboro Hill' = 139, 'Queensbridge-Ravenswood-Long Island City' = 140, 'Rego Park' = 141, 'Richmond Hill' = 142, 'Ridgewood' = 143, 'Rikers Island' = 144, 'Rosedale' = 145, 'Rossville-Woodrow' = 146, 'Rugby-Remsen Village' = 147, 'Schuylerville-Throgs Neck-Edgewater Park' = 148, 'Seagate-Coney Island' = 149, 'Sheepshead Bay-Gerritsen Beach-Manhattan Beach' = 150, 'SoHo-TriBeCa-Civic Center-Little Italy' = 151, 'Soundview-Bruckner' = 152, 'Soundview-Castle Hill-Clason Point-Harding Park' = 153, 'South Jamaica' = 154, 'South Ozone Park' = 155, 'Springfield Gardens North' = 156, 'Springfield Gardens South-Brookville' = 157, 'Spuyten Duyvil-Kingsbridge' = 158, 'St. Albans' = 159, 'Stapleton-Rosebank' = 160, 'Starrett City' = 161, 'Steinway' = 162, 'Stuyvesant Heights' = 163, 'Stuyvesant Town-Cooper Village' = 164, 'Sunset Park East' = 165, 'Sunset Park West' = 166, 'Todt Hill-Emerson Hill-Heartland Village-Lighthouse Hill' = 167, 'Turtle Bay-East Midtown' = 168, 'University Heights-Morris Heights' = 169, 'Upper East Side-Carnegie Hill' = 170, 'Upper West Side' = 171, 'Van Cortlandt Village' = 172, 'Van Nest-Morris Park-Westchester Square' = 173, 'Washington Heights North' = 174, 'Washington Heights South' = 175, 'West Brighton' = 176, 'West Concourse' = 177, 'West Farms-Bronx River' = 178, 'West New Brighton-New Brighton-St. George' = 179, 'West Village' = 180, 'Westchester-Unionport' = 181, 'Westerleigh' = 182, 'Whitestone' = 183, 'Williamsbridge-Olinville' = 184, 'Williamsburg' = 185, 'Windsor Terrace' = 186, 'Woodhaven' = 187, 'Woodlawn-Wakefield' = 188, 'Woodside' = 189, 'Yorkville' = 190, 'park-cemetery-etc-Bronx' = 191, 'park-cemetery-etc-Brooklyn' = 192, 'park-cemetery-etc-Manhattan' = 193, 'park-cemetery-etc-Queens' = 194, 'park-cemetery-etc-Staten Island' = 195),  pickup_puma UInt16,  dropoff_nyct2010_gid UInt8,  dropoff_ctlabel Float32,  dropoff_borocode UInt8,  dropoff_boroname Enum8('' = 0, 'Manhattan' = 1, 'Bronx' = 2, 'Brooklyn' = 3, 'Queens' = 4, 'Staten Island' = 5),  dropoff_ct2010 FixedString(6),  dropoff_boroct2010 FixedString(7),  dropoff_cdeligibil Enum8(' ' = 0, 'E' = 1, 'I' = 2),  dropoff_ntacode FixedString(4),  dropoff_ntaname Enum16('' = 0, 'Airport' = 1, 'Allerton-Pelham Gardens' = 2, 'Annadale-Huguenot-Prince\'s Bay-Eltingville' = 3, 'Arden Heights' = 4, 'Astoria' = 5, 'Auburndale' = 6, 'Baisley Park' = 7, 'Bath Beach' = 8, 'Battery Park City-Lower Manhattan' = 9, 'Bay Ridge' = 10, 'Bayside-Bayside Hills' = 11, 'Bedford' = 12, 'Bedford Park-Fordham North' = 13, 'Bellerose' = 14, 'Belmont' = 15, 'Bensonhurst East' = 16, 'Bensonhurst West' = 17, 'Borough Park' = 18, 'Breezy Point-Belle Harbor-Rockaway Park-Broad Channel' = 19, 'Briarwood-Jamaica Hills' = 20, 'Brighton Beach' = 21, 'Bronxdale' = 22, 'Brooklyn Heights-Cobble Hill' = 23, 'Brownsville' = 24, 'Bushwick North' = 25, 'Bushwick South' = 26, 'Cambria Heights' = 27, 'Canarsie' = 28, 'Carroll Gardens-Columbia Street-Red Hook' = 29, 'Central Harlem North-Polo Grounds' = 30, 'Central Harlem South' = 31, 'Charleston-Richmond Valley-Tottenville' = 32, 'Chinatown' = 33, 'Claremont-Bathgate' = 34, 'Clinton' = 35, 'Clinton Hill' = 36, 'Co-op City' = 37, 'College Point' = 38, 'Corona' = 39, 'Crotona Park East' = 40, 'Crown Heights North' = 41, 'Crown Heights South' = 42, 'Cypress Hills-City Line' = 43, 'DUMBO-Vinegar Hill-Downtown Brooklyn-Boerum Hill' = 44, 'Douglas Manor-Douglaston-Little Neck' = 45, 'Dyker Heights' = 46, 'East Concourse-Concourse Village' = 47, 'East Elmhurst' = 48, 'East Flatbush-Farragut' = 49, 'East Flushing' = 50, 'East Harlem North' = 51, 'East Harlem South' = 52, 'East New York' = 53, 'East New York (Pennsylvania Ave)' = 54, 'East Tremont' = 55, 'East Village' = 56, 'East Williamsburg' = 57, 'Eastchester-Edenwald-Baychester' = 58, 'Elmhurst' = 59, 'Elmhurst-Maspeth' = 60, 'Erasmus' = 61, 'Far Rockaway-Bayswater' = 62, 'Flatbush' = 63, 'Flatlands' = 64, 'Flushing' = 65, 'Fordham South' = 66, 'Forest Hills' = 67, 'Fort Greene' = 68, 'Fresh Meadows-Utopia' = 69, 'Ft. Totten-Bay Terrace-Clearview' = 70, 'Georgetown-Marine Park-Bergen Beach-Mill Basin' = 71, 'Glen Oaks-Floral Park-New Hyde Park' = 72, 'Glendale' = 73, 'Gramercy' = 74, 'Grasmere-Arrochar-Ft. Wadsworth' = 75, 'Gravesend' = 76, 'Great Kills' = 77, 'Greenpoint' = 78, 'Grymes Hill-Clifton-Fox Hills' = 79, 'Hamilton Heights' = 80, 'Hammels-Arverne-Edgemere' = 81, 'Highbridge' = 82, 'Hollis' = 83, 'Homecrest' = 84, 'Hudson Yards-Chelsea-Flatiron-Union Square' = 85, 'Hunters Point-Sunnyside-West Maspeth' = 86, 'Hunts Point' = 87, 'Jackson Heights' = 88, 'Jamaica' = 89, 'Jamaica Estates-Holliswood' = 90, 'Kensington-Ocean Parkway' = 91, 'Kew Gardens' = 92, 'Kew Gardens Hills' = 93, 'Kingsbridge Heights' = 94, 'Laurelton' = 95, 'Lenox Hill-Roosevelt Island' = 96, 'Lincoln Square' = 97, 'Lindenwood-Howard Beach' = 98, 'Longwood' = 99, 'Lower East Side' = 100, 'Madison' = 101, 'Manhattanville' = 102, 'Marble Hill-Inwood' = 103, 'Mariner\'s Harbor-Arlington-Port Ivory-Graniteville' = 104, 'Maspeth' = 105, 'Melrose South-Mott Haven North' = 106, 'Middle Village' = 107, 'Midtown-Midtown South' = 108, 'Midwood' = 109, 'Morningside Heights' = 110, 'Morrisania-Melrose' = 111, 'Mott Haven-Port Morris' = 112, 'Mount Hope' = 113, 'Murray Hill' = 114, 'Murray Hill-Kips Bay' = 115, 'New Brighton-Silver Lake' = 116, 'New Dorp-Midland Beach' = 117, 'New Springville-Bloomfield-Travis' = 118, 'North Corona' = 119, 'North Riverdale-Fieldston-Riverdale' = 120, 'North Side-South Side' = 121, 'Norwood' = 122, 'Oakland Gardens' = 123, 'Oakwood-Oakwood Beach' = 124, 'Ocean Hill' = 125, 'Ocean Parkway South' = 126, 'Old Astoria' = 127, 'Old Town-Dongan Hills-South Beach' = 128, 'Ozone Park' = 129, 'Park Slope-Gowanus' = 130, 'Parkchester' = 131, 'Pelham Bay-Country Club-City Island' = 132, 'Pelham Parkway' = 133, 'Pomonok-Flushing Heights-Hillcrest' = 134, 'Port Richmond' = 135, 'Prospect Heights' = 136, 'Prospect Lefferts Gardens-Wingate' = 137, 'Queens Village' = 138, 'Queensboro Hill' = 139, 'Queensbridge-Ravenswood-Long Island City' = 140, 'Rego Park' = 141, 'Richmond Hill' = 142, 'Ridgewood' = 143, 'Rikers Island' = 144, 'Rosedale' = 145, 'Rossville-Woodrow' = 146, 'Rugby-Remsen Village' = 147, 'Schuylerville-Throgs Neck-Edgewater Park' = 148, 'Seagate-Coney Island' = 149, 'Sheepshead Bay-Gerritsen Beach-Manhattan Beach' = 150, 'SoHo-TriBeCa-Civic Center-Little Italy' = 151, 'Soundview-Bruckner' = 152, 'Soundview-Castle Hill-Clason Point-Harding Park' = 153, 'South Jamaica' = 154, 'South Ozone Park' = 155, 'Springfield Gardens North' = 156, 'Springfield Gardens South-Brookville' = 157, 'Spuyten Duyvil-Kingsbridge' = 158, 'St. Albans' = 159, 'Stapleton-Rosebank' = 160, 'Starrett City' = 161, 'Steinway' = 162, 'Stuyvesant Heights' = 163, 'Stuyvesant Town-Cooper Village' = 164, 'Sunset Park East' = 165, 'Sunset Park West' = 166, 'Todt Hill-Emerson Hill-Heartland Village-Lighthouse Hill' = 167, 'Turtle Bay-East Midtown' = 168, 'University Heights-Morris Heights' = 169, 'Upper East Side-Carnegie Hill' = 170, 'Upper West Side' = 171, 'Van Cortlandt Village' = 172, 'Van Nest-Morris Park-Westchester Square' = 173, 'Washington Heights North' = 174, 'Washington Heights South' = 175, 'West Brighton' = 176, 'West Concourse' = 177, 'West Farms-Bronx River' = 178, 'West New Brighton-New Brighton-St. George' = 179, 'West Village' = 180, 'Westchester-Unionport' = 181, 'Westerleigh' = 182, 'Whitestone' = 183, 'Williamsbridge-Olinville' = 184, 'Williamsburg' = 185, 'Windsor Terrace' = 186, 'Woodhaven' = 187, 'Woodlawn-Wakefield' = 188, 'Woodside' = 189, 'Yorkville' = 190, 'park-cemetery-etc-Bronx' = 191, 'park-cemetery-etc-Brooklyn' = 192, 'park-cemetery-etc-Manhattan' = 193, 'park-cemetery-etc-Queens' = 194, 'park-cemetery-etc-Staten Island' = 195),  dropoff_puma UInt16) ENGINE = MergeTree(pickup_date, pickup_datetime, 8192)

On the source server:

CREATE TABLE trips_mergetree_x3 AS trips_mergetree_third ENGINE = Distributed(perftest, default, trips_mergetree_third, rand())

The following query redistributes data:

INSERT INTO trips_mergetree_x3 SELECT * FROM trips_mergetree

This takes 2454 seconds.

On three servers:

Q1: 0.212 seconds. Q2: 0.438 seconds. Q3: 0.733 seconds. Q4: 1.241 seconds.

No surprises here, since the queries are scaled linearly.

We also have results from a cluster of 140 servers:

Q1: 0.028 sec. Q2: 0.043 sec. Q3: 0.051 sec. Q4: 0.072 sec.

In this case, the query processing time is determined above all by network latency. We ran queries using a client located in a Yandex datacenter in Finland on a cluster in Russia, which added about 20 ms of latency.

Summary¶

Original article

AMPLab Big Data Benchmark¶

See https://amplab.cs.berkeley.edu/benchmark/

Sign up for a free account at https://aws.amazon.com. You will need a credit card, email and phone number.Get a new access key at https://console.aws.amazon.com/iam/home?nc2=h_m_sc#security_credential

Run the following in the console:

sudo apt-get install s3cmd
mkdir tiny; cd tiny;
s3cmd sync s3://big-data-benchmark/pavlo/text-deflate/tiny/ .
cd ..
mkdir 1node; cd 1node;
s3cmd sync s3://big-data-benchmark/pavlo/text-deflate/1node/ .
cd ..
mkdir 5nodes; cd 5nodes;
s3cmd sync s3://big-data-benchmark/pavlo/text-deflate/5nodes/ .
cd ..

Run the following ClickHouse queries:

CREATE TABLE rankings_tiny
(
    pageURL String,
    pageRank UInt32,
    avgDuration UInt32
) ENGINE = Log;

CREATE TABLE uservisits_tiny
(
    sourceIP String,
    destinationURL String,
    visitDate Date,
    adRevenue Float32,
    UserAgent String,
    cCode FixedString(3),
    lCode FixedString(6),
    searchWord String,
    duration UInt32
) ENGINE = MergeTree(visitDate, visitDate, 8192);

CREATE TABLE rankings_1node
(
    pageURL String,
    pageRank UInt32,
    avgDuration UInt32
) ENGINE = Log;

CREATE TABLE uservisits_1node
(
    sourceIP String,
    destinationURL String,
    visitDate Date,
    adRevenue Float32,
    UserAgent String,
    cCode FixedString(3),
    lCode FixedString(6),
    searchWord String,
    duration UInt32
) ENGINE = MergeTree(visitDate, visitDate, 8192);

CREATE TABLE rankings_5nodes_on_single
(
    pageURL String,
    pageRank UInt32,
    avgDuration UInt32
) ENGINE = Log;

CREATE TABLE uservisits_5nodes_on_single
(
    sourceIP String,
    destinationURL String,
    visitDate Date,
    adRevenue Float32,
    UserAgent String,
    cCode FixedString(3),
    lCode FixedString(6),
    searchWord String,
    duration UInt32
) ENGINE = MergeTree(visitDate, visitDate, 8192);

Go back to the console:

for i in tiny/rankings/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO rankings_tiny FORMAT CSV"; done
for i in tiny/uservisits/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO uservisits_tiny FORMAT CSV"; done
for i in 1node/rankings/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO rankings_1node FORMAT CSV"; done
for i in 1node/uservisits/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO uservisits_1node FORMAT CSV"; done
for i in 5nodes/rankings/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO rankings_5nodes_on_single FORMAT CSV"; done
for i in 5nodes/uservisits/*.deflate; do echo $i; zlib-flate -uncompress < $i | clickhouse-client --host=example-perftest01j --query="INSERT INTO uservisits_5nodes_on_single FORMAT CSV"; done

Queries for obtaining data samples:

SELECT pageURL, pageRank FROM rankings_1node WHERE pageRank > 1000

SELECT substring(sourceIP, 1, 8), sum(adRevenue) FROM uservisits_1node GROUP BY substring(sourceIP, 1, 8)

SELECT
    sourceIP,
    sum(adRevenue) AS totalRevenue,
    avg(pageRank) AS pageRank
FROM rankings_1node ALL INNER JOIN
(
    SELECT
        sourceIP,
        destinationURL AS pageURL,
        adRevenue
    FROM uservisits_1node
    WHERE (visitDate > '1980-01-01') AND (visitDate < '1980-04-01')
) USING pageURL
GROUP BY sourceIP
ORDER BY totalRevenue DESC
LIMIT 1

Original article

WikiStat¶

See: http://dumps.wikimedia.org/other/pagecounts-raw/

Creating a table:

CREATE TABLE wikistat
(
    date Date,
    time DateTime,
    project String,
    subproject String,
    path String,
    hits UInt64,
    size UInt64
) ENGINE = MergeTree(date, (path, time), 8192);

Loading data:

for i in {2007..2016}; do for j in {01..12}; do echo $i-$j >&2; curl -sSL "http://dumps.wikimedia.org/other/pagecounts-raw/$i/$i-$j/" | grep -oE 'pagecounts-[0-9]+-[0-9]+\.gz'; done; done | sort | uniq | tee links.txt
cat links.txt | while read link; do wget http://dumps.wikimedia.org/other/pagecounts-raw/$(echo $link | sed -r 's/pagecounts-([0-9]{4})([0-9]{2})[0-9]{2}-[0-9]+\.gz/\1/')/$(echo $link | sed -r 's/pagecounts-([0-9]{4})([0-9]{2})[0-9]{2}-[0-9]+\.gz/\1-\2/')/$link; done
ls -1 /opt/wikistat/ | grep gz | while read i; do echo $i; gzip -cd /opt/wikistat/$i | ./wikistat-loader --time="$(echo -n $i | sed -r 's/pagecounts-([0-9]{4})([0-9]{2})([0-9]{2})-([0-9]{2})([0-9]{2})([0-9]{2})\.gz/\1-\2-\3 \4-00-00/')" | clickhouse-client --query="INSERT INTO wikistat FORMAT TabSeparated"; done

Original article

Terabyte of Click Logs from Criteo¶

Download the data from http://labs.criteo.com/downloads/download-terabyte-click-logs/

Create a table to import the log to:

CREATE TABLE criteo_log (date Date, clicked UInt8, int1 Int32, int2 Int32, int3 Int32, int4 Int32, int5 Int32, int6 Int32, int7 Int32, int8 Int32, int9 Int32, int10 Int32, int11 Int32, int12 Int32, int13 Int32, cat1 String, cat2 String, cat3 String, cat4 String, cat5 String, cat6 String, cat7 String, cat8 String, cat9 String, cat10 String, cat11 String, cat12 String, cat13 String, cat14 String, cat15 String, cat16 String, cat17 String, cat18 String, cat19 String, cat20 String, cat21 String, cat22 String, cat23 String, cat24 String, cat25 String, cat26 String) ENGINE = Log

Download the data:

for i in {00..23}; do echo $i; zcat datasets/criteo/day_${i#0}.gz | sed -r 's/^/2000-01-'${i/00/24}'\t/' | clickhouse-client --host=example-perftest01j --query="INSERT INTO criteo_log FORMAT TabSeparated"; done

Create a table for the converted data:

CREATE TABLE criteo
(
    date Date,
    clicked UInt8,
    int1 Int32,
    int2 Int32,
    int3 Int32,
    int4 Int32,
    int5 Int32,
    int6 Int32,
    int7 Int32,
    int8 Int32,
    int9 Int32,
    int10 Int32,
    int11 Int32,
    int12 Int32,
    int13 Int32,
    icat1 UInt32,
    icat2 UInt32,
    icat3 UInt32,
    icat4 UInt32,
    icat5 UInt32,
    icat6 UInt32,
    icat7 UInt32,
    icat8 UInt32,
    icat9 UInt32,
    icat10 UInt32,
    icat11 UInt32,
    icat12 UInt32,
    icat13 UInt32,
    icat14 UInt32,
    icat15 UInt32,
    icat16 UInt32,
    icat17 UInt32,
    icat18 UInt32,
    icat19 UInt32,
    icat20 UInt32,
    icat21 UInt32,
    icat22 UInt32,
    icat23 UInt32,
    icat24 UInt32,
    icat25 UInt32,
    icat26 UInt32
) ENGINE = MergeTree(date, intHash32(icat1), (date, intHash32(icat1)), 8192)

Transform data from the raw log and put it in the second table:

INSERT INTO criteo SELECT date, clicked, int1, int2, int3, int4, int5, int6, int7, int8, int9, int10, int11, int12, int13, reinterpretAsUInt32(unhex(cat1)) AS icat1, reinterpretAsUInt32(unhex(cat2)) AS icat2, reinterpretAsUInt32(unhex(cat3)) AS icat3, reinterpretAsUInt32(unhex(cat4)) AS icat4, reinterpretAsUInt32(unhex(cat5)) AS icat5, reinterpretAsUInt32(unhex(cat6)) AS icat6, reinterpretAsUInt32(unhex(cat7)) AS icat7, reinterpretAsUInt32(unhex(cat8)) AS icat8, reinterpretAsUInt32(unhex(cat9)) AS icat9, reinterpretAsUInt32(unhex(cat10)) AS icat10, reinterpretAsUInt32(unhex(cat11)) AS icat11, reinterpretAsUInt32(unhex(cat12)) AS icat12, reinterpretAsUInt32(unhex(cat13)) AS icat13, reinterpretAsUInt32(unhex(cat14)) AS icat14, reinterpretAsUInt32(unhex(cat15)) AS icat15, reinterpretAsUInt32(unhex(cat16)) AS icat16, reinterpretAsUInt32(unhex(cat17)) AS icat17, reinterpretAsUInt32(unhex(cat18)) AS icat18, reinterpretAsUInt32(unhex(cat19)) AS icat19, reinterpretAsUInt32(unhex(cat20)) AS icat20, reinterpretAsUInt32(unhex(cat21)) AS icat21, reinterpretAsUInt32(unhex(cat22)) AS icat22, reinterpretAsUInt32(unhex(cat23)) AS icat23, reinterpretAsUInt32(unhex(cat24)) AS icat24, reinterpretAsUInt32(unhex(cat25)) AS icat25, reinterpretAsUInt32(unhex(cat26)) AS icat26 FROM criteo_log;

DROP TABLE criteo_log;

Original article

Star Schema Benchmark¶

Compiling dbgen:

git clone git@github.com:vadimtk/ssb-dbgen.git
cd ssb-dbgen
make

Generating data:

./dbgen -s 1000 -T c
./dbgen -s 1000 -T l
./dbgen -s 1000 -T p
./dbgen -s 1000 -T s
./dbgen -s 1000 -T d

Creating tables in ClickHouse:

CREATE TABLE customer
(
        C_CUSTKEY       UInt32,
        C_NAME          String,
        C_ADDRESS       String,
        C_CITY          LowCardinality(String),
        C_NATION        LowCardinality(String),
        C_REGION        LowCardinality(String),
        C_PHONE         String,
        C_MKTSEGMENT    LowCardinality(String)
)
ENGINE = MergeTree ORDER BY (C_CUSTKEY);

CREATE TABLE lineorder
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = MergeTree PARTITION BY toYear(LO_ORDERDATE) ORDER BY (LO_ORDERDATE, LO_ORDERKEY);

CREATE TABLE part
(
        P_PARTKEY       UInt32,
        P_NAME          String,
        P_MFGR          LowCardinality(String),
        P_CATEGORY      LowCardinality(String),
        P_BRAND         LowCardinality(String),
        P_COLOR         LowCardinality(String),
        P_TYPE          LowCardinality(String),
        P_SIZE          UInt8,
        P_CONTAINER     LowCardinality(String)
)
ENGINE = MergeTree ORDER BY P_PARTKEY;

CREATE TABLE supplier
(
        S_SUPPKEY       UInt32,
        S_NAME          String,
        S_ADDRESS       String,
        S_CITY          LowCardinality(String),
        S_NATION        LowCardinality(String),
        S_REGION        LowCardinality(String),
        S_PHONE         String
)
ENGINE = MergeTree ORDER BY S_SUPPKEY;

Inserting data:

clickhouse-client --query "INSERT INTO customer FORMAT CSV" < customer.tbl
clickhouse-client --query "INSERT INTO part FORMAT CSV" < part.tbl
clickhouse-client --query "INSERT INTO supplier FORMAT CSV" < supplier.tbl
clickhouse-client --query "INSERT INTO lineorder FORMAT CSV" < lineorder.tbl

Converting "star schema" to denormalized "flat schema":

SET max_memory_usage = 20000000000, allow_experimental_multiple_joins_emulation = 1;

CREATE TABLE lineorder_flat
ENGINE = MergeTree
PARTITION BY toYear(LO_ORDERDATE)
ORDER BY (LO_ORDERDATE, LO_ORDERKEY) AS
SELECT *
FROM lineorder
ANY INNER JOIN customer ON LO_CUSTKEY = C_CUSTKEY
ANY INNER JOIN supplier ON LO_SUPPKEY = S_SUPPKEY
ANY INNER JOIN part ON LO_PARTKEY = P_PARTKEY;

ALTER TABLE lineorder_flat DROP COLUMN C_CUSTKEY, DROP COLUMN S_SUPPKEY, DROP COLUMN P_PARTKEY;

Running the queries:

Q1.1
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toYear(LO_ORDERDATE) = 1993 AND LO_DISCOUNT BETWEEN 1 AND 3 AND LO_QUANTITY < 25;

Q1.2
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toYYYYMM(LO_ORDERDATE) = 199401 AND LO_DISCOUNT BETWEEN 4 AND 6 AND LO_QUANTITY BETWEEN 26 AND 35;

Q1.3
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toISOWeek(LO_ORDERDATE) = 6 AND toYear(LO_ORDERDATE) = 1994 AND LO_DISCOUNT BETWEEN 5 AND 7 AND LO_QUANTITY BETWEEN 26 AND 35;

Q2.1
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_CATEGORY = 'MFGR#12' AND S_REGION = 'AMERICA' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;

Q2.2
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_BRAND BETWEEN 'MFGR#2221' AND 'MFGR#2228' AND S_REGION = 'ASIA' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;

Q2.3
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_BRAND = 'MFGR#2239' AND S_REGION = 'EUROPE' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;

Q3.1
SELECT C_NATION, S_NATION, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE C_REGION = 'ASIA' AND S_REGION = 'ASIA' AND year >= 1992 AND year <= 1997 GROUP BY C_NATION, S_NATION, year ORDER BY year asc, revenue desc;

Q3.2
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE C_NATION = 'UNITED STATES' AND S_NATION = 'UNITED STATES' AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year asc, revenue desc;

Q3.3
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year asc, revenue desc;

Q3.4
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND toYYYYMM(LO_ORDERDATE) = '199712' GROUP BY C_CITY, S_CITY, year ORDER BY year asc, revenue desc;

Q4.1
SELECT toYear(LO_ORDERDATE) AS year, C_NATION, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (P_MFGR = 'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, C_NATION ORDER BY year, C_NATION;

Q4.2
SELECT toYear(LO_ORDERDATE) AS year, S_NATION, P_CATEGORY, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (year = 1997 OR year = 1998) AND (P_MFGR = 'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, S_NATION, P_CATEGORY ORDER BY year, S_NATION, P_CATEGORY;

Q4.3
SELECT toYear(LO_ORDERDATE) AS year, S_CITY, P_BRAND, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE S_NATION = 'UNITED STATES' AND (year = 1997 OR year = 1998) AND P_CATEGORY = 'MFGR#14' GROUP BY year, S_CITY, P_BRAND ORDER BY year, S_CITY, P_BRAND;

Original article

Anonymized Yandex.Metrica Data¶

Dataset consists of two tables containing anonymized data about hits (hits_v1) and visits (visits_v1) of Yandex.Metrica. Each of the tables can be downloaded as a compressed tsv.xz file or as prepared partitions.

Obtaining Tables from Prepared Partitions¶

Download and import hits:

curl -O https://clickhouse-datasets.s3.yandex.net/hits/partitions/hits_v1.tar
tar xvf hits_v1.tar -C /var/lib/clickhouse # path to ClickHouse data directory
## check permissions on unpacked data, fix if required
sudo service clickhouse-server restart
clickhouse-client --query "SELECT COUNT(*) FROM datasets.hits_v1"

Download and import visits:

curl -O https://clickhouse-datasets.s3.yandex.net/visits/partitions/visits_v1.tar
tar xvf visits_v1.tar -C /var/lib/clickhouse # path to ClickHouse data directory
## check permissions on unpacked data, fix if required
sudo service clickhouse-server restart
clickhouse-client --query "SELECT COUNT(*) FROM datasets.visits_v1"

Obtaining Tables from Compressed tsv-file¶

Download and import hits from compressed tsv-file

curl https://clickhouse-datasets.s3.yandex.net/hits/tsv/hits_v1.tsv.xz | unxz --threads=`nproc` > hits_v1.tsv
## now create table
clickhouse-client --query "CREATE DATABASE IF NOT EXISTS datasets"
clickhouse-client --query "CREATE TABLE datasets.hits_v1 ( WatchID UInt64,  JavaEnable UInt8,  Title String,  GoodEvent Int16,  EventTime DateTime,  EventDate Date,  CounterID UInt32,  ClientIP UInt32,  ClientIP6 FixedString(16),  RegionID UInt32,  UserID UInt64,  CounterClass Int8,  OS UInt8,  UserAgent UInt8,  URL String,  Referer String,  URLDomain String,  RefererDomain String,  Refresh UInt8,  IsRobot UInt8,  RefererCategories Array(UInt16),  URLCategories Array(UInt16), URLRegions Array(UInt32),  RefererRegions Array(UInt32),  ResolutionWidth UInt16,  ResolutionHeight UInt16,  ResolutionDepth UInt8,  FlashMajor UInt8, FlashMinor UInt8,  FlashMinor2 String,  NetMajor UInt8,  NetMinor UInt8, UserAgentMajor UInt16,  UserAgentMinor FixedString(2),  CookieEnable UInt8, JavascriptEnable UInt8,  IsMobile UInt8,  MobilePhone UInt8,  MobilePhoneModel String,  Params String,  IPNetworkID UInt32,  TraficSourceID Int8, SearchEngineID UInt16,  SearchPhrase String,  AdvEngineID UInt8,  IsArtifical UInt8,  WindowClientWidth UInt16,  WindowClientHeight UInt16,  ClientTimeZone Int16,  ClientEventTime DateTime,  SilverlightVersion1 UInt8, SilverlightVersion2 UInt8,  SilverlightVersion3 UInt32,  SilverlightVersion4 UInt16,  PageCharset String,  CodeVersion UInt32,  IsLink UInt8,  IsDownload UInt8,  IsNotBounce UInt8,  FUniqID UInt64,  HID UInt32,  IsOldCounter UInt8, IsEvent UInt8,  IsParameter UInt8,  DontCountHits UInt8,  WithHash UInt8, HitColor FixedString(1),  UTCEventTime DateTime,  Age UInt8,  Sex UInt8,  Income UInt8,  Interests UInt16,  Robotness UInt8,  GeneralInterests Array(UInt16), RemoteIP UInt32,  RemoteIP6 FixedString(16),  WindowName Int32,  OpenerName Int32,  HistoryLength Int16,  BrowserLanguage FixedString(2),  BrowserCountry FixedString(2),  SocialNetwork String,  SocialAction String,  HTTPError UInt16, SendTiming Int32,  DNSTiming Int32,  ConnectTiming Int32,  ResponseStartTiming Int32,  ResponseEndTiming Int32,  FetchTiming Int32,  RedirectTiming Int32, DOMInteractiveTiming Int32,  DOMContentLoadedTiming Int32,  DOMCompleteTiming Int32,  LoadEventStartTiming Int32,  LoadEventEndTiming Int32, NSToDOMContentLoadedTiming Int32,  FirstPaintTiming Int32,  RedirectCount Int8, SocialSourceNetworkID UInt8,  SocialSourcePage String,  ParamPrice Int64, ParamOrderID String,  ParamCurrency FixedString(3),  ParamCurrencyID UInt16, GoalsReached Array(UInt32),  OpenstatServiceName String,  OpenstatCampaignID String,  OpenstatAdID String,  OpenstatSourceID String,  UTMSource String, UTMMedium String,  UTMCampaign String,  UTMContent String,  UTMTerm String, FromTag String,  HasGCLID UInt8,  RefererHash UInt64,  URLHash UInt64,  CLID UInt32,  YCLID UInt64,  ShareService String,  ShareURL String,  ShareTitle String,  ParsedParams Nested(Key1 String,  Key2 String, Key3 String, Key4 String, Key5 String,  ValueDouble Float64),  IslandID FixedString(16),  RequestNum UInt32,  RequestTry UInt8) ENGINE = MergeTree() PARTITION BY toYYYYMM(EventDate) ORDER BY (CounterID, EventDate, intHash32(UserID)) SAMPLE BY intHash32(UserID) SETTINGS index_granularity = 8192"
## import data
cat hits_v1.tsv | clickhouse-client --query "INSERT INTO datasets.hits_v1 FORMAT TSV" --max_insert_block_size=100000
## optionally you can optimize table
clickhouse-client --query "OPTIMIZE TABLE datasets.hits_v1 FINAL"
clickhouse-client --query "SELECT COUNT(*) FROM datasets.hits_v1"

Download and import visits from compressed tsv-file

curl https://clickhouse-datasets.s3.yandex.net/visits/tsv/visits_v1.tsv.xz | unxz --threads=`nproc` > visits_v1.tsv
## now create table
clickhouse-client --query "CREATE DATABASE IF NOT EXISTS datasets"
clickhouse-client --query "CREATE TABLE datasets.visits_v1 ( CounterID UInt32,  StartDate Date,  Sign Int8,  IsNew UInt8,  VisitID UInt64,  UserID UInt64,  StartTime DateTime,  Duration UInt32,  UTCStartTime DateTime,  PageViews Int32,  Hits Int32,  IsBounce UInt8,  Referer String,  StartURL String,  RefererDomain String,  StartURLDomain String,  EndURL String,  LinkURL String,  IsDownload UInt8,  TraficSourceID Int8,  SearchEngineID UInt16,  SearchPhrase String,  AdvEngineID UInt8,  PlaceID Int32,  RefererCategories Array(UInt16),  URLCategories Array(UInt16),  URLRegions Array(UInt32),  RefererRegions Array(UInt32),  IsYandex UInt8,  GoalReachesDepth Int32,  GoalReachesURL Int32,  GoalReachesAny Int32,  SocialSourceNetworkID UInt8,  SocialSourcePage String,  MobilePhoneModel String,  ClientEventTime DateTime,  RegionID UInt32,  ClientIP UInt32,  ClientIP6 FixedString(16),  RemoteIP UInt32,  RemoteIP6 FixedString(16),  IPNetworkID UInt32,  SilverlightVersion3 UInt32,  CodeVersion UInt32,  ResolutionWidth UInt16,  ResolutionHeight UInt16,  UserAgentMajor UInt16,  UserAgentMinor UInt16,  WindowClientWidth UInt16,  WindowClientHeight UInt16,  SilverlightVersion2 UInt8,  SilverlightVersion4 UInt16,  FlashVersion3 UInt16,  FlashVersion4 UInt16,  ClientTimeZone Int16,  OS UInt8,  UserAgent UInt8,  ResolutionDepth UInt8,  FlashMajor UInt8,  FlashMinor UInt8,  NetMajor UInt8,  NetMinor UInt8,  MobilePhone UInt8,  SilverlightVersion1 UInt8,  Age UInt8,  Sex UInt8,  Income UInt8,  JavaEnable UInt8,  CookieEnable UInt8,  JavascriptEnable UInt8,  IsMobile UInt8,  BrowserLanguage UInt16,  BrowserCountry UInt16,  Interests UInt16,  Robotness UInt8,  GeneralInterests Array(UInt16),  Params Array(String),  Goals Nested(ID UInt32, Serial UInt32, EventTime DateTime,  Price Int64,  OrderID String, CurrencyID UInt32),  WatchIDs Array(UInt64),  ParamSumPrice Int64,  ParamCurrency FixedString(3),  ParamCurrencyID UInt16,  ClickLogID UInt64,  ClickEventID Int32,  ClickGoodEvent Int32,  ClickEventTime DateTime,  ClickPriorityID Int32,  ClickPhraseID Int32,  ClickPageID Int32,  ClickPlaceID Int32,  ClickTypeID Int32,  ClickResourceID Int32,  ClickCost UInt32,  ClickClientIP UInt32,  ClickDomainID UInt32,  ClickURL String,  ClickAttempt UInt8,  ClickOrderID UInt32,  ClickBannerID UInt32,  ClickMarketCategoryID UInt32,  ClickMarketPP UInt32,  ClickMarketCategoryName String,  ClickMarketPPName String,  ClickAWAPSCampaignName String,  ClickPageName String,  ClickTargetType UInt16,  ClickTargetPhraseID UInt64,  ClickContextType UInt8,  ClickSelectType Int8,  ClickOptions String,  ClickGroupBannerID Int32,  OpenstatServiceName String,  OpenstatCampaignID String,  OpenstatAdID String,  OpenstatSourceID String,  UTMSource String,  UTMMedium String,  UTMCampaign String,  UTMContent String,  UTMTerm String,  FromTag String,  HasGCLID UInt8,  FirstVisit DateTime,  PredLastVisit Date,  LastVisit Date,  TotalVisits UInt32,  TraficSource    Nested(ID Int8,  SearchEngineID UInt16, AdvEngineID UInt8, PlaceID UInt16, SocialSourceNetworkID UInt8, Domain String, SearchPhrase String, SocialSourcePage String),  Attendance FixedString(16),  CLID UInt32,  YCLID UInt64,  NormalizedRefererHash UInt64,  SearchPhraseHash UInt64,  RefererDomainHash UInt64,  NormalizedStartURLHash UInt64,  StartURLDomainHash UInt64,  NormalizedEndURLHash UInt64,  TopLevelDomain UInt64,  URLScheme UInt64,  OpenstatServiceNameHash UInt64,  OpenstatCampaignIDHash UInt64,  OpenstatAdIDHash UInt64,  OpenstatSourceIDHash UInt64,  UTMSourceHash UInt64,  UTMMediumHash UInt64,  UTMCampaignHash UInt64,  UTMContentHash UInt64,  UTMTermHash UInt64,  FromHash UInt64,  WebVisorEnabled UInt8,  WebVisorActivity UInt32,  ParsedParams    Nested(Key1 String,  Key2 String,  Key3 String,  Key4 String, Key5 String, ValueDouble    Float64),  Market Nested(Type UInt8, GoalID UInt32, OrderID String,  OrderPrice Int64,  PP UInt32,  DirectPlaceID UInt32,  DirectOrderID  UInt32,  DirectBannerID UInt32,  GoodID String, GoodName String, GoodQuantity Int32,  GoodPrice Int64),  IslandID FixedString(16)) ENGINE = CollapsingMergeTree(StartDate, intHash32(UserID), (CounterID, StartDate, intHash32(UserID), VisitID), 8192, Sign)"
## import data
cat visits_v1.tsv | clickhouse-client --query "INSERT INTO datasets.visits_v1 FORMAT TSV" --max_insert_block_size=100000
## optionally you can optimize table
clickhouse-client --query "OPTIMIZE TABLE datasets.visits_v1 FINAL"
clickhouse-client --query "SELECT COUNT(*) FROM datasets.visits_v1"

Queries¶

Examples of queries to these tables (they are named test.hits and test.visits) can be found among stateful tests and in some performance tests of ClickHouse.

Interfaces¶

ClickHouse provides two network interfaces (both can be optionally wrapped in TLS for additional security):

• HTTP, which is documented and easy to use directly.
• Native TCP, which has less overhead.

In most cases it is recommended to use appropriate tool or library instead of interacting with those directly. Officially supported by Yandex are the following:

• Command-line client
• JDBC driver
• ODBC driver

There are also a wide range of third-party libraries for working with ClickHouse:

• Client libraries
• Integrations
• Visual interfaces

Original article

Command-line Client¶

To work from the command line, you can use clickhouse-client:

$ clickhouse-client
ClickHouse client version 0.0.26176.
Connecting to localhost:9000.
Connected to ClickHouse server version 0.0.26176.

:)

The client supports command-line options and configuration files. For more information, see "Configuring".

Usage¶

The client can be used in interactive and non-interactive (batch) mode. To use batch mode, specify the 'query' parameter, or send data to 'stdin' (it verifies that 'stdin' is not a terminal), or both. Similar to the HTTP interface, when using the 'query' parameter and sending data to 'stdin', the request is a concatenation of the 'query' parameter, a line feed, and the data in 'stdin'. This is convenient for large INSERT queries.

Example of using the client to insert data:

echo -ne "1, 'some text', '2016-08-14 00:00:00'\n2, 'some more text', '2016-08-14 00:00:01'" | clickhouse-client --database=test --query="INSERT INTO test FORMAT CSV";

cat <<_EOF | clickhouse-client --database=test --query="INSERT INTO test FORMAT CSV";
3, 'some text', '2016-08-14 00:00:00'
4, 'some more text', '2016-08-14 00:00:01'
_EOF

cat file.csv | clickhouse-client --database=test --query="INSERT INTO test FORMAT CSV";

In batch mode, the default data format is TabSeparated. You can set the format in the FORMAT clause of the query.

By default, you can only process a single query in batch mode. To make multiple queries from a "script," use the --multiquery parameter. This works for all queries except INSERT. Query results are output consecutively without additional separators. Similarly, to process a large number of queries, you can run 'clickhouse-client' for each query. Note that it may take tens of milliseconds to launch the 'clickhouse-client' program.

In interactive mode, you get a command line where you can enter queries.

If 'multiline' is not specified (the default):To run the query, press Enter. The semicolon is not necessary at the end of the query. To enter a multiline query, enter a backslash \ before the line feed. After you press Enter, you will be asked to enter the next line of the query.

If multiline is specified:To run a query, end it with a semicolon and press Enter. If the semicolon was omitted at the end of the entered line, you will be asked to enter the next line of the query.

Only a single query is run, so everything after the semicolon is ignored.

You can specify \G instead of or after the semicolon. This indicates Vertical format. In this format, each value is printed on a separate line, which is convenient for wide tables. This unusual feature was added for compatibility with the MySQL CLI.

The command line is based on 'readline' (and 'history' or 'libedit', or without a library, depending on the build). In other words, it uses the familiar keyboard shortcuts and keeps a history. The history is written to ~/.clickhouse-client-history.

By default, the format used is PrettyCompact. You can change the format in the FORMAT clause of the query, or by specifying \G at the end of the query, using the --format or --vertical argument in the command line, or using the client configuration file.

To exit the client, press Ctrl+D (or Ctrl+C), or enter one of the following instead of a query: "exit", "quit", "logout", "exit;", "quit;", "logout;", "q", "Q", ":q"

When processing a query, the client shows:

1. Progress, which is updated no more than 10 times per second (by default). For quick queries, the progress might not have time to be displayed.
2. The formatted query after parsing, for debugging.
3. The result in the specified format.
4. The number of lines in the result, the time passed, and the average speed of query processing.

You can cancel a long query by pressing Ctrl+C. However, you will still need to wait a little for the server to abort the request. It is not possible to cancel a query at certain stages. If you don't wait and press Ctrl+C a second time, the client will exit.

The command-line client allows passing external data (external temporary tables) for querying. For more information, see the section "External data for query processing".

Configuring¶

You can pass parameters to clickhouse-client (all parameters have a default value) using:

• From the Command Line

Command-line options override the default values and settings in configuration files.

• Configuration files.

Settings in the configuration files override the default values.

Command Line Options¶

• --host, -h -– The server name, 'localhost' by default. You can use either the name or the IPv4 or IPv6 address.
• --port – The port to connect to. Default value: 9000. Note that the HTTP interface and the native interface use different ports.
• --user, -u – The username. Default value: default.
• --password – The password. Default value: empty string.
• --query, -q – The query to process when using non-interactive mode.
• --database, -d – Select the current default database. Default value: the current database from the server settings ('default' by default).
• --multiline, -m – If specified, allow multiline queries (do not send the query on Enter).
• --multiquery, -n – If specified, allow processing multiple queries separated by commas. Only works in non-interactive mode.
• --format, -f – Use the specified default format to output the result.
• --vertical, -E – If specified, use the Vertical format by default to output the result. This is the same as '--format=Vertical'. In this format, each value is printed on a separate line, which is helpful when displaying wide tables.
• --time, -t – If specified, print the query execution time to 'stderr' in non-interactive mode.
• --stacktrace – If specified, also print the stack trace if an exception occurs.
• --config-file – The name of the configuration file.
• --secure – If specified, will connect to server over secure connection.

Configuration Files¶

clickhouse-client uses the first existing file of the following:

• Defined in the -config-file parameter.
• ./clickhouse-client.xml
• \~/.clickhouse-client/config.xml
• /etc/clickhouse-client/config.xml

Example of a config file:

<config>
    <user>username</user>
    <password>password</password>
    <secure>False</secure>
</config>

Original article

Native Interface (TCP)¶

The native protocol is used in the command-line client, for interserver communication during distributed query processing, and also in other C++ programs. Unfortunately, native ClickHouse protocol does not have formal specification yet, but it can be reverse engineered from ClickHouse source code (starting around here) and/or by intercepting and analyzing TCP traffic.

Original article

HTTP Interface¶

The HTTP interface lets you use ClickHouse on any platform from any programming language. We use it for working from Java and Perl, as well as shell scripts. In other departments, the HTTP interface is used from Perl, Python, and Go. The HTTP interface is more limited than the native interface, but it has better compatibility.

By default, clickhouse-server listens for HTTP on port 8123 (this can be changed in the config). If you make a GET / request without parameters, it returns the string "Ok" (with a line feed at the end). You can use this in health-check scripts.

$ curl 'http://localhost:8123/'
Ok.

Send the request as a URL 'query' parameter, or as a POST. Or send the beginning of the query in the 'query' parameter, and the rest in the POST (we'll explain later why this is necessary). The size of the URL is limited to 16 KB, so keep this in mind when sending large queries.

If successful, you receive the 200 response code and the result in the response body. If an error occurs, you receive the 500 response code and an error description text in the response body.

When using the GET method, 'readonly' is set. In other words, for queries that modify data, you can only use the POST method. You can send the query itself either in the POST body, or in the URL parameter.

Examples:

$ curl 'http://localhost:8123/?query=SELECT%201'
1

$ wget -O- -q 'http://localhost:8123/?query=SELECT 1'
1

$ echo -ne 'GET /?query=SELECT%201 HTTP/1.0\r\n\r\n' | nc localhost 8123
HTTP/1.0 200 OK
Connection: Close
Date: Fri, 16 Nov 2012 19:21:50 GMT

1

As you can see, curl is somewhat inconvenient in that spaces must be URL escaped. Although wget escapes everything itself, we don't recommend using it because it doesn't work well over HTTP 1.1 when using keep-alive and Transfer-Encoding: chunked.

$ echo 'SELECT 1' | curl 'http://localhost:8123/' --data-binary @-
1

$ echo 'SELECT 1' | curl 'http://localhost:8123/?query=' --data-binary @-
1

$ echo '1' | curl 'http://localhost:8123/?query=SELECT' --data-binary @-
1

If part of the query is sent in the parameter, and part in the POST, a line feed is inserted between these two data parts. Example (this won't work):

$ echo 'ECT 1' | curl 'http://localhost:8123/?query=SEL' --data-binary @-
Code: 59, e.displayText() = DB::Exception: Syntax error: failed at position 0: SEL
ECT 1
, expected One of: SHOW TABLES, SHOW DATABASES, SELECT, INSERT, CREATE, ATTACH, RENAME, DROP, DETACH, USE, SET, OPTIMIZE., e.what() = DB::Exception

By default, data is returned in TabSeparated format (for more information, see the "Formats" section). You use the FORMAT clause of the query to request any other format.

$ echo 'SELECT 1 FORMAT Pretty' | curl 'http://localhost:8123/?' --data-binary @-
┏━━━┓
┃ 1 ┃
┡━━━┩
│ 1 │
└───┘

The POST method of transmitting data is necessary for INSERT queries. In this case, you can write the beginning of the query in the URL parameter, and use POST to pass the data to insert. The data to insert could be, for example, a tab-separated dump from MySQL. In this way, the INSERT query replaces LOAD DATA LOCAL INFILE from MySQL.

Examples: Creating a table:

echo 'CREATE TABLE t (a UInt8) ENGINE = Memory' | curl 'http://localhost:8123/' --data-binary @-

Using the familiar INSERT query for data insertion:

echo 'INSERT INTO t VALUES (1),(2),(3)' | curl 'http://localhost:8123/' --data-binary @-

Data can be sent separately from the query:

echo '(4),(5),(6)' | curl 'http://localhost:8123/?query=INSERT%20INTO%20t%20VALUES' --data-binary @-

You can specify any data format. The 'Values' format is the same as what is used when writing INSERT INTO t VALUES:

echo '(7),(8),(9)' | curl 'http://localhost:8123/?query=INSERT%20INTO%20t%20FORMAT%20Values' --data-binary @-

To insert data from a tab-separated dump, specify the corresponding format:

echo -ne '10\n11\n12\n' | curl 'http://localhost:8123/?query=INSERT%20INTO%20t%20FORMAT%20TabSeparated' --data-binary @-

Reading the table contents. Data is output in random order due to parallel query processing:

$ curl 'http://localhost:8123/?query=SELECT%20a%20FROM%20t'
7
8
9
10
11
12
1
2
3
4
5
6

Deleting the table.

echo 'DROP TABLE t' | curl 'http://localhost:8123/' --data-binary @-

For successful requests that don't return a data table, an empty response body is returned.

You can use the internal ClickHouse compression format when transmitting data. The compressed data has a non-standard format, and you will need to use the special clickhouse-compressor program to work with it (it is installed with the clickhouse-client package).

If you specified 'compress=1' in the URL, the server will compress the data it sends you. If you specified 'decompress=1' in the URL, the server will decompress the same data that you pass in the POST method.

It is also possible to use the standard gzip-based HTTP compression. To send a POST request compressed using gzip, append the request header Content-Encoding: gzip. In order for ClickHouse to compress the response using gzip, you must append Accept-Encoding: gzip to the request headers, and enable the ClickHouse setting enable_http_compression.

You can use this to reduce network traffic when transmitting a large amount of data, or for creating dumps that are immediately compressed.

You can use the 'database' URL parameter to specify the default database.

$ echo 'SELECT number FROM numbers LIMIT 10' | curl 'http://localhost:8123/?database=system' --data-binary @-
0
1
2
3
4
5
6
7
8
9

By default, the database that is registered in the server settings is used as the default database. By default, this is the database called 'default'. Alternatively, you can always specify the database using a dot before the table name.

The username and password can be indicated in one of two ways:

1. Using HTTP Basic Authentication. Example:

echo 'SELECT 1' | curl 'http://user:password@localhost:8123/' -d @-

1. In the 'user' and 'password' URL parameters. Example:

echo 'SELECT 1' | curl 'http://localhost:8123/?user=user&password=password' -d @-

If the user name is not indicated, the username 'default' is used. If the password is not indicated, an empty password is used. You can also use the URL parameters to specify any settings for processing a single query, or entire profiles of settings. Example:http://localhost:8123/?profile=web&max_rows_to_read=1000000000&query=SELECT+1

For more information, see the section "Settings".

$ echo 'SELECT number FROM system.numbers LIMIT 10' | curl 'http://localhost:8123/?' --data-binary @-
0
1
2
3
4
5
6
7
8
9

For information about other parameters, see the section "SET".

Similarly, you can use ClickHouse sessions in the HTTP protocol. To do this, you need to add the session_id GET parameter to the request. You can use any string as the session ID. By default, the session is terminated after 60 seconds of inactivity. To change this timeout, modify the default_session_timeout setting in the server configuration, or add the session_timeout GET parameter to the request. To check the session status, use the session_check=1 parameter. Only one query at a time can be executed within a single session.

You have the option to receive information about the progress of query execution in X-ClickHouse-Progress headers. To do this, enable the setting send_progress_in_http_headers.

Running requests don't stop automatically if the HTTP connection is lost. Parsing and data formatting are performed on the server side, and using the network might be ineffective. The optional 'query_id' parameter can be passed as the query ID (any string). For more information, see the section "Settings, replace_running_query".

The optional 'quota_key' parameter can be passed as the quota key (any string). For more information, see the section "Quotas".

The HTTP interface allows passing external data (external temporary tables) for querying. For more information, see the section "External data for query processing".

Response Buffering¶

You can enable response buffering on the server side. The buffer_size and wait_end_of_query URL parameters are provided for this purpose.

buffer_size determines the number of bytes in the result to buffer in the server memory. If the result body is larger than this threshold, the buffer is written to the HTTP channel, and the remaining data is sent directly to the HTTP channel.

To ensure that the entire response is buffered, set wait_end_of_query=1. In this case, the data that is not stored in memory will be buffered in a temporary server file.

Example:

curl -sS 'http://localhost:8123/?max_result_bytes=4000000&buffer_size=3000000&wait_end_of_query=1' -d 'SELECT toUInt8(number) FROM system.numbers LIMIT 9000000 FORMAT RowBinary'

Use buffering to avoid situations where a query processing error occurred after the response code and HTTP headers were sent to the client. In this situation, an error message is written at the end of the response body, and on the client side, the error can only be detected at the parsing stage.

Original article

Formats for input and output data¶

ClickHouse can accept (INSERT) and return (SELECT) data in various formats.

The table below lists supported formats and how they can be used in INSERT and SELECT queries.

TabSeparated¶

In TabSeparated format, data is written by row. Each row contains values separated by tabs. Each value is follow by a tab, except the last value in the row, which is followed by a line feed. Strictly Unix line feeds are assumed everywhere. The last row also must contain a line feed at the end. Values are written in text format, without enclosing quotation marks, and with special characters escaped.

This format is also available under the name TSV.

The TabSeparated format is convenient for processing data using custom programs and scripts. It is used by default in the HTTP interface, and in the command-line client's batch mode. This format also allows transferring data between different DBMSs. For example, you can get a dump from MySQL and upload it to ClickHouse, or vice versa.

The TabSeparated format supports outputting total values (when using WITH TOTALS) and extreme values (when 'extremes' is set to 1). In these cases, the total values and extremes are output after the main data. The main result, total values, and extremes are separated from each other by an empty line. Example:

SELECT EventDate, count() AS c FROM test.hits GROUP BY EventDate WITH TOTALS ORDER BY EventDate FORMAT TabSeparated``

2014-03-17      1406958
2014-03-18      1383658
2014-03-19      1405797
2014-03-20      1353623
2014-03-21      1245779
2014-03-22      1031592
2014-03-23      1046491

0000-00-00      8873898

2014-03-17      1031592
2014-03-23      1406958

Data formatting¶

Integer numbers are written in decimal form. Numbers can contain an extra "+" character at the beginning (ignored when parsing, and not recorded when formatting). Non-negative numbers can't contain the negative sign. When reading, it is allowed to parse an empty string as a zero, or (for signed types) a string consisting of just a minus sign as a zero. Numbers that do not fit into the corresponding data type may be parsed as a different number, without an error message.

Floating-point numbers are written in decimal form. The dot is used as the decimal separator. Exponential entries are supported, as are 'inf', '+inf', '-inf', and 'nan'. An entry of floating-point numbers may begin or end with a decimal point. During formatting, accuracy may be lost on floating-point numbers. During parsing, it is not strictly required to read the nearest machine-representable number.

Dates are written in YYYY-MM-DD format and parsed in the same format, but with any characters as separators. Dates with times are written in the format YYYY-MM-DD hh:mm:ss and parsed in the same format, but with any characters as separators. This all occurs in the system time zone at the time the client or server starts (depending on which one formats data). For dates with times, daylight saving time is not specified. So if a dump has times during daylight saving time, the dump does not unequivocally match the data, and parsing will select one of the two times. During a read operation, incorrect dates and dates with times can be parsed with natural overflow or as null dates and times, without an error message.

As an exception, parsing dates with times is also supported in Unix timestamp format, if it consists of exactly 10 decimal digits. The result is not time zone-dependent. The formats YYYY-MM-DD hh:mm:ss and NNNNNNNNNN are differentiated automatically.

Strings are output with backslash-escaped special characters. The following escape sequences are used for output: \b, \f, \r, \n, \t, \0, \', \\. Parsing also supports the sequences \a, \v, and \xHH (hex escape sequences) and any \c sequences, where c is any character (these sequences are converted to c). Thus, reading data supports formats where a line feed can be written as \n or \, or as a line feed. For example, the string Hello world with a line feed between the words instead of a space can be parsed in any of the following variations:

Hello\nworld

Hello\
world

The second variant is supported because MySQL uses it when writing tab-separated dumps.

The minimum set of characters that you need to escape when passing data in TabSeparated format: tab, line feed (LF) and backslash.

Only a small set of symbols are escaped. You can easily stumble onto a string value that your terminal will ruin in output.

Arrays are written as a list of comma-separated values in square brackets. Number items in the array are fomratted as normally, but dates, dates with times, and strings are written in single quotes with the same escaping rules as above.

NULL is formatted as \N.

TabSeparatedRaw¶

Differs from TabSeparated format in that the rows are written without escaping. This format is only appropriate for outputting a query result, but not for parsing (retrieving data to insert in a table).

This format is also available under the name TSVRaw.

TabSeparatedWithNames¶

Differs from the TabSeparated format in that the column names are written in the first row. During parsing, the first row is completely ignored. You can't use column names to determine their position or to check their correctness. (Support for parsing the header row may be added in the future.)

This format is also available under the name TSVWithNames.

TabSeparatedWithNamesAndTypes¶

Differs from the TabSeparated format in that the column names are written to the first row, while the column types are in the second row. During parsing, the first and second rows are completely ignored.

This format is also available under the name TSVWithNamesAndTypes.

TSKV¶

Similar to TabSeparated, but outputs a value in name=value format. Names are escaped the same way as in TabSeparated format, and the = symbol is also escaped.

SearchPhrase=   count()=8267016
SearchPhrase=bathroom interior design    count()=2166
SearchPhrase=yandex     count()=1655
SearchPhrase=2014 spring fashion    count()=1549
SearchPhrase=freeform photos       count()=1480
SearchPhrase=angelina jolie    count()=1245
SearchPhrase=omsk       count()=1112
SearchPhrase=photos of dog breeds    count()=1091
SearchPhrase=curtain designs        count()=1064
SearchPhrase=baku       count()=1000

NULL is formatted as \N.

SELECT * FROM t_null FORMAT TSKV

x=1 y=\N

When there is a large number of small columns, this format is ineffective, and there is generally no reason to use it. It is used in some departments of Yandex.

Both data output and parsing are supported in this format. For parsing, any order is supported for the values of different columns. It is acceptable for some values to be omitted – they are treated as equal to their default values. In this case, zeros and blank rows are used as default values. Complex values that could be specified in the table are not supported as defaults.

Parsing allows the presence of the additional field tskv without the equal sign or a value. This field is ignored.

CSV¶

Comma Separated Values format (RFC).

When formatting, rows are enclosed in double quotes. A double quote inside a string is output as two double quotes in a row. There are no other rules for escaping characters. Date and date-time are enclosed in double quotes. Numbers are output without quotes. Values are separated by a delimiter character, which is , by default. The delimiter character is defined in the setting format_csv_delimiter. Rows are separated using the Unix line feed (LF). Arrays are serialized in CSV as follows: first the array is serialized to a string as in TabSeparated format, and then the resulting string is output to CSV in double quotes. Tuples in CSV format are serialized as separate columns (that is, their nesting in the tuple is lost).

clickhouse-client --format_csv_delimiter="|" --query="INSERT INTO test.csv FORMAT CSV" < data.csv

*By default, the delimiter is ,. See the format_csv_delimiter setting for more information.

When parsing, all values can be parsed either with or without quotes. Both double and single quotes are supported. Rows can also be arranged without quotes. In this case, they are parsed up to the delimiter character or line feed (CR or LF). In violation of the RFC, when parsing rows without quotes, the leading and trailing spaces and tabs are ignored. For the line feed, Unix (LF), Windows (CR LF) and Mac OS Classic (CR LF) types are all supported.

NULL is formatted as \N.

The CSV format supports the output of totals and extremes the same way as TabSeparated.

CSVWithNames¶

Also prints the header row, similar to TabSeparatedWithNames.

JSON¶

Outputs data in JSON format. Besides data tables, it also outputs column names and types, along with some additional information: the total number of output rows, and the number of rows that could have been output if there weren't a LIMIT. Example:

SELECT SearchPhrase, count() AS c FROM test.hits GROUP BY SearchPhrase WITH TOTALS ORDER BY c DESC LIMIT 5 FORMAT JSON

{
        "meta":
        [
                {
                        "name": "SearchPhrase",
                        "type": "String"
                },
                {
                        "name": "c",
                        "type": "UInt64"
                }
        ],

        "data":
        [
                {
                        "SearchPhrase": "",
                        "c": "8267016"
                },
                {
                        "SearchPhrase": "bathroom interior design",
                        "c": "2166"
                },
                {
                        "SearchPhrase": "yandex",
                        "c": "1655"
                },
                {
                        "SearchPhrase": "spring 2014 fashion",
                        "c": "1549"
                },
                {
                        "SearchPhrase": "freeform photos",
                        "c": "1480"
                }
        ],

        "totals":
        {
                "SearchPhrase": "",
                "c": "8873898"
        },

        "extremes":
        {
                "min":
                {
                        "SearchPhrase": "",
                        "c": "1480"
                },
                "max":
                {
                        "SearchPhrase": "",
                        "c": "8267016"
                }
        },

        "rows": 5,

        "rows_before_limit_at_least": 141137
}

The JSON is compatible with JavaScript. To ensure this, some characters are additionally escaped: the slash / is escaped as \/; alternative line breaks U+2028 and U+2029, which break some browsers, are escaped as \uXXXX. ASCII control characters are escaped: backspace, form feed, line feed, carriage return, and horizontal tab are replaced with \b, \f, \n, \r, \t , as well as the remaining bytes in the 00-1F range using \uXXXX sequences. Invalid UTF-8 sequences are changed to the replacement character � so the output text will consist of valid UTF-8 sequences. For compatibility with JavaScript, Int64 and UInt64 integers are enclosed in double quotes by default. To remove the quotes, you can set the configuration parameter output_format_json_quote_64bit_integers to 0.

rows – The total number of output rows.

rows_before_limit_at_least The minimal number of rows there would have been without LIMIT. Output only if the query contains LIMIT. If the query contains GROUP BY, rows_before_limit_at_least is the exact number of rows there would have been without a LIMIT.

totals – Total values (when using WITH TOTALS).

extremes – Extreme values (when extremes is set to 1).

This format is only appropriate for outputting a query result, but not for parsing (retrieving data to insert in a table).

ClickHouse supports NULL, which is displayed as null in the JSON output.

See also the JSONEachRow format.

JSONCompact¶

Differs from JSON only in that data rows are output in arrays, not in objects.

Example:

{
        "meta":
        [
                {
                        "name": "SearchPhrase",
                        "type": "String"
                },
                {
                        "name": "c",
                        "type": "UInt64"
                }
        ],

        "data":
        [
                ["", "8267016"],
                ["bathroom interior design", "2166"],
                ["yandex", "1655"],
                ["fashion trends spring 2014", "1549"],
                ["freeform photo", "1480"]
        ],

        "totals": ["","8873898"],

        "extremes":
        {
                "min": ["","1480"],
                "max": ["","8267016"]
        },

        "rows": 5,

        "rows_before_limit_at_least": 141137
}

This format is only appropriate for outputting a query result, but not for parsing (retrieving data to insert in a table). See also the JSONEachRow format.

JSONEachRow¶

Outputs data as separate JSON objects for each row (newline delimited JSON).

{"SearchPhrase":"","count()":"8267016"}
{"SearchPhrase": "bathroom interior design","count()": "2166"}
{"SearchPhrase":"yandex","count()":"1655"}
{"SearchPhrase":"2014 spring fashion","count()":"1549"}
{"SearchPhrase":"freeform photo","count()":"1480"}
{"SearchPhrase":"angelina jolie","count()":"1245"}
{"SearchPhrase":"omsk","count()":"1112"}
{"SearchPhrase":"photos of dog breeds","count()":"1091"}
{"SearchPhrase":"curtain designs","count()":"1064"}
{"SearchPhrase":"baku","count()":"1000"}

Unlike the JSON format, there is no substitution of invalid UTF-8 sequences. Any set of bytes can be output in the rows. This is necessary so that data can be formatted without losing any information. Values are escaped in the same way as for JSON.

For parsing, any order is supported for the values of different columns. It is acceptable for some values to be omitted – they are treated as equal to their default values. In this case, zeros and blank rows are used as default values. Complex values that could be specified in the table are not supported as defaults, but it can be turned on by option insert_sample_with_metadata=1. Whitespace between elements is ignored. If a comma is placed after the objects, it is ignored. Objects don't necessarily have to be separated by new lines.

Native¶

The most efficient format. Data is written and read by blocks in binary format. For each block, the number of rows, number of columns, column names and types, and parts of columns in this block are recorded one after another. In other words, this format is "columnar" – it doesn't convert columns to rows. This is the format used in the native interface for interaction between servers, for using the command-line client, and for C++ clients.

You can use this format to quickly generate dumps that can only be read by the ClickHouse DBMS. It doesn't make sense to work with this format yourself.

Null¶

Nothing is output. However, the query is processed, and when using the command-line client, data is transmitted to the client. This is used for tests, including productivity testing. Obviously, this format is only appropriate for output, not for parsing.

Pretty¶

Outputs data as Unicode-art tables, also using ANSI-escape sequences for setting colors in the terminal. A full grid of the table is drawn, and each row occupies two lines in the terminal. Each result block is output as a separate table. This is necessary so that blocks can be output without buffering results (buffering would be necessary in order to pre-calculate the visible width of all the values).

NULL is output as ᴺᵁᴸᴸ.

Example (shown for the PrettyCompact format):

SELECT * FROM t_null

┌─x─┬────y─┐
│ 1 │ ᴺᵁᴸᴸ │
└───┴──────┘

Rows are not escaped in Pretty* formats. Example is shown for the PrettyCompact format:

SELECT 'String with \'quotes\' and \t character' AS Escaping_test

┌─Escaping_test────────────────────────┐
│ String with 'quotes' and   character │
└──────────────────────────────────────┘

To avoid dumping too much data to the terminal, only the first 10,000 rows are printed. If the number of rows is greater than or equal to 10,000, the message "Showed first 10 000" is printed. This format is only appropriate for outputting a query result, but not for parsing (retrieving data to insert in a table).

The Pretty format supports outputting total values (when using WITH TOTALS) and extremes (when 'extremes' is set to 1). In these cases, total values and extreme values are output after the main data, in separate tables. Example (shown for the PrettyCompact format):

SELECT EventDate, count() AS c FROM test.hits GROUP BY EventDate WITH TOTALS ORDER BY EventDate FORMAT PrettyCompact

┌──EventDate─┬───────c─┐
│ 2014-03-17 │ 1406958 │
│ 2014-03-18 │ 1383658 │
│ 2014-03-19 │ 1405797 │
│ 2014-03-20 │ 1353623 │
│ 2014-03-21 │ 1245779 │
│ 2014-03-22 │ 1031592 │
│ 2014-03-23 │ 1046491 │
└────────────┴─────────┘

Totals:
┌──EventDate─┬───────c─┐
│ 0000-00-00 │ 8873898 │
└────────────┴─────────┘

Extremes:
┌──EventDate─┬───────c─┐
│ 2014-03-17 │ 1031592 │
│ 2014-03-23 │ 1406958 │
└────────────┴─────────┘

PrettyCompact¶

Differs from Pretty in that the grid is drawn between rows and the result is more compact. This format is used by default in the command-line client in interactive mode.

PrettyCompactMonoBlock¶

Differs from PrettyCompact in that up to 10,000 rows are buffered, then output as a single table, not by blocks.

PrettyNoEscapes¶

Differs from Pretty in that ANSI-escape sequences aren't used. This is necessary for displaying this format in a browser, as well as for using the 'watch' command-line utility.

Example:

watch -n1 "clickhouse-client --query='SELECT event, value FROM system.events FORMAT PrettyCompactNoEscapes'"

You can use the HTTP interface for displaying in the browser.

PrettyCompactNoEscapes¶

The same as the previous setting.

PrettySpaceNoEscapes¶

The same as the previous setting.

PrettySpace¶

Differs from PrettyCompact in that whitespace (space characters) is used instead of the grid.

RowBinary¶

Formats and parses data by row in binary format. Rows and values are listed consecutively, without separators. This format is less efficient than the Native format, since it is row-based.

Integers use fixed-length little endian representation. For example, UInt64 uses 8 bytes. DateTime is represented as UInt32 containing the Unix timestamp as the value. Date is represented as a UInt16 object that contains the number of days since 1970-01-01 as the value. String is represented as a varint length (unsigned LEB128), followed by the bytes of the string. FixedString is represented simply as a sequence of bytes.

Array is represented as a varint length (unsigned LEB128), followed by successive elements of the array.

For NULL support, an additional byte containing 1 or 0 is added before each Nullable value. If 1, then the value is NULL and this byte is interpreted as a separate value. If 0, the value after the byte is not NULL.

RowBinaryWithNamesAndTypes¶

Similar to RowBinary, but with added header: LEB128-encoded number of columns (N) N Strings specifying column names * N Strings specifying column types

Values¶

Prints every row in brackets. Rows are separated by commas. There is no comma after the last row. The values inside the brackets are also comma-separated. Numbers are output in decimal format without quotes. Arrays are output in square brackets. Strings, dates, and dates with times are output in quotes. Escaping rules and parsing are similar to the TabSeparated format. During formatting, extra spaces aren't inserted, but during parsing, they are allowed and skipped (except for spaces inside array values, which are not allowed). NULL is represented as NULL.

The minimum set of characters that you need to escape when passing data in Values ​​format: single quotes and backslashes.

This is the format that is used in INSERT INTO t VALUES ..., but you can also use it for formatting query results.

Vertical¶

Prints each value on a separate line with the column name specified. This format is convenient for printing just one or a few rows, if each row consists of a large number of columns.

NULL is output as ᴺᵁᴸᴸ.

Example:

SELECT * FROM t_null FORMAT Vertical

Row 1:
──────
x: 1
y: ᴺᵁᴸᴸ

Rows are not escaped in Vertical format:

SELECT 'string with \'quotes\' and \t with some special \n characters' AS test FORMAT Vertical

Row 1:
──────
test: string with 'quotes' and   with some special
 characters

This format is only appropriate for outputting a query result, but not for parsing (retrieving data to insert in a table).

XML¶

XML format is suitable only for output, not for parsing. Example:

<?xml version='1.0' encoding='UTF-8' ?>
<result>
        <meta>
                <columns>
                        <column>
                                <name>SearchPhrase</name>
                                <type>String</type>
                        </column>
                        <column>
                                <name>count()</name>
                                <type>UInt64</type>
                        </column>
                </columns>
        </meta>
        <data>
                <row>
                        <SearchPhrase></SearchPhrase>
                        <field>8267016</field>
                </row>
                <row>
                        <SearchPhrase>bathroom interior design</SearchPhrase>
                        <field>2166</field>
                </row>
                <row>
                        <SearchPhrase>yandex</SearchPhrase>
                        <field>1655</field>
                </row>
                <row>
                        <SearchPhrase>2014 spring fashion</SearchPhrase>
                        <field>1549</field>
                </row>
                <row>
                        <SearchPhrase>freeform photos</SearchPhrase>
                        <field>1480</field>
                </row>
                <row>
                        <SearchPhrase>angelina jolie</SearchPhrase>
                        <field>1245</field>
                </row>
                <row>
                        <SearchPhrase>omsk</SearchPhrase>
                        <field>1112</field>
                </row>
                <row>
                        <SearchPhrase>photos of dog breeds</SearchPhrase>
                        <field>1091</field>
                </row>
                <row>
                        <SearchPhrase>curtain designs</SearchPhrase>
                        <field>1064</field>
                </row>
                <row>
                        <SearchPhrase>baku</SearchPhrase>
                        <field>1000</field>
                </row>
        </data>
        <rows>10</rows>
        <rows_before_limit_at_least>141137</rows_before_limit_at_least>
</result>

If the column name does not have an acceptable format, just 'field' is used as the element name. In general, the XML structure follows the JSON structure. Just as for JSON, invalid UTF-8 sequences are changed to the replacement character � so the output text will consist of valid UTF-8 sequences.

In string values, the characters < and & are escaped as < and &.

Arrays are output as <array><elem>Hello</elem><elem>World</elem>...</array>,and tuples as <tuple><elem>Hello</elem><elem>World</elem>...</tuple>.

CapnProto¶

Cap'n Proto is a binary message format similar to Protocol Buffers and Thrift, but not like JSON or MessagePack.

Cap'n Proto messages are strictly typed and not self-describing, meaning they need an external schema description. The schema is applied on the fly and cached for each query.

cat capnproto_messages.bin | clickhouse-client --query "INSERT INTO test.hits FORMAT CapnProto SETTINGS format_schema='schema:Message'"

Where schema.capnp looks like this:

struct Message {
  SearchPhrase @0 :Text;
  c @1 :Uint64;
}

Deserialization is effective and usually doesn't increase the system load.

See also Format Schema.

Protobuf¶

Protobuf - is a Protocol Buffers format.

ClickHouse supports both proto2 and proto3. Repeated/optional/required fields are supported.

This format requires an external format schema. The schema is cached between queries. Usage examples:

SELECT * FROM test.table FORMAT Protobuf SETTINGS format_schema = 'schemafile:MessageType'

cat protobuf_messages.bin | clickhouse-client --query "INSERT INTO test.table FORMAT Protobuf SETTINGS format_schema='schemafile:MessageType'"

Where the file schemafile.proto looks like this:

syntax = "proto3";

message MessageType {
  string name = 1;
  string surname = 2;
  uint32 birthDate = 3;
  repeated string phoneNumbers = 4;
};

To find the correspondence between table columns and fields of Protocol Buffers' message type ClickHouse compares their names. This comparison is case-insensitive and the characters _ (underscore) and . (dot) are considered as equal. If types of a column and a field of Protocol Buffers' message are different the necessary conversion is applied.

Nested messages are supported. For example, for the field z in the following message type

message MessageType {
  message XType {
    message YType {
      int32 z;
    };
    repeated YType y;
  };
  XType x;
};

ClickHouse tries to find a column named x.y.z (or x_y_z or X.y_Z and so on). Nested messages are suitable to input or output a nested data structures.

Default values defined in a proto2 protobuf schema like this

message MessageType {
  optional int32 result_per_page = 3 [default = 10];
}

are not applied; the table defaults are used instead of them.

Format Schema¶

The file name containing the format schema is set by the setting format_schema. It's required to set this setting when it is used one of the formats Cap'n Proto and Protobuf. The format schema is a combination of a file name and the name of a message type in this file, delimited by colon, e.g. schemafile.proto:MessageType. If the file has the standard extension for the format (for example, .proto for Protobuf), it can be omitted and in this case the format schema looks like schemafile:MessageType.

If you input or output data via the client the file name specified in the format schema can contain an absolute path or a path relative to the current directory on the client. If you input or output data via the HTTP interface the file name specified in the format schema should be located in the directory specified in format_schema_path in the server configuration.

Original article

JDBC Driver¶

• Official driver.
• Third-party driver ClickHouse-Native-JDBC.

Original article

ODBC Driver¶

• Official driver.

Original article

Client Libraries from Third-party Developers¶

• Python
  • infi.clickhouse_orm
  • clickhouse-driver
  • clickhouse-client
  • aiochclient
• PHP
  • phpClickHouse
  • clickhouse-php-client
  • clickhouse-client
  • PhpClickHouseClient
• Go
  • clickhouse
  • go-clickhouse
  • mailrugo-clickhouse
  • golang-clickhouse
• NodeJs
  • clickhouse (NodeJs)
  • node-clickhouse
• Perl
  • perl-DBD-ClickHouse
  • HTTP-ClickHouse
  • AnyEvent-ClickHouse
• Ruby
  • clickhouse (Ruby)
• R
  • clickhouse-r
  • RClickhouse
• Java
  • clickhouse-client-java
  • clickhouse-client
• Scala
  • clickhouse-scala-client
• Kotlin
  • AORM
• C#
  • ClickHouse.Ado
  • ClickHouse.Net
• C++
  • clickhouse-cpp
• Elixir
  • clickhousex
• Nim
  • nim-clickhouse

Original article

Integration Libraries from Third-party Developers¶

Infrastructure Products¶

• Relational database management systems
  • MySQL
    • ProxySQL
    • clickhouse-mysql-data-reader
  • PostgreSQL
    • infi.clickhouse_fdw (uses infi.clickhouse_orm)
  • MSSQL
    • ClickHouseMigrator
• Message queues
  • Kafka
    • clickhouse_sinker (uses Go client)
• Object storages
  • S3
    • clickhouse-backup
• Configuration management
  • puppet
    • innogames/clickhouse
    • mfedotov/clickhouse
• Monitoring
  • Graphite
    • graphouse
    • carbon-clickhouse
  • Grafana
    • clickhouse-grafana
  • Prometheus
    • clickhouse_exporter
    • PromHouse
    • clickhouse_exporter (uses Go client)
  • Nagios
    • check_clickhouse
• Logging
  • rsyslog
    • omclickhouse
  • fluentd
    • loghouse (for Kubernetes)

Programming Language Ecosystems¶

• Python
  • SQLAlchemy
    • sqlalchemy-clickhouse (uses infi.clickhouse_orm)
  • pandas
    • pandahouse
• R
  • dplyr
    • RClickhouse (uses clickhouse-cpp)
• Java
  • Hadoop
    • clickhouse-hdfs-loader (uses JDBC)
• Scala
  • Akka
    • clickhouse-scala-client
• C#
  • ADO.NET
    • ClickHouse.Ado
    • ClickHouse.Net
    • ClickHouse.Net.Migrations
• Elixir
  • Ecto
    • clickhouse_ecto

Original article

Visual Interfaces from Third-party Developers¶

Open-Source¶

Tabix¶

Web interface for ClickHouse in the Tabix project.

Features:

• Works with ClickHouse directly from the browser, without the need to install additional software.
• Query editor with syntax highlighting.
• Auto-completion of commands.
• Tools for graphical analysis of query execution.
• Color scheme options.

Tabix documentation.

HouseOps¶

HouseOps is a UI/IDE for OSX, Linux and Windows.

Features:

• Query builder with syntax highlighting. View the response in a table or JSON view.
• Export query results as CSV or JSON.
• List of processes with descriptions. Write mode. Ability to stop (KILL) a process.
• Database graph. Shows all tables and their columns with additional information.
• Quick view of the column size.
• Server configuration.

The following features are planned for development:

• Database management.
• User management.
• Real-time data analysis.
• Cluster monitoring.
• Cluster management.
• Monitoring replicated and Kafka tables.

LightHouse¶

LightHouse is a lightweight web interface for ClickHouse.

Features:

• Table list with filtering and metadata.
• Table preview with filtering and sorting.
• Read-only queries execution.

clickhouse-cli¶

clickhouse-cli is an alternative command line client for ClickHouse, written in Python 3.

Features: - Autocompletion. - Syntax highlighting for the queries and data output. - Pager support for the data output. - Custom PostgreSQL-like commands.

Commercial¶

DBeaver¶

DBeaver - universal desktop database client with ClickHouse support.

Features:

• Query development with syntax highlight.
• Table preview.
• Autocompletion.

DataGrip¶

DataGrip is a database IDE from JetBrains with dedicated support for ClickHouse. It is also embedded into other IntelliJ-based tools: PyCharm, IntelliJ IDEA, GoLand, PhpStorm and others.

Features:

• Very fast code completion.
• ClickHouse syntax highlighting.
• Support for features specific to ClickHouse, for example nested columns, table engines.
• Data Editor.
• Refactorings.
• Search and Navigation.

Original article

Proxy Servers from Third-party Developers¶

chproxy¶

chproxy, is an http proxy and load balancer for ClickHouse database.

Features:

• Per-user routing and response caching.
• Flexible limits.
• Automatic SSL cerificate renewal.

Implemented in Go.

KittenHouse¶

KittenHouse is designed to be a local proxy between ClickHouse and application server in case it's impossible or inconvenient to buffer INSERT data on your application side.

Features:

• In-memory and on-disk data buffering.
• Per-table routing.
• Load-balancing and health checking.

Implemented in Go.

ClickHouse-Bulk¶

ClickHouse-Bulk is a simple ClickHouse insert collector.

Features:

• Group requests and send by threshold or interval.
• Multiple remote servers.
• Basic authentication.

Implemented in Go.

Original article

Data Types¶

ClickHouse can store various types of data in table cells.

This section describes the supported data types and special considerations when using and/or implementing them, if any.

Original article

UInt8, UInt16, UInt32, UInt64, Int8, Int16, Int32, Int64¶

Fixed-length integers, with or without a sign.

Int Ranges¶

• Int8 - [-128 : 127]
• Int16 - [-32768 : 32767]
• Int32 - [-2147483648 : 2147483647]
• Int64 - [-9223372036854775808 : 9223372036854775807]

Uint Ranges¶

• UInt8 - [0 : 255]
• UInt16 - [0 : 65535]
• UInt32 - [0 : 4294967295]
• UInt64 - [0 : 18446744073709551615]

Original article

Float32, Float64¶

Floating point numbers.

Types are equivalent to types of C:

• Float32 - float
• Float64 - double

We recommend that you store data in integer form whenever possible. For example, convert fixed precision numbers to integer values, such as monetary amounts or page load times in milliseconds.

Using Floating-point Numbers¶

• Computations with floating-point numbers might produce a rounding error.

SELECT 1 - 0.9

┌───────minus(1, 0.9)─┐
│ 0.09999999999999998 │
└─────────────────────┘

• The result of the calculation depends on the calculation method (the processor type and architecture of the computer system).
• Floating-point calculations might result in numbers such as infinity (Inf) and "not-a-number" (NaN). This should be taken into account when processing the results of calculations.
• When reading floating point numbers from rows, the result might not be the nearest machine-representable number.

NaN and Inf¶

In contrast to standard SQL, ClickHouse supports the following categories of floating-point numbers:

• Inf – Infinity.

SELECT 0.5 / 0

┌─divide(0.5, 0)─┐
│            inf │
└────────────────┘

• -Inf – Negative infinity.

SELECT -0.5 / 0

┌─divide(-0.5, 0)─┐
│            -inf │
└─────────────────┘

• NaN – Not a number.

SELECT 0 / 0

┌─divide(0, 0)─┐
│          nan │
└──────────────┘

See the rules for NaN sorting in the section ORDER BY clause.

Original article

Decimal(P, S), Decimal32(S), Decimal64(S), Decimal128(S)¶

Signed fixed point numbers that keep precision during add, subtract and multiply operations. For division least significant digits are discarded (not rounded).

Parameters¶

• P - precision. Valid range: [ 1 : 38 ]. Determines how many decimal digits number can have (including fraction).
• S - scale. Valid range: [ 0 : P ]. Determines how many decimal digits fraction can have.

Depending on P parameter value Decimal(P, S) is a synonym for: - P from [ 1 : 9 ] - for Decimal32(S) - P from [ 10 : 18 ] - for Decimal64(S) - P from [ 19 : 38 ] - for Decimal128(S)

Decimal value ranges¶

• Decimal32(S) - ( -1 * 10^(9 - S), 1 * 10^(9 - S) )
• Decimal64(S) - ( -1 * 10^(18 - S), 1 * 10^(18 - S) )
• Decimal128(S) - ( -1 * 10^(38 - S), 1 * 10^(38 - S) )

For example, Decimal32(4) can contain numbers from -99999.9999 to 99999.9999 with 0.0001 step.

Internal representation¶

Internally data is represented as normal signed integers with respective bit width. Real value ranges that can be stored in memory are a bit larger than specified above, which are checked only on convertion from string.

Because modern CPU's do not support 128 bit integers natively, operations on Decimal128 are emulated. Because of this Decimal128 works signigicantly slower than Decimal32/Decimal64.

Operations and result type¶

Binary operations on Decimal result in wider result type (with any order of arguments).

• Decimal64(S1) Decimal32(S2) -> Decimal64(S)
• Decimal128(S1) Decimal32(S2) -> Decimal128(S)
• Decimal128(S1) Decimal64(S2) -> Decimal128(S)

Rules for scale:

• add, subtract: S = max(S1, S2).
• multuply: S = S1 + S2.
• divide: S = S1.

For similar operations between Decimal and integers, the result is Decimal of the same size as argument.

Operations between Decimal and Float32/Float64 are not defined. If you really need them, you can explicitly cast one of argument using toDecimal32, toDecimal64, toDecimal128 or toFloat32, toFloat64 builtins. Keep in mind that the result will lose precision and type conversion is computationally expensive operation.

Some functions on Decimal return result as Float64 (for example, var or stddev). Intermediate calculations might still be performed in Decimal, which might lead to different results between Float64 and Decimal inputs with same values.

Overflow checks¶

During calculations on Decimal, integer overflows might happen. Excessive digits in fraction are discarded (not rounded). Excessive digits in integer part will lead to exception.

SELECT toDecimal32(2, 4) AS x, x / 3

┌──────x─┬─divide(toDecimal32(2, 4), 3)─┐
│ 2.0000 │                       0.6666 │
└────────┴──────────────────────────────┘

SELECT toDecimal32(4.2, 8) AS x, x * x

DB::Exception: Scale is out of bounds.

SELECT toDecimal32(4.2, 8) AS x, 6 * x

DB::Exception: Decimal math overflow.

Overflow checks lead to operations slowdown. If it is known that overflows are not possible, it makes sense to disable checks using decimal_check_overflow setting. When checks are disabled and overflow happens, the result will be incorrect:

SET decimal_check_overflow = 0;
SELECT toDecimal32(4.2, 8) AS x, 6 * x

┌──────────x─┬─multiply(6, toDecimal32(4.2, 8))─┐
│ 4.20000000 │                     -17.74967296 │
└────────────┴──────────────────────────────────┘

Overflow checks happen not only on arithmetic operations, but also on value comparison:

SELECT toDecimal32(1, 8) < 100

DB::Exception: Can't compare.

Original article

Boolean Values¶

There isn't a separate type for boolean values. They use the UInt8 type, restricted to the values 0 or 1.

Original article

String¶

Strings of an arbitrary length. The length is not limited. The value can contain an arbitrary set of bytes, including null bytes. The String type replaces the types VARCHAR, BLOB, CLOB, and others from other DBMSs.

Encodings¶

ClickHouse doesn't have the concept of encodings. Strings can contain an arbitrary set of bytes, which are stored and output as-is. If you need to store texts, we recommend using UTF-8 encoding. At the very least, if your terminal uses UTF-8 (as recommended), you can read and write your values without making conversions. Similarly, certain functions for working with strings have separate variations that work under the assumption that the string contains a set of bytes representing a UTF-8 encoded text. For example, the 'length' function calculates the string length in bytes, while the 'lengthUTF8' function calculates the string length in Unicode code points, assuming that the value is UTF-8 encoded.

Original article

FixedString¶

A fixed-length string of N bytes (not characters or code points).

To declare the column of FixedString type use the following syntax:

<column_name> FixedString(N)

Where N is a natural number.

It is efficient to use FixedString in case when data has the length of N bytes exactly. For example: IP addresses (FixedString(16) for IPv6), language codes (ru_RU, en_US ... ), currency codes (USD, RUB ... ), hashes (FixedString(16) for MD5, FixedString(32) for SHA256). In all other cases, you can get the loss of efficiency. To store hashes or IP addresses use their binary representation. To store UUID values use the UUID data type.

When inserting the data, ClickHouse:

• Complements a string with null bytes if the string contains fewer bytes than N.
• Throws the Too large value for FixedString(N) exception if the string contains more than N bytes.

When selecting the data, ClickHouse does not trim off the null bytes at the end of the string. If you use the WHERE clause, you should add null bytes manually to match the FixedString value.

Example:

SELECT * FROM FixedStringTable

┌─a──┐
│ aa │
│ b  │
└────┘

SELECT * FROM FixedStringTable WHERE a = 'b'

Ok.

0 rows in set. Elapsed: 0.009 sec.

SELECT * FROM FixedStringTable
WHERE a = 'b\0'

┌─a─┐
│ b │
└───┘

1 rows in set. Elapsed: 0.002 sec.

This behavior differs from MySQL behavior for the CHAR type (where strings are padded with spaces, and the spaces are removed for output).

Note that the length of the FixedString value is constant even if it is filled with null bytes only. The empty functions returns 1 if the FixedString value contains the null bytes only.

Original article

UUID¶

A universally unique identifier (UUID) is a 16-byte number used to identify records. For detailed information about the UUID, see Wikipedia.

The example of UUID type value is represented below:

61f0c404-5cb3-11e7-907b-a6006ad3dba0

If you do not specify the UUID column value when inserting a new record, the UUID value is filled with zero:

00000000-0000-0000-0000-000000000000

How to generate¶

To generate the UUID value, ClickHouse provides the generateUUIDv4 function.

Usage example¶

Example 1

This example demonstrates creating a table with the UUID type column and inserting a value into the table.

:) CREATE TABLE t_uuid (x UUID, y String) ENGINE=TinyLog

:) INSERT INTO t_uuid SELECT generateUUIDv4(), 'Example 1'

:) SELECT * FROM t_uuid

┌────────────────────────────────────x─┬─y─────────┐
│ 417ddc5d-e556-4d27-95dd-a34d84e46a50 │ Example 1 │
└──────────────────────────────────────┴───────────┘

Example 2

In this example, the UUID column value is not specified when inserting a new record.

:) INSERT INTO t_uuid (y) VALUES ('Example 2')

:) SELECT * FROM t_uuid

┌────────────────────────────────────x─┬─y─────────┐
│ 417ddc5d-e556-4d27-95dd-a34d84e46a50 │ Example 1 │
│ 00000000-0000-0000-0000-000000000000 │ Example 2 │
└──────────────────────────────────────┴───────────┘

Restrictions¶

The UUID data type only supports functions which String data type also supports (for example, min, max, and count).

The UUID data type is not supported by arithmetic operations (for example, abs) or aggregate functions, such as sum and avg.

Original article

Date¶

A date. Stored in two bytes as the number of days since 1970-01-01 (unsigned). Allows storing values from just after the beginning of the Unix Epoch to the upper threshold defined by a constant at the compilation stage (currently, this is until the year 2106, but the final fully-supported year is 2105). The minimum value is output as 0000-00-00.

The date is stored without the time zone.

Original article

DateTime¶

Date with time. Stored in four bytes as a Unix timestamp (unsigned). Allows storing values in the same range as for the Date type. The minimal value is output as 0000-00-00 00:00:00. The time is stored with accuracy up to one second (without leap seconds).

Time Zones¶

The date with time is converted from text (divided into component parts) to binary and back, using the system's time zone at the time the client or server starts. In text format, information about daylight savings is lost.

By default, the client switches to the timezone of the server when it connects. You can change this behavior by enabling the client command-line option --use_client_time_zone.

So when working with a textual date (for example, when saving text dumps), keep in mind that there may be ambiguity during changes for daylight savings time, and there may be problems matching data if the time zone changed.

Original article

Enum8, Enum16¶

Includes the Enum8 and Enum16 types. Enum saves the finite set of pairs of 'string' = integer. In ClickHouse, all operations with the Enum data type are performed as if value contains integers, although the user is working with string constants. This is more effective in terms of performance than working with the String data type.

• Enum8 is described by pairs of 'String' = Int8.
• Enum16 is described by pairs of 'String' = Int16.

Usage examples¶

Here we create a table with an Enum8('hello' = 1, 'world' = 2) type column:

CREATE TABLE t_enum
(
    x Enum8('hello' = 1, 'world' = 2)
)
ENGINE = TinyLog

This column x can only store the values that are listed in the type definition: 'hello' or 'world'. If you try to save any other value, ClickHouse will generate an exception.

:) INSERT INTO t_enum VALUES ('hello'), ('world'), ('hello')

INSERT INTO t_enum VALUES

Ok.

3 rows in set. Elapsed: 0.002 sec.

:) insert into t_enum values('a')

INSERT INTO t_enum VALUES


Exception on client:
Code: 49. DB::Exception: Unknown element 'a' for type Enum8('hello' = 1, 'world' = 2)

When you query data from the table, ClickHouse outputs the string values from Enum.

SELECT * FROM t_enum

┌─x─────┐
│ hello │
│ world │
│ hello │
└───────┘

If you need to see the numeric equivalents of the rows, you must cast the Enum value to integer type.

SELECT CAST(x, 'Int8') FROM t_enum

┌─CAST(x, 'Int8')─┐
│               1 │
│               2 │
│               1 │
└─────────────────┘

To create an Enum value in a query, you also need to use CAST.

SELECT toTypeName(CAST('a', 'Enum8(\'a\' = 1, \'b\' = 2)'))

┌─toTypeName(CAST('a', 'Enum8(\'a\' = 1, \'b\' = 2)'))─┐
│ Enum8('a' = 1, 'b' = 2)                              │
└──────────────────────────────────────────────────────┘

General rules and usage¶

Each of the values is assigned a number in the range -128 ... 127 for Enum8 or in the range -32768 ... 32767 for Enum16. All the strings and numbers must be different. An empty string is allowed. If this type is specified (in a table definition), numbers can be in an arbitrary order. However, the order does not matter.

Neither the string nor the numeric value in an Enum can be NULL.

An Enum can be contained in Nullable type. So if you create a table using the query

CREATE TABLE t_enum_nullable
(
    x Nullable( Enum8('hello' = 1, 'world' = 2) )
)
ENGINE = TinyLog

it can store not only 'hello' and 'world', but NULL, as well.

INSERT INTO t_enum_null Values('hello'),('world'),(NULL)

In RAM, an Enum column is stored in the same way as Int8 or Int16 of the corresponding numerical values.

When reading in text form, ClickHouse parses the value as a string and searches for the corresponding string from the set of Enum values. If it is not found, an exception is thrown. When reading in text format, the string is read and the corresponding numeric value is looked up. An exception will be thrown if it is not found. When writing in text form, it writes the value as the corresponding string. If column data contains garbage (numbers that are not from the valid set), an exception is thrown. When reading and writing in binary form, it works the same way as for Int8 and Int16 data types. The implicit default value is the value with the lowest number.

During ORDER BY, GROUP BY, IN, DISTINCT and so on, Enums behave the same way as the corresponding numbers. For example, ORDER BY sorts them numerically. Equality and comparison operators work the same way on Enums as they do on the underlying numeric values.

Enum values cannot be compared with numbers. Enums can be compared to a constant string. If the string compared to is not a valid value for the Enum, an exception will be thrown. The IN operator is supported with the Enum on the left hand side and a set of strings on the right hand side. The strings are the values of the corresponding Enum.

Most numeric and string operations are not defined for Enum values, e.g. adding a number to an Enum or concatenating a string to an Enum. However, the Enum has a natural toString function that returns its string value.

Enum values are also convertible to numeric types using the toT function, where T is a numeric type. When T corresponds to the enum’s underlying numeric type, this conversion is zero-cost. The Enum type can be changed without cost using ALTER, if only the set of values is changed. It is possible to both add and remove members of the Enum using ALTER (removing is safe only if the removed value has never been used in the table). As a safeguard, changing the numeric value of a previously defined Enum member will throw an exception.

Using ALTER, it is possible to change an Enum8 to an Enum16 or vice versa, just like changing an Int8 to Int16.

Original article

Array(T)¶

Array of T-type items.

T can be anything, including an array.

Creating an array¶

You can use a function to create an array:

array(T)

You can also use square brackets.

[]

Example of creating an array:

:) SELECT array(1, 2) AS x, toTypeName(x)

SELECT
    [1, 2] AS x,
    toTypeName(x)

┌─x─────┬─toTypeName(array(1, 2))─┐
│ [1,2] │ Array(UInt8)            │
└───────┴─────────────────────────┘

1 rows in set. Elapsed: 0.002 sec.

:) SELECT [1, 2] AS x, toTypeName(x)

SELECT
    [1, 2] AS x,
    toTypeName(x)

┌─x─────┬─toTypeName([1, 2])─┐
│ [1,2] │ Array(UInt8)       │
└───────┴────────────────────┘

1 rows in set. Elapsed: 0.002 sec.

Working with data types¶

When creating an array on the fly, ClickHouse automatically defines the argument type as the narrowest data type that can store all the listed arguments. If there are any NULL or Nullable type arguments, the type of array elements is Nullable.

If ClickHouse couldn't determine the data type, it will generate an exception. For instance, this will happen when trying to create an array with strings and numbers simultaneously (SELECT array(1, 'a')).

Examples of automatic data type detection:

:) SELECT array(1, 2, NULL) AS x, toTypeName(x)

SELECT
    [1, 2, NULL] AS x,
    toTypeName(x)

┌─x──────────┬─toTypeName(array(1, 2, NULL))─┐
│ [1,2,NULL] │ Array(Nullable(UInt8))        │
└────────────┴───────────────────────────────┘

1 rows in set. Elapsed: 0.002 sec.

If you try to create an array of incompatible data types, ClickHouse throws an exception:

:) SELECT array(1, 'a')

SELECT [1, 'a']

Received exception from server (version 1.1.54388):
Code: 386. DB::Exception: Received from localhost:9000, 127.0.0.1. DB::Exception: There is no supertype for types UInt8, String because some of them are String/FixedString and some of them are not.

0 rows in set. Elapsed: 0.246 sec.

Original article

AggregateFunction(name, types_of_arguments...)¶

The intermediate state of an aggregate function. To get it, use aggregate functions with the -State suffix. To get aggregated data in the future, you must use the same aggregate functions with the -Mergesuffix.

AggregateFunction — parametric data type.

Parameters

• Name of the aggregate function.

  If the function is parametric specify its parameters too.

• Types of the aggregate function arguments.

Example

CREATE TABLE t
(
    column1 AggregateFunction(uniq, UInt64),
    column2 AggregateFunction(anyIf, String, UInt8),
    column3 AggregateFunction(quantiles(0.5, 0.9), UInt64)
) ENGINE = ...

uniq, anyIf (any+If) and quantiles are the aggregate functions supported in ClickHouse.

Usage¶

Data Insertion¶

To insert data, use INSERT SELECT with aggregate -State- functions.

Function examples

uniqState(UserID)
quantilesState(0.5, 0.9)(SendTiming)

In contrast to the corresponding functions uniq and quantiles, -State- functions return the state, instead the final value. In other words, they return a value of AggregateFunction type.

In the results of SELECT query the values of AggregateFunction type have implementation-specific binary representation for all of the ClickHouse output formats. If dump data into, for example, TabSeparated format with SELECT query then this dump can be loaded back using INSERT query.

Data Selection¶

When selecting data from AggregatingMergeTree table, use GROUP BY clause and the same aggregate functions as when inserting data, but using -Mergesuffix.

An aggregate function with -Merge suffix takes a set of states, combines them, and returns the result of complete data aggregation.

For example, the following two queries return the same result:

SELECT uniq(UserID) FROM table

SELECT uniqMerge(state) FROM (SELECT uniqState(UserID) AS state FROM table GROUP BY RegionID)

Usage Example¶

See AggregatingMergeTree engine description.

Original article

Tuple(T1, T2, ...)¶

A tuple of elements, each having an individual type.

You can't store tuples in tables (other than Memory tables). They are used for temporary column grouping. Columns can be grouped when an IN expression is used in a query, and for specifying certain formal parameters of lambda functions. For more information, see the sections IN operators and Higher order functions.

Tuples can be the result of a query. In this case, for text formats other than JSON, values are comma-separated in brackets. In JSON formats, tuples are output as arrays (in square brackets).

Creating a tuple¶

You can use a function to create a tuple:

tuple(T1, T2, ...)

Example of creating a tuple:

:) SELECT tuple(1,'a') AS x, toTypeName(x)

SELECT
    (1, 'a') AS x,
    toTypeName(x)

┌─x───────┬─toTypeName(tuple(1, 'a'))─┐
│ (1,'a') │ Tuple(UInt8, String)      │
└─────────┴───────────────────────────┘

1 rows in set. Elapsed: 0.021 sec.

Working with data types¶

When creating a tuple on the fly, ClickHouse automatically detects the type of each argument as the minimum of the types which can store the argument value. If the argument is NULL, the type of the tuple element is Nullable.

Example of automatic data type detection:

SELECT tuple(1, NULL) AS x, toTypeName(x)

SELECT
    (1, NULL) AS x,
    toTypeName(x)

┌─x────────┬─toTypeName(tuple(1, NULL))──────┐
│ (1,NULL) │ Tuple(UInt8, Nullable(Nothing)) │
└──────────┴─────────────────────────────────┘

1 rows in set. Elapsed: 0.002 sec.

Original article

Nullable(TypeName)¶

Allows to store special marker (NULL) that denotes "missing value" alongside normal values allowed by TypeName. For example, a Nullable(Int8) type column can store Int8 type values, and the rows that don't have a value will store NULL.

For a TypeName, you can't use composite data types Array and Tuple. Composite data types can contain Nullable type values, such as Array(Nullable(Int8)).

A Nullable type field can't be included in table indexes.

NULL is the default value for any Nullable type, unless specified otherwise in the ClickHouse server configuration.

Storage features¶

To store Nullable type values in table column, ClickHouse uses a separate file with NULL masks in addition to normal file with values. Entries in masks file allow ClickHouse to distinguish between NULL and default value of corresponding data type for each table row. Because of additional file, Nullable column consumes additional storage space compared to similar normal one.

Usage example¶

:) CREATE TABLE t_null(x Int8, y Nullable(Int8)) ENGINE TinyLog

CREATE TABLE t_null
(
    x Int8,
    y Nullable(Int8)
)
ENGINE = TinyLog

Ok.

0 rows in set. Elapsed: 0.012 sec.

:) INSERT INTO t_null VALUES (1, NULL), (2, 3)

INSERT INTO t_null VALUES

Ok.

1 rows in set. Elapsed: 0.007 sec.

:) SELECT x + y FROM t_null

SELECT x + y
FROM t_null

┌─plus(x, y)─┐
│       ᴺᵁᴸᴸ │
│          5 │
└────────────┘

2 rows in set. Elapsed: 0.144 sec.

Original article

Nested Data Structures¶

Original article

Nested(Name1 Type1, Name2 Type2, ...)¶

A nested data structure is like a nested table. The parameters of a nested data structure – the column names and types – are specified the same way as in a CREATE query. Each table row can correspond to any number of rows in a nested data structure.

Example:

CREATE TABLE test.visits
(
    CounterID UInt32,
    StartDate Date,
    Sign Int8,
    IsNew UInt8,
    VisitID UInt64,
    UserID UInt64,
    ...
    Goals Nested
    (
        ID UInt32,
        Serial UInt32,
        EventTime DateTime,
        Price Int64,
        OrderID String,
        CurrencyID UInt32
    ),
    ...
) ENGINE = CollapsingMergeTree(StartDate, intHash32(UserID), (CounterID, StartDate, intHash32(UserID), VisitID), 8192, Sign)

This example declares the Goals nested data structure, which contains data about conversions (goals reached). Each row in the 'visits' table can correspond to zero or any number of conversions.

Only a single nesting level is supported. Columns of nested structures containing arrays are equivalent to multidimensional arrays, so they have limited support (there is no support for storing these columns in tables with the MergeTree engine).

In most cases, when working with a nested data structure, its individual columns are specified. To do this, the column names are separated by a dot. These columns make up an array of matching types. All the column arrays of a single nested data structure have the same length.

Example:

SELECT
    Goals.ID,
    Goals.EventTime
FROM test.visits
WHERE CounterID = 101500 AND length(Goals.ID) < 5
LIMIT 10

┌─Goals.ID───────────────────────┬─Goals.EventTime───────────────────────────────────────────────────────────────────────────┐
│ [1073752,591325,591325]        │ ['2014-03-17 16:38:10','2014-03-17 16:38:48','2014-03-17 16:42:27']                       │
│ [1073752]                      │ ['2014-03-17 00:28:25']                                                                   │
│ [1073752]                      │ ['2014-03-17 10:46:20']                                                                   │
│ [1073752,591325,591325,591325] │ ['2014-03-17 13:59:20','2014-03-17 22:17:55','2014-03-17 22:18:07','2014-03-17 22:18:51'] │
│ []                             │ []                                                                                        │
│ [1073752,591325,591325]        │ ['2014-03-17 11:37:06','2014-03-17 14:07:47','2014-03-17 14:36:21']                       │
│ []                             │ []                                                                                        │
│ []                             │ []                                                                                        │
│ [591325,1073752]               │ ['2014-03-17 00:46:05','2014-03-17 00:46:05']                                             │
│ [1073752,591325,591325,591325] │ ['2014-03-17 13:28:33','2014-03-17 13:30:26','2014-03-17 18:51:21','2014-03-17 18:51:45'] │
└────────────────────────────────┴───────────────────────────────────────────────────────────────────────────────────────────┘

It is easiest to think of a nested data structure as a set of multiple column arrays of the same length.

The only place where a SELECT query can specify the name of an entire nested data structure instead of individual columns is the ARRAY JOIN clause. For more information, see "ARRAY JOIN clause". Example:

SELECT
    Goal.ID,
    Goal.EventTime
FROM test.visits
ARRAY JOIN Goals AS Goal
WHERE CounterID = 101500 AND length(Goals.ID) < 5
LIMIT 10

┌─Goal.ID─┬──────Goal.EventTime─┐
│ 1073752 │ 2014-03-17 16:38:10 │
│  591325 │ 2014-03-17 16:38:48 │
│  591325 │ 2014-03-17 16:42:27 │
│ 1073752 │ 2014-03-17 00:28:25 │
│ 1073752 │ 2014-03-17 10:46:20 │
│ 1073752 │ 2014-03-17 13:59:20 │
│  591325 │ 2014-03-17 22:17:55 │
│  591325 │ 2014-03-17 22:18:07 │
│  591325 │ 2014-03-17 22:18:51 │
│ 1073752 │ 2014-03-17 11:37:06 │
└─────────┴─────────────────────┘

You can't perform SELECT for an entire nested data structure. You can only explicitly list individual columns that are part of it.

For an INSERT query, you should pass all the component column arrays of a nested data structure separately (as if they were individual column arrays). During insertion, the system checks that they have the same length.

For a DESCRIBE query, the columns in a nested data structure are listed separately in the same way.

The ALTER query is very limited for elements in a nested data structure.

Original article

Special Data Types¶

Special data type values can't be saved to a table or output in results, but are used as the intermediate result of running a query.

Original article

Expression¶

Used for representing lambda expressions in high-order functions.

Original article

Set¶

Used for the right half of an IN expression.

Original article

Nothing¶

The only purpose of this data type is to represent cases where value is not expected. So you can't create a Nothing type value.

For example, literal NULL has type of Nullable(Nothing). See more about Nullable.

The Nothing type can also used to denote empty arrays:

:) SELECT toTypeName(array())

SELECT toTypeName([])

┌─toTypeName(array())─┐
│ Array(Nothing)      │
└─────────────────────┘

1 rows in set. Elapsed: 0.062 sec.

Original article

Table engines¶

The table engine (type of table) determines:

• How and where data is stored, where to write it to, and where to read it from.
• Which queries are supported, and how.
• Concurrent data access.
• Use of indexes, if present.
• Whether multithreaded request execution is possible.
• Data replication parameters.

When reading, the engine is only required to output the requested columns, but in some cases the engine can partially process data when responding to the request.

For most serious tasks, you should use engines from the MergeTree family.

Original article

MergeTree¶

The MergeTree engine and other engines of this family (*MergeTree) are the most robust ClickHousе table engines.

The basic idea for MergeTree engines family is the following. When you have tremendous amount of a data that should be inserted into the table, you should write them quickly part by part and then merge parts by some rules in background. This method is much more efficient than constantly rewriting data in the storage at the insert.

Main features:

• Stores data sorted by primary key.

  This allows you to create a small sparse index that helps find data faster.

• This allows you to use partitions if the partitioning key is specified.

  ClickHouse supports certain operations with partitions that are more effective than general operations on the same data with the same result. ClickHouse also automatically cuts off the partition data where the partitioning key is specified in the query. This also increases the query performance.

• Data replication support.

  The family of ReplicatedMergeTree tables is used for this. For more information, see the Data replication section.

• Data sampling support.

  If necessary, you can set the data sampling method in the table.

Creating a Table¶

CREATE TABLE [IF NOT EXISTS] [db.]table_name [ON CLUSTER cluster]
(
    name1 [type1] [DEFAULT|MATERIALIZED|ALIAS expr1],
    name2 [type2] [DEFAULT|MATERIALIZED|ALIAS expr2],
    ...
    INDEX index_name1 expr1 TYPE type1(...) GRANULARITY value1,
    INDEX index_name2 expr2 TYPE type2(...) GRANULARITY value2
) ENGINE = MergeTree()
[PARTITION BY expr]
[ORDER BY expr]
[PRIMARY KEY expr]
[SAMPLE BY expr]
[SETTINGS name=value, ...]

For a description of request parameters, see request description.

Query clauses

• ENGINE - Name and parameters of the engine. ENGINE = MergeTree(). MergeTree engine does not have parameters.

• PARTITION BY — The partitioning key.

  For partitioning by month, use the toYYYYMM(date_column) expression, where date_column is a column with a date of the type Date. The partition names here have the "YYYYMM" format.

• ORDER BY — The sorting key.

  A tuple of columns or arbitrary expressions. Example: ORDER BY (CounterID, EventDate).

• PRIMARY KEY - The primary key if it differs from the sorting key.

  By default the primary key is the same as the sorting key (which is specified by the ORDER BY clause). Thus in most cases it is unnecessary to specify a separate PRIMARY KEY clause.

• SAMPLE BY — An expression for sampling.

  If a sampling expression is used, the primary key must contain it. Example:
  SAMPLE BY intHash32(UserID) ORDER BY (CounterID, EventDate, intHash32(UserID)).

• SETTINGS — Additional parameters that control the behavior of the MergeTree:

  • index_granularity — The granularity of an index. The number of data rows between the "marks" of an index. By default, 8192. The list of all available parameters you can see in MergeTreeSettings.h.
  • min_merge_bytes_to_use_direct_io — The minimum data volume for merge operation required for using of the direct I/O access to the storage disk. During the merging of the data parts, ClickHouse calculates summary storage volume of all the data to be merged. If the volume exceeds min_merge_bytes_to_use_direct_io bytes, thеn ClickHouse reads and writes the data using direct I/O interface (O_DIRECT option) to the storage disk. If min_merge_bytes_to_use_direct_io = 0, then the direct I/O is disabled. Default value: 10 * 1024 * 1024 * 1024 bytes.

Example of sections setting

ENGINE MergeTree() PARTITION BY toYYYYMM(EventDate) ORDER BY (CounterID, EventDate, intHash32(UserID)) SAMPLE BY intHash32(UserID) SETTINGS index_granularity=8192

In the example, we set partitioning by month.

We also set an expression for sampling as a hash by the user ID. This allows you to pseudorandomize the data in the table for each CounterID and EventDate. If, when selecting the data, you define a SAMPLE clause, ClickHouse will return an evenly pseudorandom data sample for a subset of users.

index_granularity could be omitted because 8192 is the default value.

CREATE TABLE [IF NOT EXISTS] [db.]table_name [ON CLUSTER cluster]
(
    name1 [type1] [DEFAULT|MATERIALIZED|ALIAS expr1],
    name2 [type2] [DEFAULT|MATERIALIZED|ALIAS expr2],
    ...
) ENGINE [=] MergeTree(date-column [, sampling_expression], (primary, key), index_granularity)

MergeTree(EventDate, intHash32(UserID), (CounterID, EventDate, intHash32(UserID)), 8192)

Data Storage¶

A table consists of data parts sorted by primary key.

When data is inserted in a table, separate data parts are created and each of them is lexicographically sorted by primary key. For example, if the primary key is (CounterID, Date), the data in the part is sorted by CounterID, and within each CounterID, it is ordered by Date.

Data belonging to different partitions are separated into different parts. In the background, ClickHouse merges data parts for more efficient storage. Parts belonging to different partitions are not merged. The merge mechanism does not guarantee that all rows with the same primary key will be in the same data part.

For each data part, ClickHouse creates an index file that contains the primary key value for each index row ("mark"). Index row numbers are defined as n * index_granularity. The maximum value n is equal to the integer part of dividing the total number of rows by the index_granularity. For each column, the "marks" are also written for the same index rows as the primary key. These "marks" allow you to find the data directly in the columns.

You can use a single large table and continually add data to it in small chunks – this is what the MergeTree engine is intended for.

Primary Keys and Indexes in Queries¶

Let's take the (CounterID, Date) primary key. In this case, the sorting and index can be illustrated as follows:

Whole data:     [-------------------------------------------------------------------------]
CounterID:      [aaaaaaaaaaaaaaaaaabbbbcdeeeeeeeeeeeeefgggggggghhhhhhhhhiiiiiiiiikllllllll]
Date:           [1111111222222233331233211111222222333211111112122222223111112223311122333]
Marks:           |      |      |      |      |      |      |      |      |      |      |
                a,1    a,2    a,3    b,3    e,2    e,3    g,1    h,2    i,1    i,3    l,3
Marks numbers:   0      1      2      3      4      5      6      7      8      9      10

If the data query specifies:

• CounterID in ('a', 'h'), the server reads the data in the ranges of marks [0, 3) and [6, 8).
• CounterID IN ('a', 'h') AND Date = 3, the server reads the data in the ranges of marks [1, 3) and [7, 8).
• Date = 3, the server reads the data in the range of marks [1, 10].

The examples above show that it is always more effective to use an index than a full scan.

A sparse index allows extra strings to be read. When reading a single range of the primary key, up to index_granularity * 2 extra rows in each data block can be read. In most cases, ClickHouse performance does not degrade when index_granularity = 8192.

Sparse indexes allow you to work with a very large number of table rows, because such indexes are always stored in the computer's RAM.

ClickHouse does not require a unique primary key. You can insert multiple rows with the same primary key.

Selecting the Primary Key¶

The number of columns in the primary key is not explicitly limited. Depending on the data structure, you can include more or fewer columns in the primary key. This may:

• Improve the performance of an index.

  If the primary key is (a, b), then adding another column c will improve the performance if the following conditions are met: - There are queries with a condition on column c. - Long data ranges (several times longer than the index_granularity) with identical values for (a, b) are common. In other words, when adding another column allows you to skip quite long data ranges.

• Improve data compression.

  ClickHouse sorts data by primary key, so the higher the consistency, the better the compression.

• Provide additional logic when data parts merging in the CollapsingMergeTree and SummingMergeTree engines.

  In this case it makes sense to specify the sorting key that is different from the primary key.

A long primary key will negatively affect the insert performance and memory consumption, but extra columns in the primary key do not affect ClickHouse performance during SELECT queries.

Choosing the Primary Key that differs from the Sorting Key¶

It is possible to specify the primary key (the expression, values of which are written into the index file for each mark) that is different from the sorting key (the expression for sorting the rows in data parts). In this case the primary key expression tuple must be a prefix of the sorting key expression tuple.

This feature is helpful when using the SummingMergeTree and AggregatingMergeTree table engines. In a common case when using these engines the table has two types of columns: dimensions and measures. Typical queries aggregate values of measure columns with arbitrary GROUP BY and filtering by dimensions. As SummingMergeTree and AggregatingMergeTree aggregate rows with the same value of the sorting key, it is natural to add all dimensions to it. As a result the key expression consists of a long list of columns and this list must be frequently updated with newly added dimensions.

In this case it makes sense to leave only a few columns in the primary key that will provide efficient range scans and add the remaining dimension columns to the sorting key tuple.

ALTER of the sorting key is a lightweight operation because when a new column is simultaneously added to the table and to the sorting key data parts need not be changed (they remain sorted by the new sorting key expression).

Use of Indexes and Partitions in Queries¶

ForSELECT queries, ClickHouse analyzes whether an index can be used. An index can be used if the WHERE/PREWHERE clause has an expression (as one of the conjunction elements, or entirely) that represents an equality or inequality comparison operation, or if it has IN or LIKE with a fixed prefix on columns or expressions that are in the primary key or partitioning key, or on certain partially repetitive functions of these columns, or logical relationships of these expressions.

Thus, it is possible to quickly run queries on one or many ranges of the primary key. In this example, queries will be fast when run for a specific tracking tag; for a specific tag and date range; for a specific tag and date; for multiple tags with a date range, and so on.

Let's look at the engine configured as follows:

ENGINE MergeTree() PARTITION BY toYYYYMM(EventDate) ORDER BY (CounterID, EventDate) SETTINGS index_granularity=8192

In this case, in queries:

SELECT count() FROM table WHERE EventDate = toDate(now()) AND CounterID = 34
SELECT count() FROM table WHERE EventDate = toDate(now()) AND (CounterID = 34 OR CounterID = 42)
SELECT count() FROM table WHERE ((EventDate >= toDate('2014-01-01') AND EventDate <= toDate('2014-01-31')) OR EventDate = toDate('2014-05-01')) AND CounterID IN (101500, 731962, 160656) AND (CounterID = 101500 OR EventDate != toDate('2014-05-01'))

ClickHouse will use the primary key index to trim improper data and the monthly partitioning key to trim partitions that are in improper date ranges.

The queries above show that the index is used even for complex expressions. Reading from the table is organized so that using the index can't be slower than a full scan.

In the example below, the index can't be used.

SELECT count() FROM table WHERE CounterID = 34 OR URL LIKE '%upyachka%'

To check whether ClickHouse can use the index when running a query, use the settings force_index_by_date and force_primary_key.

The key for partitioning by month allows reading only those data blocks which contain dates from the proper range. In this case, the data block may contain data for many dates (up to an entire month). Within a block, data is sorted by primary key, which might not contain the date as the first column. Because of this, using a query with only a date condition that does not specify the primary key prefix will cause more data to be read than for a single date.

Data Skipping Indices (Experimental)¶

You need to set allow_experimental_data_skipping_indices to 1 to use indices. (run SET allow_experimental_data_skipping_indices = 1).

Index declaration in the columns section of the CREATE query.

INDEX index_name expr TYPE type(...) GRANULARITY granularity_value

For tables from the *MergeTree family data skipping indices can be specified.

These indices aggregate some information about the specified expression on blocks, which consist of granularity_value granules, then these aggregates are used in SELECT queries for reducing the amount of data to read from the disk by skipping big blocks of data where where query cannot be satisfied.

Example

CREATE TABLE table_name
(
    u64 UInt64,
    i32 Int32,
    s String,
    ...
    INDEX a (u64 * i32, s) TYPE minmax GRANULARITY 3,
    INDEX b (u64 * length(s)) TYPE set(1000) GRANULARITY 4
) ENGINE = MergeTree()
...

Indices from the example can be used by ClickHouse to reduce the amount of data to read from disk in following queries.

SELECT count() FROM table WHERE s < 'z'
SELECT count() FROM table WHERE u64 * i32 == 10 AND u64 * length(s) >= 1234

Available Types of Indices¶

• minmax Stores extremes of the specified expression (if the expression is tuple, then it stores extremes for each element of tuple), uses stored info for skipping blocks of the data like the primary key.

• set(max_rows) Stores unique values of the specified expression (no more than max_rows rows), use them to check if the WHERE expression is not satisfiable on a block of the data.

INDEX sample_index (u64 * length(s)) TYPE minmax GRANULARITY 4
INDEX b (u64 * length(str), i32 + f64 * 100, date, str) TYPE set(100) GRANULARITY 4

Concurrent Data Access¶

For concurrent table access, we use multi-versioning. In other words, when a table is simultaneously read and updated, data is read from a set of parts that is current at the time of the query. There are no lengthy locks. Inserts do not get in the way of read operations.

Reading from a table is automatically parallelized.

Original article

Data Replication¶

Replication is only supported for tables in the MergeTree family:

• ReplicatedMergeTree
• ReplicatedSummingMergeTree
• ReplicatedReplacingMergeTree
• ReplicatedAggregatingMergeTree
• ReplicatedCollapsingMergeTree
• ReplicatedVersionedCollapsingMergeTree
• ReplicatedGraphiteMergeTree

Replication works at the level of an individual table, not the entire server. A server can store both replicated and non-replicated tables at the same time.

Replication does not depend on sharding. Each shard has its own independent replication.

Compressed data for INSERT and ALTER queries is replicated (for more information, see the documentation for ALTER).

CREATE, DROP, ATTACH, DETACH and RENAME queries are executed on a single server and are not replicated:

• The CREATE TABLE query creates a new replicatable table on the server where the query is run. If this table already exists on other servers, it adds a new replica.
• The DROP TABLE query deletes the replica located on the server where the query is run.
• The RENAME query renames the table on one of the replicas. In other words, replicated tables can have different names on different replicas.

To use replication, set the addresses of the ZooKeeper cluster in the config file. Example:

<zookeeper>
    <node index="1">
        <host>example1</host>
        <port>2181</port>
    </node>
    <node index="2">
        <host>example2</host>
        <port>2181</port>
    </node>
    <node index="3">
        <host>example3</host>
        <port>2181</port>
    </node>
</zookeeper>

Use ZooKeeper version 3.4.5 or later.

You can specify any existing ZooKeeper cluster and the system will use a directory on it for its own data (the directory is specified when creating a replicatable table).

If ZooKeeper isn't set in the config file, you can't create replicated tables, and any existing replicated tables will be read-only.

ZooKeeper is not used in SELECT queries because replication does not affect the performance of SELECT and queries run just as fast as they do for non-replicated tables. When querying distributed replicated tables, ClickHouse behavior is controlled by the settings max_replica_delay_for_distributed_queries and fallback_to_stale_replicas_for_distributed_queries.

For each INSERT query, approximately ten entries are added to ZooKeeper through several transactions. (To be more precise, this is for each inserted block of data; an INSERT query contains one block or one block per max_insert_block_size = 1048576 rows.) This leads to slightly longer latencies for INSERT compared to non-replicated tables. But if you follow the recommendations to insert data in batches of no more than one INSERT per second, it doesn't create any problems. The entire ClickHouse cluster used for coordinating one ZooKeeper cluster has a total of several hundred INSERTs per second. The throughput on data inserts (the number of rows per second) is just as high as for non-replicated data.

For very large clusters, you can use different ZooKeeper clusters for different shards. However, this hasn't proven necessary on the Yandex.Metrica cluster (approximately 300 servers).

Replication is asynchronous and multi-master. INSERT queries (as well as ALTER) can be sent to any available server. Data is inserted on the server where the query is run, and then it is copied to the other servers. Because it is asynchronous, recently inserted data appears on the other replicas with some latency. If part of the replicas are not available, the data is written when they become available. If a replica is available, the latency is the amount of time it takes to transfer the block of compressed data over the network.

By default, an INSERT query waits for confirmation of writing the data from only one replica. If the data was successfully written to only one replica and the server with this replica ceases to exist, the stored data will be lost. Tp enable getting confirmation of data writes from multiple replicas, use the insert_quorum option.

Each block of data is written atomically. The INSERT query is divided into blocks up to max_insert_block_size = 1048576 rows. In other words, if the INSERT query has less than 1048576 rows, it is made atomically.

Data blocks are deduplicated. For multiple writes of the same data block (data blocks of the same size containing the same rows in the same order), the block is only written once. The reason for this is in case of network failures when the client application doesn't know if the data was written to the DB, so the INSERT query can simply be repeated. It doesn't matter which replica INSERTs were sent to with identical data. INSERTs are idempotent. Deduplication parameters are controlled by merge_tree server settings.

During replication, only the source data to insert is transferred over the network. Further data transformation (merging) is coordinated and performed on all the replicas in the same way. This minimizes network usage, which means that replication works well when replicas reside in different datacenters. (Note that duplicating data in different datacenters is the main goal of replication.)

You can have any number of replicas of the same data. Yandex.Metrica uses double replication in production. Each server uses RAID-5 or RAID-6, and RAID-10 in some cases. This is a relatively reliable and convenient solution.

The system monitors data synchronicity on replicas and is able to recover after a failure. Failover is automatic (for small differences in data) or semi-automatic (when data differs too much, which may indicate a configuration error).

Creating Replicated Tables¶

The Replicated prefix is added to the table engine name. For example:ReplicatedMergeTree.

Replicated*MergeTree parameters

• zoo_path — The path to the table in ZooKeeper.
• replica_name — The replica name in ZooKeeper.

Example:

CREATE TABLE table_name
(
    EventDate DateTime,
    CounterID UInt32,
    UserID UInt32
) ENGINE = ReplicatedMergeTree('/clickhouse/tables/{layer}-{shard}/hits', '{replica}')
PARTITION BY toYYYYMM(EventDate)
ORDER BY (CounterID, EventDate, intHash32(UserID))
SAMPLE BY intHash32(UserID)

CREATE TABLE table_name
(
    EventDate DateTime,
    CounterID UInt32,
    UserID UInt32
) ENGINE = ReplicatedMergeTree('/clickhouse/tables/{layer}-{shard}/hits', '{replica}', EventDate, intHash32(UserID), (CounterID, EventDate, intHash32(UserID), EventTime), 8192)

As the example shows, these parameters can contain substitutions in curly brackets. The substituted values are taken from the 'macros' section of the configuration file. Example:

<macros>
    <layer>05</layer>
    <shard>02</shard>
    <replica>example05-02-1.yandex.ru</replica>
</macros>

The path to the table in ZooKeeper should be unique for each replicated table. Tables on different shards should have different paths. In this case, the path consists of the following parts:

/clickhouse/tables/ is the common prefix. We recommend using exactly this one.

{layer}-{shard} is the shard identifier. In this example it consists of two parts, since the Yandex.Metrica cluster uses bi-level sharding. For most tasks, you can leave just the {shard} substitution, which will be expanded to the shard identifier.

hits is the name of the node for the table in ZooKeeper. It is a good idea to make it the same as the table name. It is defined explicitly, because in contrast to the table name, it doesn't change after a RENAME query.

The replica name identifies different replicas of the same table. You can use the server name for this, as in the example. The name only needs to be unique within each shard.

You can define the parameters explicitly instead of using substitutions. This might be convenient for testing and for configuring small clusters. However, you can't use distributed DDL queries (ON CLUSTER) in this case.

When working with large clusters, we recommend using substitutions because they reduce the probability of error.

Run the CREATE TABLE query on each replica. This query creates a new replicated table, or adds a new replica to an existing one.

If you add a new replica after the table already contains some data on other replicas, the data will be copied from the other replicas to the new one after running the query. In other words, the new replica syncs itself with the others.

To delete a replica, run DROP TABLE. However, only one replica is deleted – the one that resides on the server where you run the query.

Recovery After Failures¶

If ZooKeeper is unavailable when a server starts, replicated tables switch to read-only mode. The system periodically attempts to connect to ZooKeeper.

If ZooKeeper is unavailable during an INSERT, or an error occurs when interacting with ZooKeeper, an exception is thrown.

After connecting to ZooKeeper, the system checks whether the set of data in the local file system matches the expected set of data (ZooKeeper stores this information). If there are minor inconsistencies, the system resolves them by syncing data with the replicas.

If the system detects broken data parts (with the wrong size of files) or unrecognized parts (parts written to the file system but not recorded in ZooKeeper), it moves them to the 'detached' subdirectory (they are not deleted). Any missing parts are copied from the replicas.

Note that ClickHouse does not perform any destructive actions such as automatically deleting a large amount of data.

When the server starts (or establishes a new session with ZooKeeper), it only checks the quantity and sizes of all files. If the file sizes match but bytes have been changed somewhere in the middle, this is not detected immediately, but only when attempting to read the data for a SELECT query. The query throws an exception about a non-matching checksum or size of a compressed block. In this case, data parts are added to the verification queue and copied from the replicas if necessary.

If the local set of data differs too much from the expected one, a safety mechanism is triggered. The server enters this in the log and refuses to launch. The reason for this is that this case may indicate a configuration error, such as if a replica on a shard was accidentally configured like a replica on a different shard. However, the thresholds for this mechanism are set fairly low, and this situation might occur during normal failure recovery. In this case, data is restored semi-automatically - by "pushing a button".

To start recovery, create the node /path_to_table/replica_name/flags/force_restore_data in ZooKeeper with any content, or run the command to restore all replicated tables:

sudo -u clickhouse touch /var/lib/clickhouse/flags/force_restore_data

Then restart the server. On start, the server deletes these flags and starts recovery.

Recovery After Complete Data Loss¶

If all data and metadata disappeared from one of the servers, follow these steps for recovery:

1. Install ClickHouse on the server. Define substitutions correctly in the config file that contains the shard identifier and replicas, if you use them.
2. If you had unreplicated tables that must be manually duplicated on the servers, copy their data from a replica (in the directory /var/lib/clickhouse/data/db_name/table_name/).
3. Copy table definitions located in /var/lib/clickhouse/metadata/ from a replica. If a shard or replica identifier is defined explicitly in the table definitions, correct it so that it corresponds to this replica. (Alternatively, start the server and make all the ATTACH TABLE queries that should have been in the .sql files in /var/lib/clickhouse/metadata/.)
4. To start recovery, create the ZooKeeper node /path_to_table/replica_name/flags/force_restore_data with any content, or run the command to restore all replicated tables: sudo -u clickhouse touch /var/lib/clickhouse/flags/force_restore_data

Then start the server (restart, if it is already running). Data will be downloaded from replicas.

An alternative recovery option is to delete information about the lost replica from ZooKeeper (/path_to_table/replica_name), then create the replica again as described in "Creating replicated tables".

There is no restriction on network bandwidth during recovery. Keep this in mind if you are restoring many replicas at once.

Converting from MergeTree to ReplicatedMergeTree¶

We use the term MergeTree to refer to all table engines in the MergeTree family, the same as for ReplicatedMergeTree.

If you had a MergeTree table that was manually replicated, you can convert it to a replicated table. You might need to do this if you have already collected a large amount of data in a MergeTree table and now you want to enable replication.

If the data differs on various replicas, first sync it, or delete this data on all the replicas except one.

Rename the existing MergeTree table, then create a ReplicatedMergeTree table with the old name. Move the data from the old table to the 'detached' subdirectory inside the directory with the new table data (/var/lib/clickhouse/data/db_name/table_name/). Then run ALTER TABLE ATTACH PARTITION on one of the replicas to add these data parts to the working set.

Converting from ReplicatedMergeTree to MergeTree¶

Create a MergeTree table with a different name. Move all the data from the directory with the ReplicatedMergeTree table data to the new table's data directory. Then delete the ReplicatedMergeTree table and restart the server.

If you want to get rid of a ReplicatedMergeTree table without launching the server:

• Delete the corresponding .sql file in the metadata directory (/var/lib/clickhouse/metadata/).
• Delete the corresponding path in ZooKeeper (/path_to_table/replica_name).

After this, you can launch the server, create a MergeTree table, move the data to its directory, and then restart the server.

Recovery When Metadata in The ZooKeeper Cluster is Lost or Damaged¶

If the data in ZooKeeper was lost or damaged, you can save data by moving it to an unreplicated table as described above.

Original article

Custom Partitioning Key¶

Partitioning is available for the MergeTree family tables (including replicated tables). Materialized views based on MergeTree table support partitioning as well.

A partition is a logical combination of records in a table by a specified criterion. You can set a partition by an arbitrary criterion, for example, by month, by day or by event type. Each partition is stored separately in order to simplify manipulations with this data. When accessing the data ClickHouse only uses as small subset of partitions as possible.

The partition is specified in the PARTITION BY expr clause when creating a table. The partition key can be any expression from the table columns. For example, to specify the partitioning by month, use an expression toYYYYMM(date_column):

CREATE TABLE visits
(
    VisitDate Date,
    Hour UInt8,
    ClientID UUID
)
ENGINE = MergeTree()
PARTITION BY toYYYYMM(Date)
ORDER BY Hour

The partition key also can be a tuple of expressions (similar to the primary key). For example:

ENGINE = ReplicatedCollapsingMergeTree('/clickhouse/tables/name', 'replica1', Sign)
PARTITION BY (toMonday(StartDate), EventType)
ORDER BY (CounterID, StartDate, intHash32(UserID))
SAMPLE BY intHash32(UserID)

In this example, we set partitioning by the event types that occurred the current week.

When inserting new data to a table, this data is stored as a separate part (chunk) sorted by the primary key. In 10-15 minutes after inserting, the parts of the same partition are merged into the entire part.

To view the table parts and partitions, use the system.parts table. For example, let's assume that we have a table visits with partitioning by month. Let's perform the SELECT query for the system.parts table:

SELECT
    partition,
    name,
    active
FROM system.parts
WHERE table = 'visits'
