Using

Prerequisites

The library contains only header files, and does not require any other libraries except the standard C++ library . All classes are defined in namespace __gnu_pbds. The library internally uses macros beginning with PB_DS, but #undefs anything it #defines (except for header guards). Compiling the library in an environment where macros beginning in PB_DS are defined, may yield unpredictable results in compilation, execution, or both.

Further dependencies are necessary to create the visual output for the performance tests. To create these graphs, an additional package is needed: pychart.

Organization

The various data structures are organized as follows.

  • Branch-Based

    • basic_branch is an abstract base class for branched-based associative-containers

    • tree is a concrete base class for tree-based associative-containers

    • trie is a concrete base class trie-based associative-containers

  • Hash-Based

    • basic_hash_table is an abstract base class for hash-based associative-containers

    • cc_hash_table is a concrete collision-chaining hash-based associative-containers

    • gp_hash_table is a concrete (general) probing hash-based associative-containers

  • List-Based

    • list_update list-based update-policy associative container

  • Heap-Based

    • priority_queue A priority queue.

The hierarchy is composed naturally so that commonality is captured by base classes. Thus operator[] is defined at the base of any hierarchy, since all derived containers support it. Conversely split is defined in basic_branch, since only tree-like containers support it.

In addition, there are the following diagnostics classes, used to report errors specific to this library's data structures.

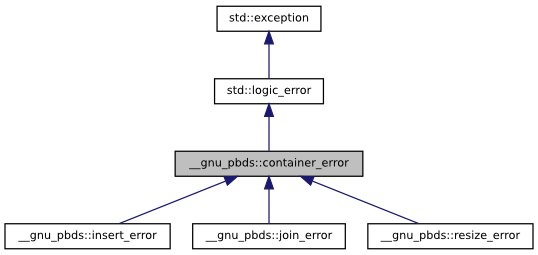

Figure 22.7. Exception Hierarchy

Exception Hierarchy

Tutorial

Basic Use

For the most part, the policy-based containers containers in namespace __gnu_pbds have the same interface as the equivalent containers in the standard C++ library, except for the names used for the container classes themselves. For example, this shows basic operations on a collision-chaining hash-based container:

	  #include <ext/pb_ds/assoc_container.h>

	  int main()
	  {
	  __gnu_pbds::cc_hash_table<int, char> c;
	  c[2] = 'b';
	  assert(c.find(1) == c.end());
	  };


The container is called __gnu_pbds::cc_hash_table instead of std::unordered_map, since unordered map does not necessarily mean a hash-based map as implied by the C++ library (C++11 or TR1). For example, list-based associative containers, which are very useful for the construction of "multimaps," are also unordered.

This snippet shows a red-black tree based container:

	  #include <ext/pb_ds/assoc_container.h>

	  int main()
	  {
	  __gnu_pbds::tree<int, char> c;
	  c[2] = 'b';
	  assert(c.find(2) != c.end());
	  };


The container is called tree instead of map since the underlying data structures are being named with specificity.

The member function naming convention is to strive to be the same as the equivalent member functions in other C++ standard library containers. The familiar methods are unchanged: begin, end, size, empty, and clear.

This isn't to say that things are exactly as one would expect, given the container requirments and interfaces in the C++ standard.

The names of containers' policies and policy accessors are different then the usual. For example, if hash_type is some type of hash-based container, then

	  hash_type::hash_fn


gives the type of its hash functor, and if obj is some hash-based container object, then

	  obj.get_hash_fn()


will return a reference to its hash-functor object.

Similarly, if tree_type is some type of tree-based container, then

	  tree_type::cmp_fn


gives the type of its comparison functor, and if obj is some tree-based container object, then

	  obj.get_cmp_fn()


will return a reference to its comparison-functor object.

It would be nice to give names consistent with those in the existing C++ standard (inclusive of TR1). Unfortunately, these standard containers don't consistently name types and methods. For example, std::tr1::unordered_map uses hasher for the hash functor, but std::map uses key_compare for the comparison functor. Also, we could not find an accessor for std::tr1::unordered_map's hash functor, but std::map uses compare for accessing the comparison functor.

Instead, __gnu_pbds attempts to be internally consistent, and uses standard-derived terminology if possible.

Another source of difference is in scope: __gnu_pbds contains more types of associative containers than the standard C++ library, and more opportunities to configure these new containers, since different types of associative containers are useful in different settings.

Namespace __gnu_pbds contains different classes for hash-based containers, tree-based containers, trie-based containers, and list-based containers.

Since associative containers share parts of their interface, they are organized as a class hierarchy.

Each type or method is defined in the most-common ancestor in which it makes sense.

For example, all associative containers support iteration expressed in the following form:

	  const_iterator
	  begin() const;

	  iterator
	  begin();

	  const_iterator
	  end() const;

	  iterator
	  end();


But not all containers contain or use hash functors. Yet, both collision-chaining and (general) probing hash-based associative containers have a hash functor, so basic_hash_table contains the interface:

	  const hash_fn&
	  get_hash_fn() const;

	  hash_fn&
	  get_hash_fn();


so all hash-based associative containers inherit the same hash-functor accessor methods.

Configuring via Template Parameters

In general, each of this library's containers is parametrized by more policies than those of the standard library. For example, the standard hash-based container is parametrized as follows:

	  template<typename Key, typename Mapped, typename Hash,
	  typename Pred, typename Allocator, bool Cache_Hashe_Code>
	  class unordered_map;


and so can be configured by key type, mapped type, a functor that translates keys to unsigned integral types, an equivalence predicate, an allocator, and an indicator whether to store hash values with each entry. this library's collision-chaining hash-based container is parametrized as

	  template<typename Key, typename Mapped, typename Hash_Fn,
	  typename Eq_Fn, typename Comb_Hash_Fn,
	  typename Resize_Policy, bool Store_Hash
	  typename Allocator>
	  class cc_hash_table;


and so can be configured by the first four types of std::tr1::unordered_map, then a policy for translating the key-hash result into a position within the table, then a policy by which the table resizes, an indicator whether to store hash values with each entry, and an allocator (which is typically the last template parameter in standard containers).

Nearly all policy parameters have default values, so this need not be considered for casual use. It is important to note, however, that hash-based containers' policies can dramatically alter their performance in different settings, and that tree-based containers' policies can make them useful for other purposes than just look-up.

As opposed to associative containers, priority queues have relatively few configuration options. The priority queue is parametrized as follows:

	  template<typename Value_Type, typename Cmp_Fn,typename Tag,
	  typename Allocator>
	  class priority_queue;


The Value_Type, Cmp_Fn, and Allocator parameters are the container's value type, comparison-functor type, and allocator type, respectively; these are very similar to the standard's priority queue. The Tag parameter is different: there are a number of pre-defined tag types corresponding to binary heaps, binomial heaps, etc., and Tag should be instantiated by one of them.

Note that as opposed to the std::priority_queue, __gnu_pbds::priority_queue is not a sequence-adapter; it is a regular container.

Querying Container Attributes

A containers underlying data structure affect their performance; Unfortunately, they can also affect their interface. When manipulating generically associative containers, it is often useful to be able to statically determine what they can support and what the cannot.

Happily, the standard provides a good solution to a similar problem - that of the different behavior of iterators. If It is an iterator, then

	  typename std::iterator_traits<It>::iterator_category


is one of a small number of pre-defined tag classes, and

	  typename std::iterator_traits<It>::value_type


is the value type to which the iterator "points".

Similarly, in this library, if C is a container, then container_traits is a trait class that stores information about the kind of container that is implemented.

	  typename container_traits<C>::container_category


is one of a small number of predefined tag structures that uniquely identifies the type of underlying data structure.

In most cases, however, the exact underlying data structure is not really important, but what is important is one of its other attributes: whether it guarantees storing elements by key order, for example. For this one can use

	  typename container_traits<C>::order_preserving


Also,

	  typename container_traits<C>::invalidation_guarantee


is the container's invalidation guarantee. Invalidation guarantees are especially important regarding priority queues, since in this library's design, iterators are practically the only way to manipulate them.

Point and Range Iteration

This library differentiates between two types of methods and iterators: point-type, and range-type. For example, find and insert are point-type methods, since they each deal with a specific element; their returned iterators are point-type iterators. begin and end are range-type methods, since they are not used to find a specific element, but rather to go over all elements in a container object; their returned iterators are range-type iterators.

Most containers store elements in an order that is determined by their interface. Correspondingly, it is fine that their point-type iterators are synonymous with their range-type iterators. For example, in the following snippet

	  std::for_each(c.find(1), c.find(5), foo);


two point-type iterators (returned by find) are used for a range-type purpose - going over all elements whose key is between 1 and 5.

Conversely, the above snippet makes no sense for self-organizing containers - ones that order (and reorder) their elements by implementation. It would be nice to have a uniform iterator system that would allow the above snippet to compile only if it made sense.

This could trivially be done by specializing std::for_each for the case of iterators returned by std::tr1::unordered_map, but this would only solve the problem for one algorithm and one container. Fundamentally, the problem is that one can loop using a self-organizing container's point-type iterators.

This library's containers define two families of iterators: point_const_iterator and point_iterator are the iterator types returned by point-type methods; const_iterator and iterator are the iterator types returned by range-type methods.

	  class <- some container ->
	  {
	  public:
	  ...

	  typedef <- something -> const_iterator;

	  typedef <- something -> iterator;

	  typedef <- something -> point_const_iterator;

	  typedef <- something -> point_iterator;

	  ...

	  public:
	  ...

	  const_iterator begin () const;

	  iterator begin();

	  point_const_iterator find(...) const;

	  point_iterator find(...);
	  };


For containers whose interface defines sequence order , it is very simple: point-type and range-type iterators are exactly the same, which means that the above snippet will compile if it is used for an order-preserving associative container.

For self-organizing containers, however, (hash-based containers as a special example), the preceding snippet will not compile, because their point-type iterators do not support operator++.

In any case, both for order-preserving and self-organizing containers, the following snippet will compile:

	  typename Cntnr::point_iterator it = c.find(2);


because a range-type iterator can always be converted to a point-type iterator.

Distingushing between iterator types also raises the point that a container's iterators might have different invalidation rules concerning their de-referencing abilities and movement abilities. This now corresponds exactly to the question of whether point-type and range-type iterators are valid. As explained above, container_traits allows querying a container for its data structure attributes. The iterator-invalidation guarantees are certainly a property of the underlying data structure, and so

	  container_traits<C>::invalidation_guarantee


gives one of three pre-determined types that answer this query.

Examples

Additional code examples are provided in the source distribution, as part of the regression and performance testsuite.

Intermediate Use

  • Basic use of maps: basic_map.cc

  • Basic use of sets: basic_set.cc

  • Conditionally erasing values from an associative container object: erase_if.cc

  • Basic use of multimaps: basic_multimap.cc

  • Basic use of multisets: basic_multiset.cc

  • Basic use of priority queues: basic_priority_queue.cc

  • Splitting and joining priority queues: priority_queue_split_join.cc

  • Conditionally erasing values from a priority queue: priority_queue_erase_if.cc

Querying with container_traits

  • Using container_traits to query about underlying data structure behavior: assoc_container_traits.cc

  • A non-compiling example showing wrong use of finding keys in hash-based containers: hash_find_neg.cc

  • Using container_traits to query about underlying data structure behavior: priority_queue_container_traits.cc

By Container Method

Hash-Based
size Related
  • Setting the initial size of a hash-based container object: hash_initial_size.cc

  • A non-compiling example showing how not to resize a hash-based container object: hash_resize_neg.cc

  • Resizing the size of a hash-based container object: hash_resize.cc

  • Showing an illegal resize of a hash-based container object: hash_illegal_resize.cc

  • Changing the load factors of a hash-based container object: hash_load_set_change.cc

Hashing Function Related

  • Using a modulo range-hashing function for the case of an unknown skewed key distribution: hash_mod.cc

  • Writing a range-hashing functor for the case of a known skewed key distribution: shift_mask.cc

  • Storing the hash value along with each key: store_hash.cc

  • Writing a ranged-hash functor: ranged_hash.cc

Branch-Based
split or join Related
  • Joining two tree-based container objects: tree_join.cc

  • Splitting a PATRICIA trie container object: trie_split.cc

  • Order statistics while joining two tree-based container objects: tree_order_statistics_join.cc

Node Invariants
  • Using trees for order statistics: tree_order_statistics.cc

  • Augmenting trees to support operations on line intervals: tree_intervals.cc

trie
  • Using a PATRICIA trie for DNA strings: trie_dna.cc

  • Using a PATRICIA trie for finding all entries whose key matches a given prefix: trie_prefix_search.cc

Priority Queues
  • Cross referencing an associative container and a priority queue: priority_queue_xref.cc

  • Cross referencing a vector and a priority queue using a very simple version of Dijkstra's shortest path algorithm: priority_queue_dijkstra.cc
